DIATONE MAMBA F55 / F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5x30.5mm / M3 4-6S for RC FPV Racing Drone
Description
DIATONE MAMBA F55 / F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5x30.5mm / M3 4-6S for RC FPV Racing Drone High-concerned chemical: None Electronic: No Size: NA Model Number: MAMBA F45/ F55/ F65_128K DIY Supplies: Electrical Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Electronic | No |
| Size | NA |
| Model Number | MAMBA F45/ F55/ F65_128K |
| DIY Supplies | Electrical |
| Origin | Mainland China |
Product Details
DIATONE MAMBA F55 / F65_128K BLHeli_32 4in1 ESC Dshot 300-600-1200 Installation 30.5x30.5mm / M3 4-6S For RC FPV Racing Drone Parts

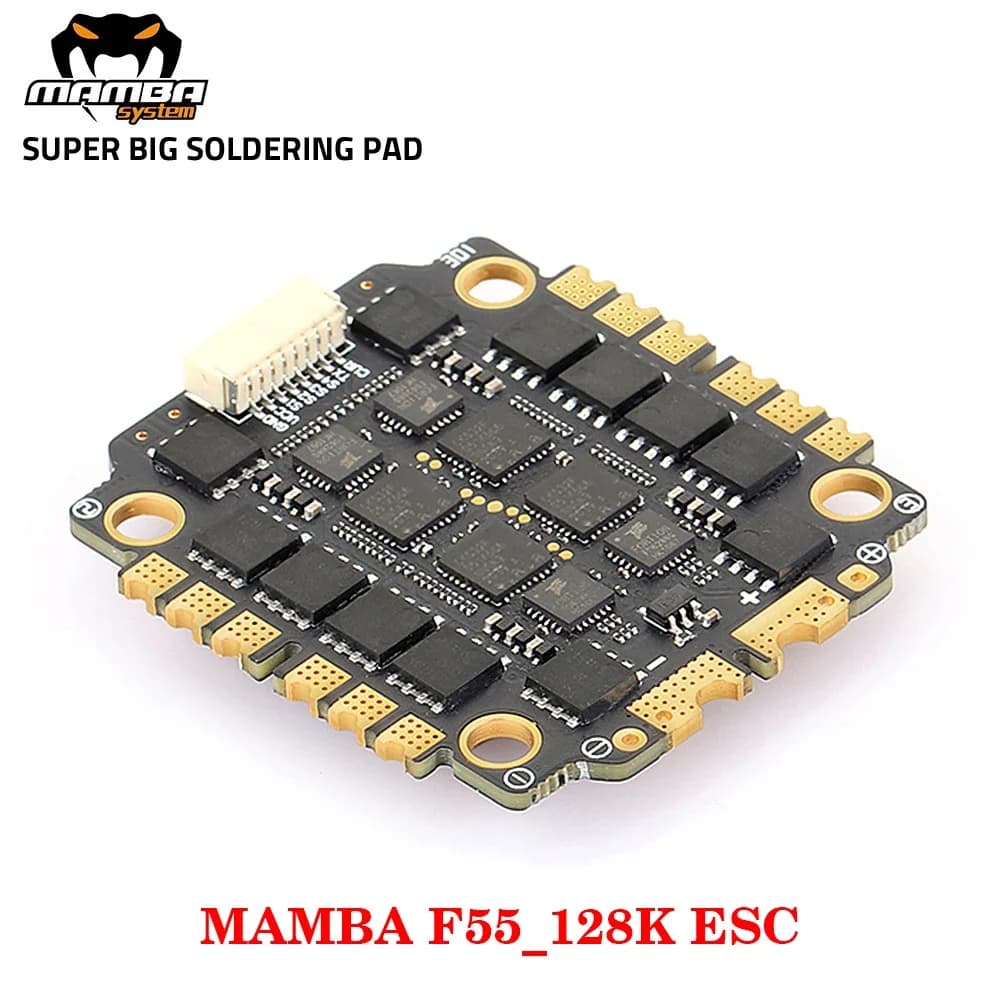

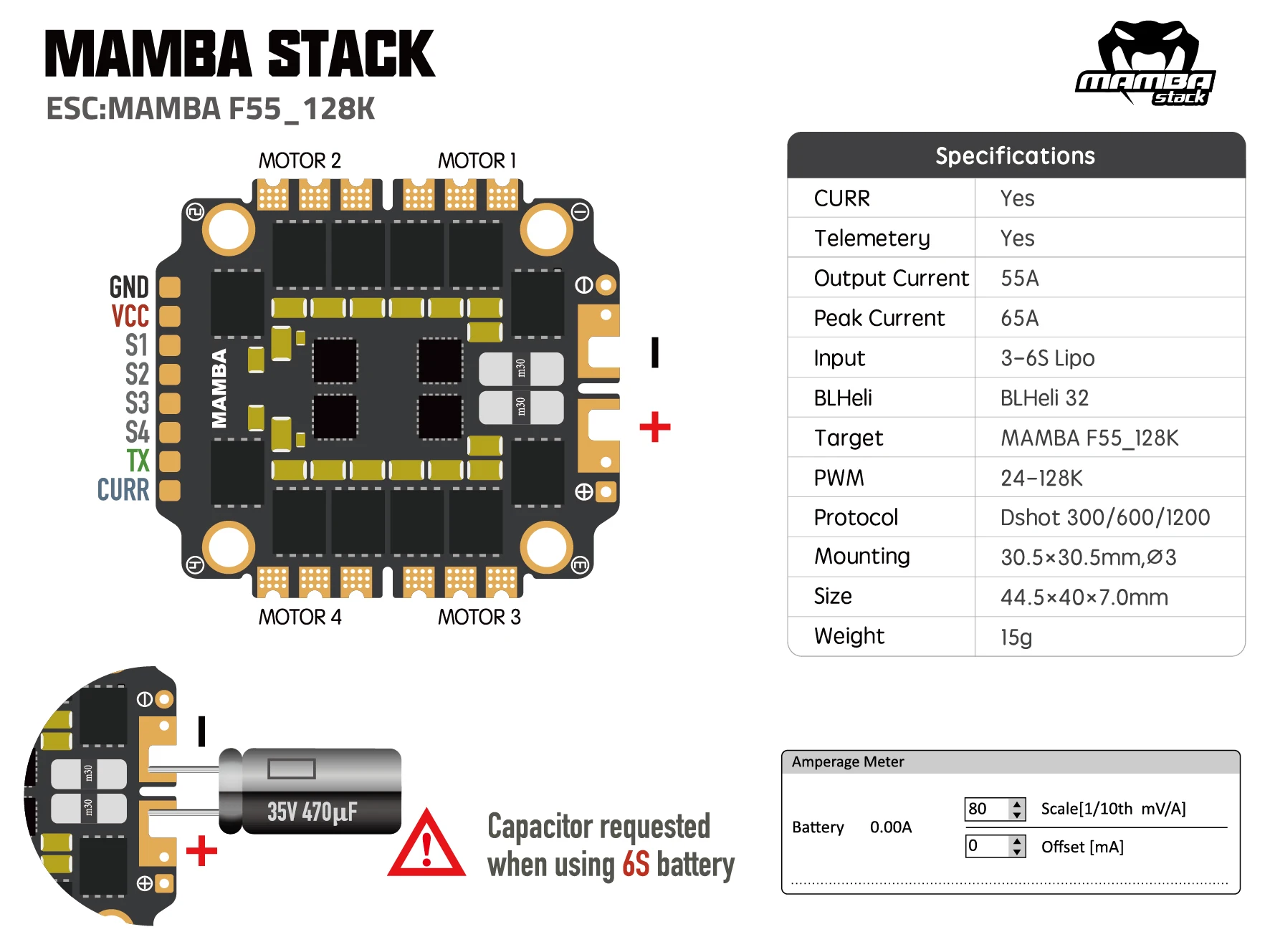

MAMBA F55_ 128K ESC
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 55A × 4
-
Peak current: 65A (10S)
-
BEC output: NO
-
Firmware: BLHELI_32 MABA F55_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1

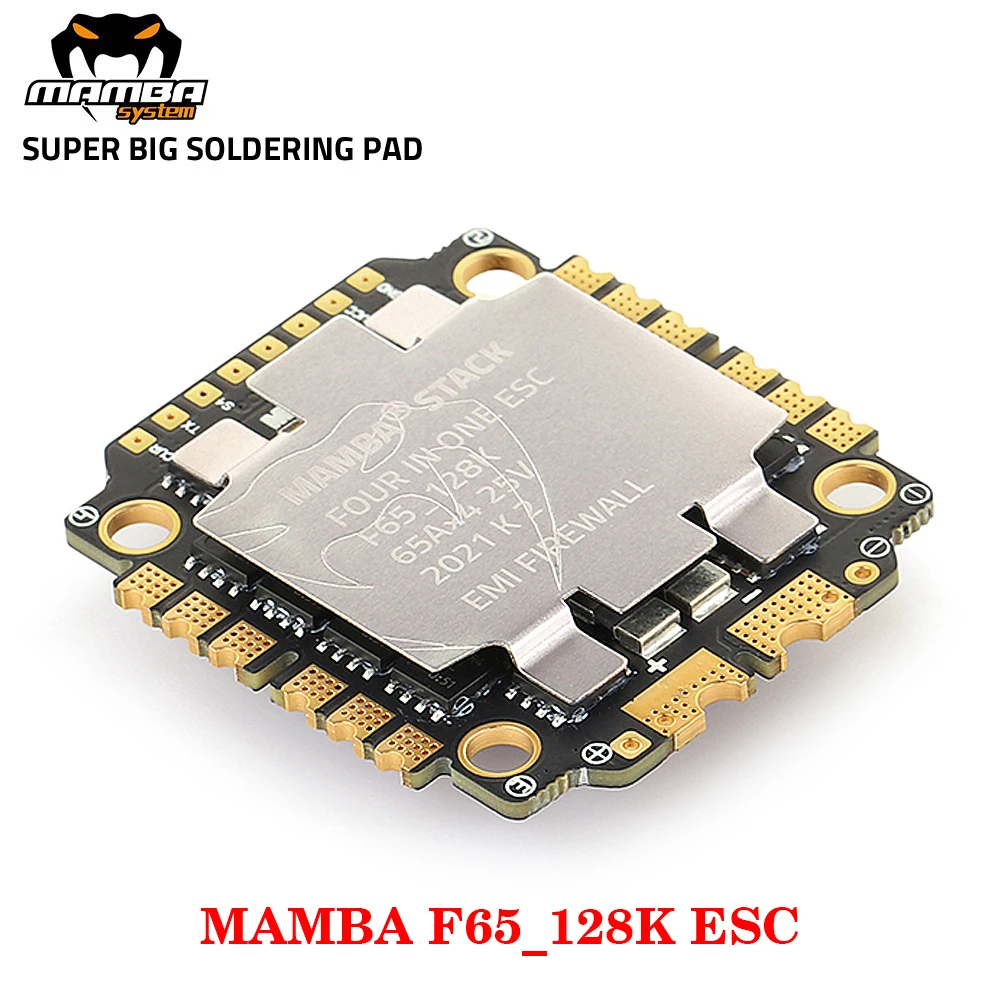

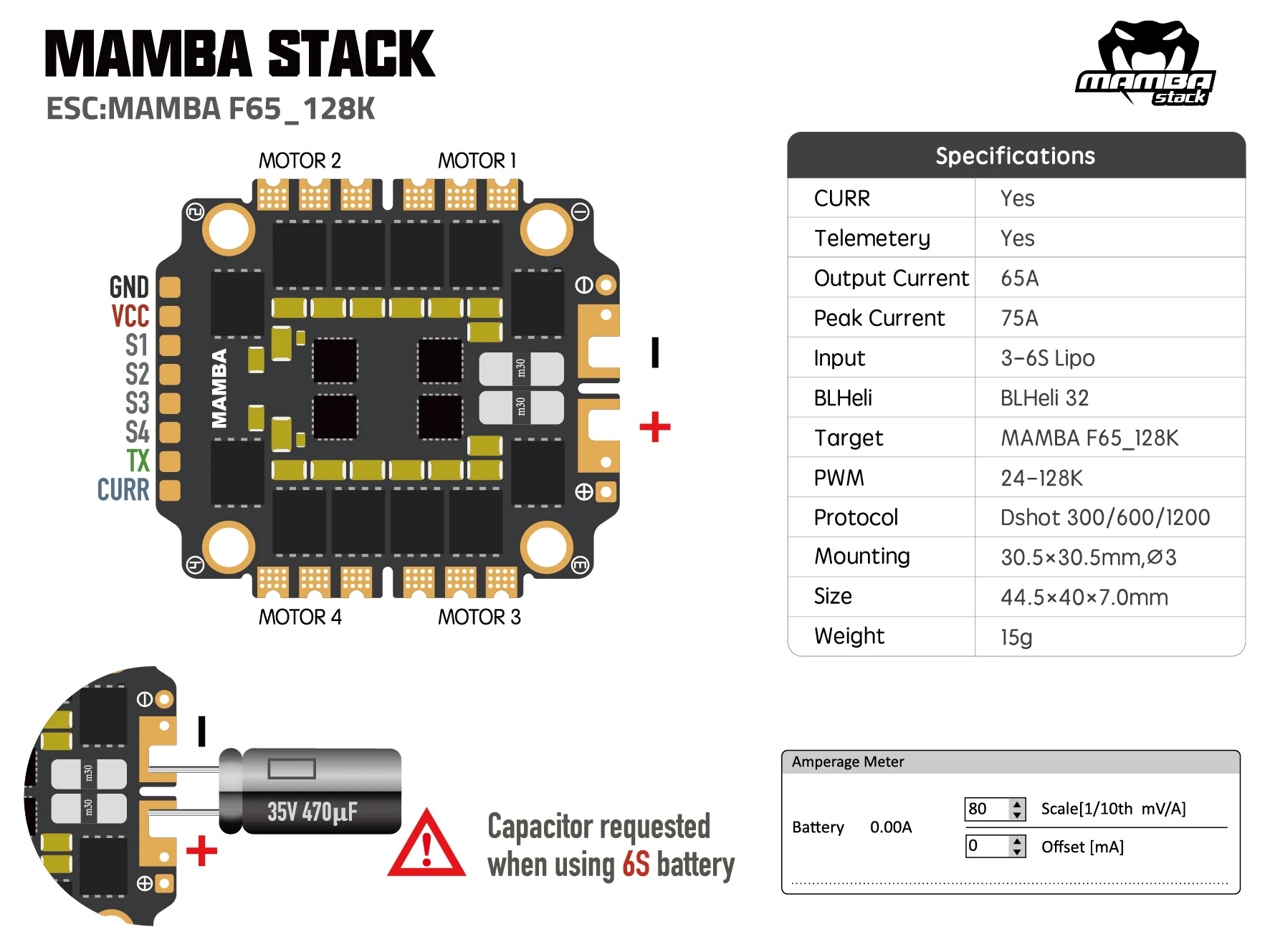

MAMBA F65_ 128K ESC
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 65A × 4
-
Peak current: 75A (10S)
-
BEC output: NO
-
Firmware: BLHELI_32 MABA F65_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
