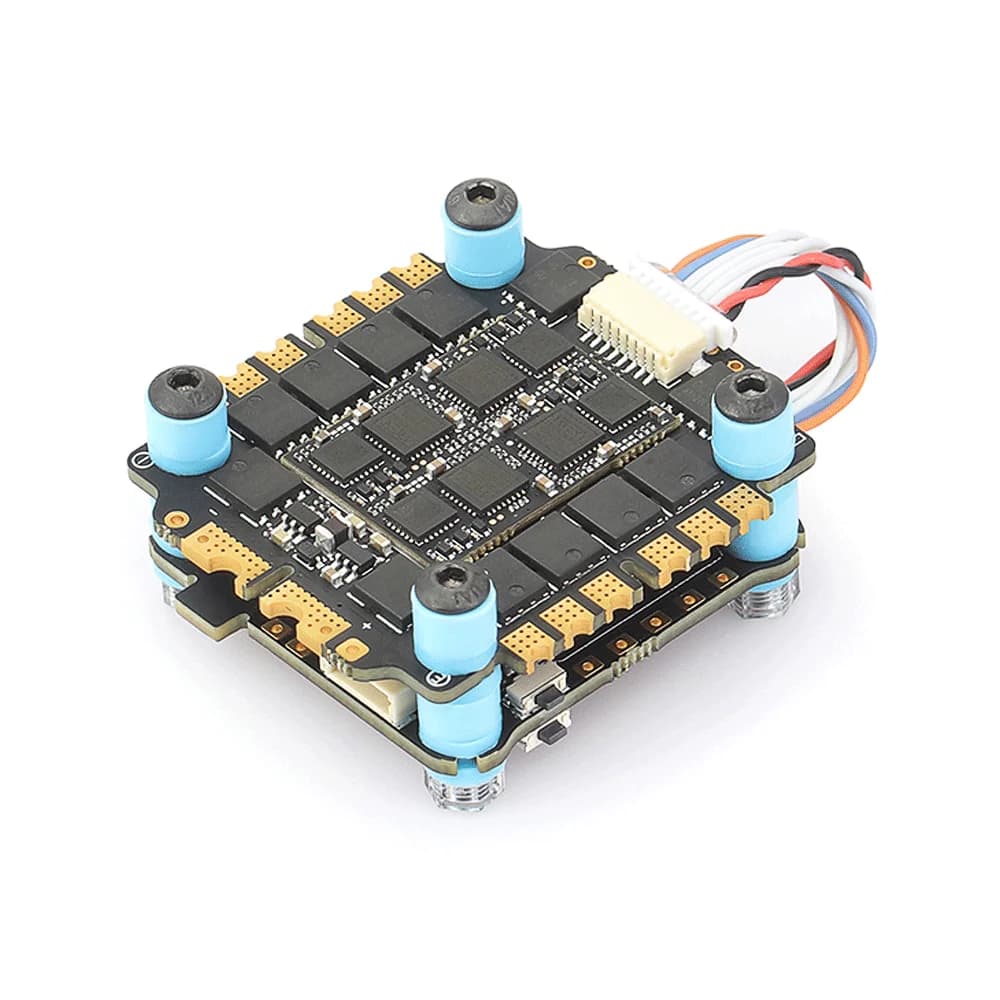

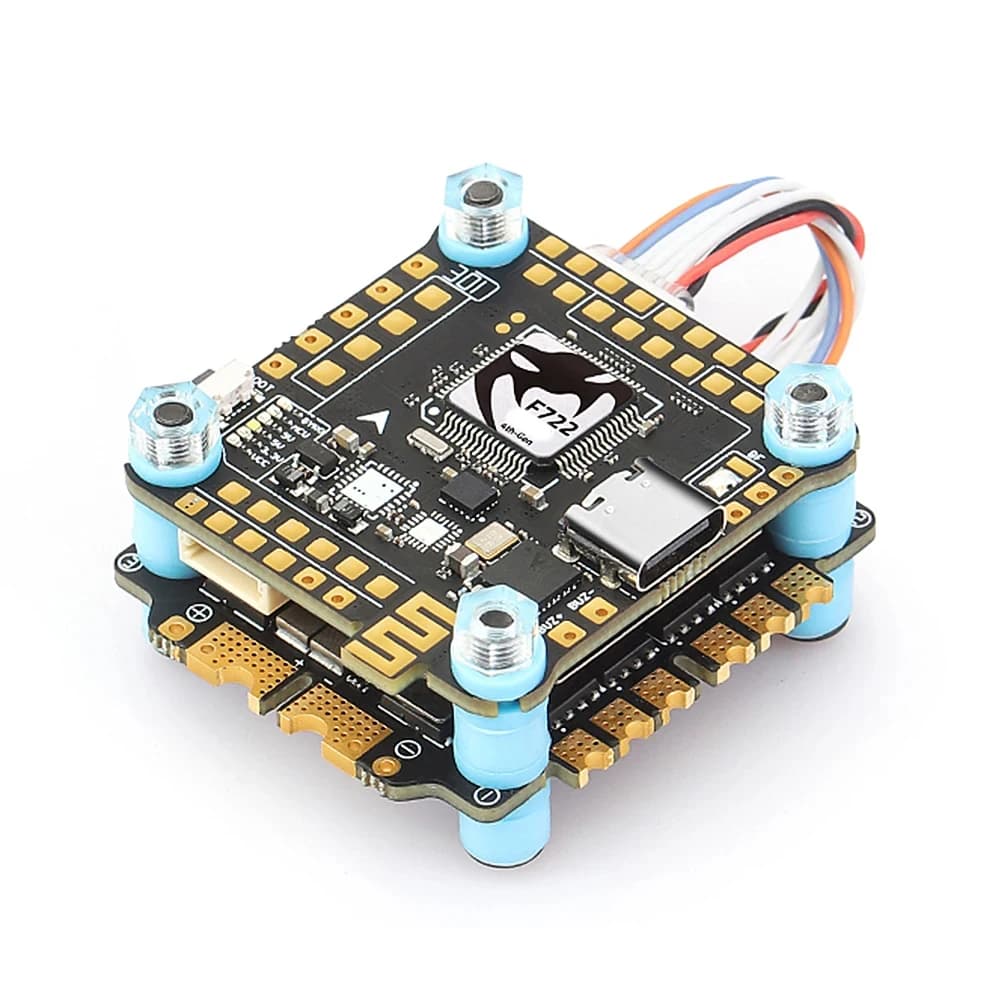

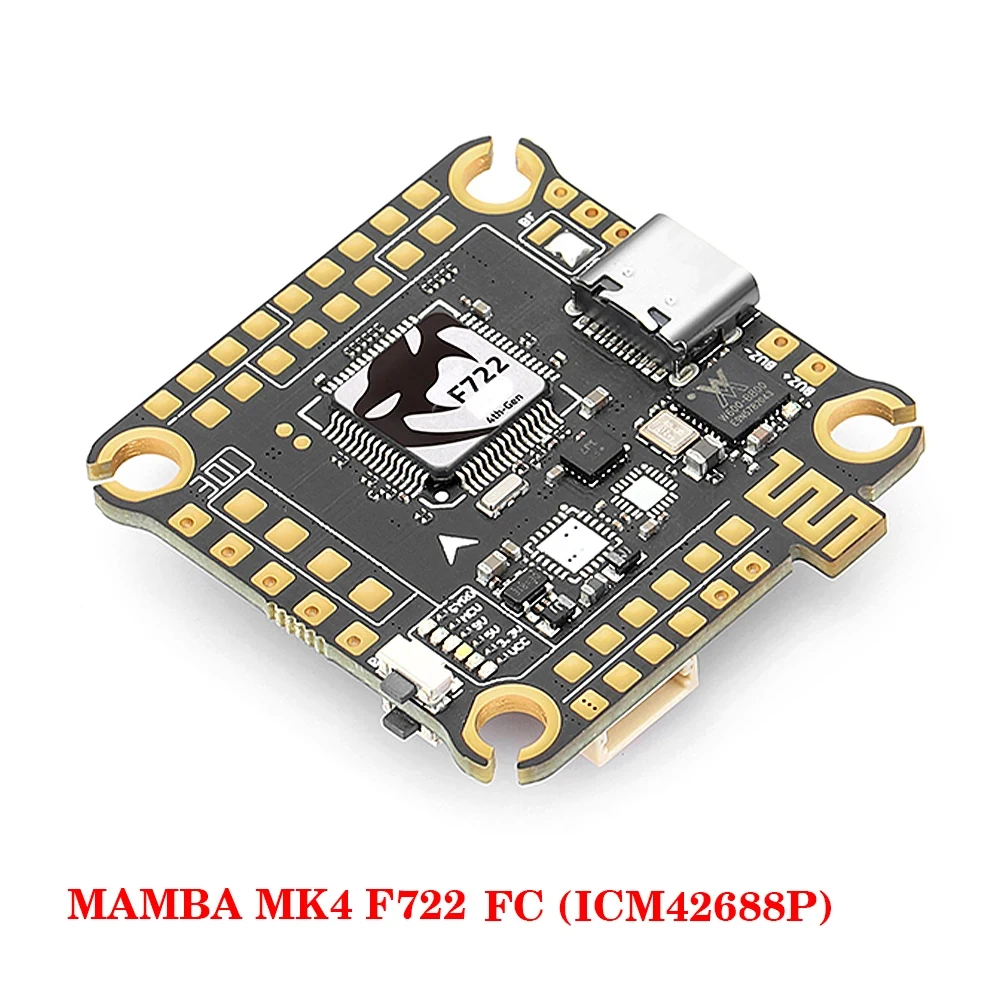

DIATONE MAMBA MK4 F722 Flight Controller ICM42688P W/ AM32 F55 / F65_128K 4in1 ESC Dshot 300/600/1200 for RC FPV Racing Drone
147 orders (reference)
Description

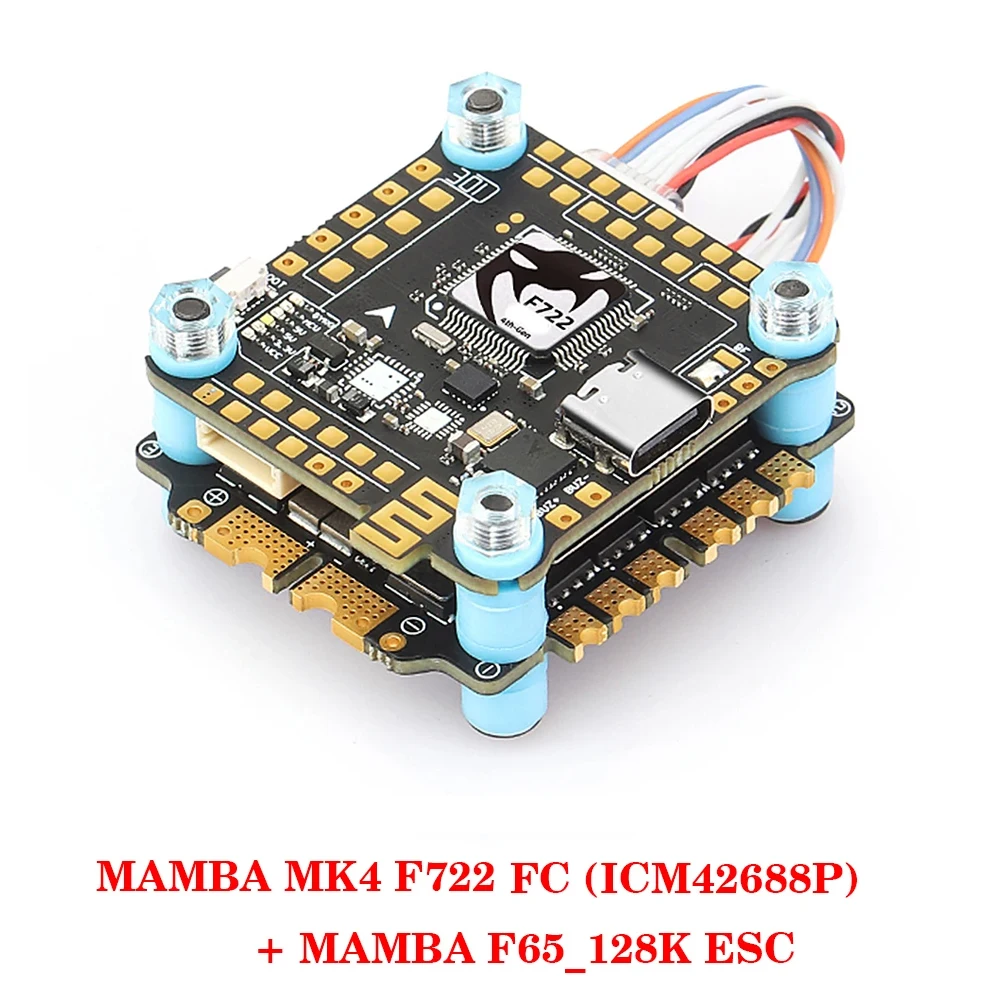

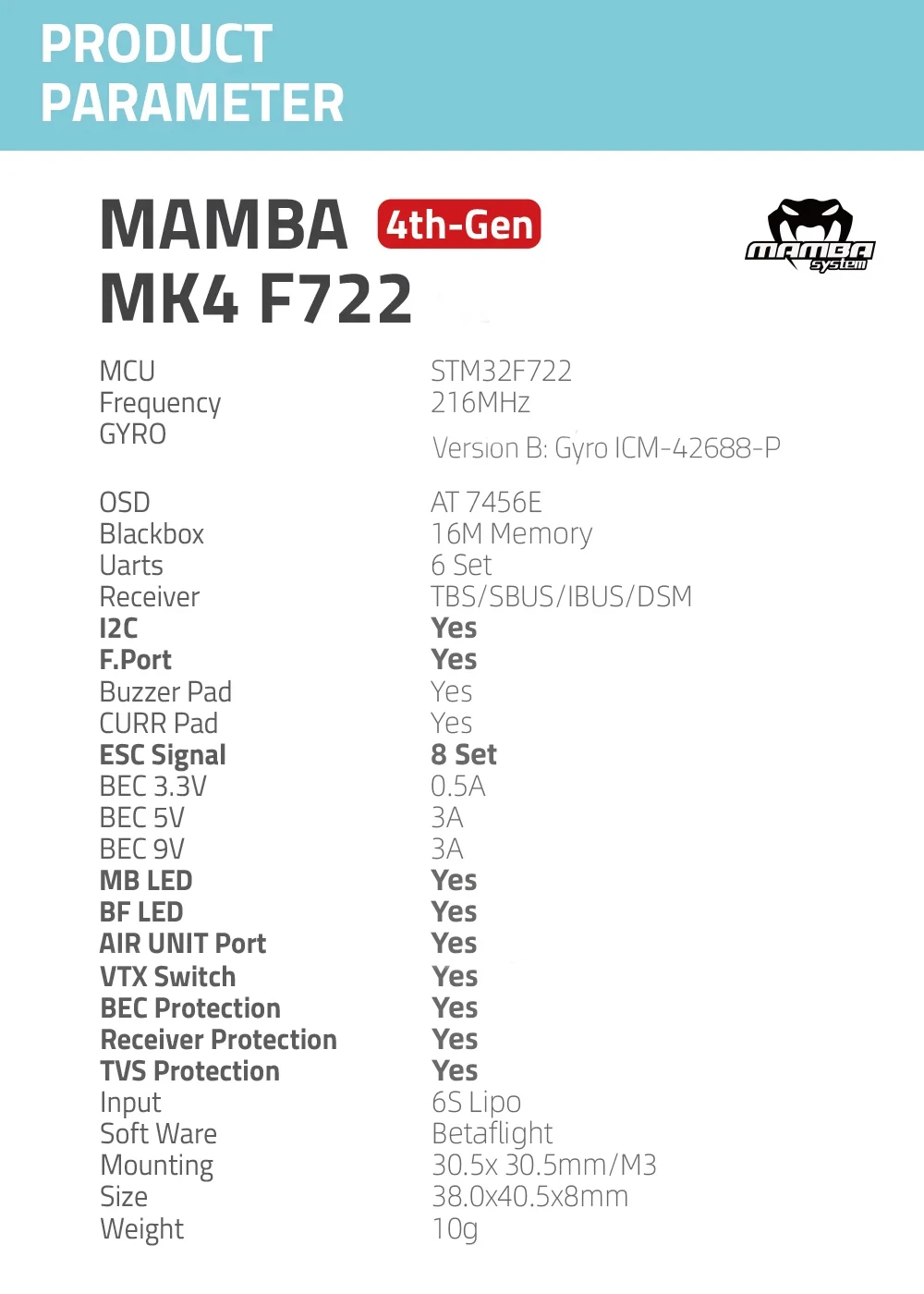

MAMBA MK4 F722 (ICM42688P)
MCU: 216MHz STM32F722
GYRO: ICM42688P
OSD: Yes
Black box: 16M Flash Memory
Barometer: SPL06
Number of serial ports: 6 Set
I2C: Yes
F.Port: Yes
RSSI: No

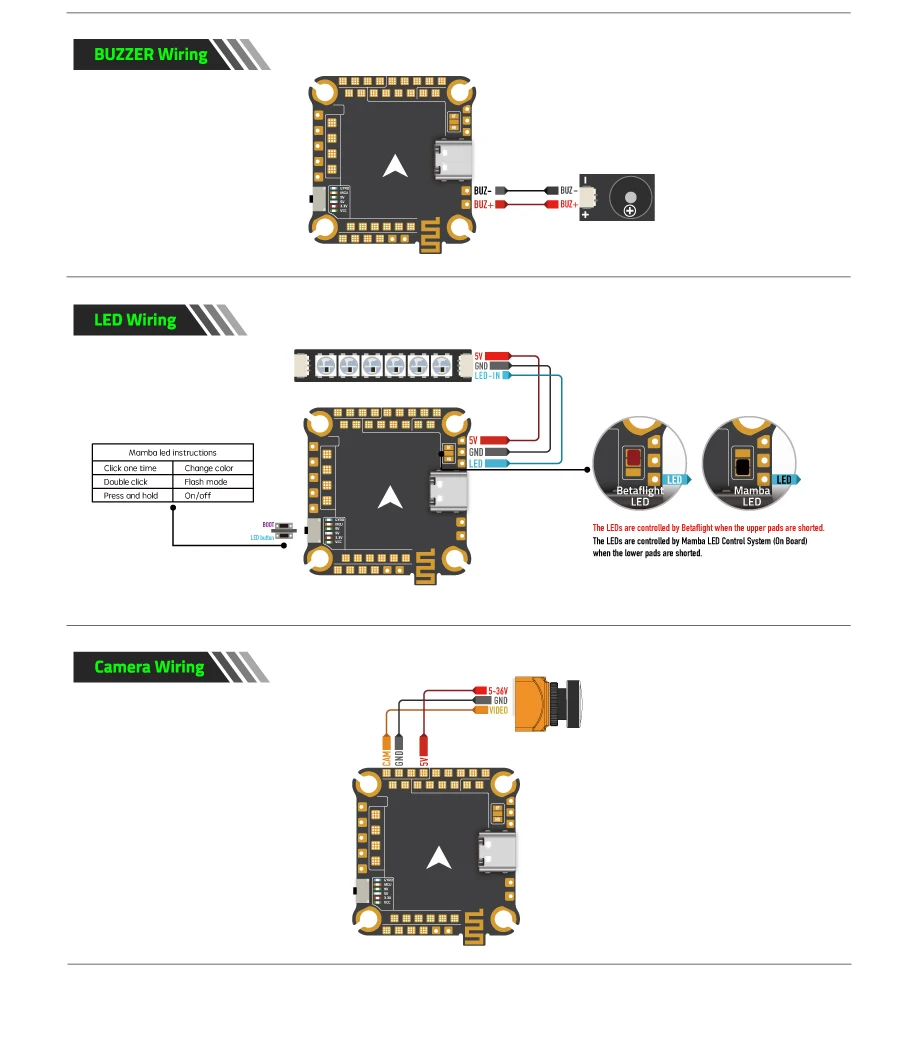

Buzzer: Yes
Galvanometer: Yes
ESC signal: 8 Set
ESC program: Dshot300/600/1200
ESC return port: Yes
Flight control power indicator: Yes
LED control switch: BF LED/MB LED

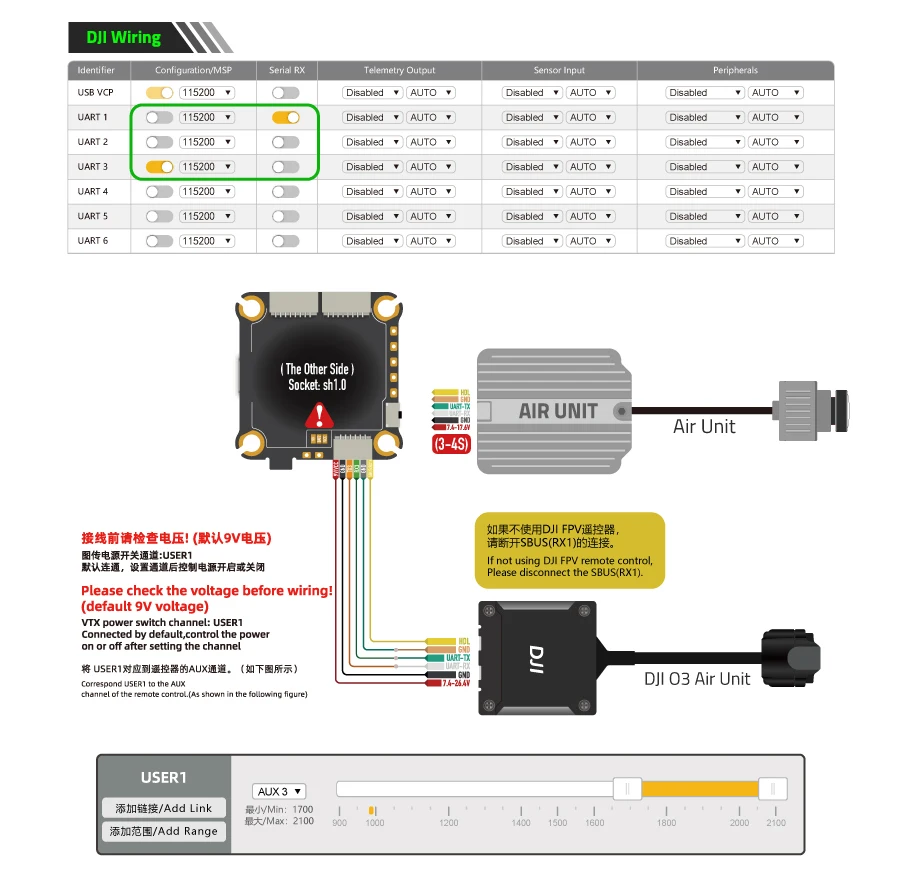

Air terminal interface: Yes
Video transmission power control: Yes
Receiver Short Circuit Protection: Yes
TVS power protection: Yes
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
Input voltage: 3~6S Lipo (12.6~25.2V)
Mounting hole: 30.5mm, M3
Accessories:
High -frequency filter capacitance 1000uf/35V × 1
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
AMASS XT60 power plug × 1
MAMBA AM32 F55_128K
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
Work current: 55A × 4
Peak current: 65A (10S)
BEC output: NO
Firmware: AM32 MABA F55_128K
Agreement: DSHOT300/600/1200
PWM: 24 ~ 128K
TVS Power Protection: Yes
Installation size: 30.5mm/m3

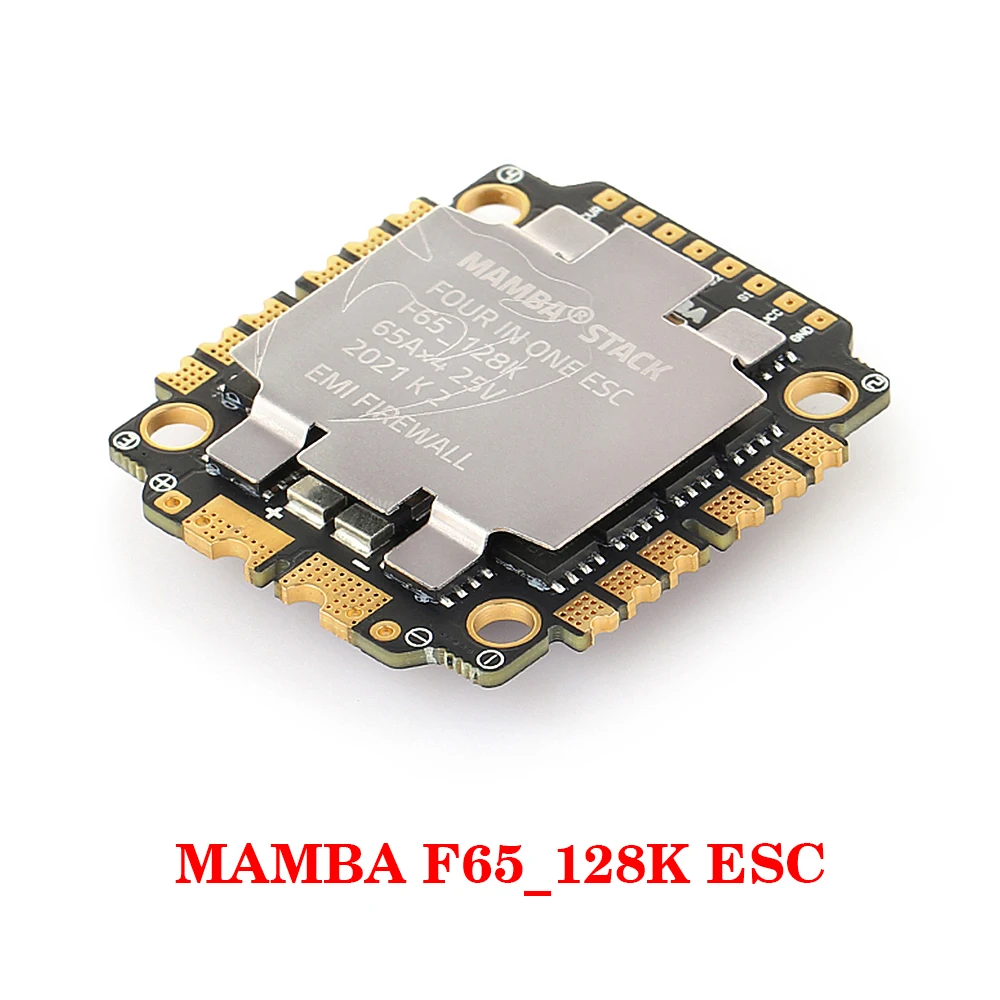

MAMBA AM32 F65_128K
Work current: 65A × 4
Peak current: 75A (10S)
Firmware: AM32 MABA F65_128K
=
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA MK4 F722APP ICM42688P |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Flight Stack |
| RC Parts & Accs | MAMBA MK4 F722 APP ICM42688P |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
MAMBA MK4 F722 (ICM42688P)
-
MCU: 216MHz STM32F722
-
GYRO: ICM42688P
-
OSD: Yes
-
Black box: 16M Flash Memory
-
Barometer: SPL06
-
Number of serial ports: 6 Set
-
I2C: Yes
-
F.Port: Yes
-
RSSI: No
-
Buzzer: Yes
-
Galvanometer: Yes
-
ESC signal: 8 Set
-
ESC program: Dshot300/600/1200
-
ESC return port: Yes
-
Flight control power indicator: Yes
-
LED control switch: BF LED/MB LED
-
Air terminal interface: Yes
-
Video transmission power control: Yes
-
Receiver Short Circuit Protection: Yes
-
TVS power protection: Yes
-
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
-
Input voltage: 3~6S Lipo (12.6~25.2V)
-
Mounting hole: 30.5mm, M3
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
MAMBA AM32 F55_128K
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 55A × 4
-
Peak current: 65A (10S)
-
BEC output: NO
-
Firmware: AM32 MABA F55_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
MAMBA AM32 F65_128K
-
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
-
Work current: 65A × 4
-
Peak current: 75A (10S)
-
BEC output: NO
-
Firmware: AM32 MABA F65_128K
-
Agreement: DSHOT300/600/1200
-
PWM: 24 ~ 128K
-
TVS Power Protection: Yes
-
Installation size: 30.5mm/m3
Accessories:
-
High -frequency filter capacitance 1000uf/35V × 1
-
8Pin SH1.0 Flying Control Electrocontonal Connection × 2
-
AMASS XT60 power plug × 1
=
