CADDX ANT Lite 4:3 FPVCycle Edition 1200TVL FOV165 Global WDR PAL/NTSC Switchable Micro FPV Camera for FPV Racing Tinywhoop
34 orders (reference)
Description
Specification: Model: Caddx Ant lite Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC and PAL(switchable) MENU: Support IMAGE: 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio: >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm/F2.5 Min. llumination: 0.001Lux Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14* 14mm Wide Power Input: 5-25V Work Temperature: -20°C~+60C Work Humidity: 20%~80% Weight: 1.7 g (N.W.) Package included: 1 x Caddxfpv Ant Lite FPV Camera FPVCycle Edition
Specification:
Model: Caddx Ant lite
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC and PAL(switchable)
MENU: Support

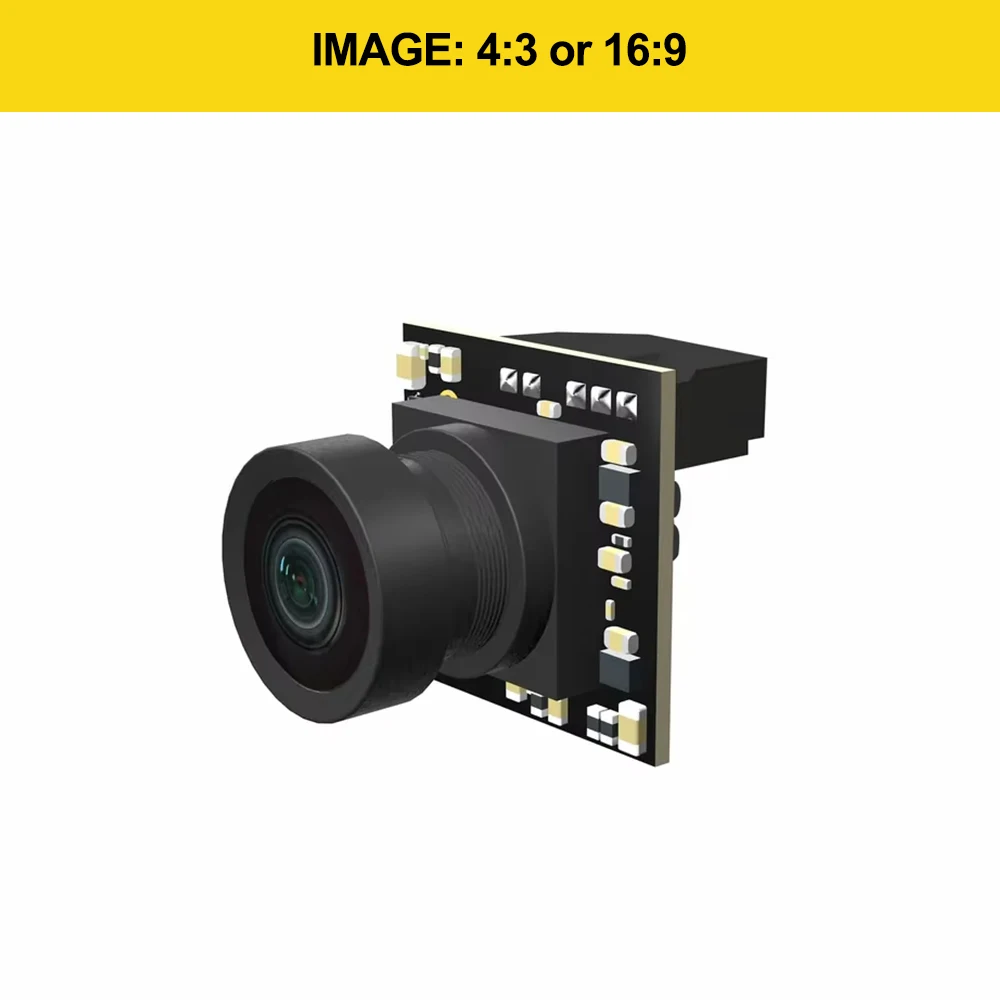

IMAGE: 4:3

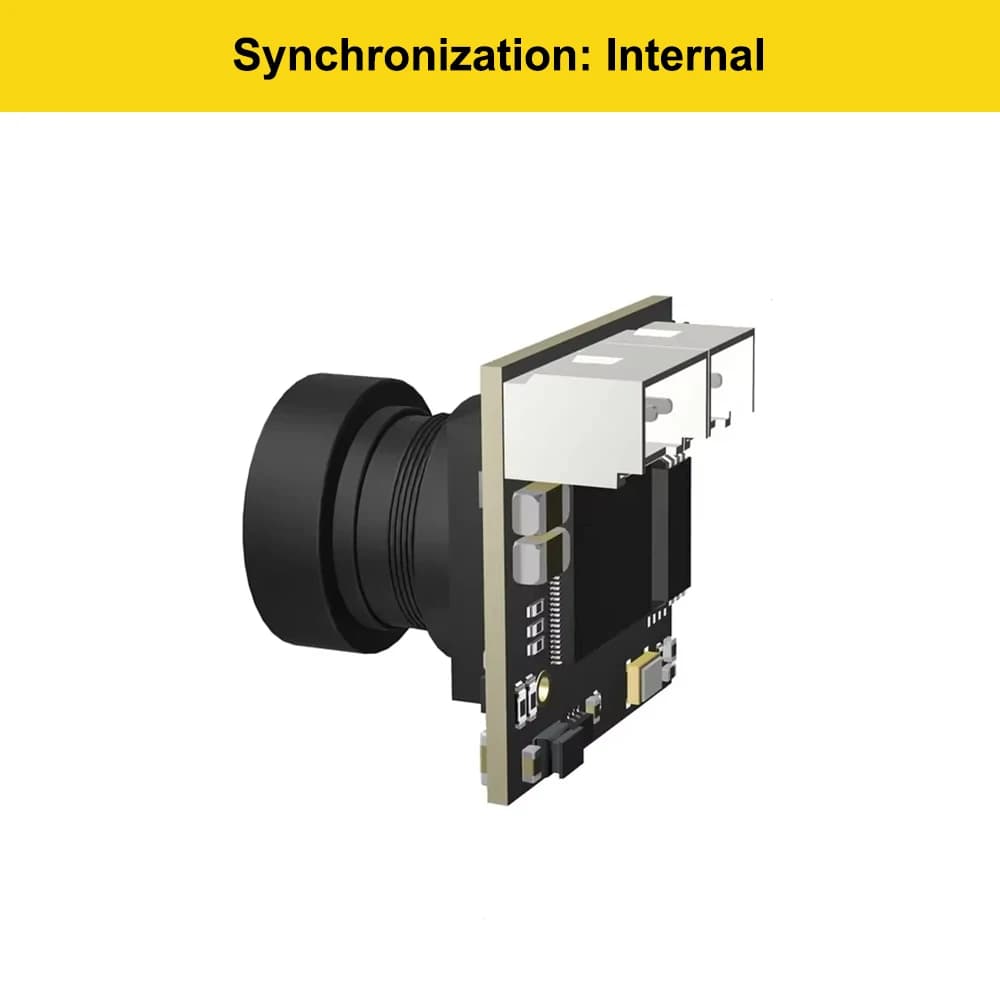

Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm/F2.5
Min. llumination: 0.001Lux
Auto Gain Control: YES
BLC: YES
WDR: Global WDR

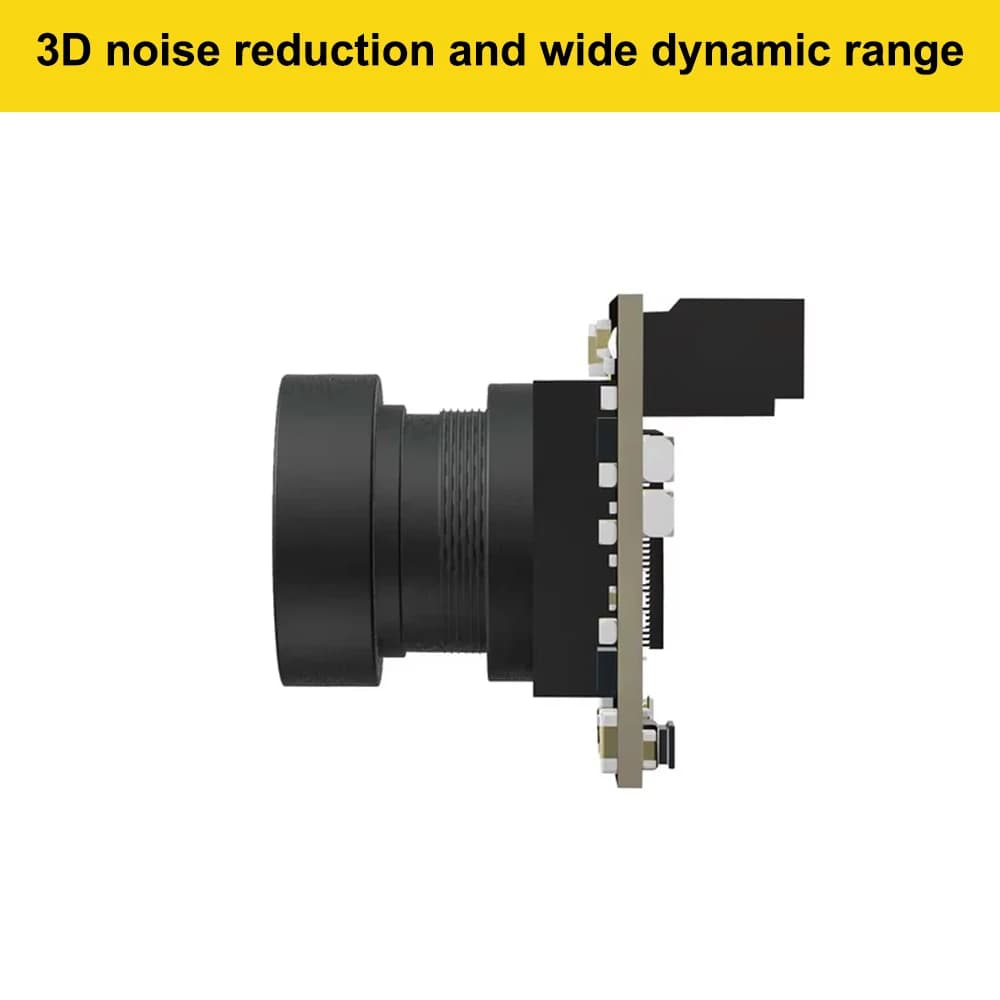

DNR: 3D DNR

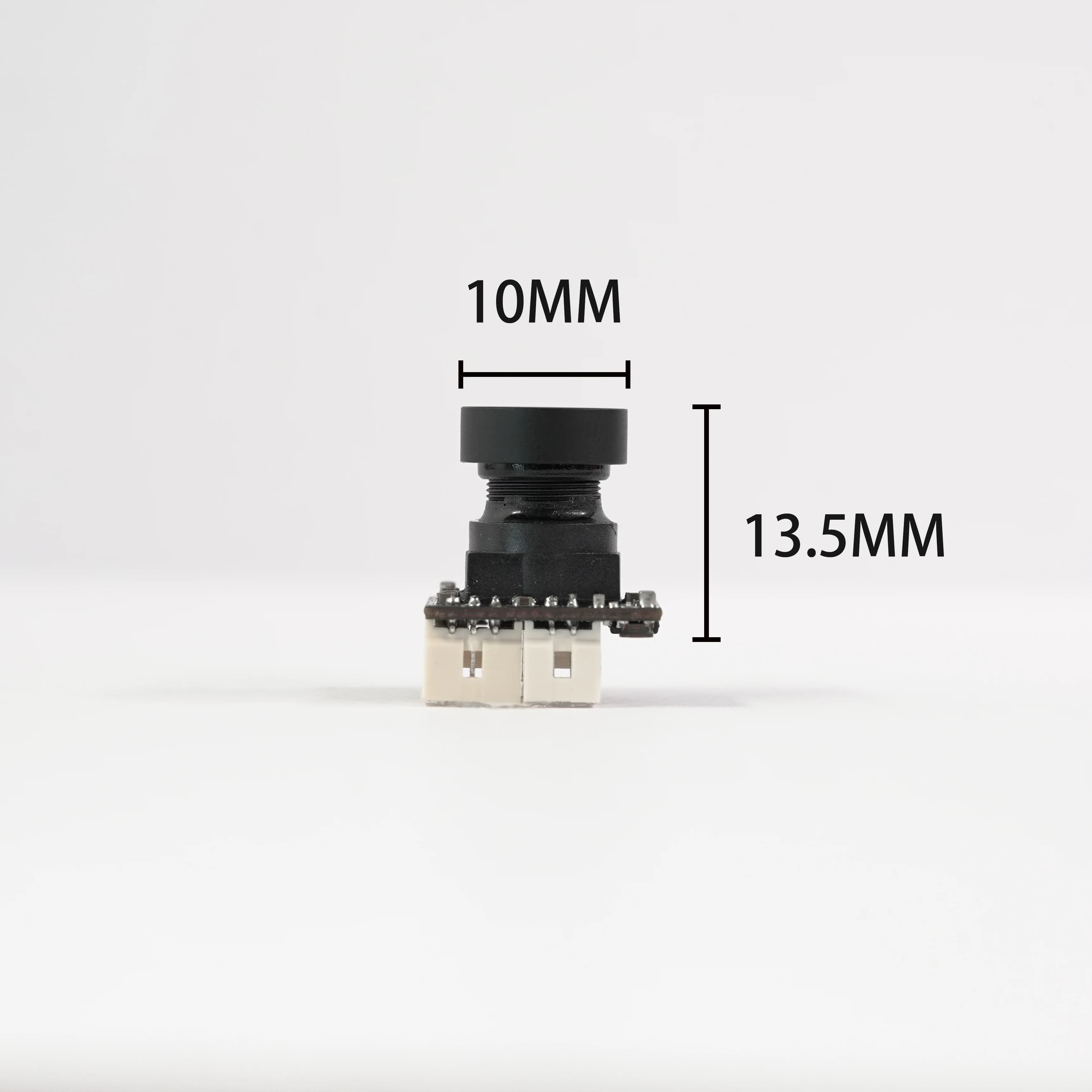

Dimensions: 14* 14mm
Wide Power Input: 5-25V
Work Temperature: -20°C~+60C
Work Humidity: 20%~80%
Weight: 1.7 g (N.W.)

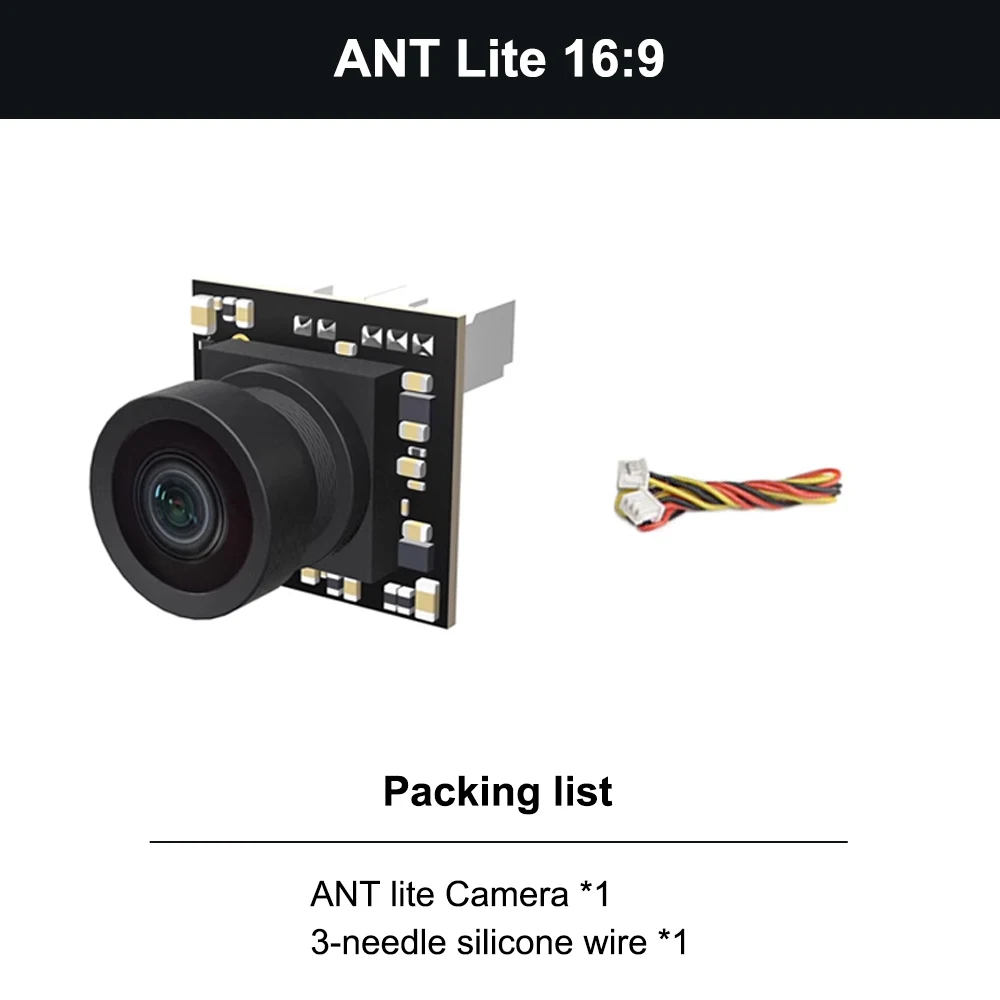

Package included:
1 x Caddxfpv Ant Lite FPV Camera FPVCycle Edition
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Model Number |
|
| For Vehicle Type |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Weight |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 14* 14mm |
| Model Number | ANT Lite |
| For Vehicle Type | Helicopters |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
| Weight | 1.7g |
Product Details
Specification:
Model: Caddx Ant lite
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC and PAL(switchable)
MENU: Support
IMAGE: 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm/F2.5
Min. llumination: 0.001Lux
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14* 14mm
Wide Power Input: 5-25V
Work Temperature: -20°C~+60C
Work Humidity: 20%~80%
Weight: 1.7 g (N.W.)
Package included:
1 x Caddxfpv Ant Lite FPV Camera FPVCycle Edition
