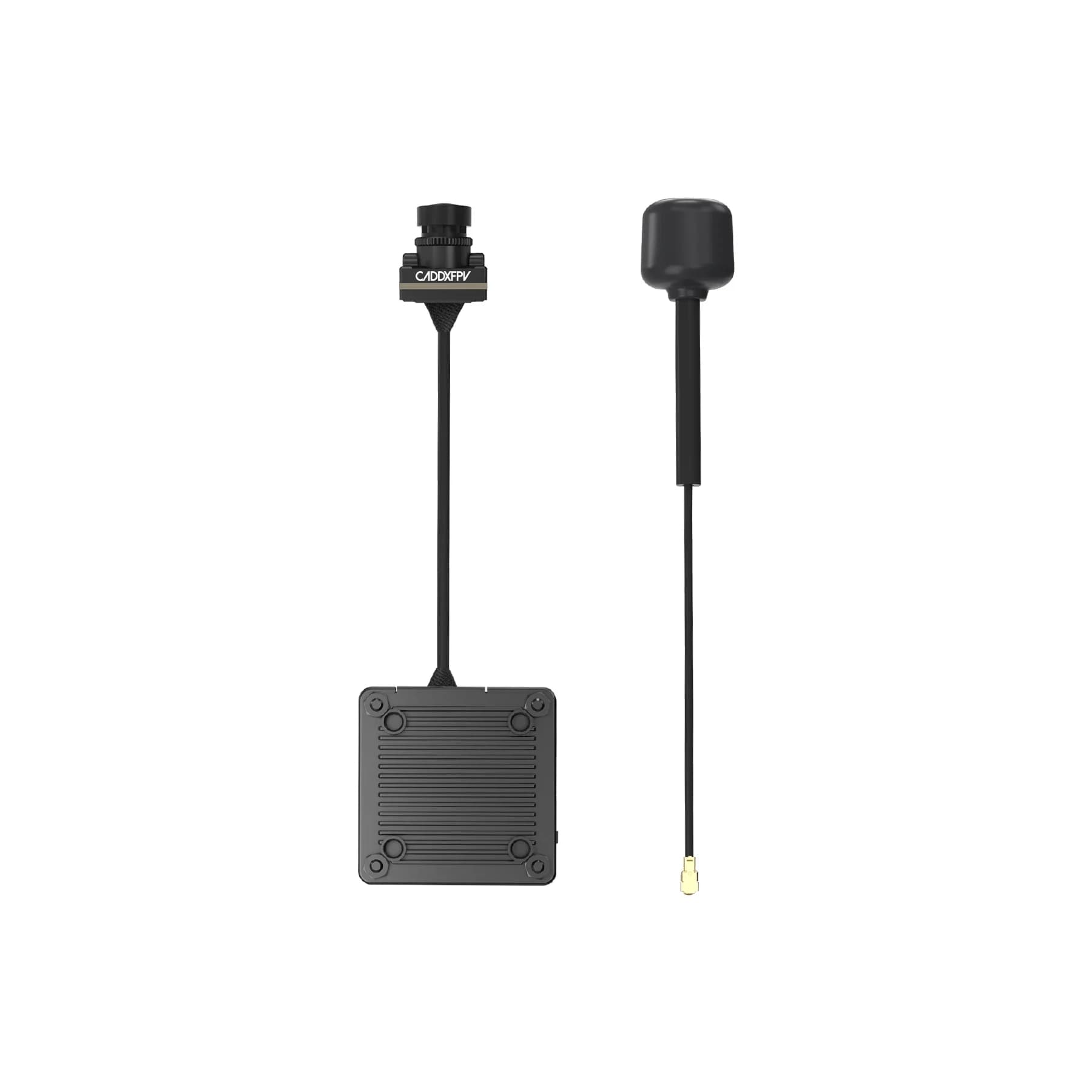

Caddx Walksnail Avatar HD Nano Kit V3 (9cm/ 14cm Cable) 1080P/60fps 4:3 Native Sensor 32G Memory 500mW
5 orders (reference)
Description

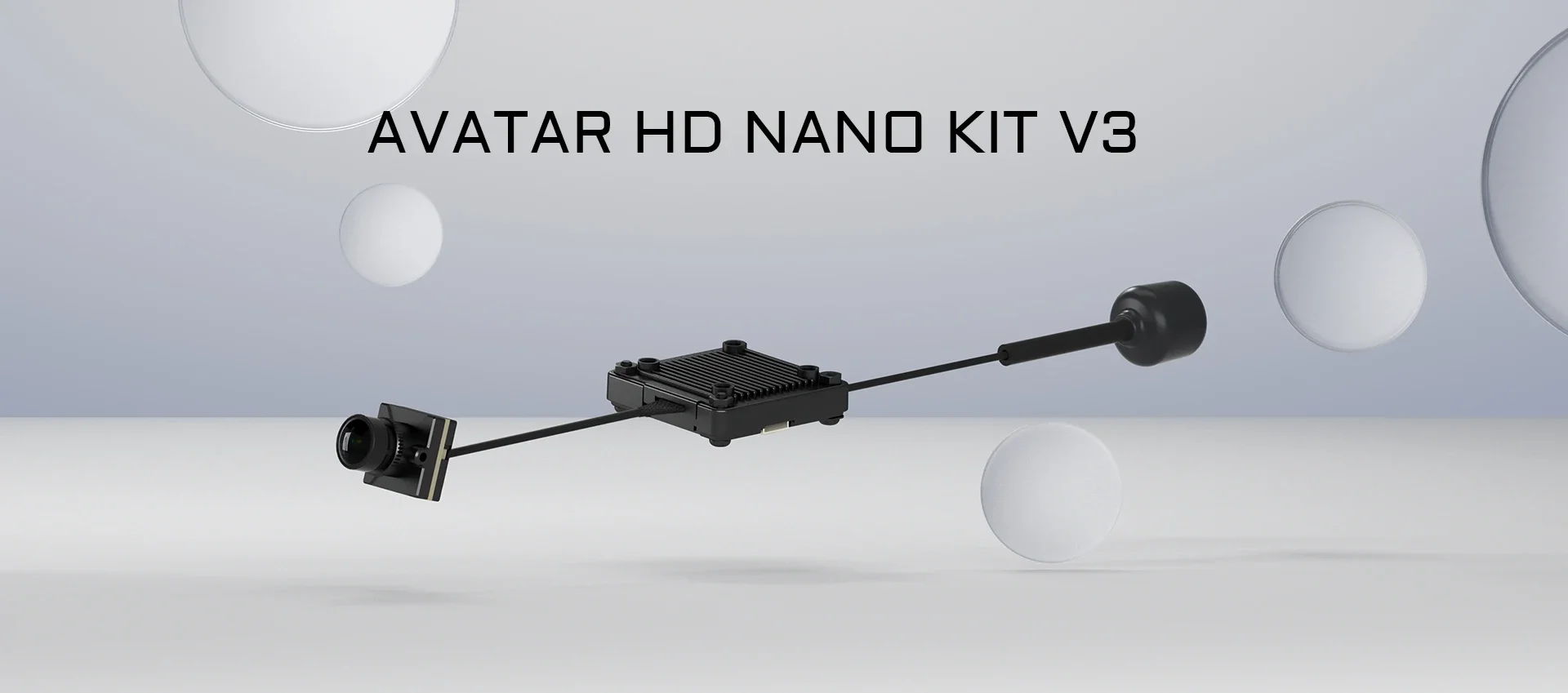

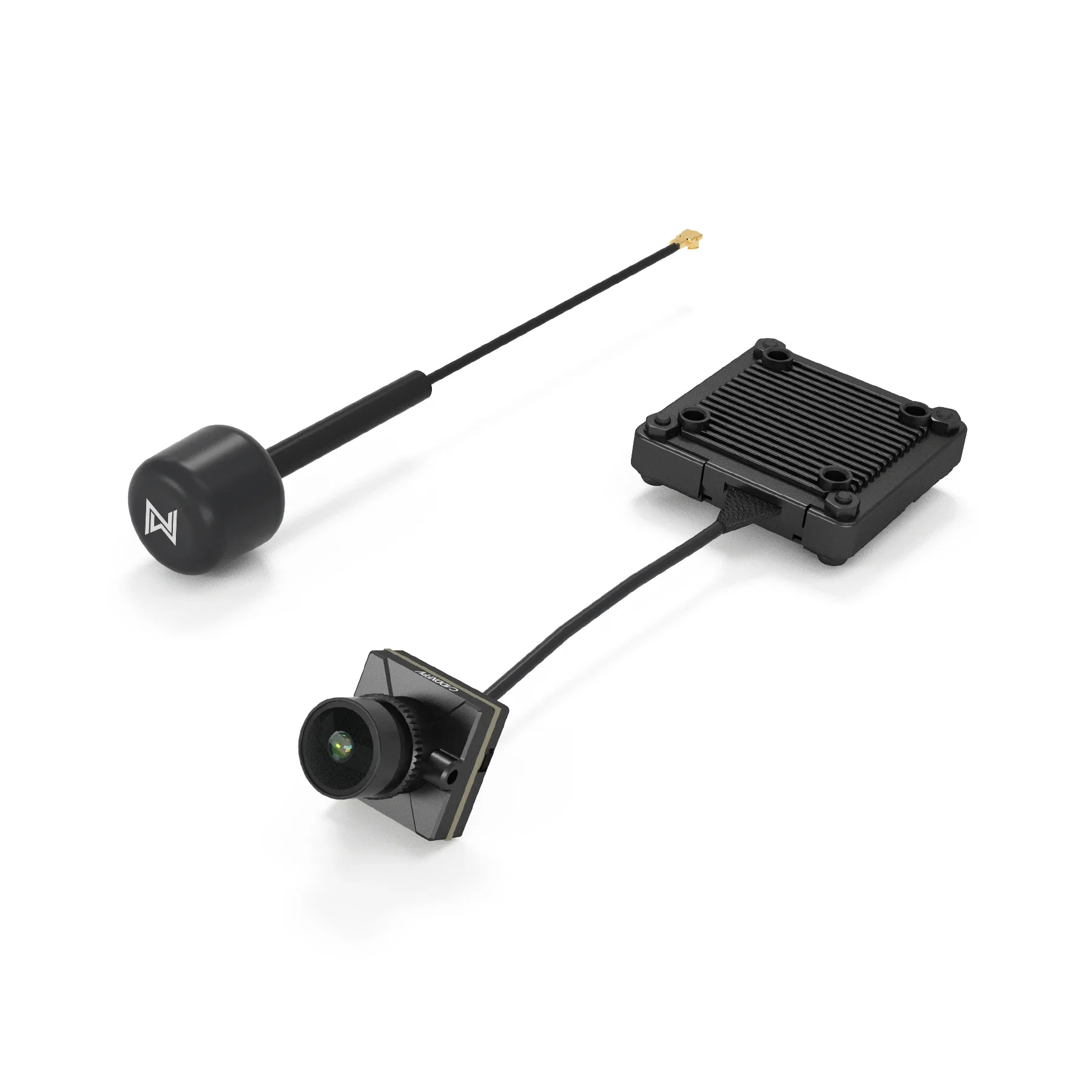

Bullet Point for Walksnail Avatar HD Nano Kit V3
The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail.

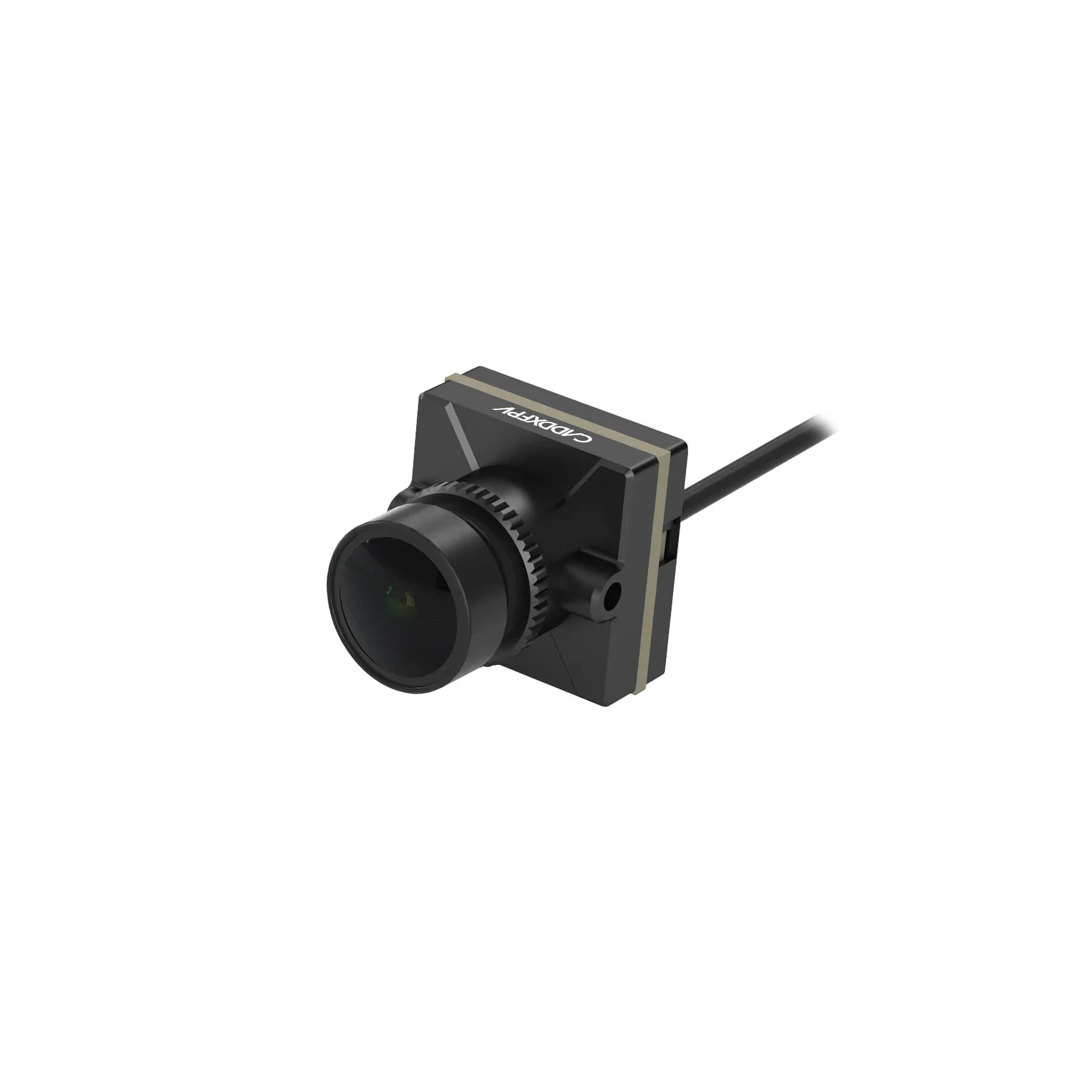

Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality.
The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Specifications
| Option | Values |
|---|---|
| Is Electric |
|
| Quantity |
|
| Is it battery/power supply |
|
| Is Batteries Included |
|
| Is it charger/adapter |
|
| Model Number |
|
| For Vehicle Type |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is Batteries Included | Yes |
| Is it charger/adapter | N |
| Model Number | Avatar HD Nano Kit V3 |
| For Vehicle Type | Airplanes |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Bullet Point for Walksnail Avatar HD Nano Kit V3
The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail.
Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality.
The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Specification |
|
|

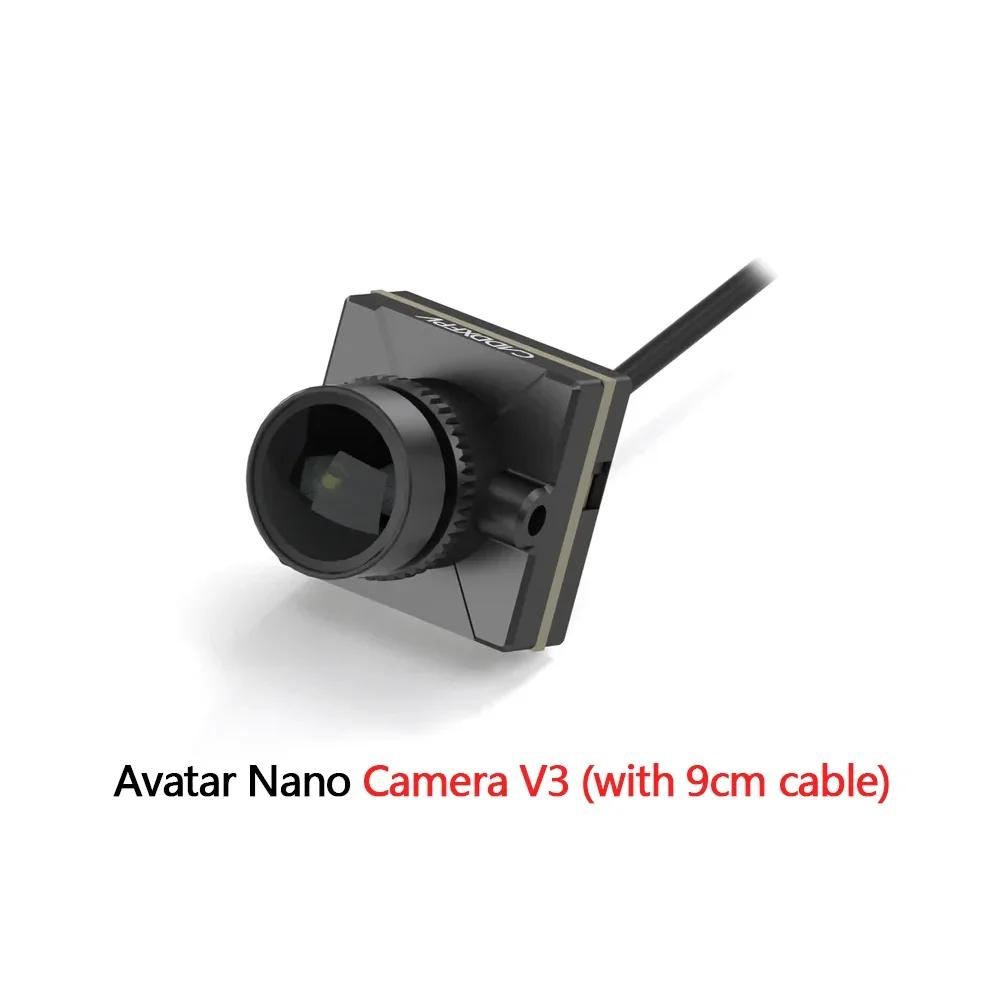

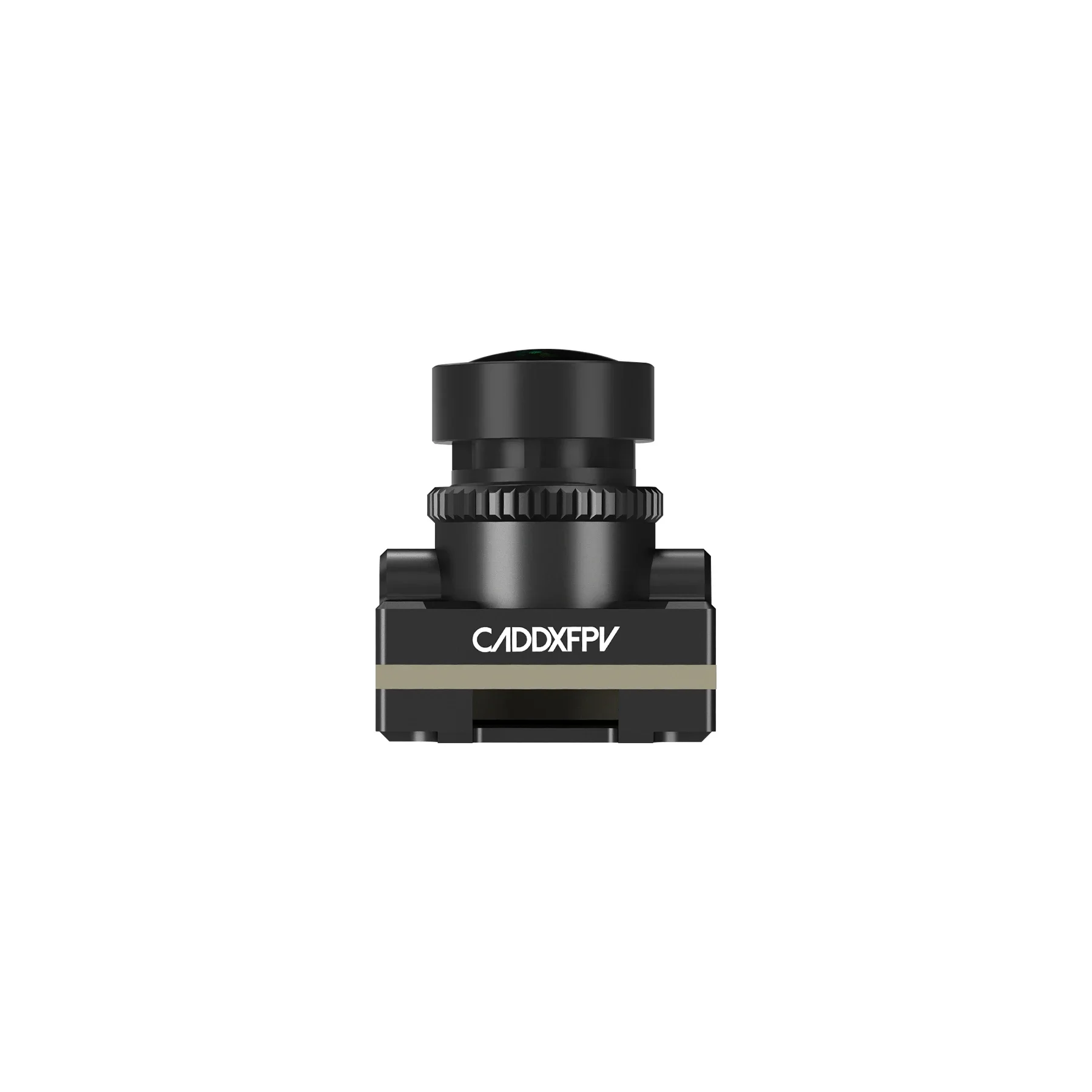

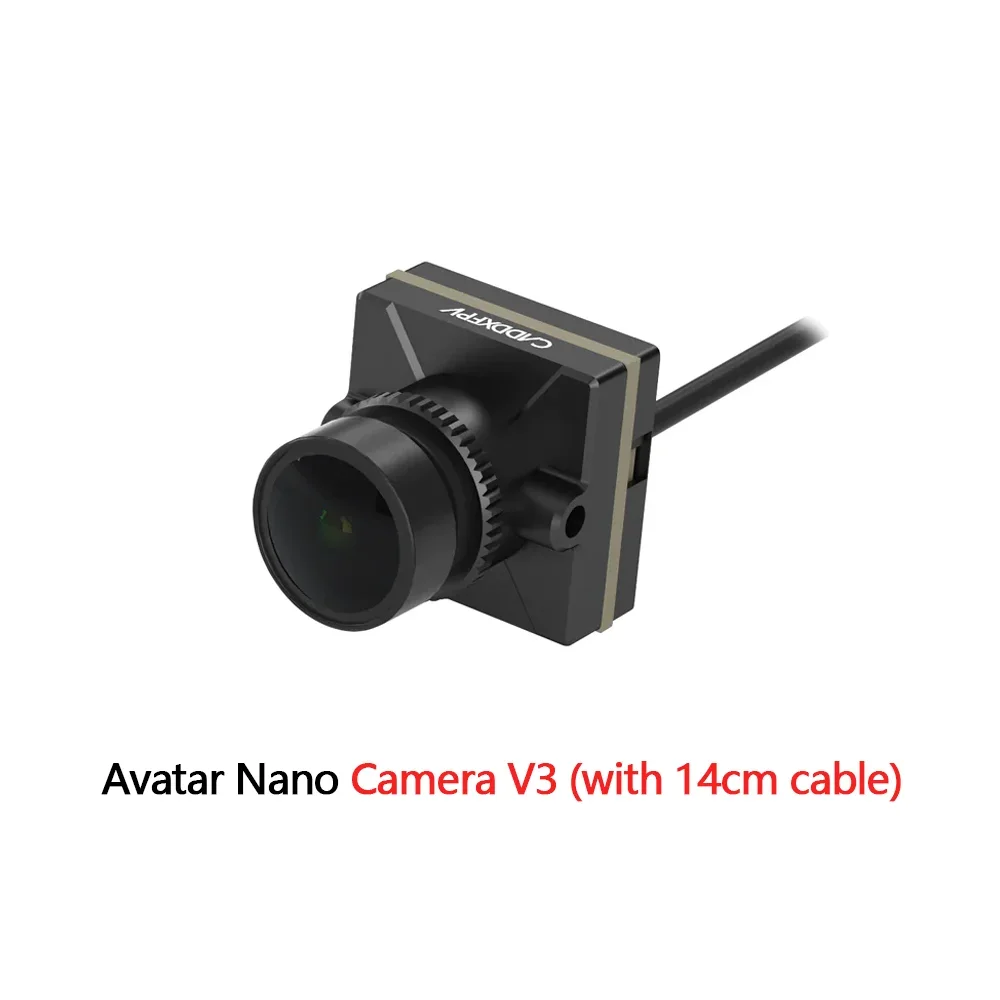

Camera |
|
|
Model |
Avatar HD Nano Camera V3 |
|
Image Sensor |
1/3.2-Inch 4Mp 4:3 sensor |
|
Resolution |
1080P/60fps,720P/120fps,720P/60fps |
|
Ratio |

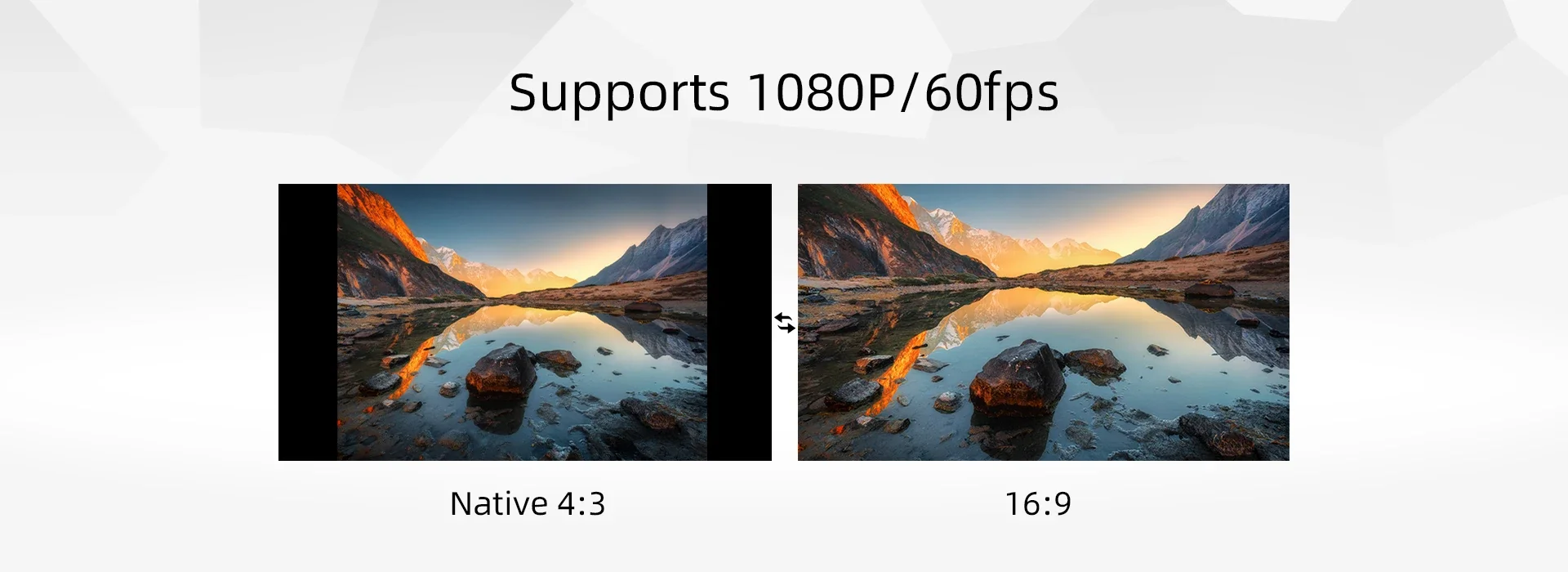

4:3 native / 16:9 |
|
Lens |
2.1mm |
|
FOV |
160° |
|
Aperture |
F2.0 |
|
Shutter |
Rolling Shutter |
|
Min.Illumination |
0.001Lux |
|
Weight |
3g (without cable) |
|

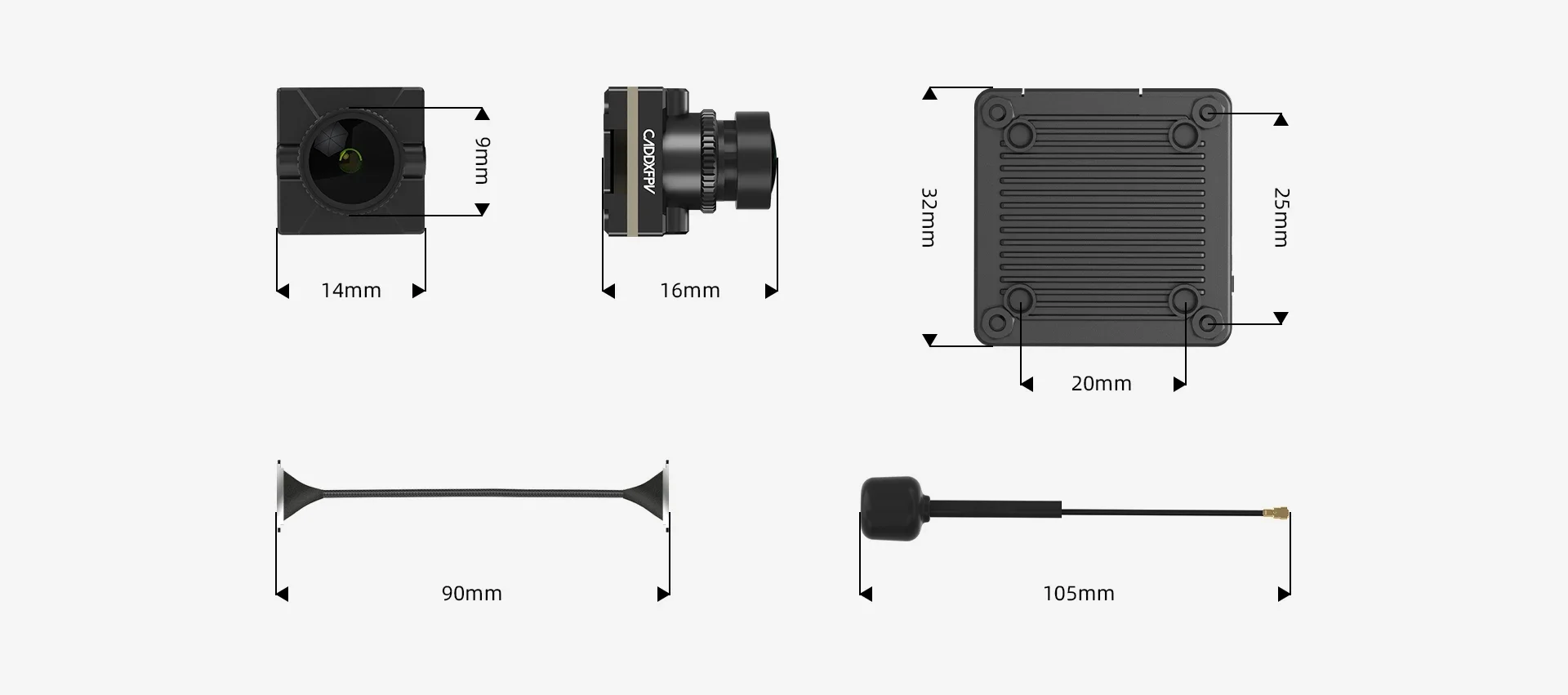

Dimensions |
14*14*16.8mm |
|
Coaxial Cable |
90mm(default)/140mm |
|
|
|
|

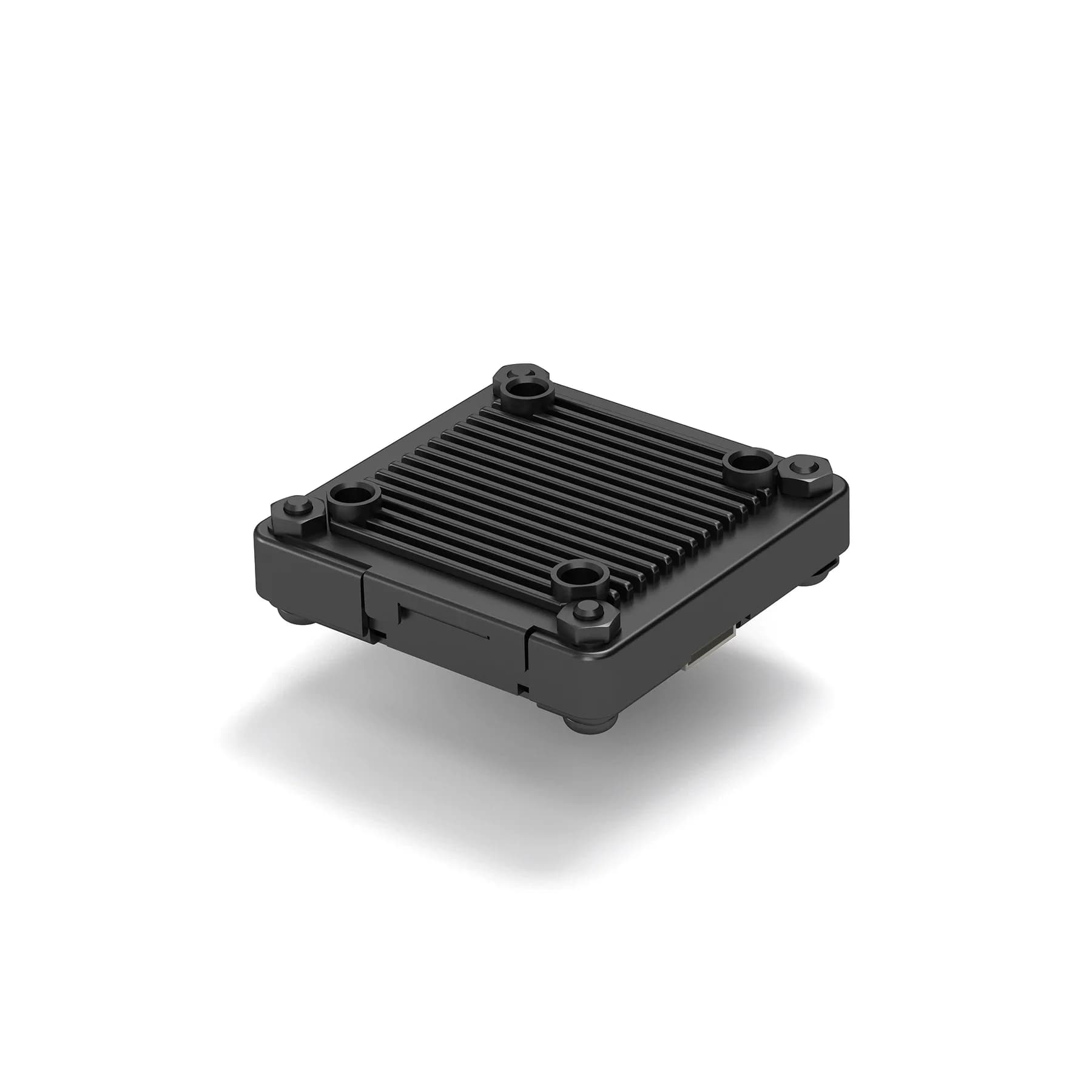

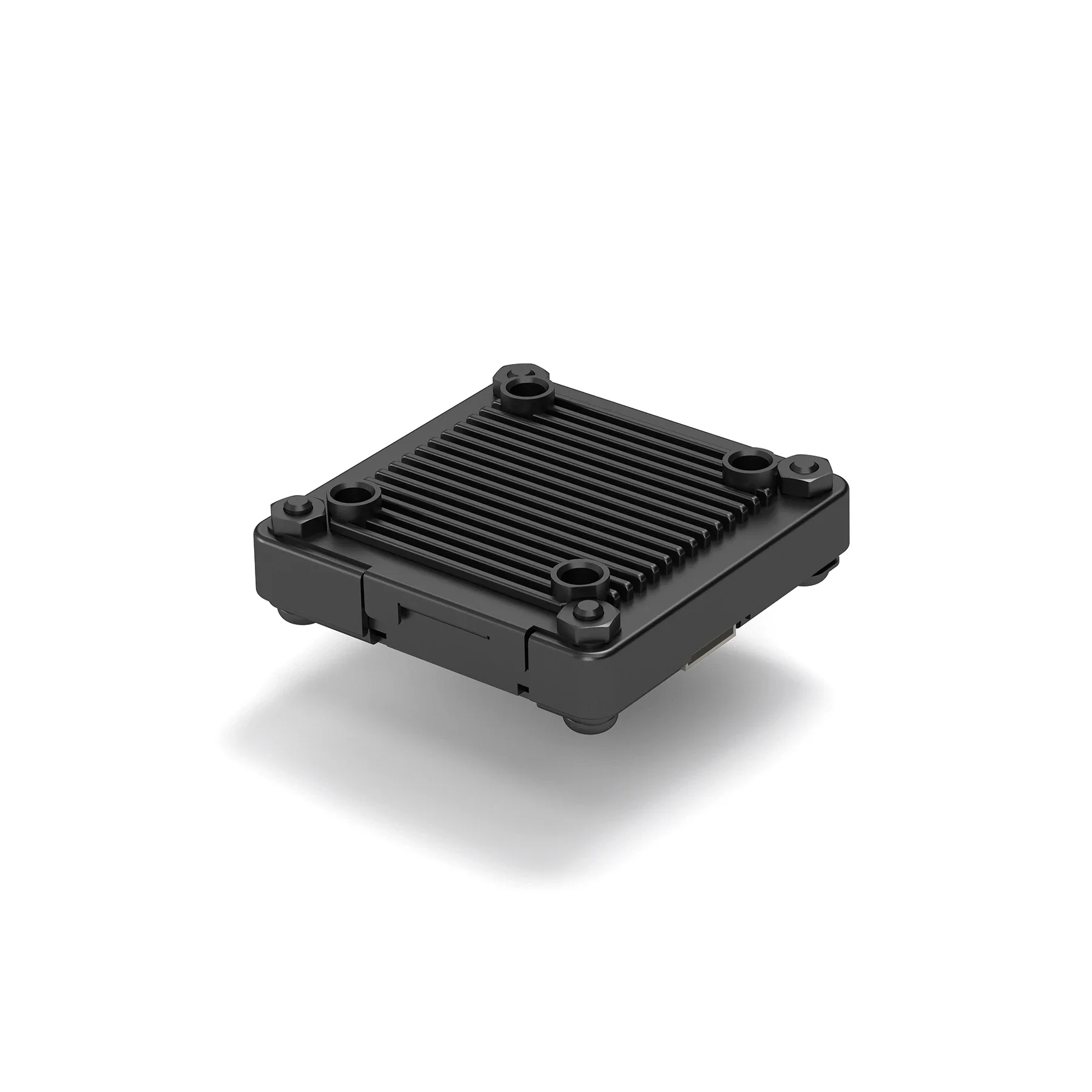

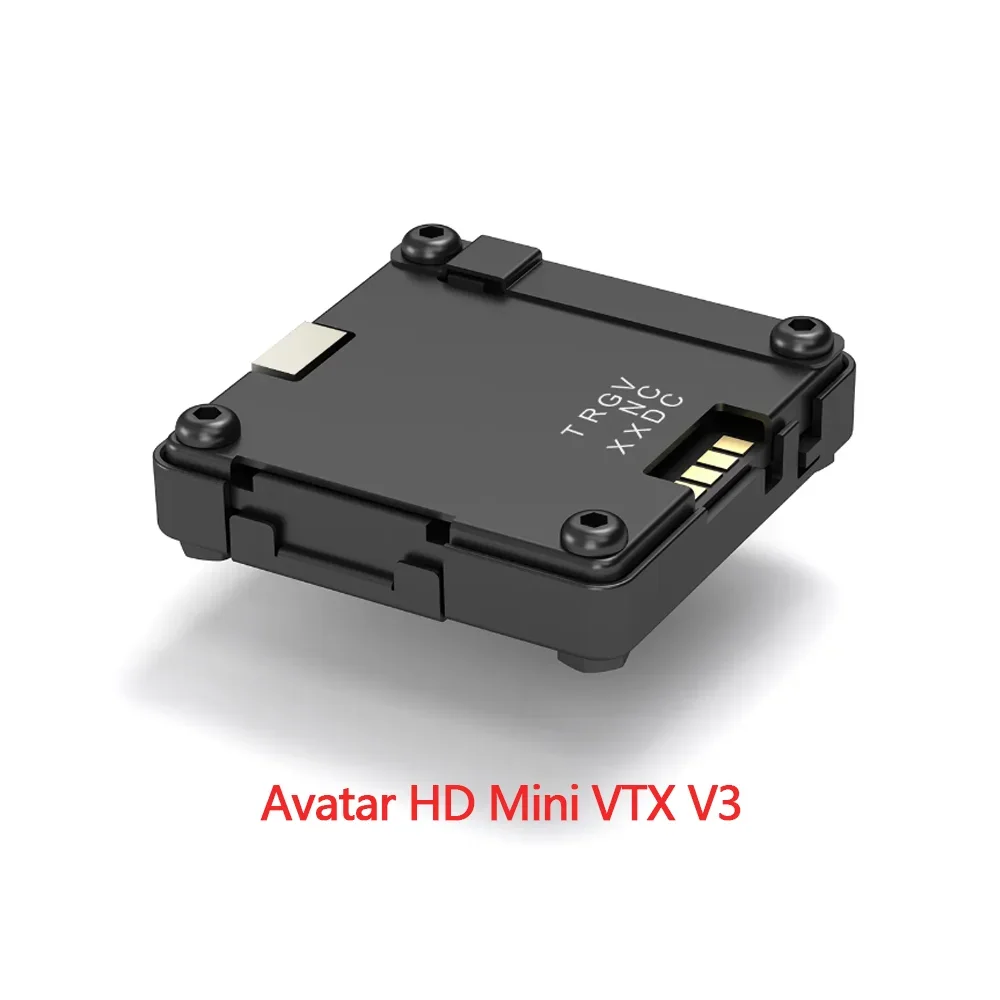

VTX |
|
|
Model |
Avatar HD Mini VTX V3 |
|
Communication Frequency |
5.725-5.850GHz |
|
Transmitter Power (EIRP) |
FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; |
|

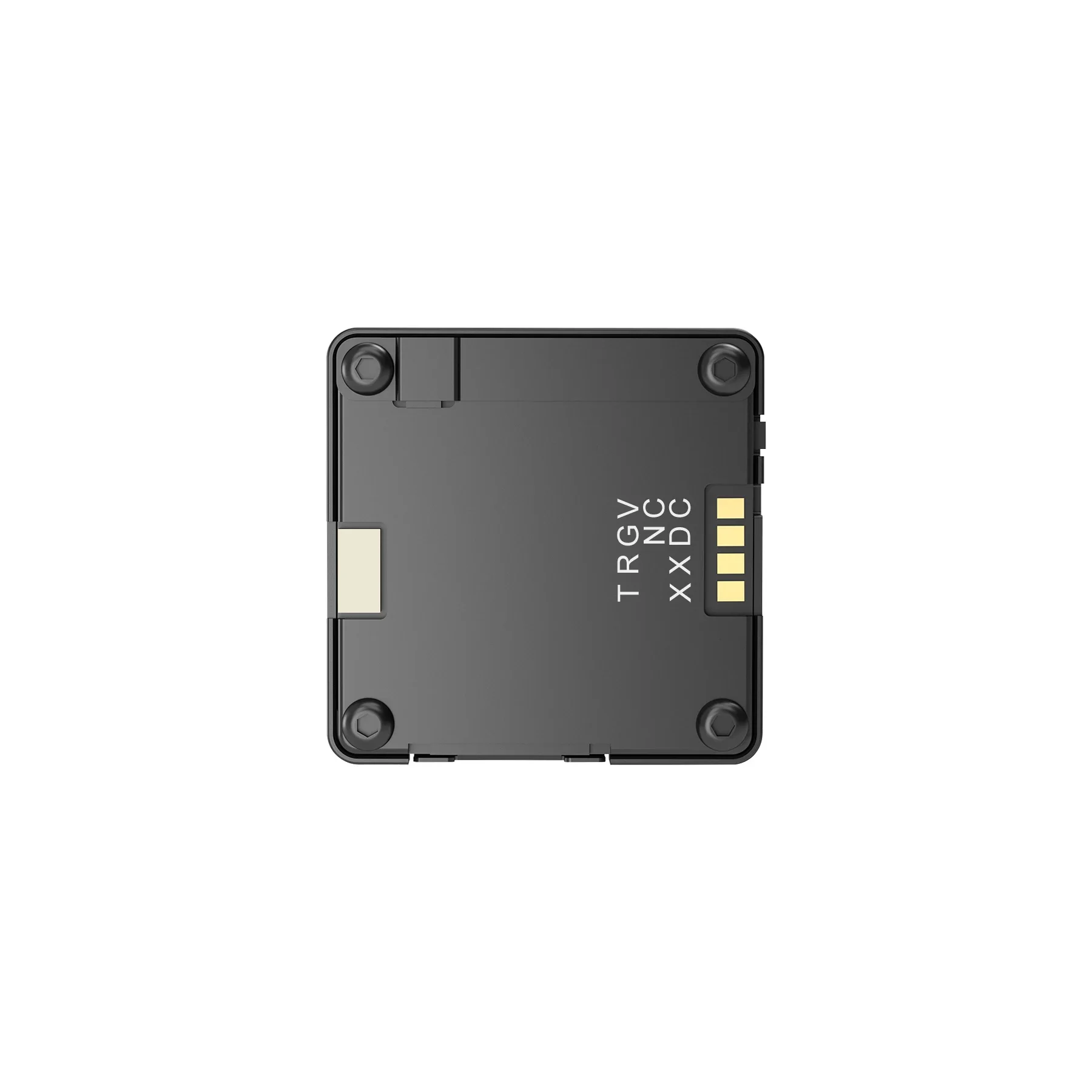

I/O Interface |
JST1.0*4(Power in)JST0.8*4(USB) |
|
Mounting Holes |
25.5*25.5mm(M2 hole);20*20mm(M3 hole) |
|
Dimensions |
31.5*31.5*9.4mm |
|
Storage |
32G |
|
Recording |
1080p/720p |
|
Weight |
13.4g |
|
Operating Temperature |
-20-40℃ |
|
Channels |
8 |
|

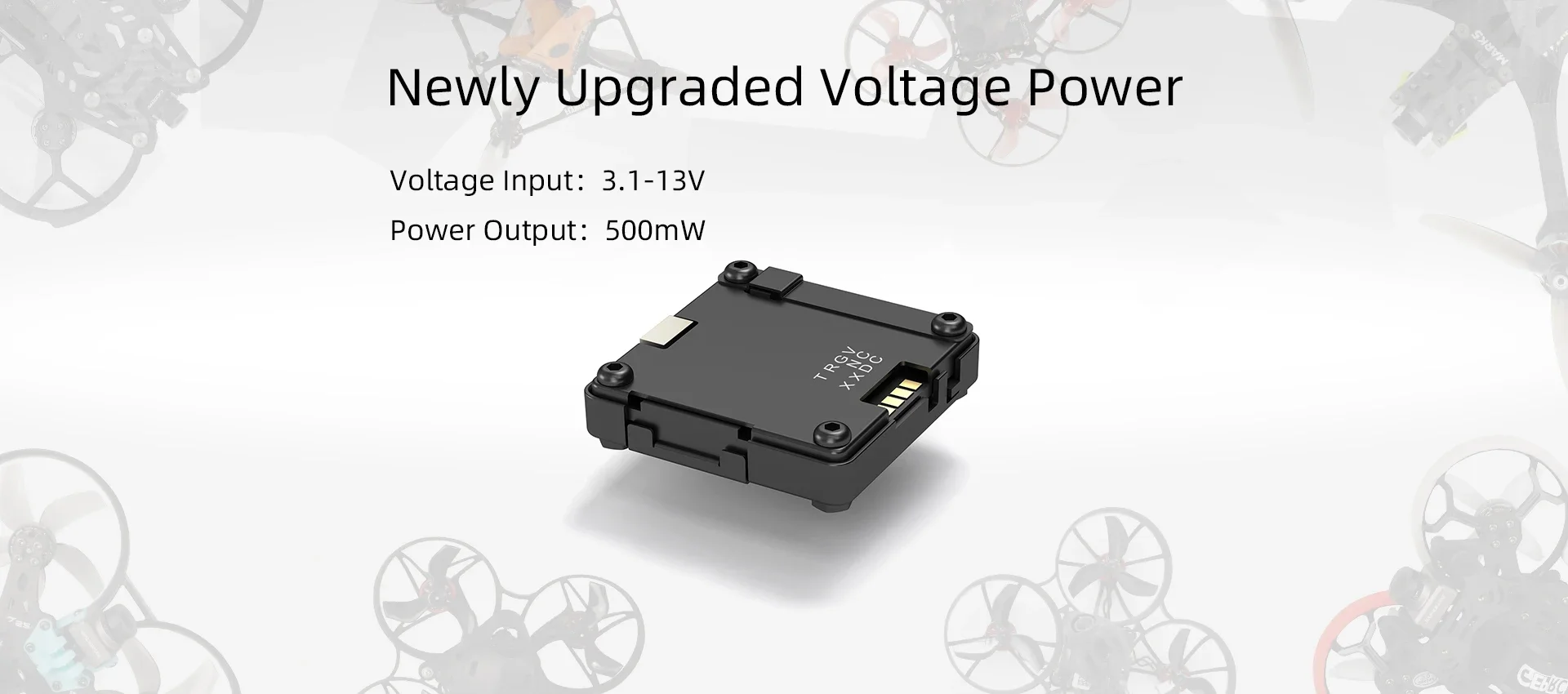

Wide Power Input |
3.1V-13V |
|
Supported FC System |
Betaflight; Inav; Fettec; Kiss; ArduPliot |
|

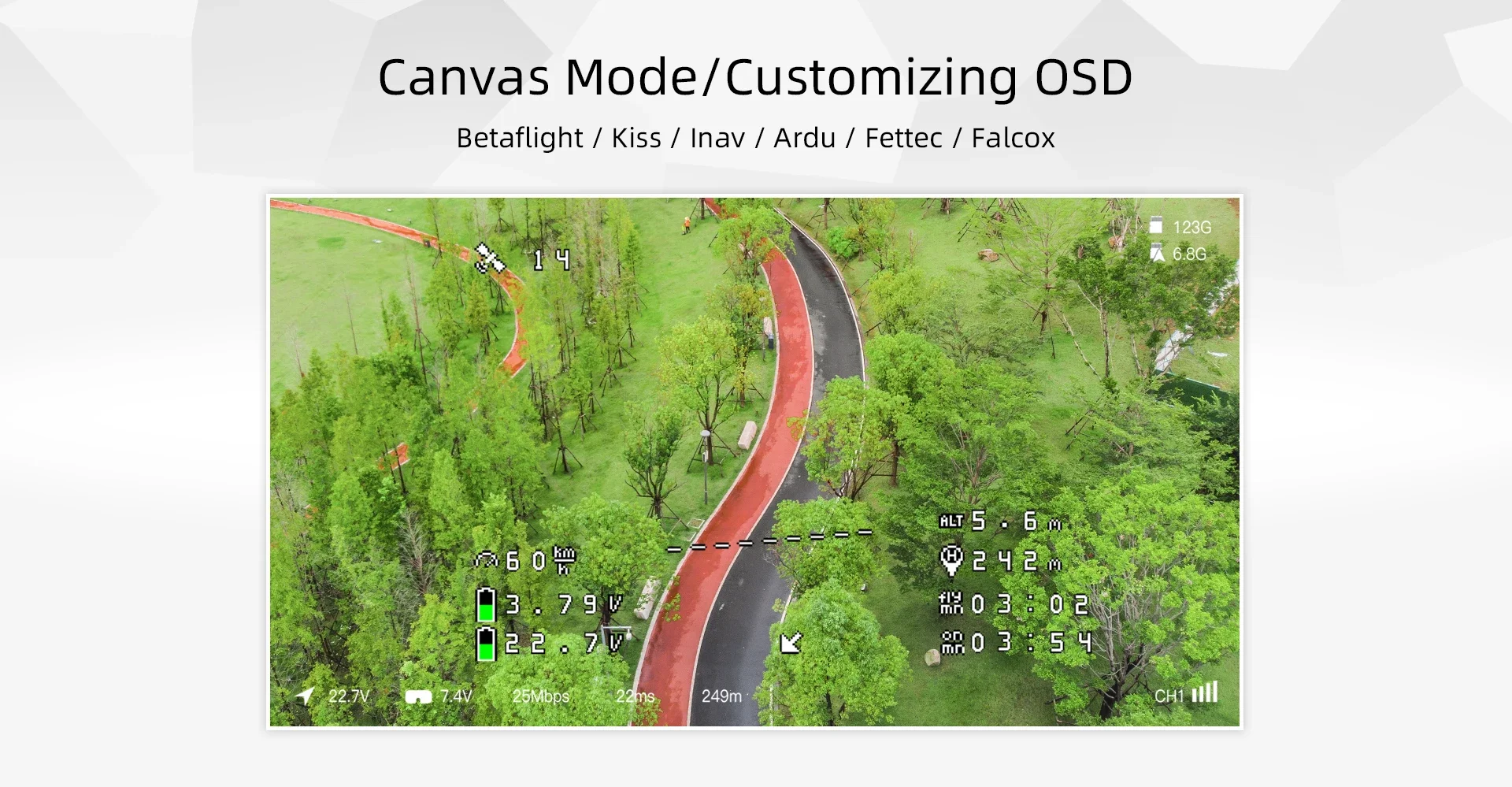

OSD |
Canvas mode |
|
Latency |
Average latency 22ms |
|
Antenna |
1(IPEX) |
|
|
|
|
VTX Antenna |
|
|
Model |
Avatar V2 antenna |
|
Polarization |
LHCP |
|
Bandwidth |
5600MHz-6000MHz |
|
Average Gain |
1.9dBi |
|
VSWR |
≤1.5 |
|
Interface |
IPEX-1 |
|
Line Length |
105mm |
|
Dimension |
R15*45mm(without cable) |
|
Weight |
2g |
|
|
|
|
Packing List |
|
|

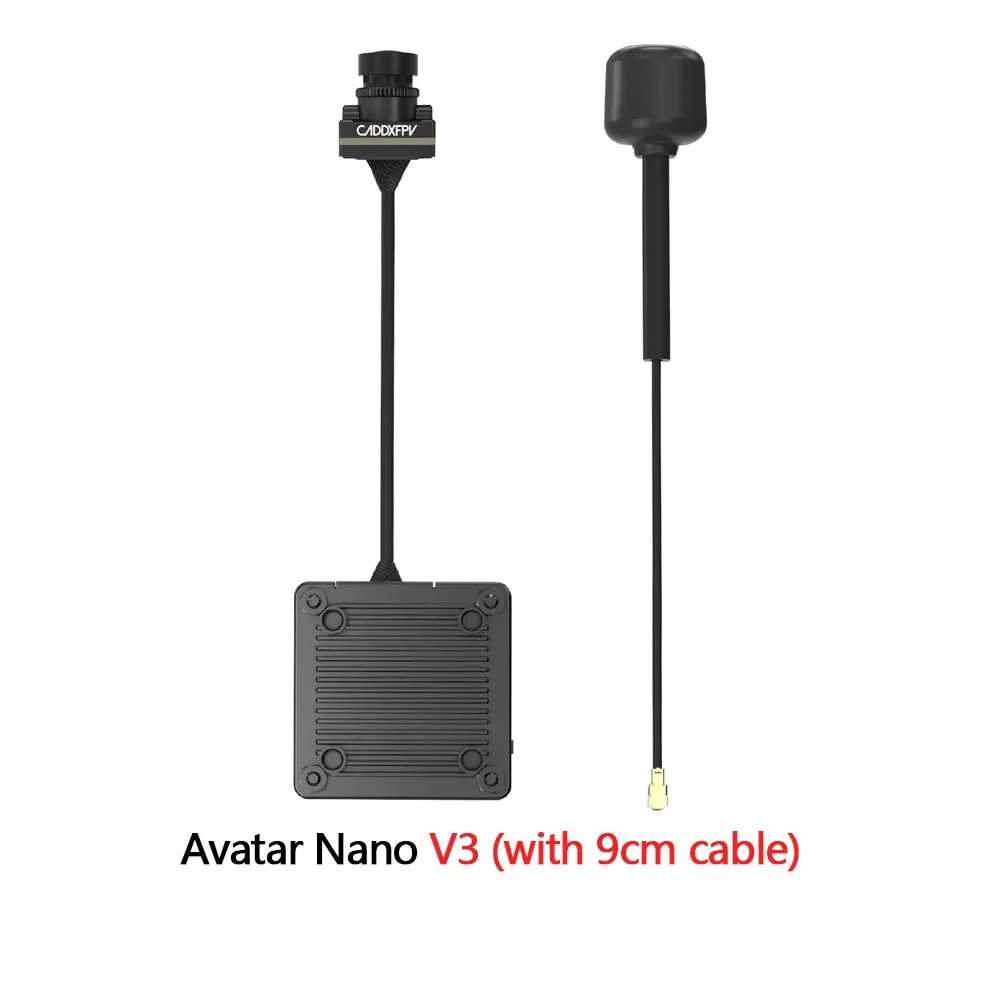

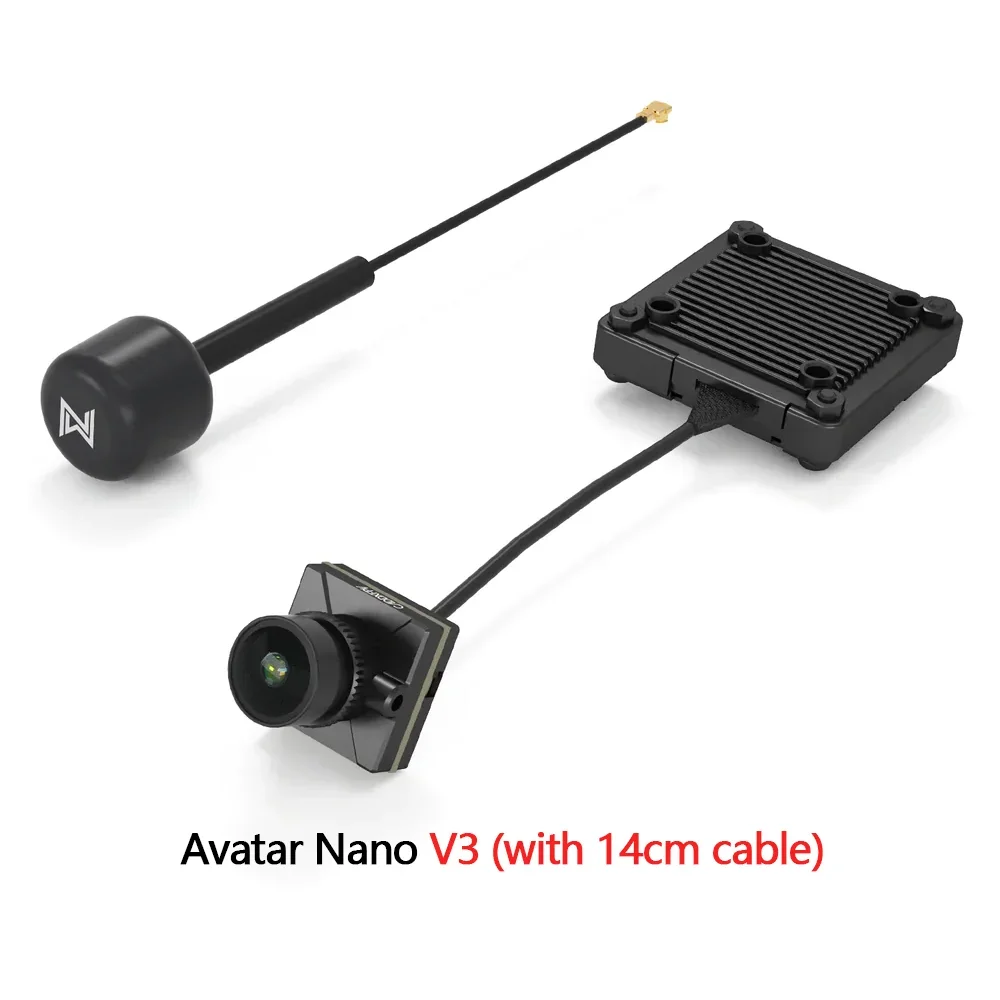

Avatar HD Nano Kit V3 |
X1 |
|
4 Pin USB Cable |
X1 |
|
4 Pin Power Cable |
X1 |
|
M2x4/5/6mm Screws |
X2 |
|
M2x14mm Screws |
X4 |
|
M2*5*0.5mm washer |
X4 |
|
2.1x3.4x1mm Gasket |
X5 |
|
14 to19mm bracket |
X1 |
