4PCS SpeedyBee Programable 2812 Arm LED Light Armlight 5V RGB For RC FPV Racing Freestyle Whoop Drone Quadcopter Runcam
Description
Item: SpeedyBee 2812 RGB Arm Light Strips Programmable 4 Lamp Beads LED Board
Parameters:
Item name:LED light strip

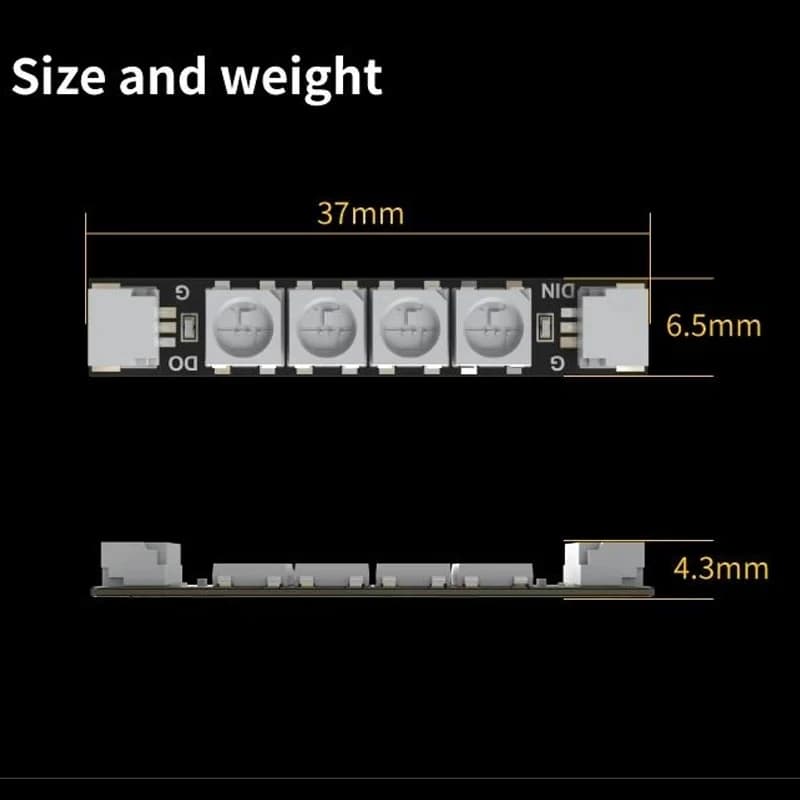

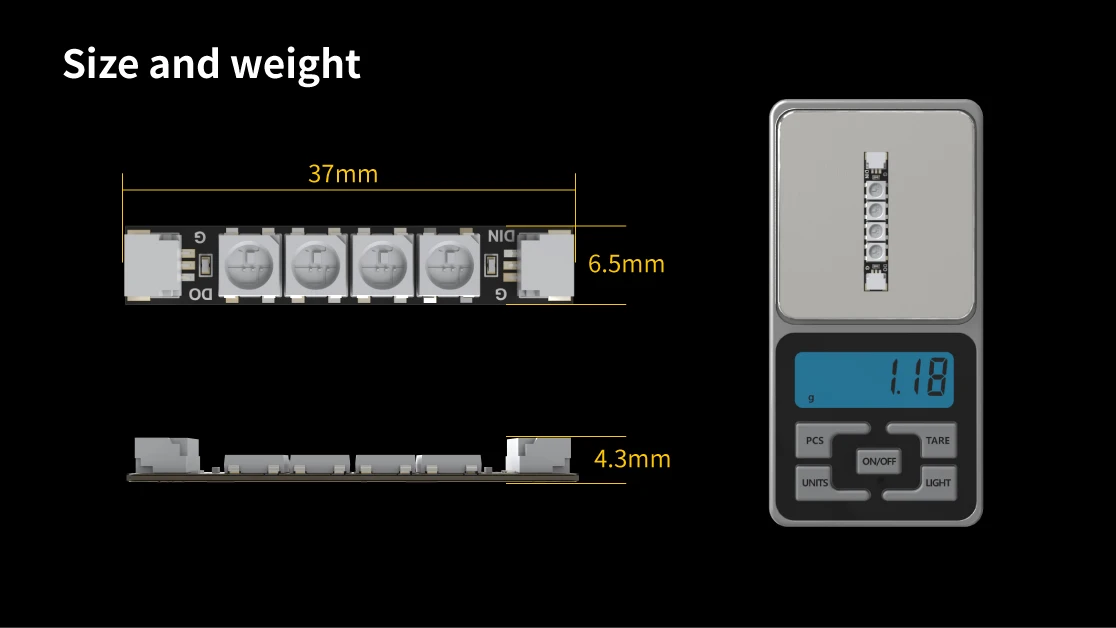

Size:37mm x 6.5mm x 4.3mm
Cable length:50mm
Heat shrink tube length:35mm

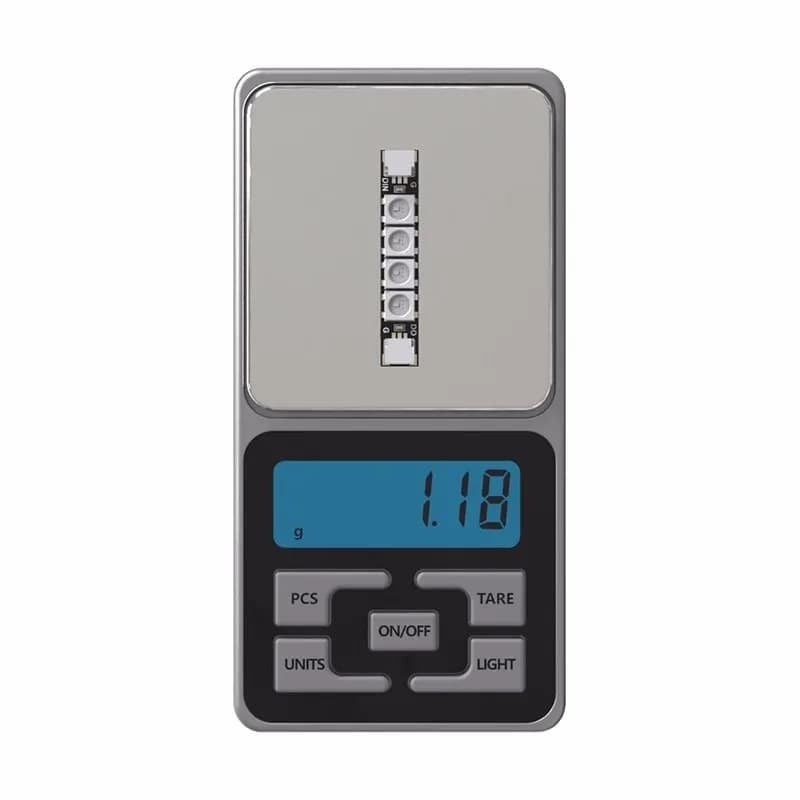

Weight:about 1.2g/pcs(only light strip)
Used for FPV drone arm

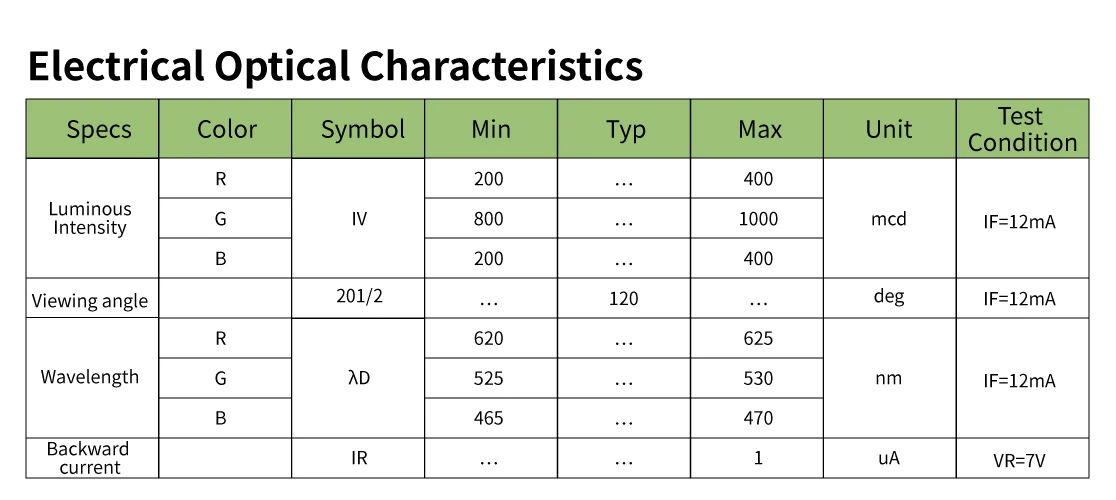

Photoelectric Parameters:
Light intensity(IV):(test conditions:IF=12mA)
R: 200-400mcd
G: 800-1000mcd
B: 200-400mcd
Half-intensity viewing angle(201/2): 120deg(test conditions:IF=12mA)
Dominant wavelength(λD):(test conditions:IF=12mA)
R: 620-625nm
G: 525-530nm
B: 465-470nm
Reverse current(IR): maximum to 1uA((test conditions:VR=7V)

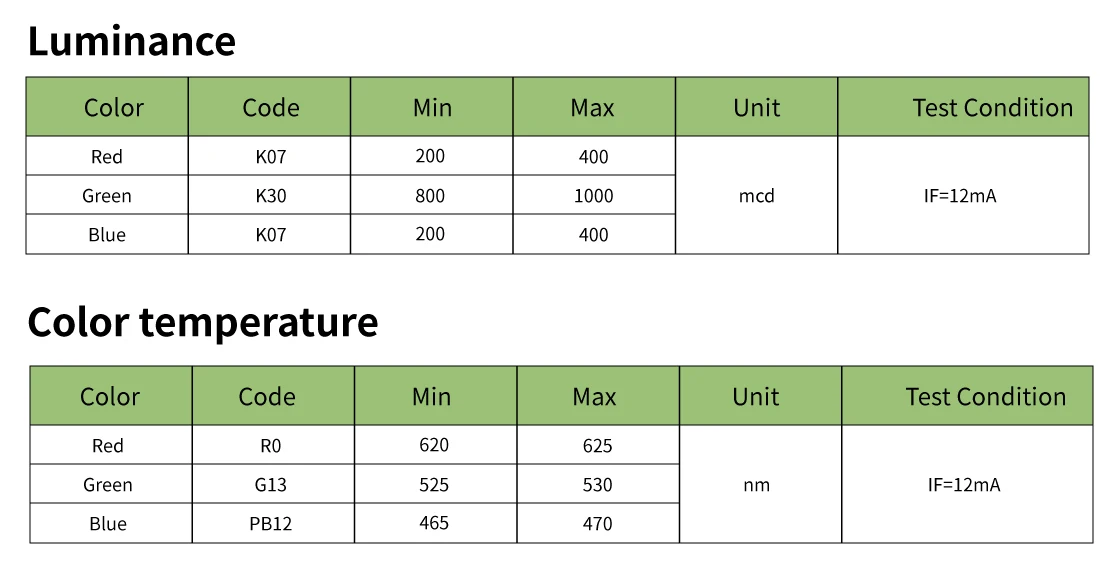

Brightness Binning:(test conditions:IF=12mA)
Red(code K07): 200-400mcd
Green(code K30):800-1000mcd
Blue(code K07): 200-400mcd
Color Temperature Binning:(test conditions:IF=12mA)
Red(code R0): 620-625nm
Green(code G13):525-530nm
Blue(code PB12): 465-470nm

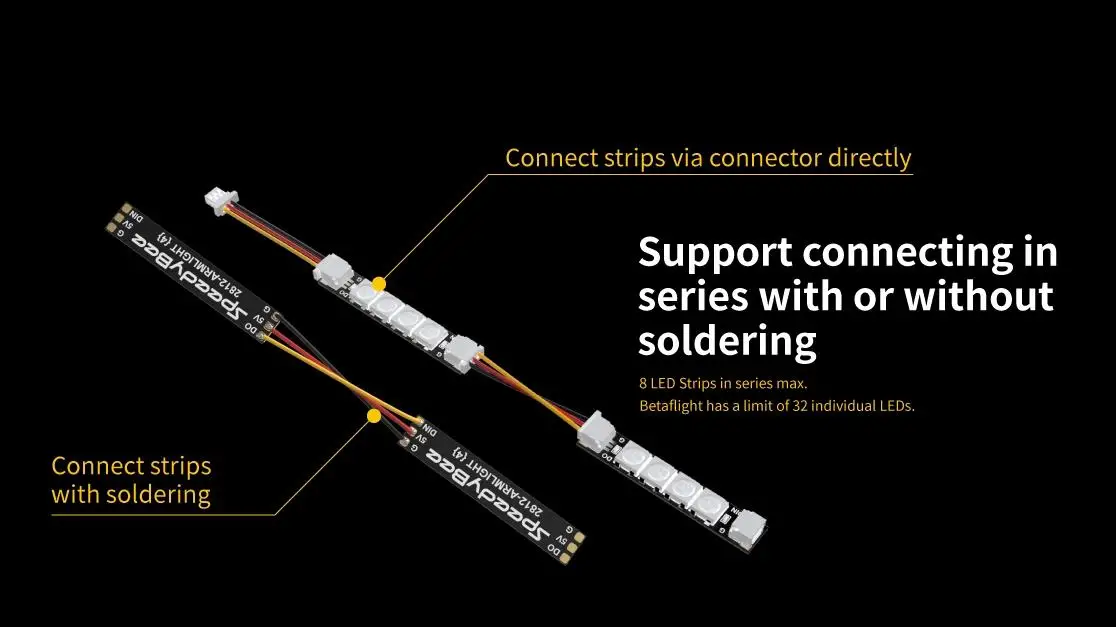

Support welding and welding-free multi-stage series connection.
(Supports up to 8 levels of series connection, Betaflight currently only supports 32 lamp beads.)

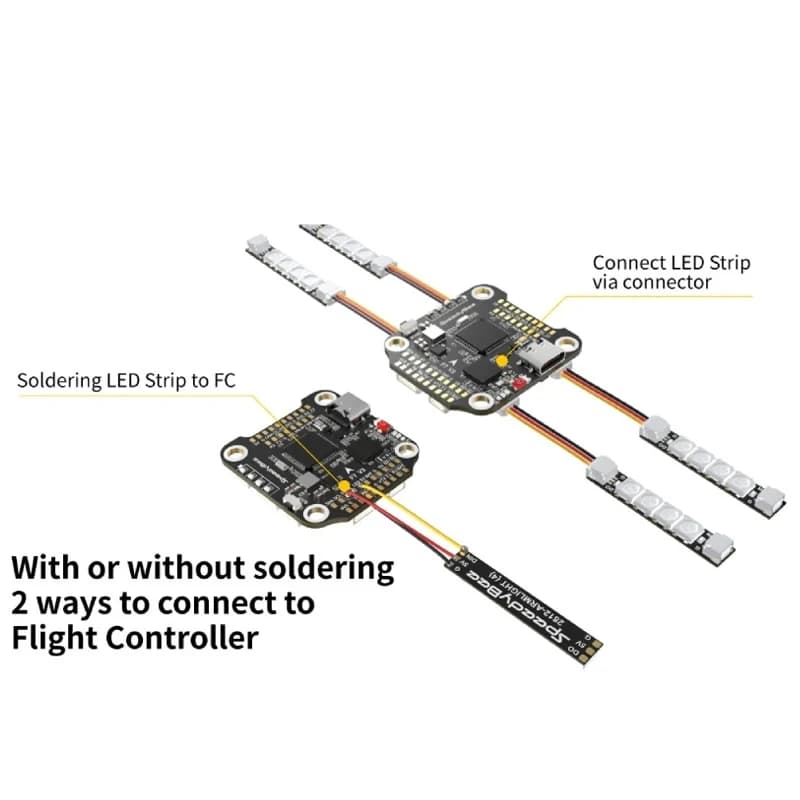

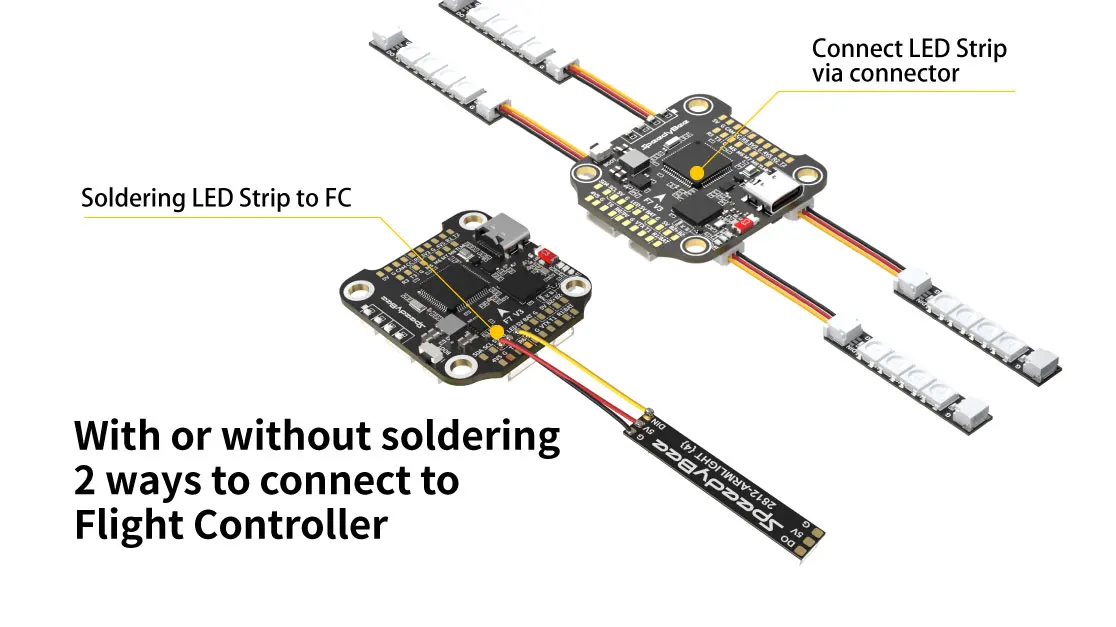

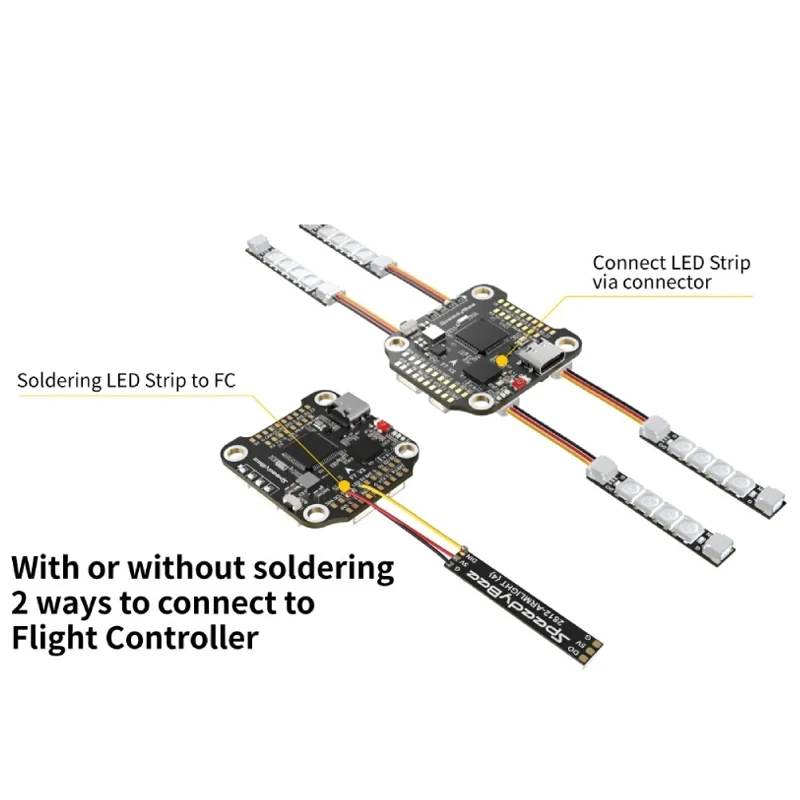

Support welding and welding-free connection to the flight controller.
(Direct welding of flight controllers and light strips.
The flight controller and the light strip seat are inserted directly without welding.)
Note:
- The flight controller and drone will not include.
- Due to manual measurement the size may have slightly deviation.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AN |
| Technical parameters | value 2 |
| Model Number | SpeedyBee 2812 Arm LED Light |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | LED Light |
| RC Parts & Accs | LED Light |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Item: SpeedyBee 2812 RGB Arm Light Strips Programmable 4 Lamp Beads LED Board
Parameters:
Item name:LED light strip
Size:37mm x 6.5mm x 4.3mm
Cable length:50mm
Heat shrink tube length:35mm
Weight:about 1.2g/pcs(only light strip)
Used for FPV drone arm
Photoelectric Parameters:
Light intensity(IV):(test conditions:IF=12mA)
R: 200-400mcd
G: 800-1000mcd
B: 200-400mcd
Half-intensity viewing angle(201/2): 120deg(test conditions:IF=12mA)
Dominant wavelength(λD):(test conditions:IF=12mA)
R: 620-625nm
G: 525-530nm
B: 465-470nm
Reverse current(IR): maximum to 1uA((test conditions:VR=7V)
Brightness Binning:(test conditions:IF=12mA)
Red(code K07): 200-400mcd
Green(code K30):800-1000mcd
Blue(code K07): 200-400mcd
Color Temperature Binning:(test conditions:IF=12mA)
Red(code R0): 620-625nm
Green(code G13):525-530nm
Blue(code PB12): 465-470nm
Support welding and welding-free multi-stage series connection.
(Supports up to 8 levels of series connection, Betaflight currently only supports 32 lamp beads.)
Support welding and welding-free connection to the flight controller.
(Direct welding of flight controllers and light strips.
The flight controller and the light strip seat are inserted directly without welding.)
Note:
1.The flight controller and drone will not include.
2.Due to manual measurement the size may have slightly deviation.

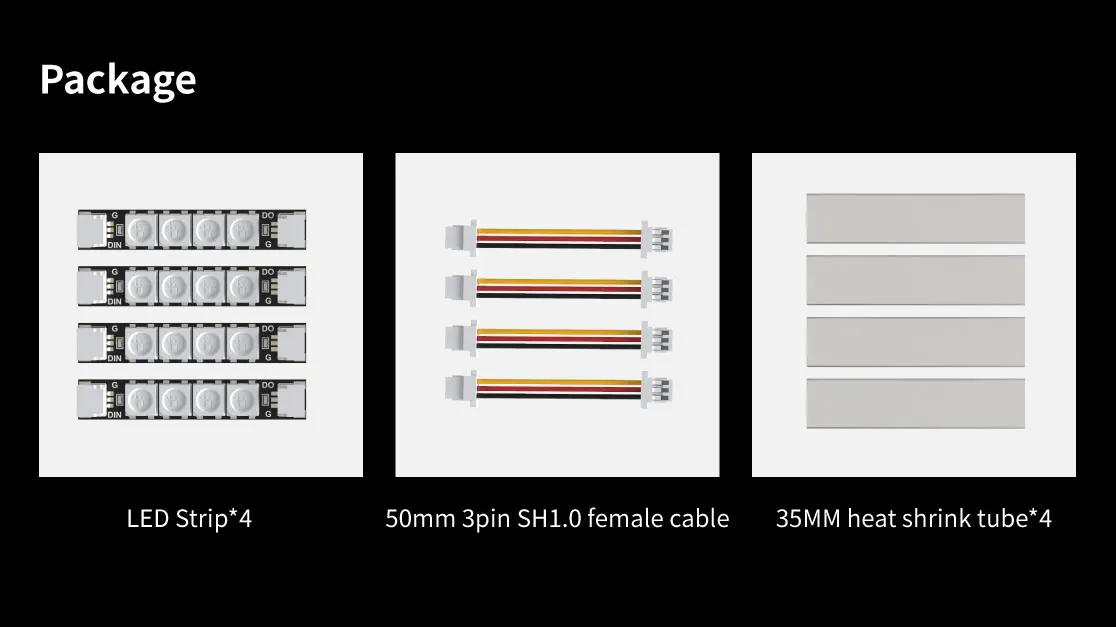

Package Included:

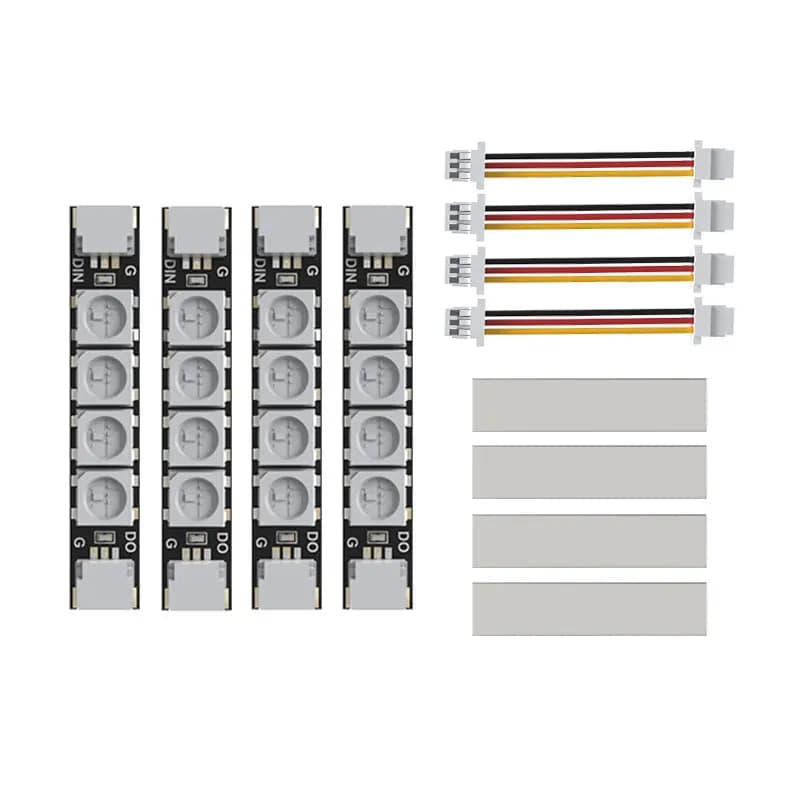

4pcs light strips + 4pcs cables + 4pcs heat shrink tubes
