HGLRC Zeus nano VTX 350mW FPV 5.8G 2.4g 40CH Built-in Microphone 16/20/25.5mm Hole For RC FPV Transmitter VTX Multicopter
From US $29.85
Est. US $29.85 / unit (1-9 pcs)
$27 @ 10+ pcs$26 @ 100+ pcs
Description
[xlmodel]-[custom]-[8888]
Item: HGLRC Zeus nano VTX 350mW FPV 5.8G
Parameters:
Product name: Zeus nano VTX
Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex
Output power: PIT/25/100/200/350mW

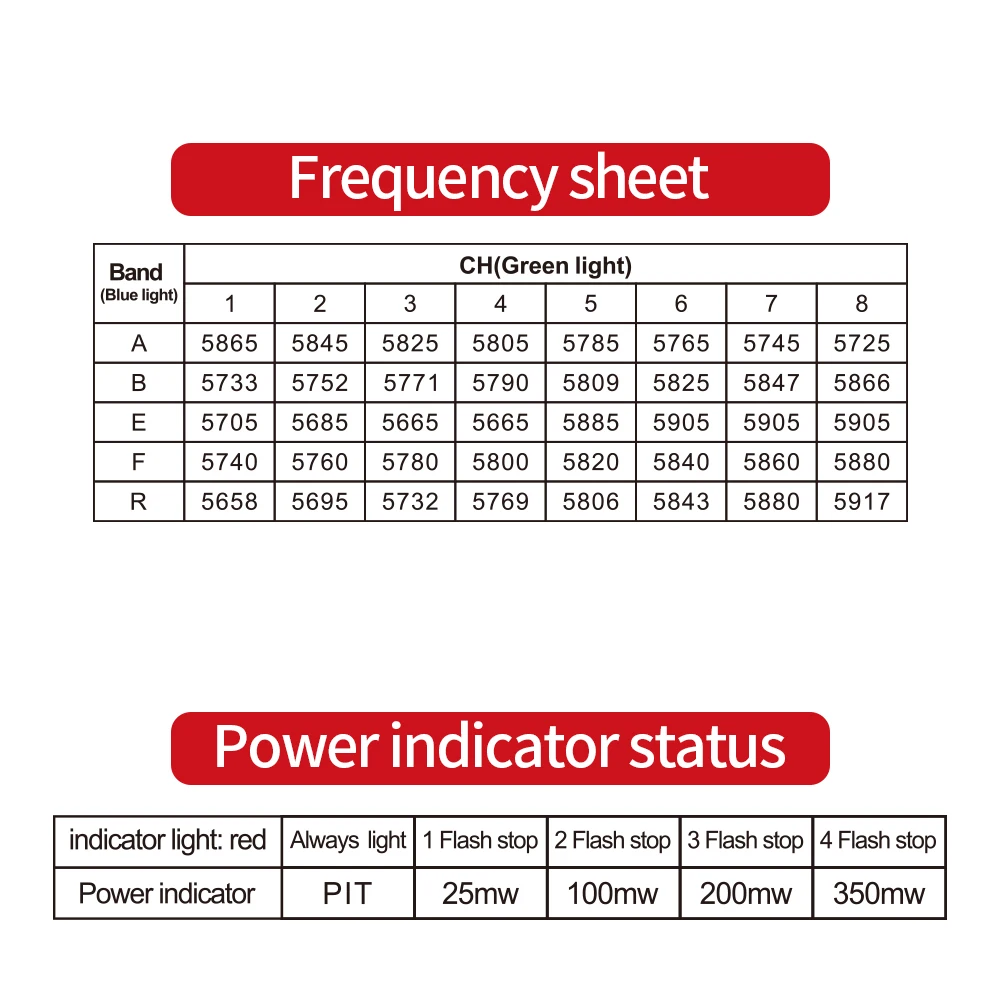

Standard 40 channels. A/B/E/F/R frequency group

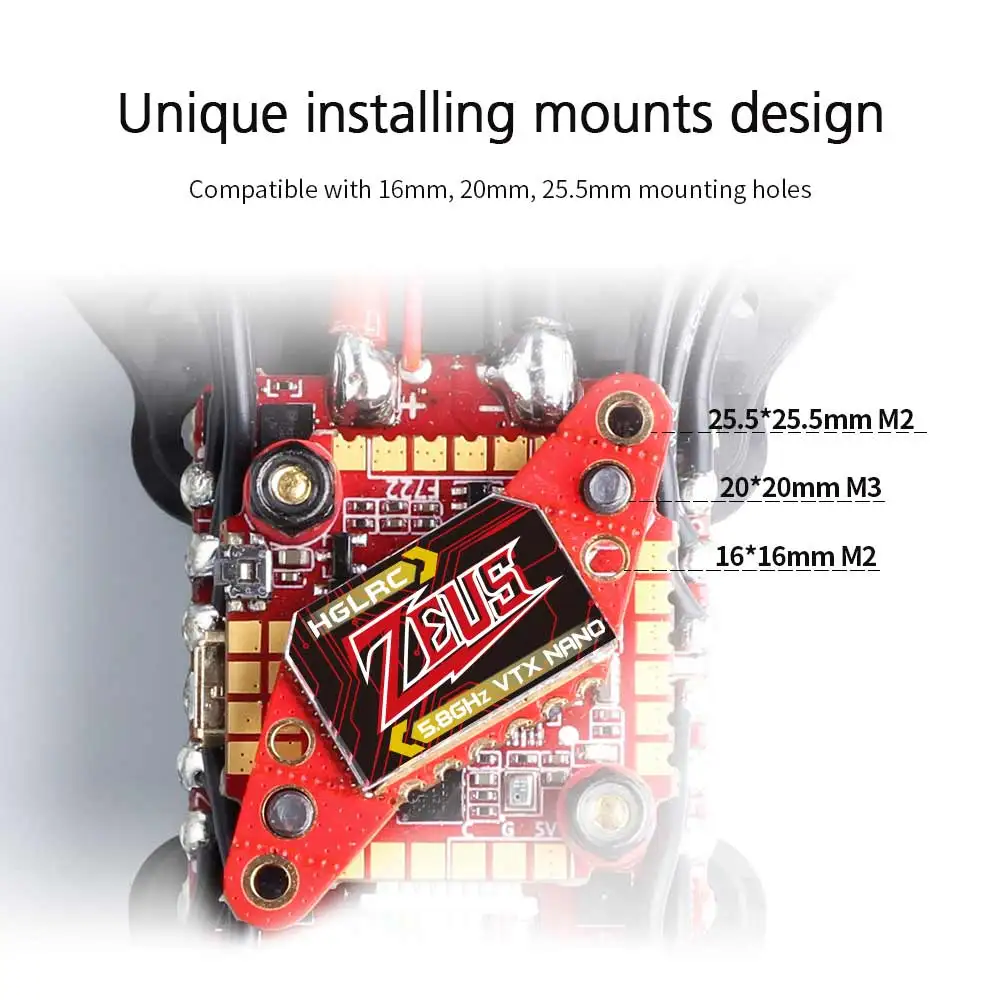

Mounting hole: 16X16/25.5X25.5mm.M2
20X20mm.M3
Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Variant
Selected priceUSD 26.36
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Technical parameters |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Technical parameters | value 2 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Radio Systems |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
[xlmodel]-[custom]-[8888]
Item: HGLRC Zeus nano VTX 350mW FPV 5.8G
Parameters:
Product name: Zeus nano VTX
Built-in microphone
Support voltage: DC 5V
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
350mW@400mA/27.5dBm
Antenna interface: ipex
Output power: PIT/25/100/200/350mW
Standard 40 channels. A/B/E/F/R frequency group
Mounting hole: 16X16/25.5X25.5mm.M2
20X20mm.M3
Size: 18.6mm x 13.6mm x 6mm
Weight: 2.4g
Package Included:
1 x Zeus nano VTX
1 x ipex interface copper tube antenna
1 x ipex to SMA adapter
6 x video transmission cable
Option 2 : with UFL RHCP antenna
