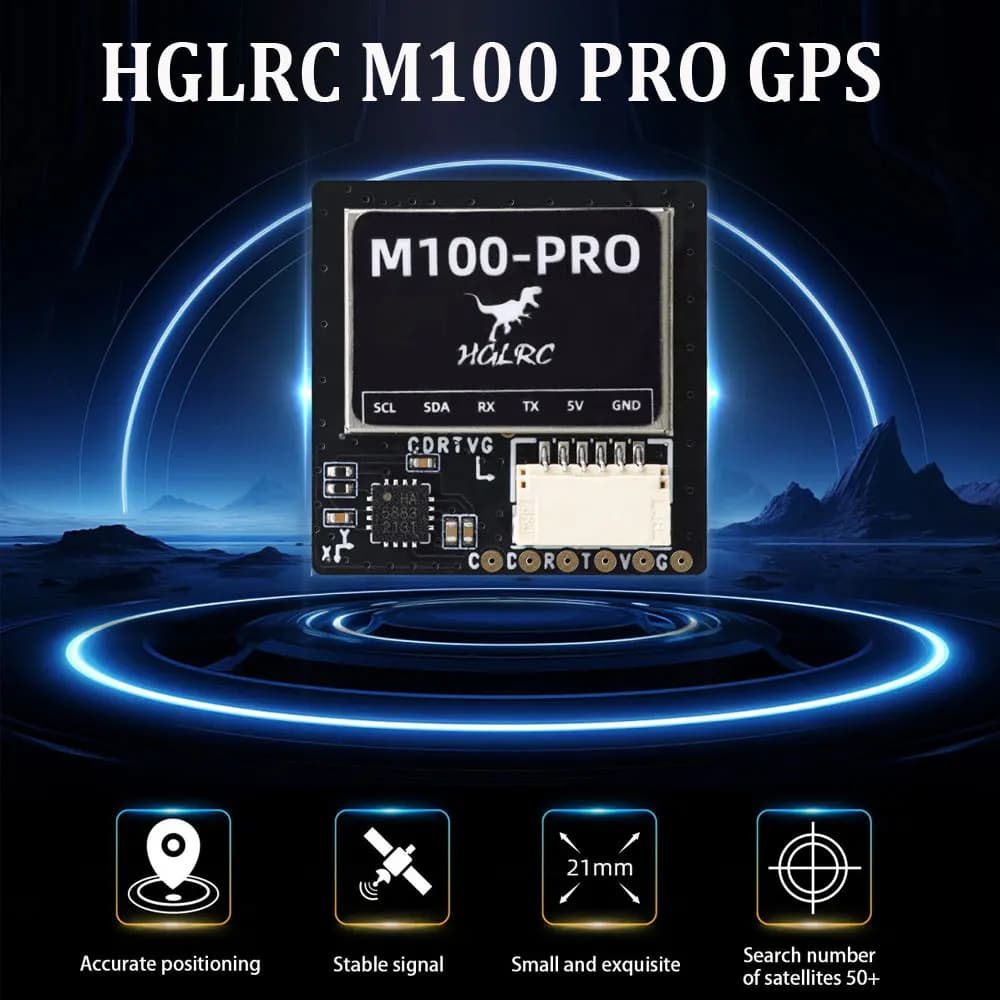

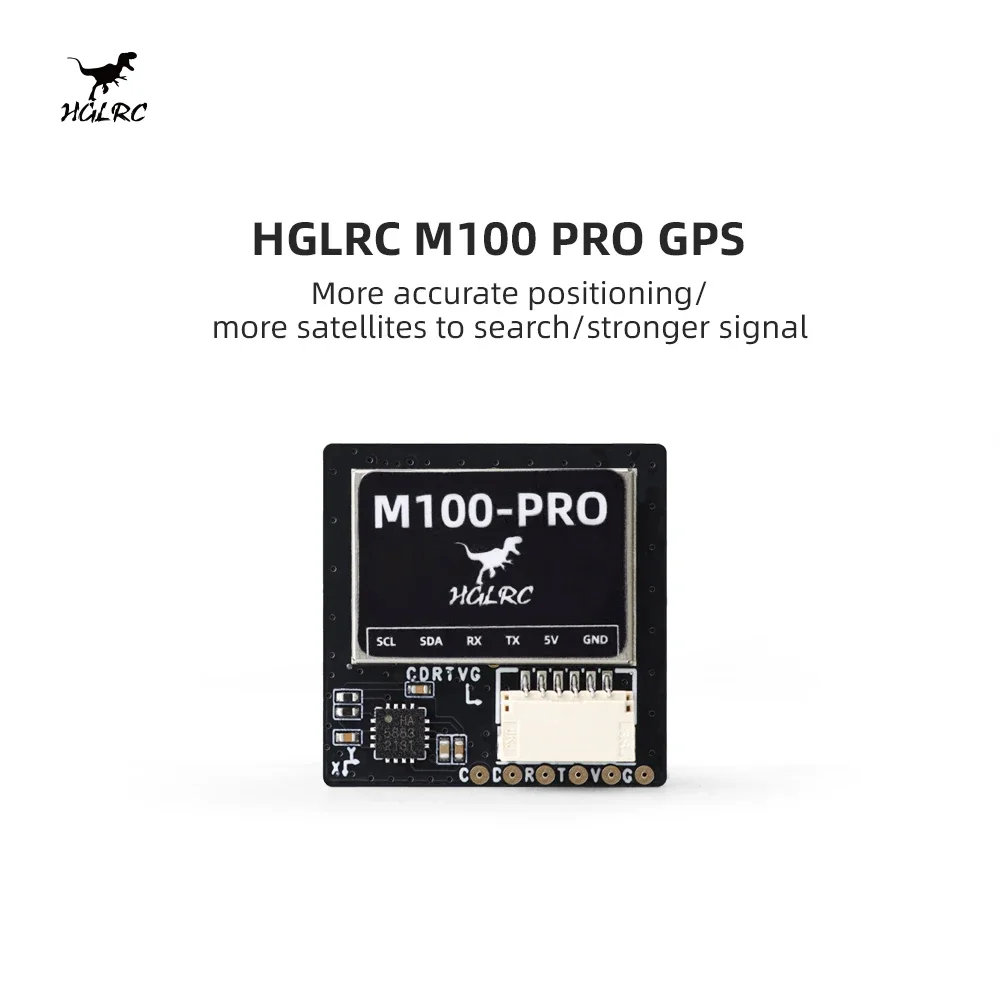

HGLRC M100 PRO GPS Chip B101 10th Generation Protocol Chip QMC5883L Compass for FPV Racing Freestyle Drones
Description
Features:
Adopting the new 10th generation chip, the number of satellite searches is 50+

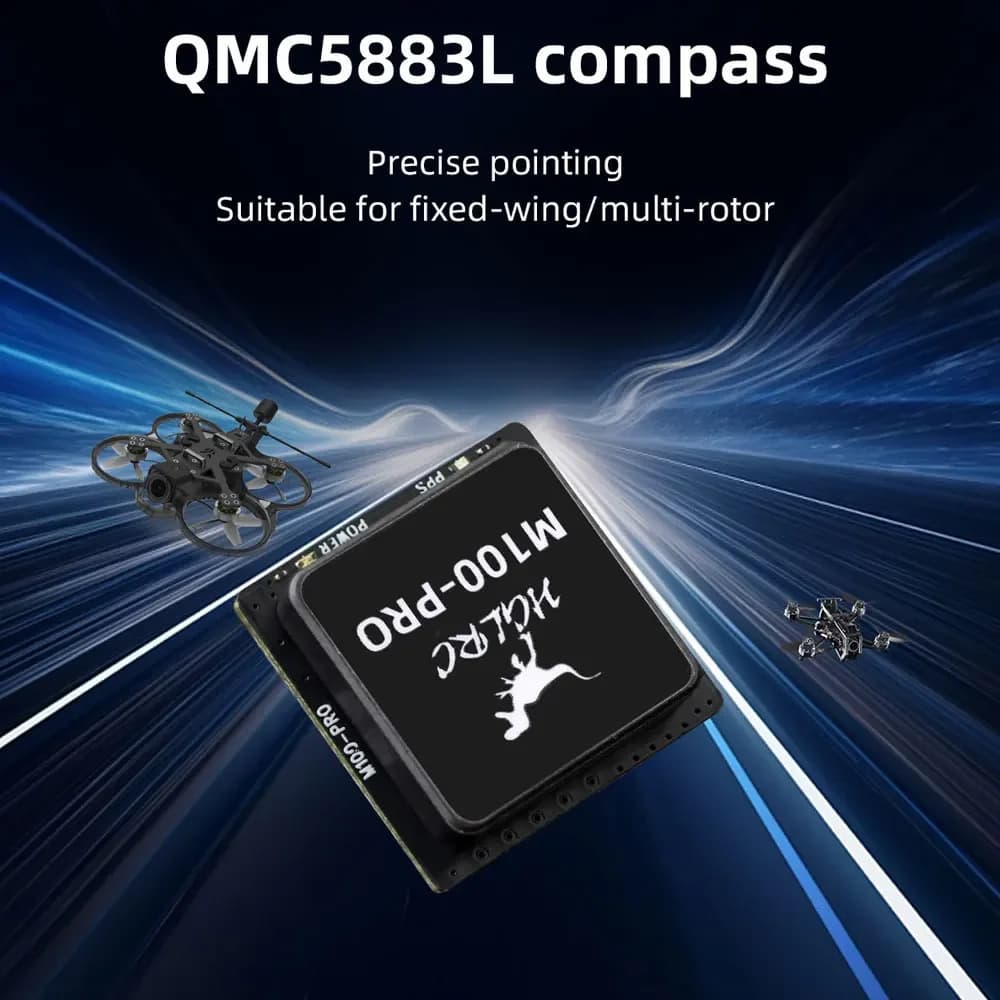

QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃
Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AN |
| Technical parameters | KV1100 |
| Model Number | HGLRC M100 PRO GPS |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | GPS |
| RC Parts & Accs | GPS |
| Material | Composite Material |
| Brand Name | HawkSpeed |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features:
Adopting the new 10th generation chip, the number of satellite searches is 50+
QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃
Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1
