HGLRC M100-5883 GPS/ M100-PRO GPS / M100 MINI GPS /M80 PRO /M80 GPS for FPV Racing Drone Quadcopter Freestyle Fancy Flight Drone
Description
HGLRC M100-5883 GPS/ M100-PRO GPS / M100 MINI GPS /M80 PRO /M80 GPS for FPV Racing Drone Quadcopter Freestyle Fancy Flight Drone High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 21x21x8.02mm
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 21x21x8.02mm |
| Technical parameters | value 2 |
| Model Number | M100 MINI GPS |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | HGLRC M100-PRO GPS |
| Remote Control Peripherals/Devices | ESC |
| Upgrade Parts/Accessories | HGLRC M100-5883 GPS |
| RC Parts & Accs | Gyros |
| Material | Metal |
| Brand Name | U-Angel-1988 |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| TypeA | M80 PRO GPS |
| TypeB | M80 GPS |
Product Details

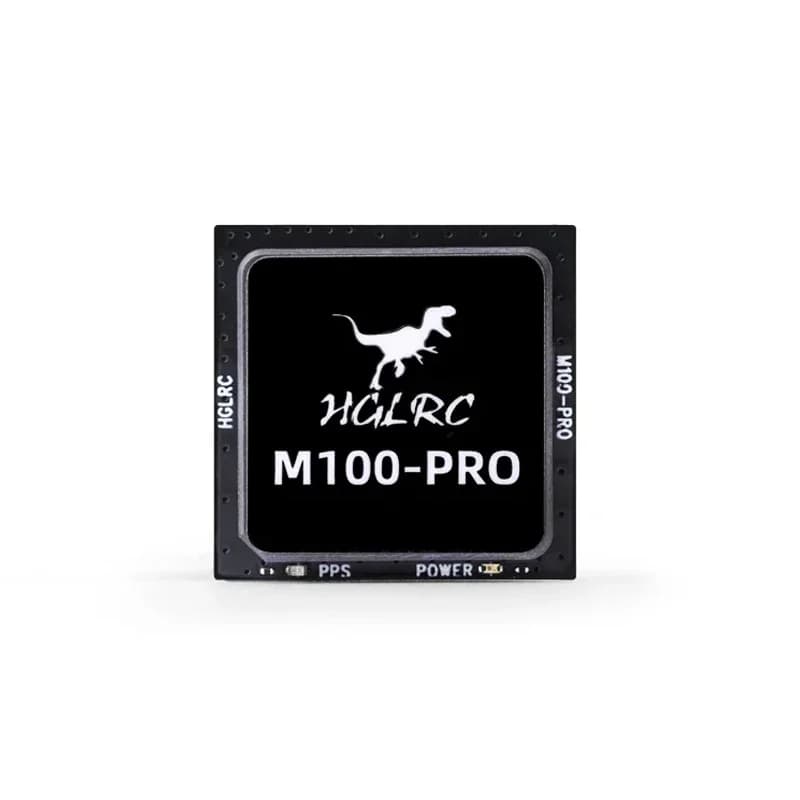

HGLRC M100-PRO GPS
Adopting the new 10th generation chip, the number of satellite searches is 50+
QMC5883L compass, more accurate pointing
The receiving channel is expanded to 120ch, and the satellites can search more and faster into the chip.
Five-mode positioning, strong and stable signal to protect you.
Product parameters:
Chip: B101 (10th generation chip)
Receiving channel: 120
Baud rate: 115200 Protocol: UBX
Antenna: ceramic antenna Output frequency: 10Hz
Frequency: GPS L1, GLONASS G1, BDS B1,
GALILEO E1, QZSS L1, SBAS L1, IRNSS
Power input: 3.6-5.5V
Weight: 7.9g Acceleration 4G
Speed: 500m/s
Size: 21.2×21.2×8.2mm
Operating temperature: -40℃~+85℃
Storage temperature: -40℃~+105℃

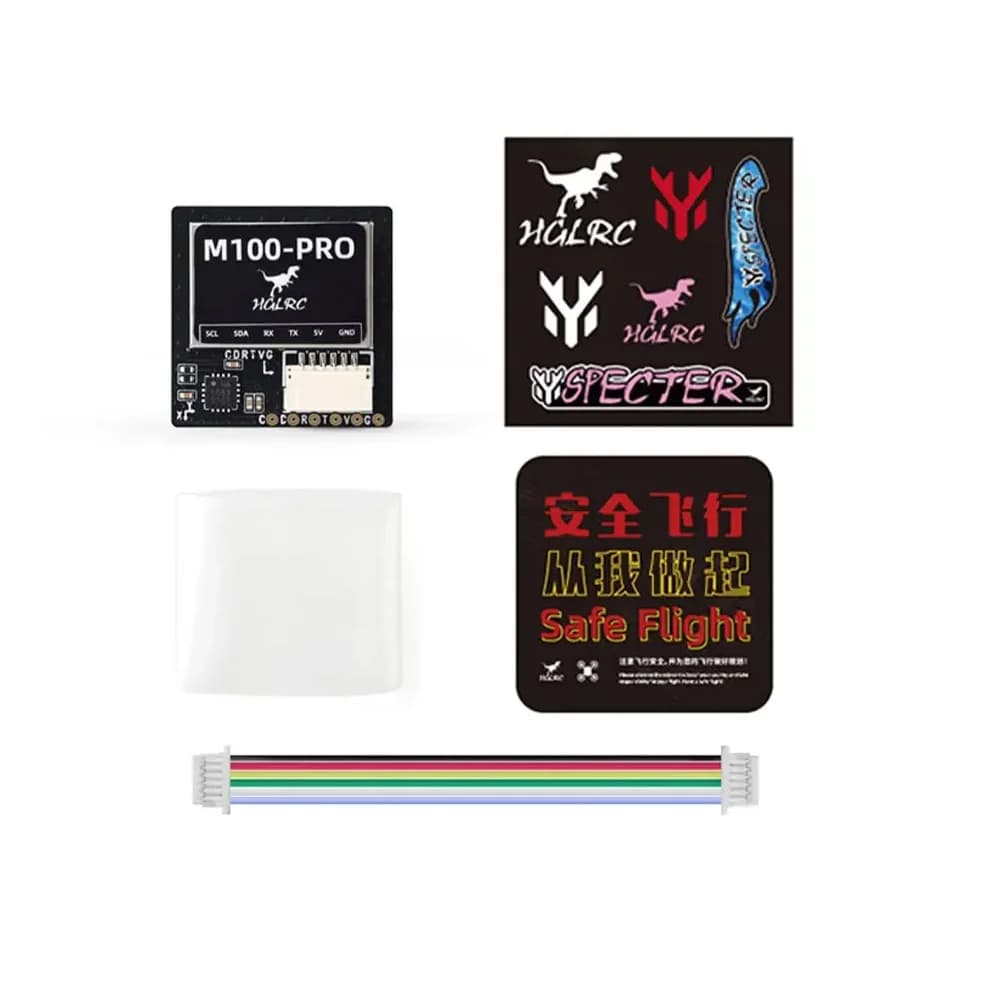

Product List
HGLRC M100 PRO GPS x 1
Heat shrink tube (φ18mm x 25mm) x 1
HGLRC sticker x 1
HGLRC manual x 1
SH1.0-6pin cable x 1

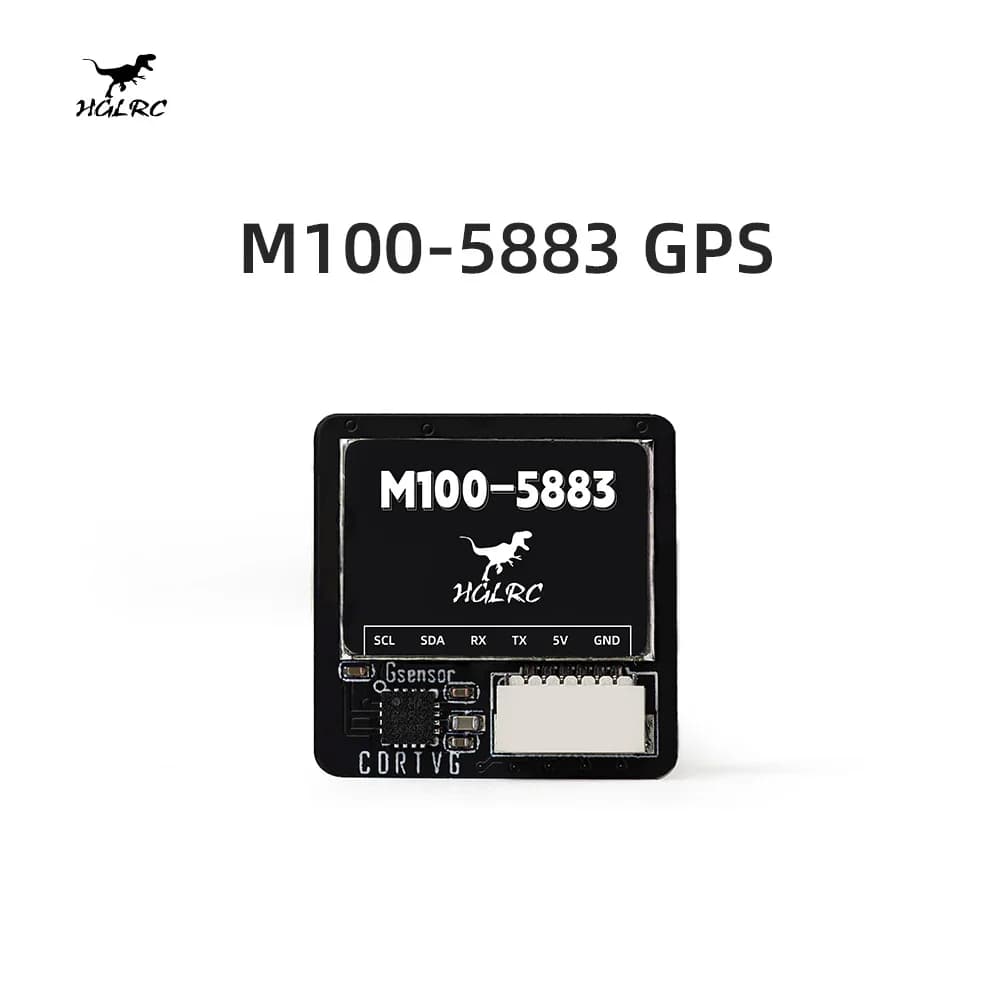

HGLRC M100-5883 GPS
New upgraded 10th generation chip with compass
Suitable for FPV fixed-wing UAV
Technical Parameters:
1. Chip: M10 (tenth generation chip)
2. Antenna: ceramic antenna
3. Frequency: GPS/QZSS L1C/A, SBAS EGNOS, GAGAN, MSAS and WAAS
GLONASS L1OF, BDS B1I, Galileo E1B/C
4. Receive channel: 72ch
5. Baud rate: 115200bps.
7. Output frequency: 10Hz
8. Power input: 3.3-5V
9. Size: 21x21x8.02mm
10. Weight: 7.73g

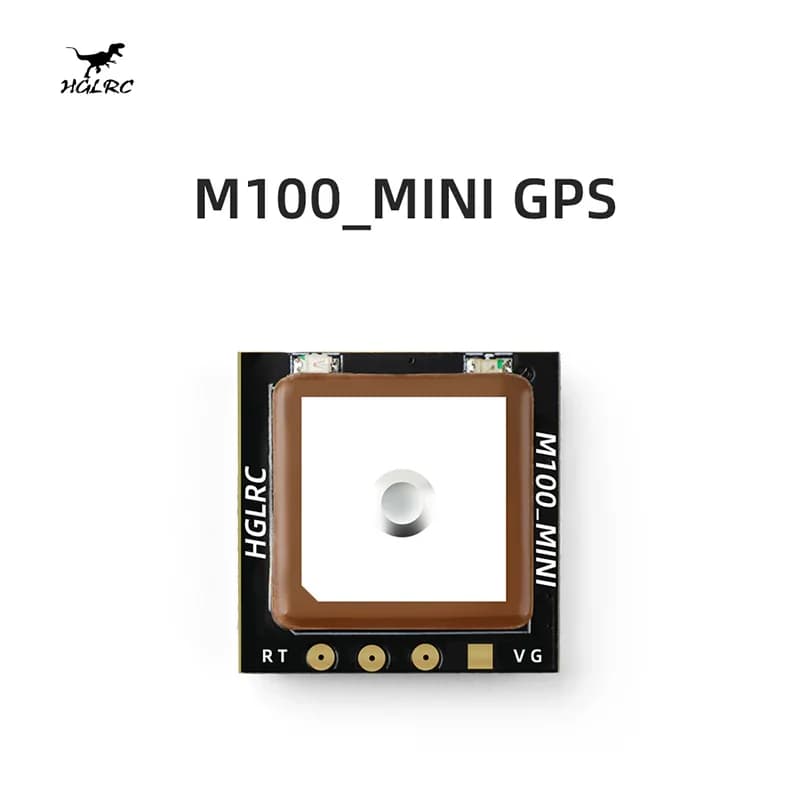

HGLRC M100 MINI GPS
Chip: M10(10th Generation Chip)
Antenna: Ceramic Antenna
Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1
Receive Channel: 72ch
Baud Rate: 115200bps
Output Frequency: 10Hz
Input: 3.3V-5V
Size: 15x15x5.2mm
Weight: 2.6g
Speed Accuracy: 0.05m/s
Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)
Receiver Sensitivity: Trace -166dBm
Capture -160dBm
Characteristics: High:50000m,
Speed: 500m/s,
acceleration 4G
Operating temperature: -40°C - +85°C
Storage temperature: -40°C - +105°C

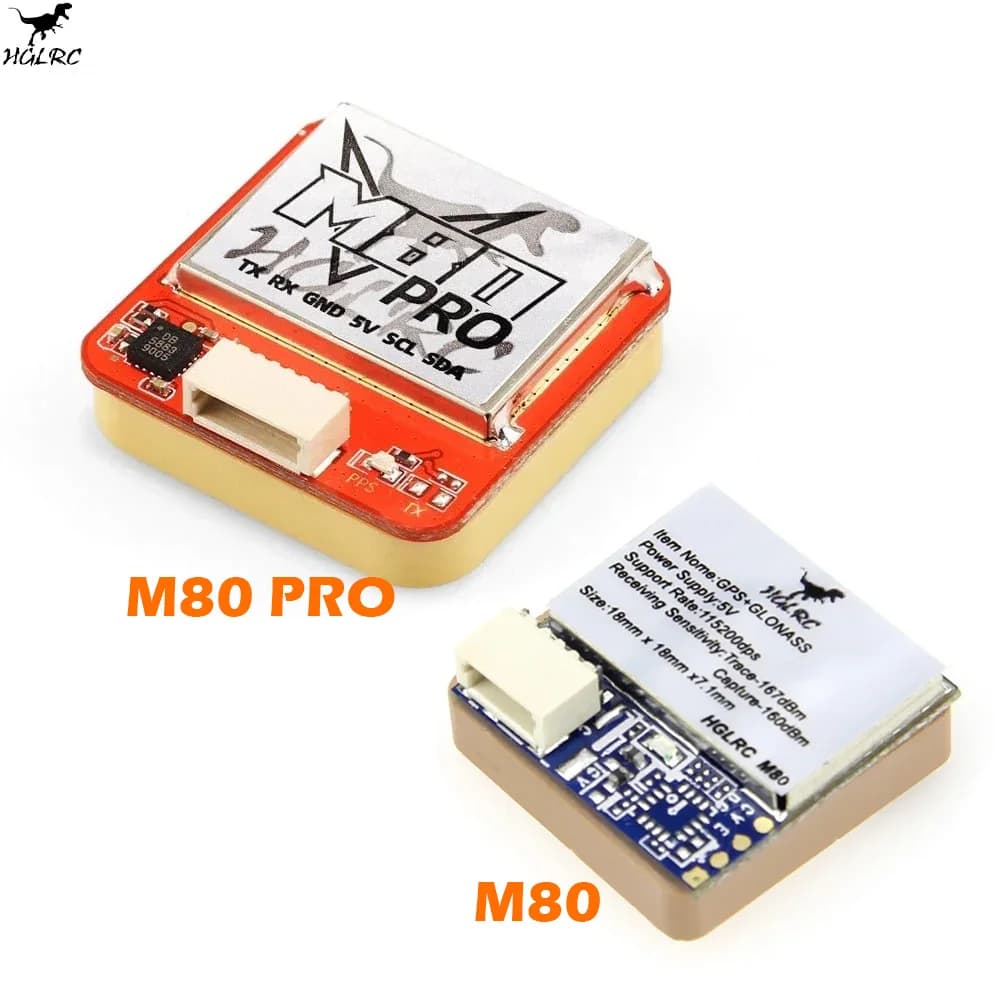

HGLRC M80 PRO GLONASS GALILEO QZSS SBAS BDS GPS Module QMC5883 Compass Gain Antenna for RC Airplane FPV Long Range Drones
Item Name:HGLRC M80PRO GPS
Chip:M8030
Power Supply:5V
Antenna: Ceramic Antenna
Receiving Format:GPS,GLONASS,GALILEO,QZSS,SBAS,BDS
Receiving Channel:72 Searching Channel
Compass:QMC5883
Support Rate:115200dps
Output Frequency:1Hz-10Hz,Default 10Hz
Speed Precison:0.05 m/s
Level Positioning Precison:2D ACC1.5m(ln Open Sky)
Receiving Sensitivity:Trace -162dBm
Capture-160dBm
Dynamic Characteristics:Max Height:50000m
Max Speed:500m/s
Max Acceleration:4G
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+105℃
Size:25mm x 25mm x 8.3mm
Weight:12.5g
