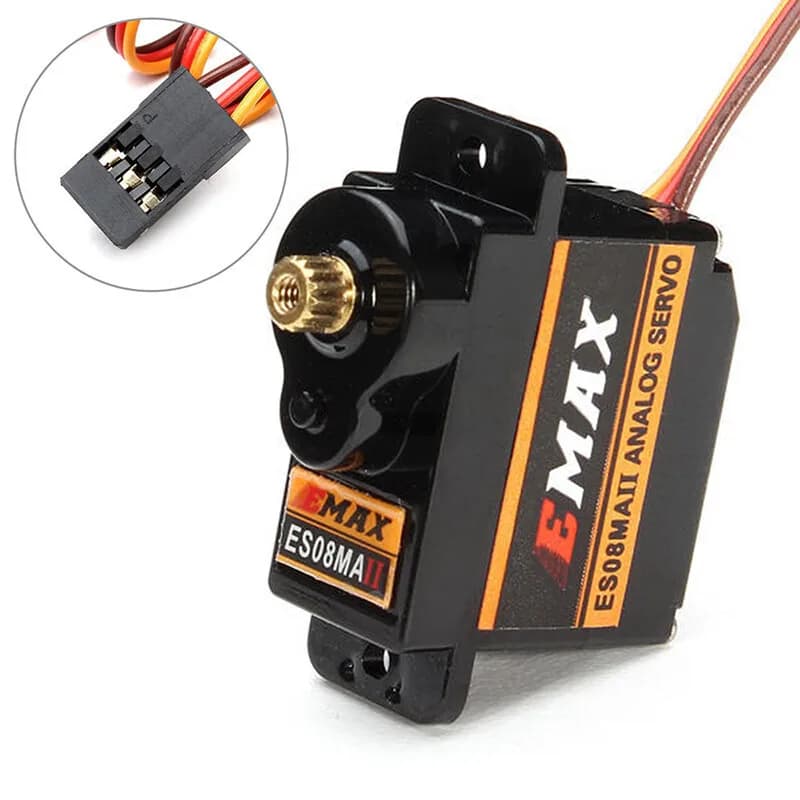

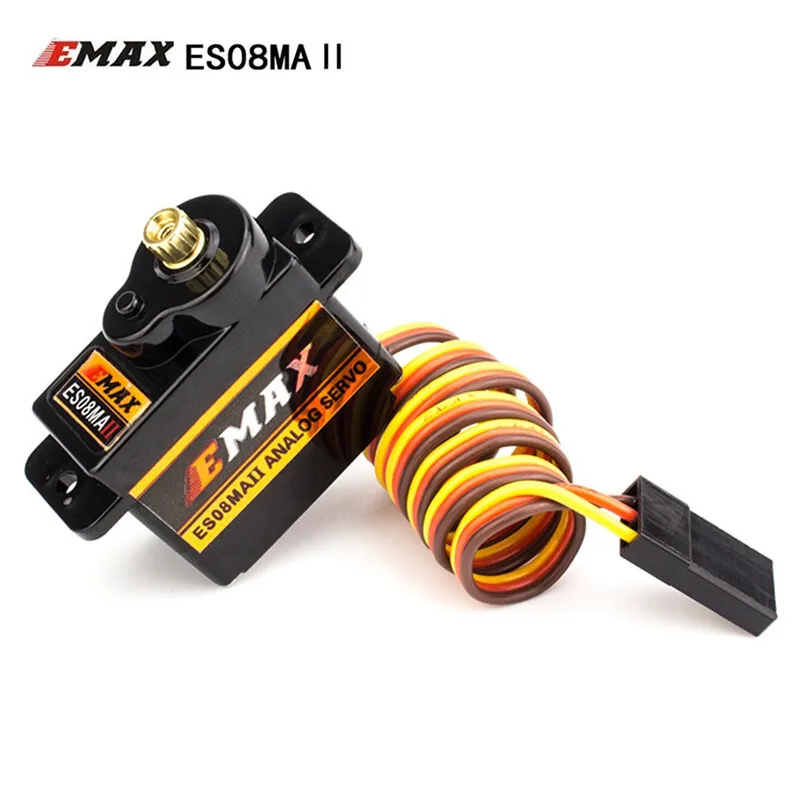

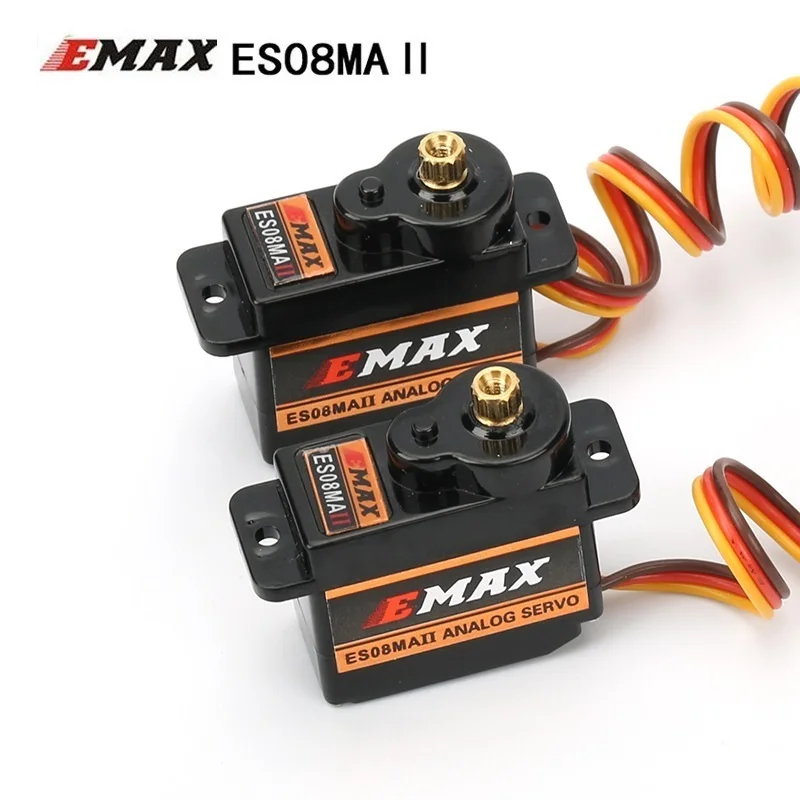

Original EMAX ES08MAII 12G Metal Gear Micro Servo For Cars, Ships, Helicopters And Airplanes
From US $9.21 - 42.34
Est. US $9.21 - 42.34 / unit (1-9 pcs)
$8 @ 10+ pcs$8 @ 100+ pcs
Description
Model: ES08MAⅡ

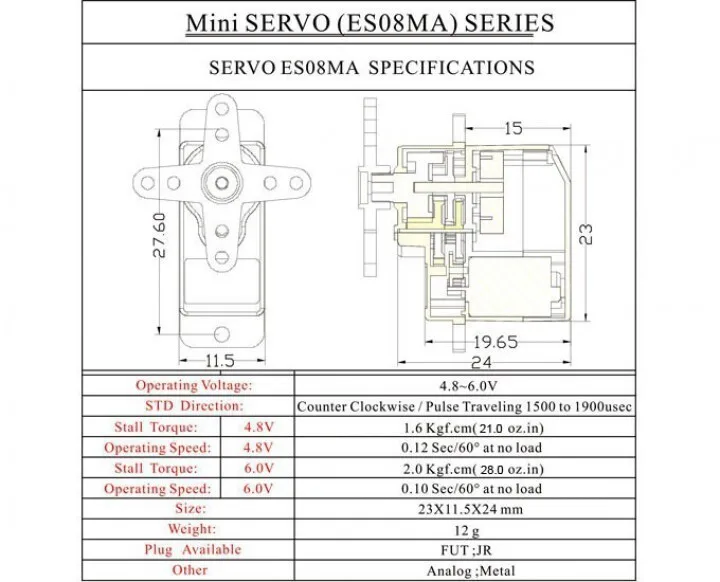

Dimensions: 23 x 11.5 x 24 mm (1.25 x .45 x .94in)
Weight: 12g / 0.42oz
Operating voltage: 4.8V~6.0V
Operating current: 200mA/60o
Speed: 0.12sec/60o at 4.8V; 0.10sec/60o at 6V
Torque: 1.5/1.8 kg.cm (4.8V/6v)

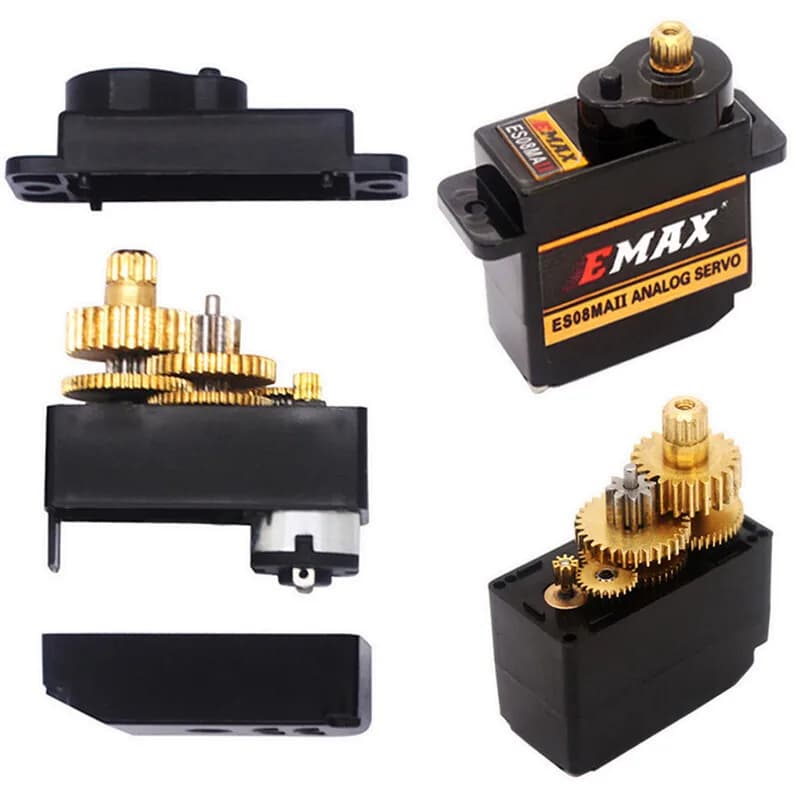

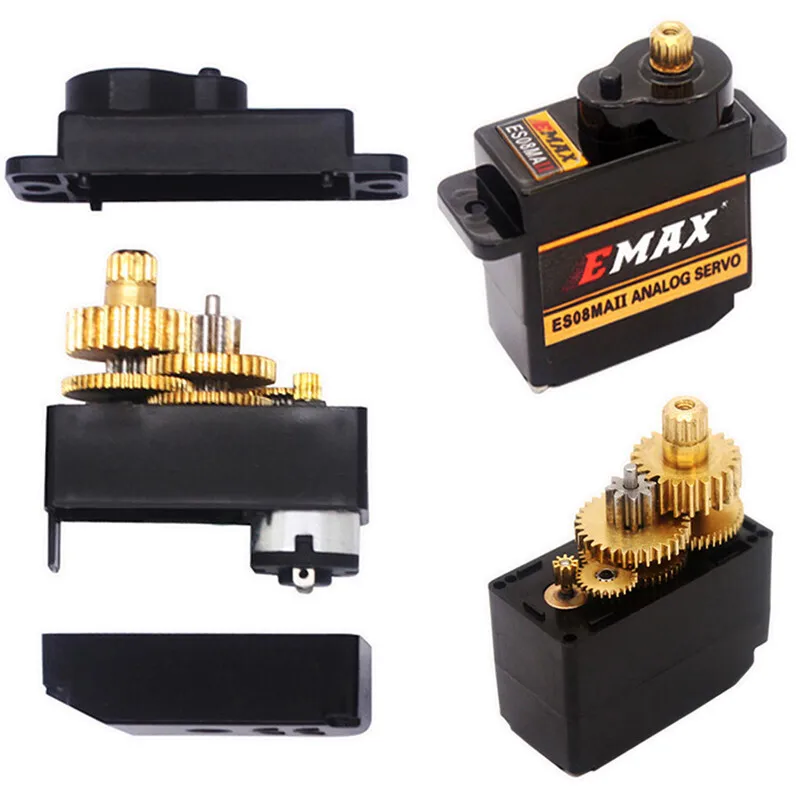

Gear material: metal
Output gear: 15T
Servo cable length: 25 cm
Plug standard: Futaba/JR universal

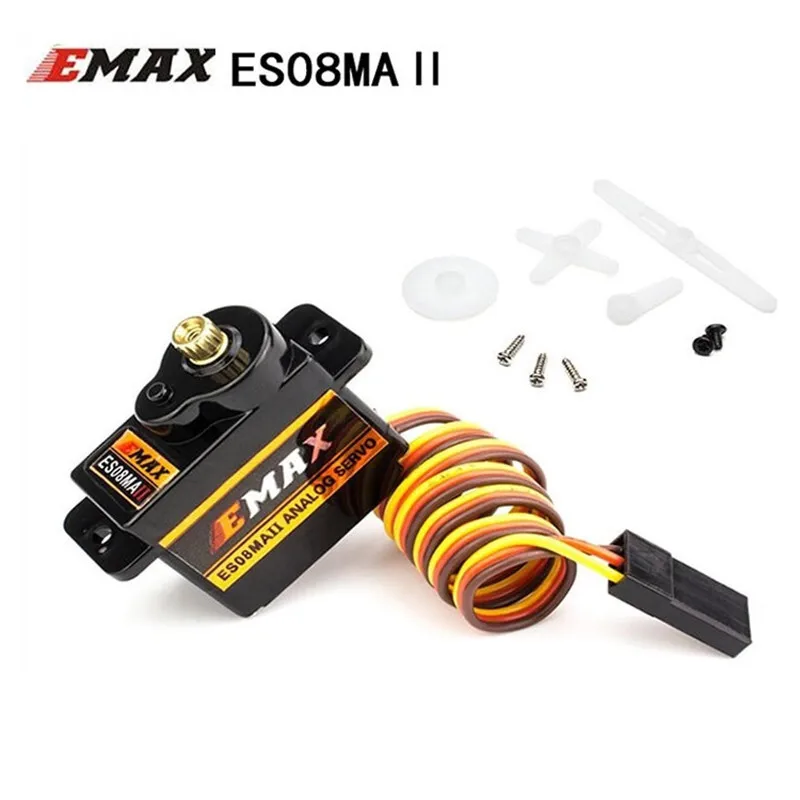

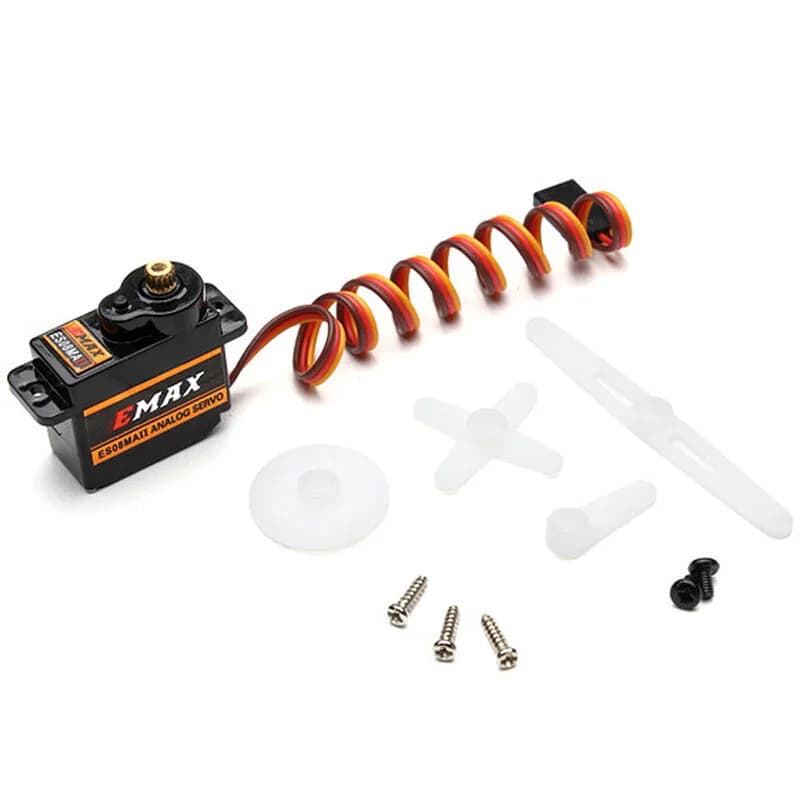

Includes:
1 x ES08MA servo
1 x 4 servo rocker arms
5 x screws
Variant
Selected priceUSD 9.24
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 23 x 11.5 x 24 mm |
| Technical parameters | KV1100 |
| Model Number | EMAX ES08MAII |
| For Vehicle Type | Cars |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Servos |
| Upgrade Parts/Accessories | Base C |
| RC Parts & Accs | Servos |
| Material | Metal |
| Brand Name | PYLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | NONE |
Product Details
Model: ES08MAⅡ
Dimensions: 23 x 11.5 x 24 mm (1.25 x .45 x .94in)
Weight: 12g / 0.42oz
Operating voltage: 4.8V~6.0V
Operating current: 200mA/60o
Speed: 0.12sec/60o at 4.8V; 0.10sec/60o at 6V
Torque: 1.5/1.8 kg.cm (4.8V/6v)
Gear material: metal
Output gear: 15T
Servo cable length: 25 cm
Plug standard: Futaba/JR universal
Includes:
1 x ES08MA servo
1 x 4 servo rocker arms
5 x screws
