Caddx Walksnail Avatar HD Mini 1s Kit 1080P 60fps nanoCamera V3 VTX 8G Avatar Mini 1s Lite Kit Low Latency for FPV Racing Drone
600 orders (reference)
Description

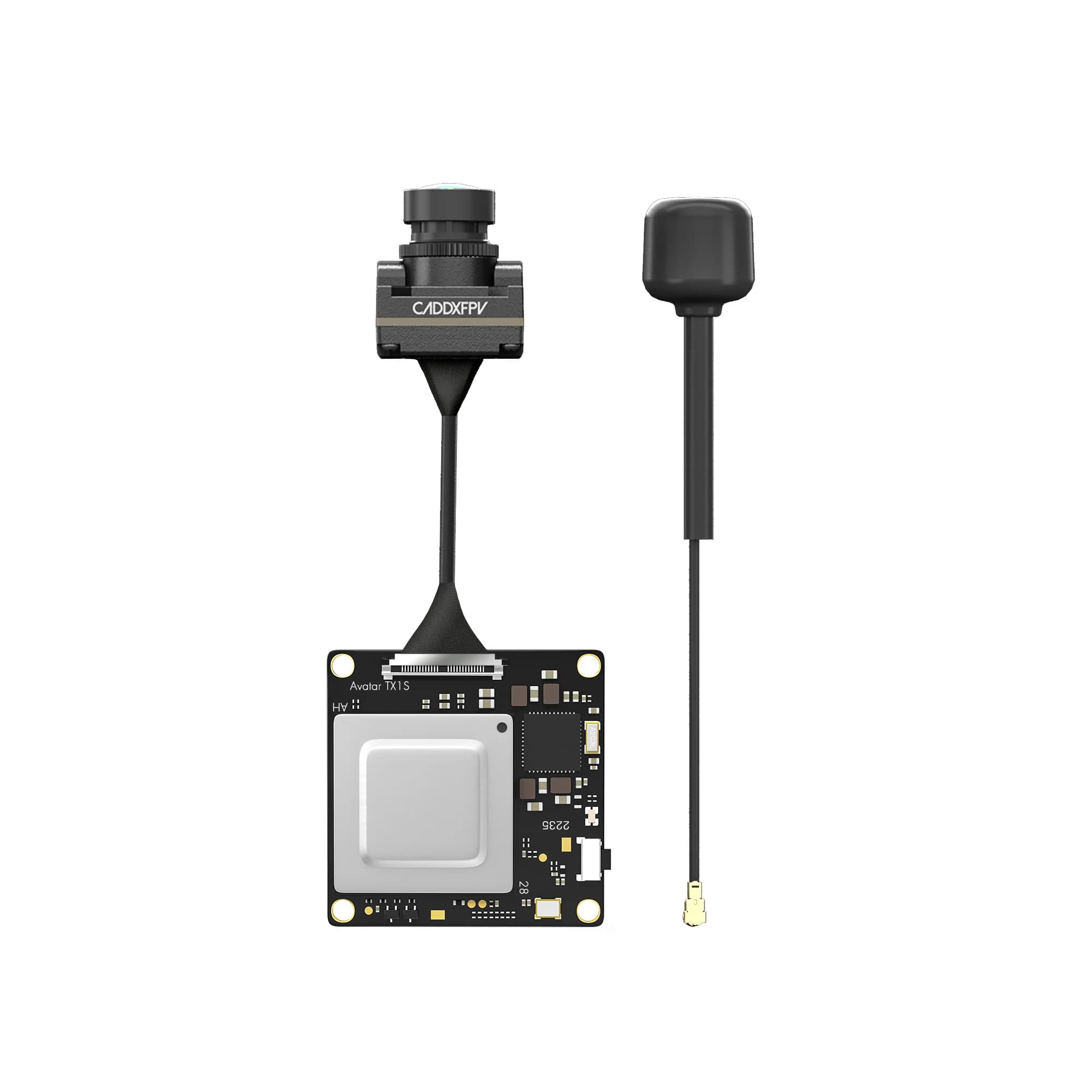

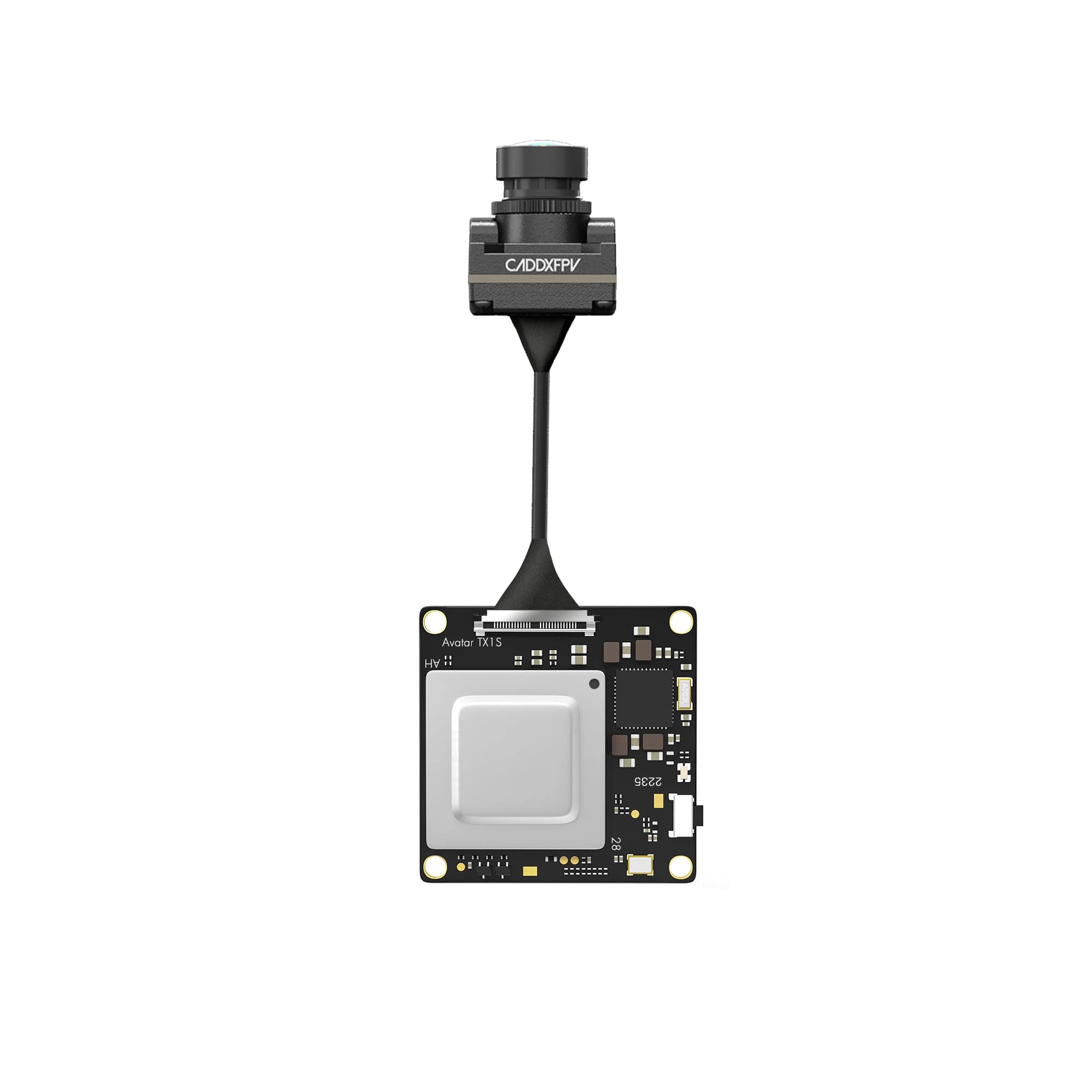

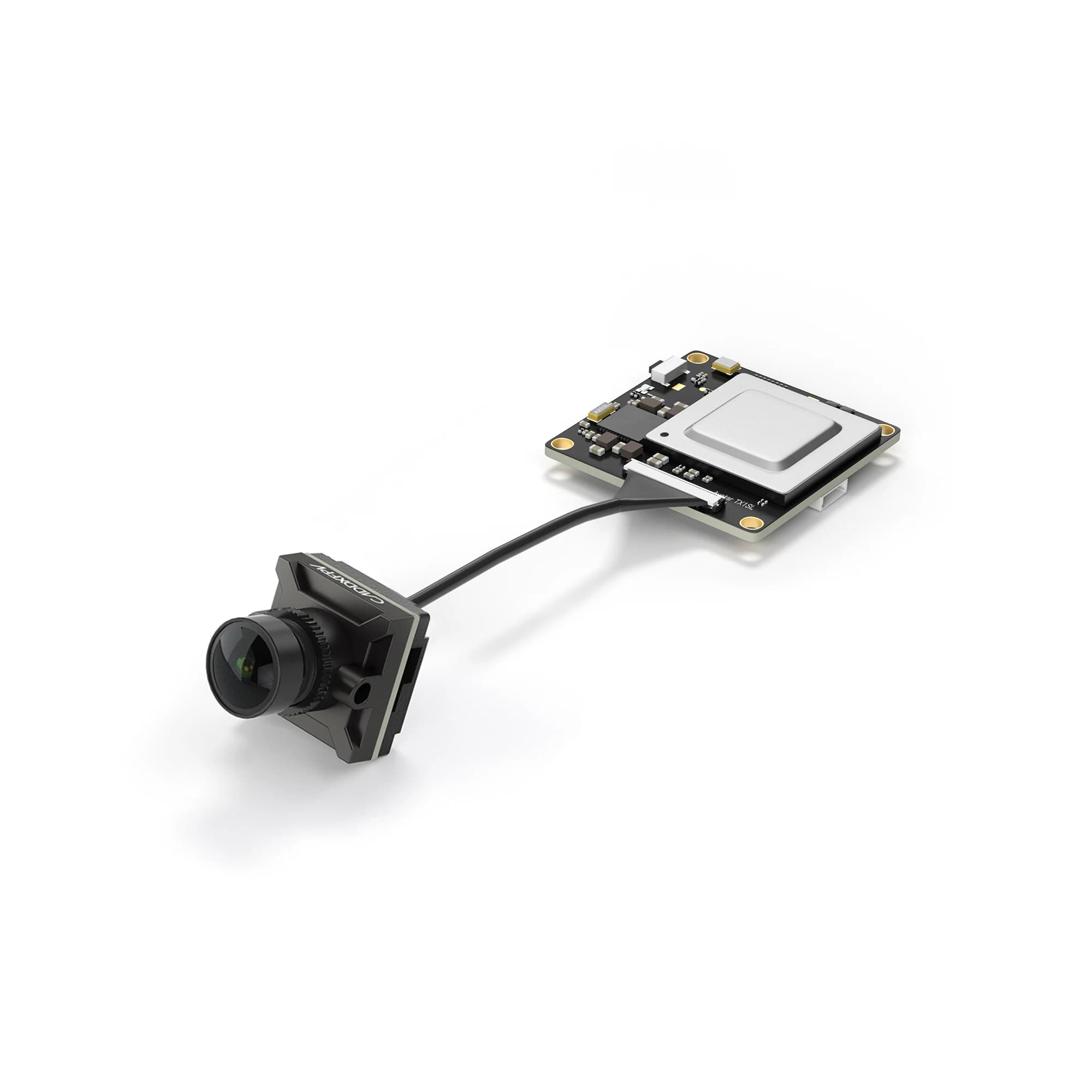

Walksnail Avatar HD Mini 1s Kit
Features:
1080P/60fps
3.1V-13V
22ms low latency
Power 500mW
Built-in 8G storage
6.8g light weight
Bullet Points:
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.
6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.

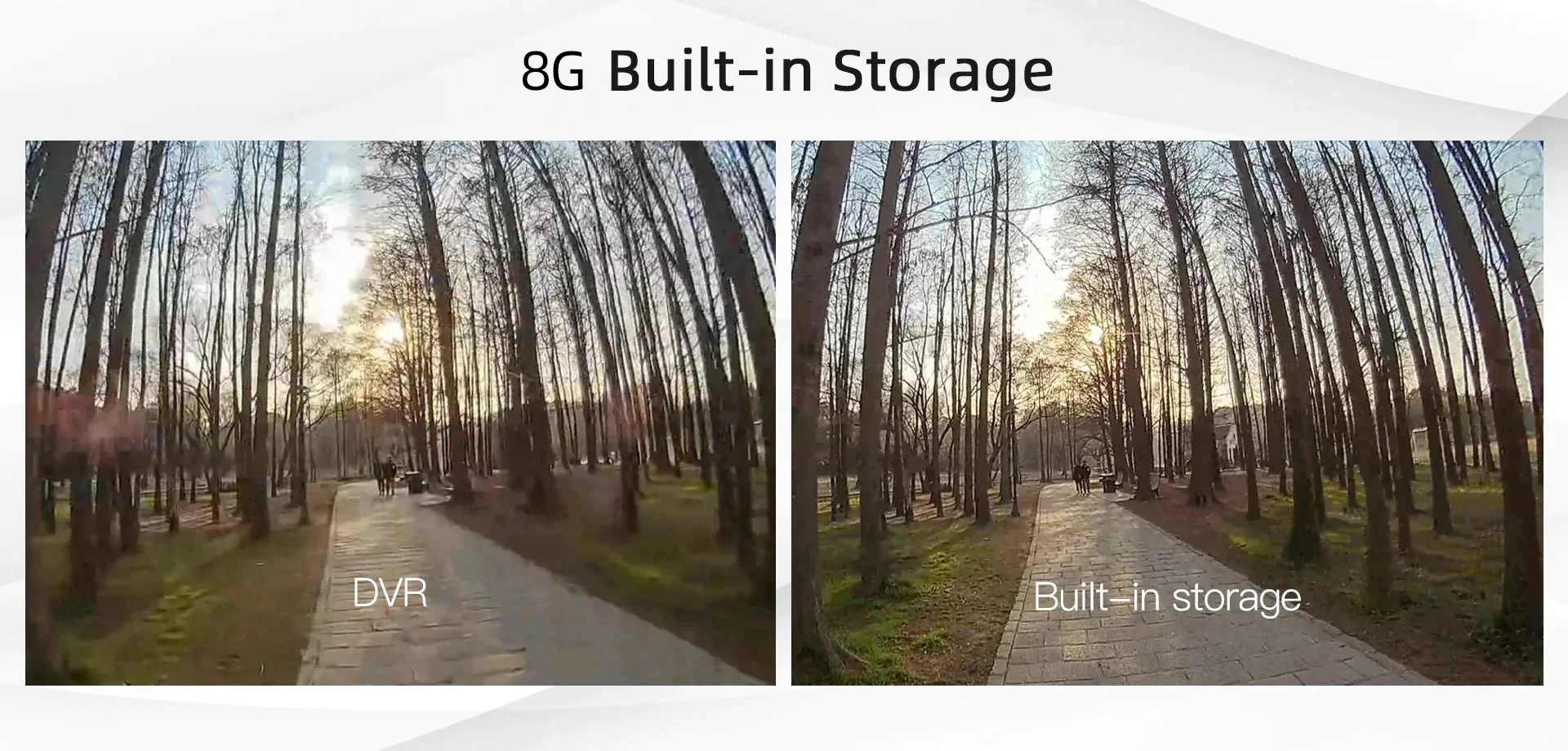

8G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.

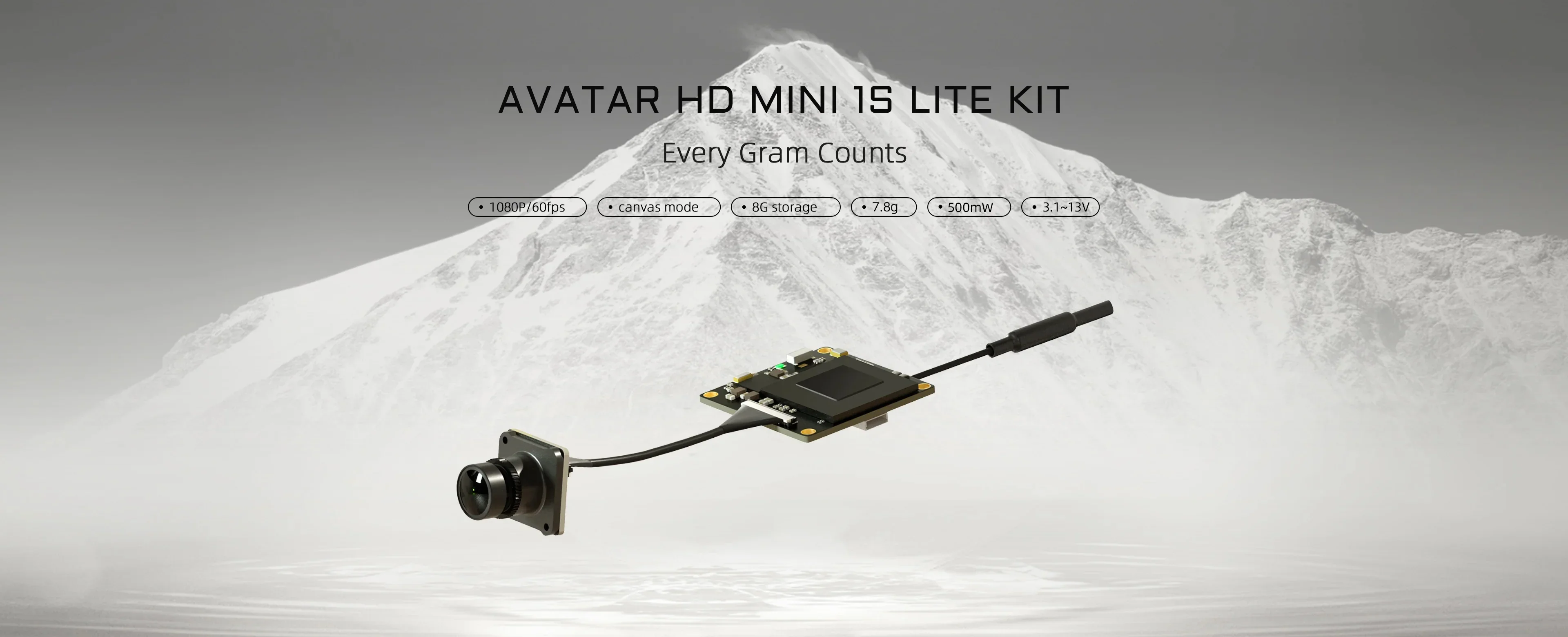

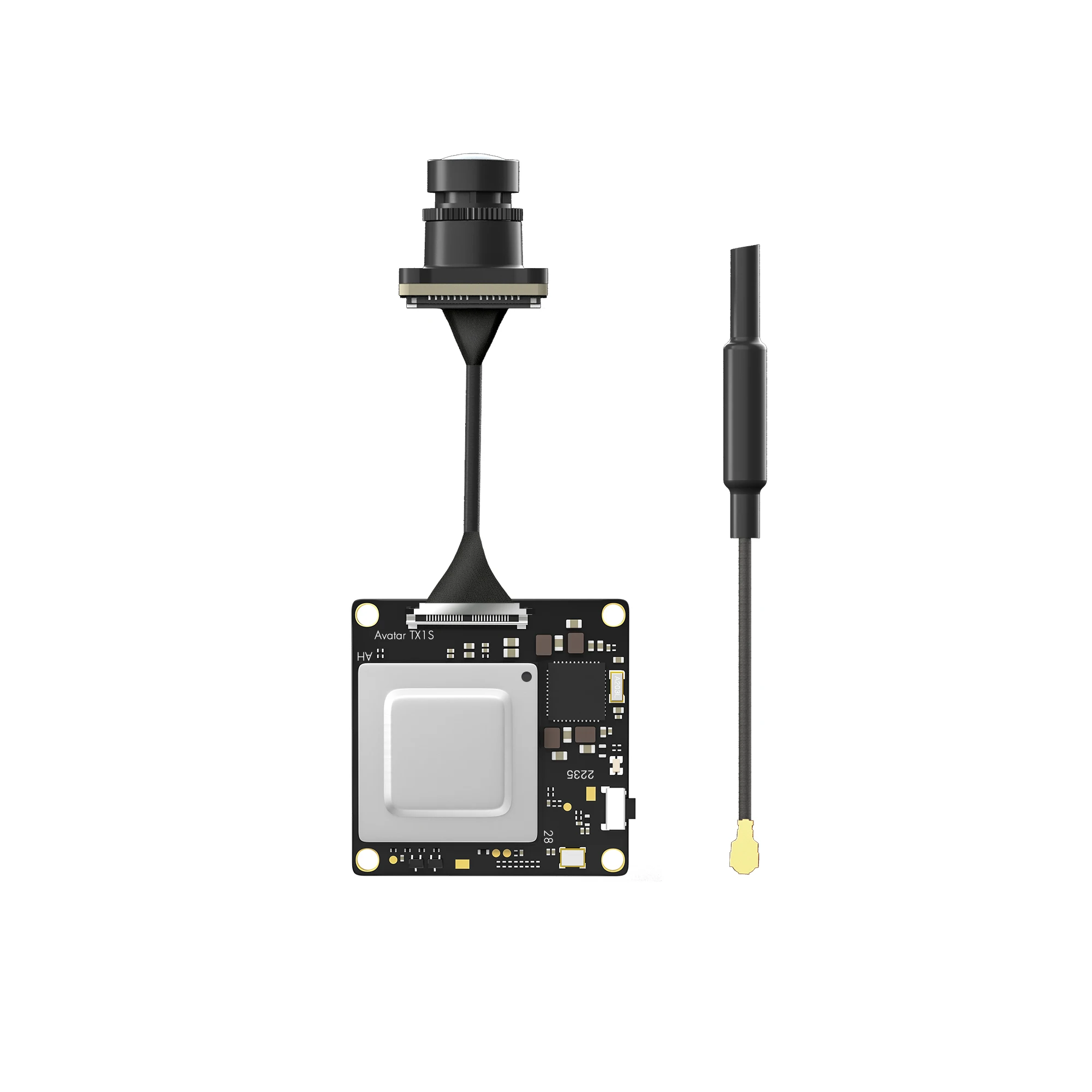

Walksnail Avatar HD Mini 1s Lite Kit
3.1-13V
500mW
HDMI Out
Small Antenna
Canvas mode
7.8g Light Weight
Built-in 8g Storage
New version of VTX
Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.
Brand new camera
Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latency
Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.
The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode
Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500ms output
The avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.
Product Size:
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Remote Control Peripherals/Devices |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Caddx |
|
| Caddx Walksnail |
|
| Wide Power Input |
|
| Walksnail Avatar |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | Walksnail Avatar HD Mini 1s Kit |
| For Vehicle Type | Airplanes |
| Remote Control Peripherals/Devices | RECEIVERS |
| RC Parts & Accs | RECEIVERS |
| Material | EVA |
| Brand Name | CADDXFPV |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
| Caddx | Walksnail Avatar HD Mini 1s Kit |
| Caddx Walksnail | Avatar HD Mini 1s lite Kit |
| Wide Power Input | 3.1-13V(V3) |
| Walksnail Avatar | Mini 1s kit |
Product Details

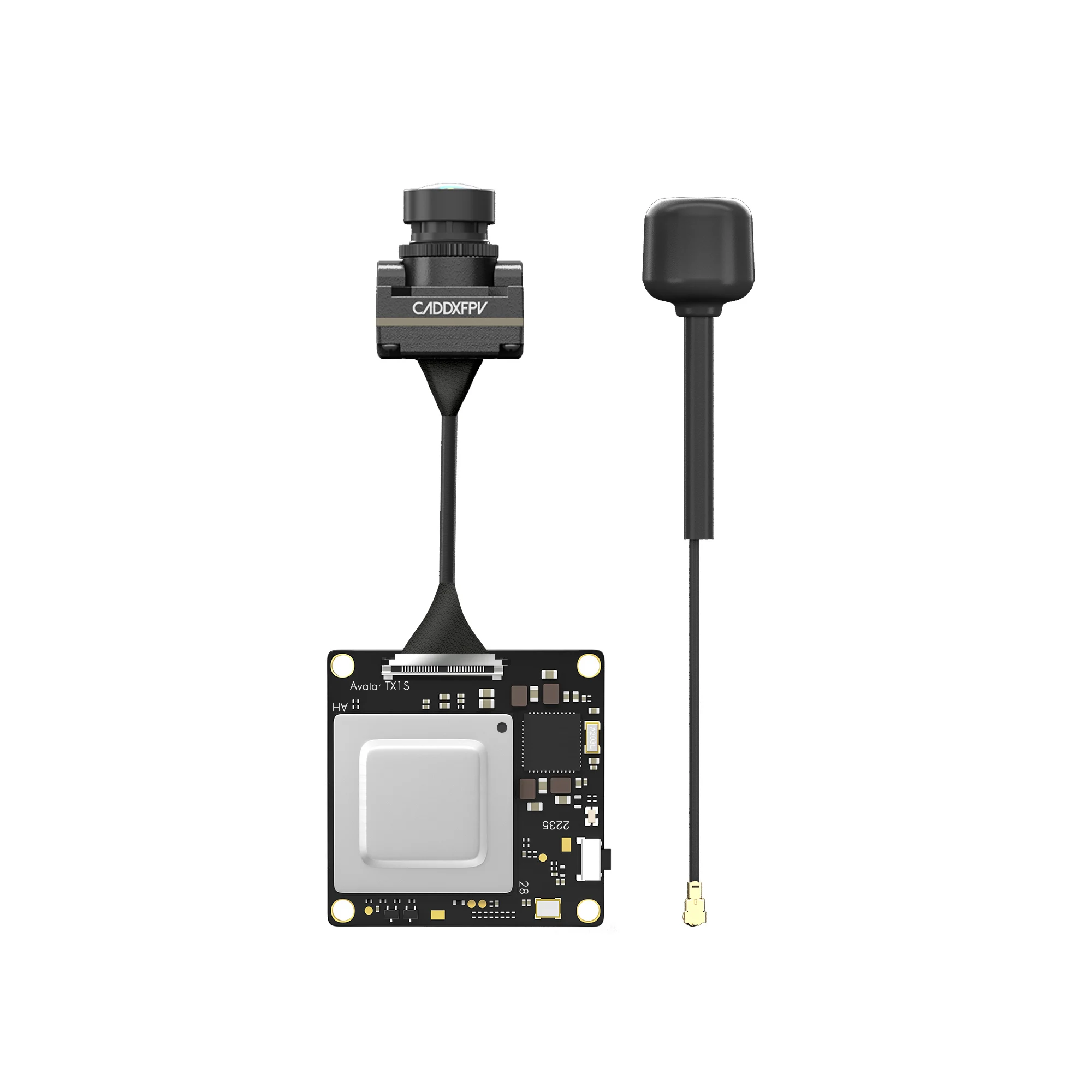

Walksnail Avatar HD Mini 1s Kit
Features:
1080P/60fps | 3.1V-13V |
22ms low latency | Power 500mW |
Built-in 8G storage | 6.8g light weight |
Bullet Points:
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.
6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
8G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.
Specification | |
Camera | |
Model | Avatar nano |
Image Sensor | 1/2.7”1nch |
Resolution | 1080P/60fps,720P/120fps,720P/60fps |
Ratio | 16/9 4/3 |
Lens | 2.1mm |
FOV | 170° |
Aperture | F2.0 |
Shutter Rolling | shutter |
Min.Illumination | 0.001Lux |
Weight | 3.5g |
Dimensions | 14*14*17mm |
Coaxial Cable | 55mm（default）/90mm |
VTX | |
Model | Avatar mini 1s module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; |
I/O Interface | JST1.0 * 4(Power in) HSG0.8 * 4(USB) |
Mounting Holes | 25.5*25.5mm |
Dimensions | 30*30*6.5mm |
Storage | 8G(v2) /8G(v3) |
Recording | 1080p/720p |
Weight | 6.8g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
OSD | Canvas mode |
Bitrate | 25mbps 50mbps |
Latency | Average latency 22ms |
Antenna | IPEX |
VTX Antenna | |
Model | Avatar V2 antenna |
Polarization | LHCP |
Bandwidth | 5600MHz-6000MHz |
Average Gain | 1.9dBi |
VSWR | ＜1.5 |
Line Length | 90mm |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Dimension | D15mm*L105mm |
Weight | 2g |

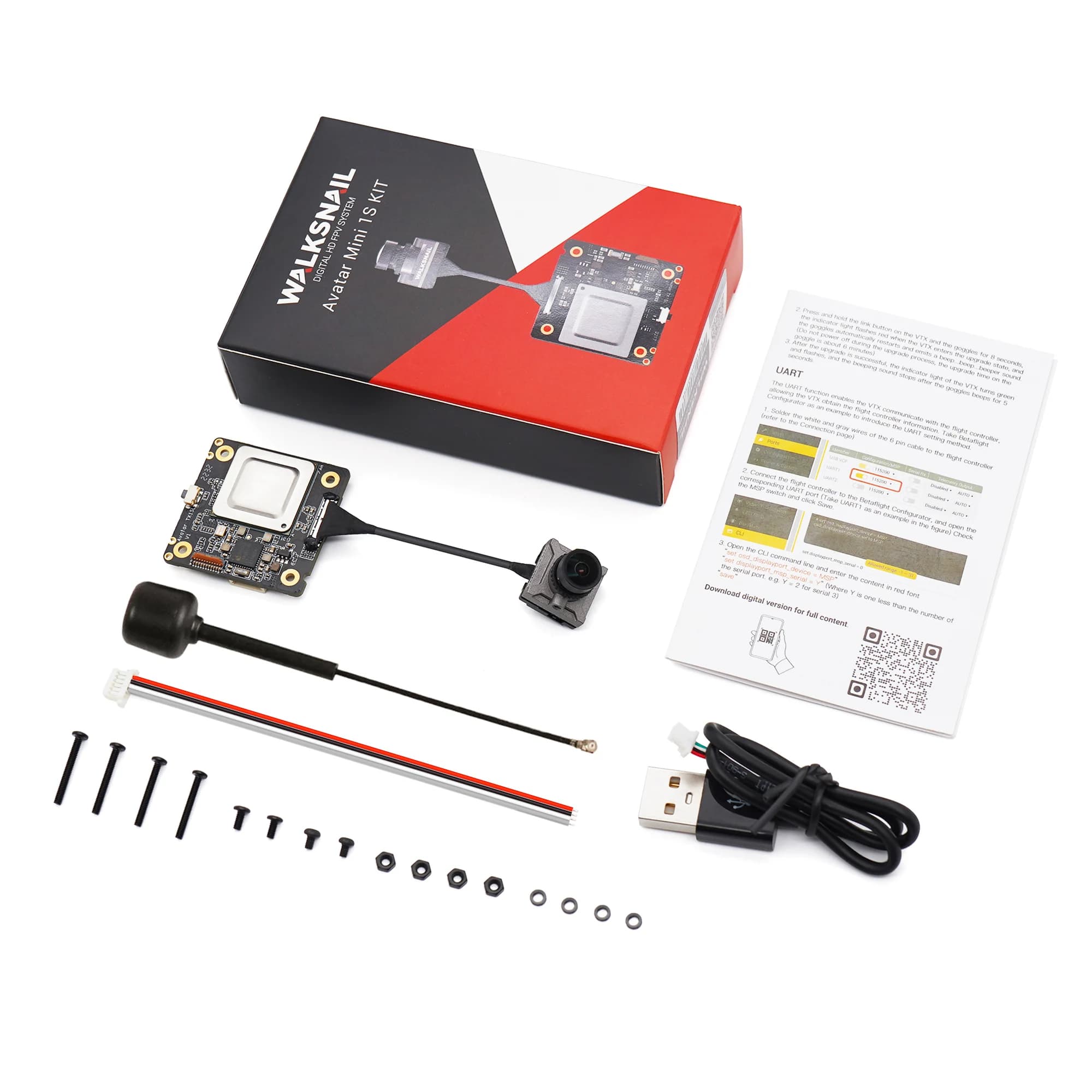

Packing List | |
Avatar Mini 1S KIT | X1 |
4 Pin USB Cable | X1 |
6 Pin Power Cable | X1 |
M2x3/4mm Screws | X2 |
M2x16mm Screws | X4 |
M2 Screw nut | X4 |
2.1x3.4x1mm Gasket | X5 |
Features:
3.1-13V | 500mW |
1080P/60fps | HDMI Out |
Small Antenna | Canvas mode |
7.8g Light Weight | 22ms Low Latency |
Built-in 8g Storage |
Bullet Points:
Product Size:
Specification | |
Camera | |
Model | Avatar lite camera |
Image Sensor | 1/2.7”1nch |
Resolution | 1080P/60fps,720P/120fps,720P/60fps |
Ratio | 16/9 4/3 |
Lens | 2.1mm |
FOV | 170° |
Aperture | F2.0 |
Shutter Rolling | Rolling shutter |
Min.Illumination | 0.001Lux |
Weight | 1.8g |
Dimensions | 14*14*16mm |
VTX | |
Model | Avatar mini 1s module |
Communication Frequency | 5.725-5.850GHz |
Transmitter Power (EIRP) | FCC:<27dBm; CE:<14dBm; |
I/O Interface | JST1.0 * 4(Power in) HSG0.8 * 4(USB) |
Mounting Holes | 25.5*25.5mm |
Dimensions | 30*30*6.5mm |
Storage | 8G (V2) / 8G(V3) |
Recording | 1080p/720p |
Weight | 6.8g |
Operating Temperature | -20-40℃ |
Channels | 8 |
Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
OSD | Canvas mode |
Bitrate | 25mbps 50mbps |
Latency | Average delay 22ms |
Antenna | IPEX |

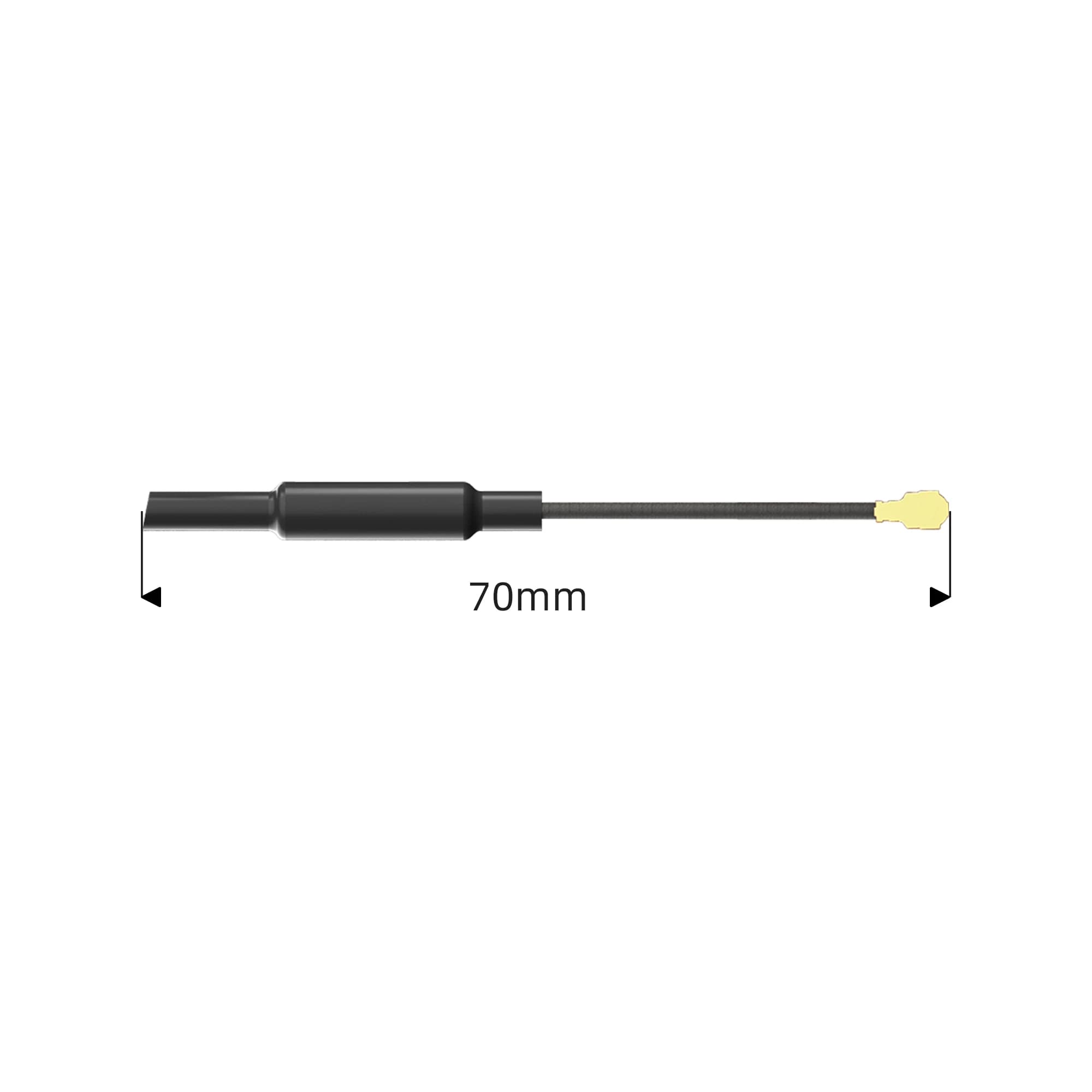

1s lite antenna | |
Polarization | Linear |
Frequency range | 5600-5900MHz |
Gain | 1.6 dbi |
VSWR | ≤1.5 |
Input Impedance | 50Ω |
Interface | IPEX-1 |
Size | D5mm*L70mm |
Weight | 0.5g |
Packing List | |
Avatar Mini 1S lite KIT | X1 |
4 Pin USB Cable | X1 |
4 Pin Power Cable | X1 |
1.4×8mm Screws | X4 |
1.4×10mm Screws | X2 |
M2 Anti-vibration Rubber Dampers *6mm | X4 |
