CADDX Walksnail Ascent VRX Receiver 5.8Ghz 6km Compatible Ascent VTX Supports All FPV Goggles And Displays With HDMI Input

35ms Low Latency HD Decoding: Experience ultra-fast, zero-lag video with an end-to-end latency as low as 35ms. Supports high-frame-rate decoding at 1080P/60fps and 720P/120fps, ensuring a clear and smooth image for absolute control during high-speed and competitive flight.

Rock-Solid 6KM Dual Antenna Link: Equipped with dual circularly polarized antennas, ensuring minimal signal loss and extreme reliability. Achieve stable transmission distances of 6 kilometers.

Universal HDMI Port & Plug-and-Play: Features an HDMI port for wide compatibility with all FPV goggles, monitors, and TVs. This allows for effortless multi-screen setup for teaching, sharing, and viewing, offering maximum freedom of connection.

Deep OSD Integration & Real-Time Control: Supports Canvas Mode for seamless integration of Betaflight/INAV OSD. Pilots can adjust flight controller parameters in real-time via the remote, allowing for full cockpit customization and quick access to data.

Integrated HD DVR & Ultra-Portable Design: Eliminate external DVRs with the built-in SD card slot (up to 256GB) for one-click HD recording. The unit is designed for portability, weighing only 118g (excluding antennas), making it the perfect pocket-sized companion.

Visuals & Core Performance

HD Video Decoding

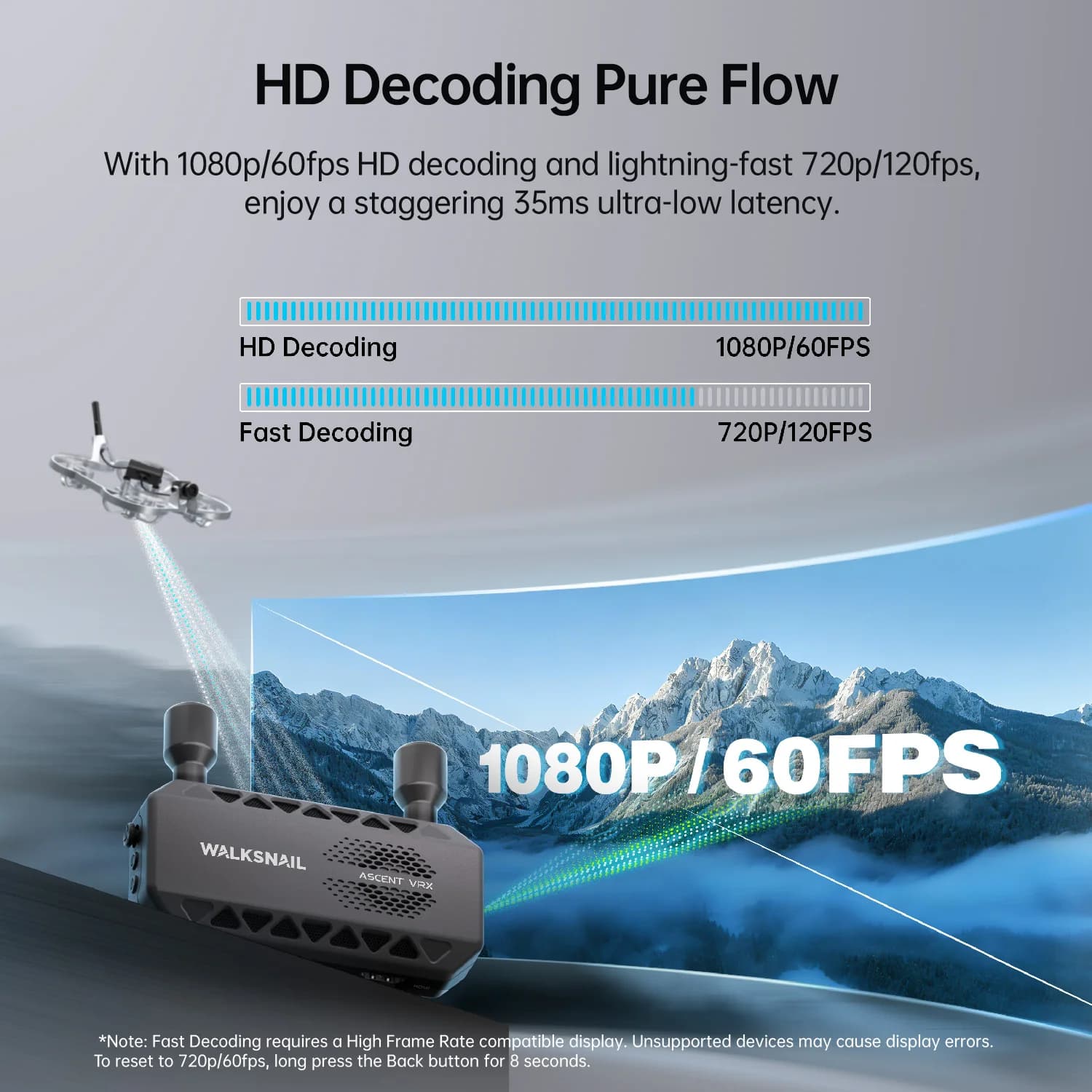

HD Decoding, Pure Flow

Equipped with a powerful core, the VRX supports 1080P/60fps HD decoding and high-frame-rate 720P/120fps fast decoding. It ensures a clear, smooth, lag-free image, maintaining your absolute edge in high-speed and competitive flight.

Low Latency

Clean Signal, Low Latency

Dual circular polarization and a low VSWR ≤ 1.3 help reduce signal loss and multipath interference for a cleaner RF link. Combined with end-to-end latency as low as 35ms, the VRX delivers fast, responsive video even in complex RF environments.2W Power

Extreme Long-Range Ready

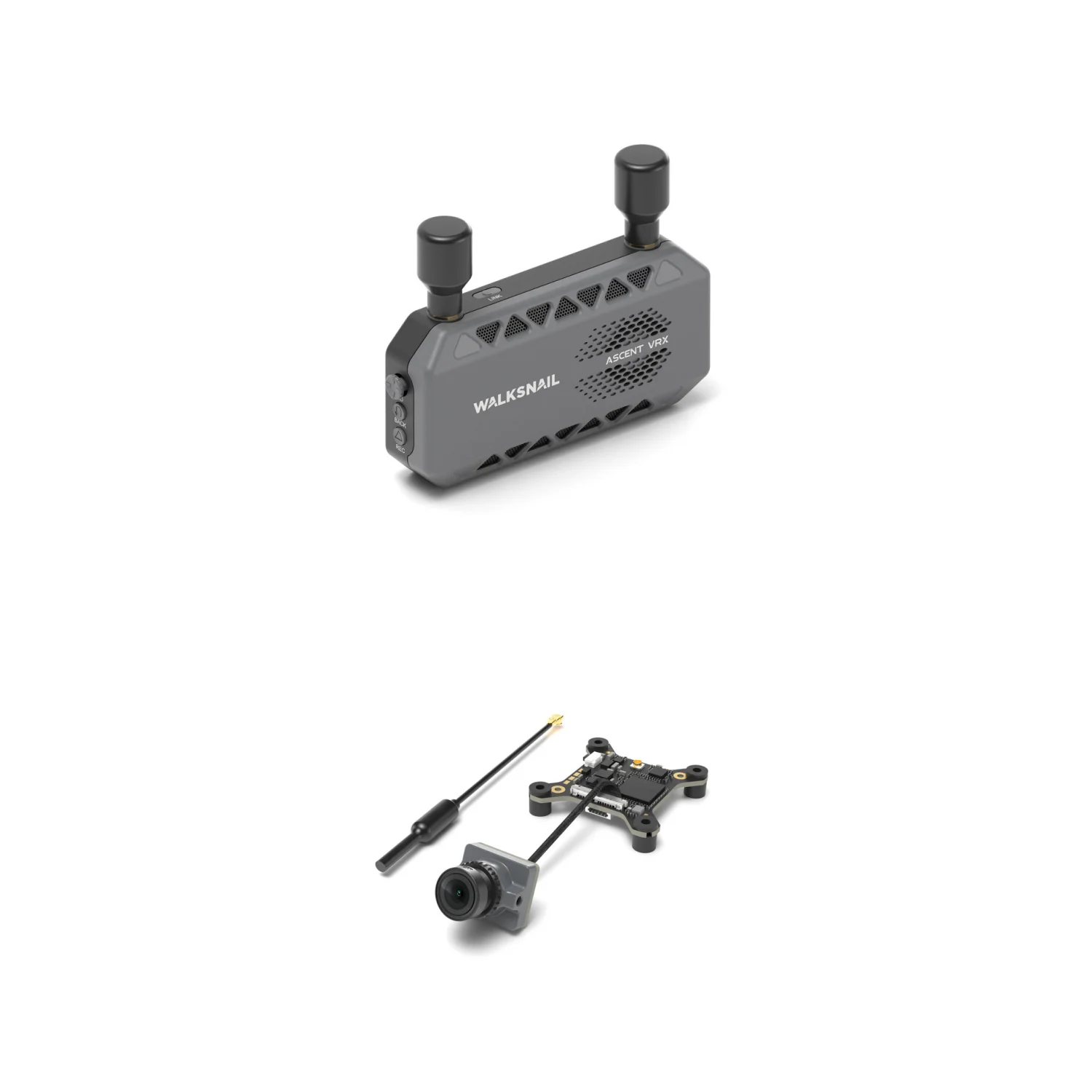

Pairs with Ascent VTX systems. Higher output power helps extend range and maintain a stable, clear video feed.

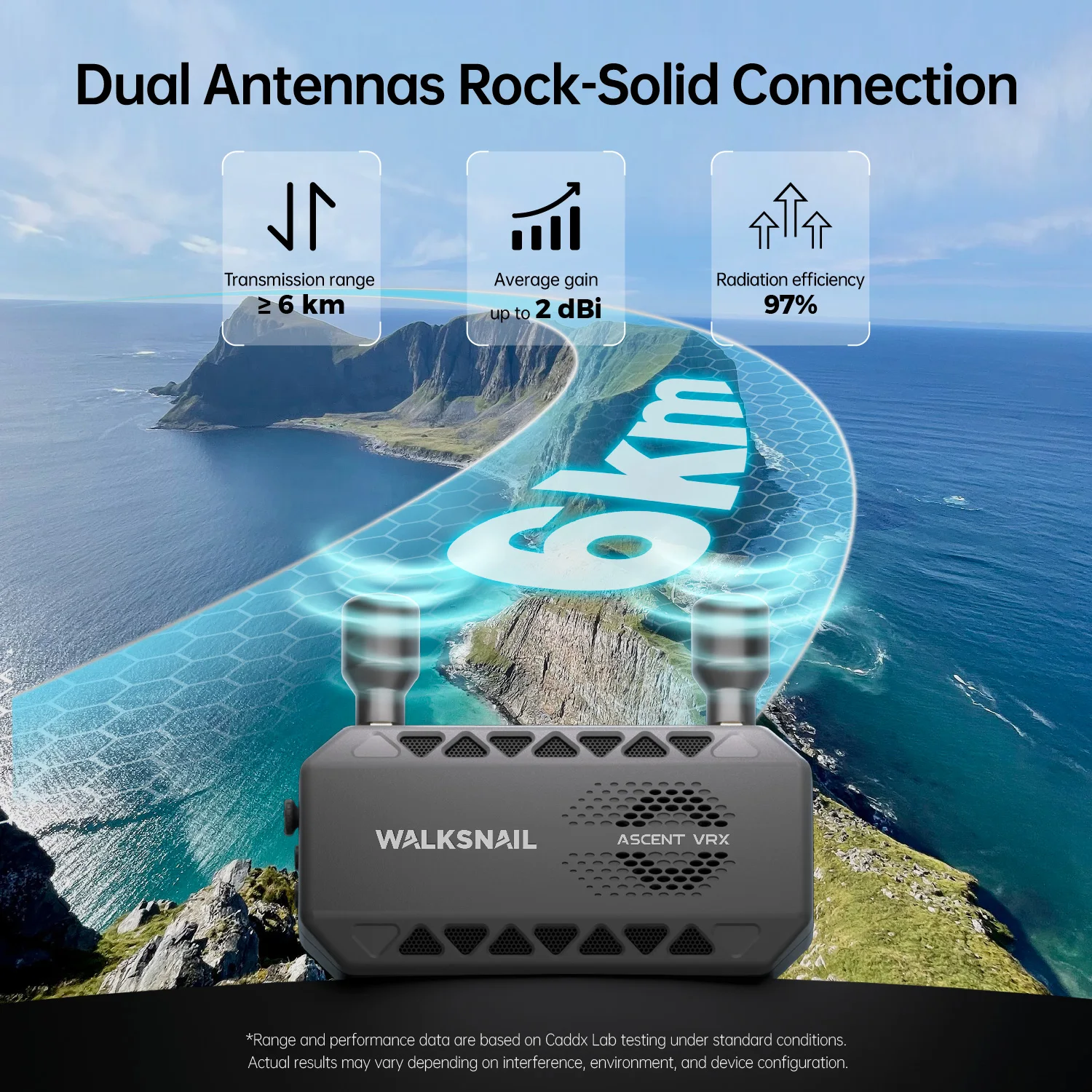

Dual Antennas, Rock-Solid Connection

Signal drops are a thing of the past. Equipped with Dual Circular Polarized Antennas (≥97% efficiency), the Ascent VRX delivers a stable, unwavering link up to 6km away. Fly further, fly bolder, fly worry-free.

Compatibility & Control

HDMI

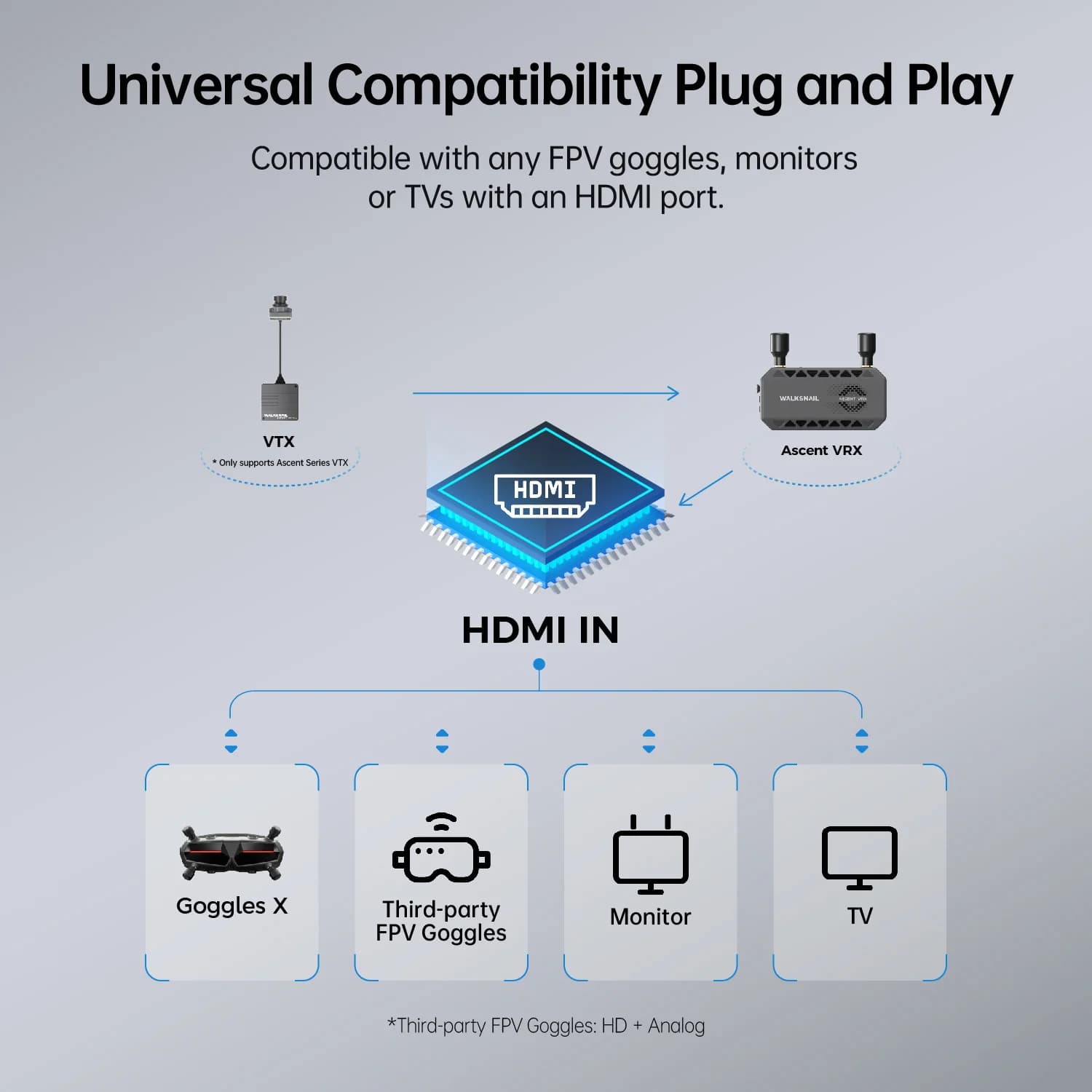

Universal Compatibility, Plug and Play

Compatible with any FPV goggles, monitors, or TVs with an HDMI port. True plug-and-play support makes multi-screen viewing easy for training, sharing, or race broadcasting.Easy OSD Setup

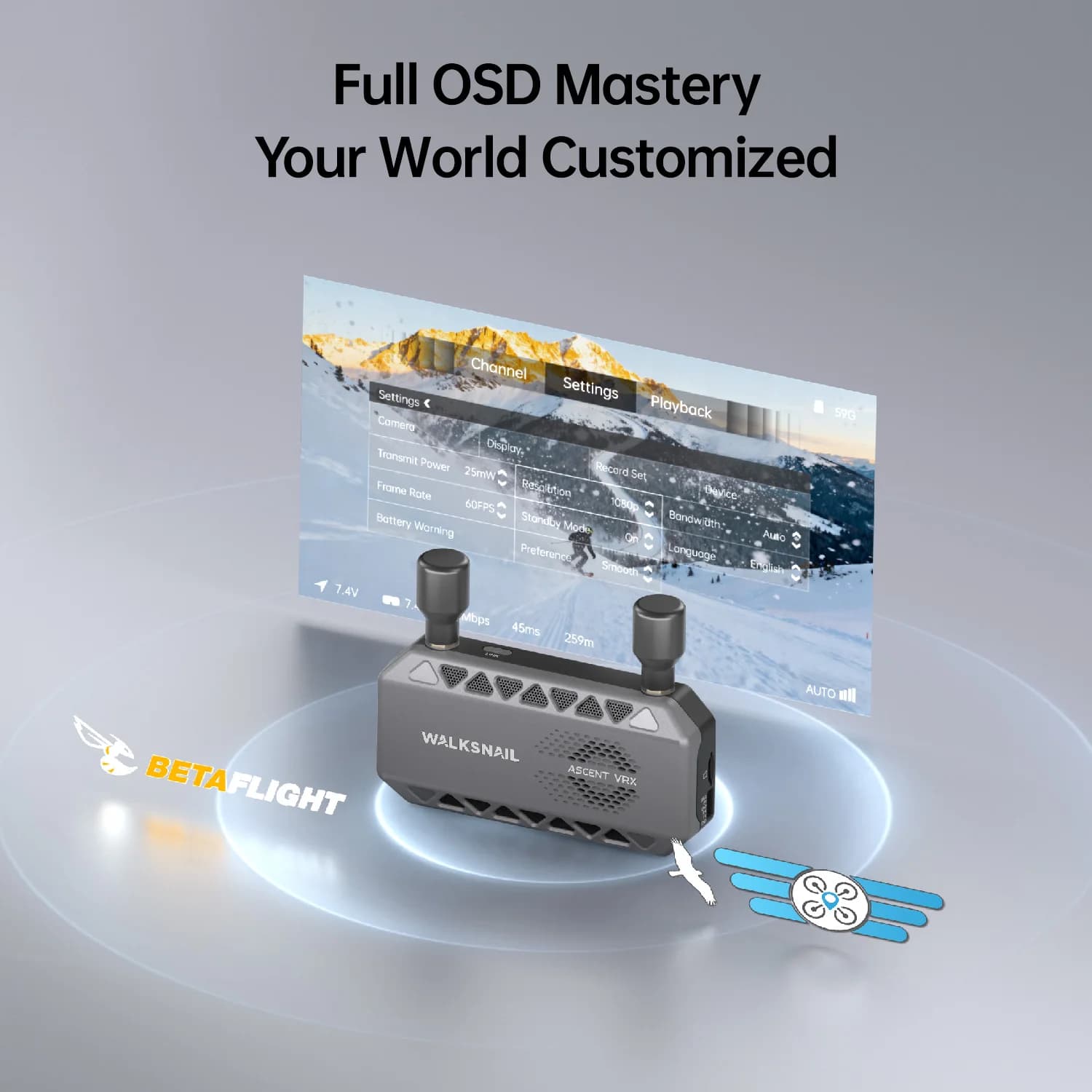

Your World, Customized

Supports Canvas Mode for seamless OSD integration with mainstream flight controllers like Betaflight and INAV, giving you easy access to personalized settings and a tailored FPV interface.Multiple Channels

Adaptive Frequency Hopping

Runs on 3 standard channels, with up to 8 channels in Debug mode. Frequency Hopping automatically scans and switches to the cleanest channel for stable, uninterrupted video.

Portability & Reliability

MicroSD Card Storage

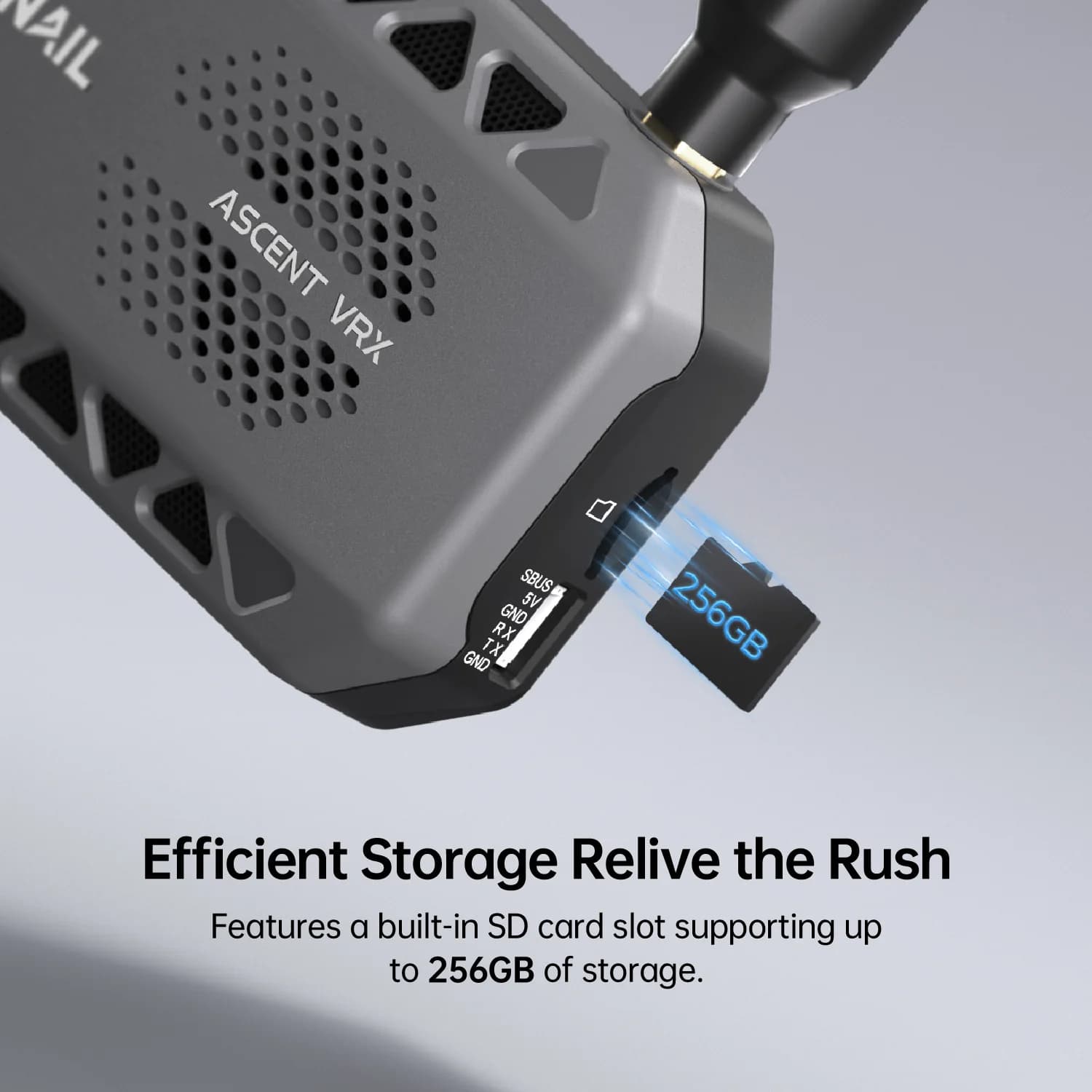

Efficient Storage, Relive the Rush

Features a built-in SD card slot supporting up to 256GB of storage. Record HD flight footage with a single click, capturing every detail of your flights and making content creation effortless.

Wide VoltageAll-Weather Stable

Designed for reliable operation across a wide 7.4~25.2V input range. Helps maintain stable performance and effective thermal management during extended outdoor use.Easy to Carry Pocket-Sized, Ultra-Portable

Pro-grade performance that fits in your palm. Weighing just 118g with a sleek, ultra-thin profile, the Ascent VRX is the ultimate travel companion for every pilot. Pack light, fly heavy.

Multi-Platform Application

The ultimate FPV powerhouse for Drones, Fixed-wings, and RC cars. Whether you're racing for the podium, filming a cinematic masterpiece, or teaching the next generation, the Ascent VRX dominates every scene.

Name

Ascent VRX

Communication Frequency

5.725-5.829 GHz

Transmitter Power(EIRP)

FCC/SRRC:<30dBm, CE:<14dBm

l/O Interface

HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C

HDMI Out

1080p50fps, 1080p60fps, 720p50fps, 720p60fps, 720p100fps, 720p120fps

Power Input

7.4~25.2V

SD Card

Support Micro SD 256G

System

Ascent HD system

Bandwidth

5m/10m/20m/Auto

Recording Format

MP4 (H.264)

Weight

118g

Dimension

114.5*64*24mm

Name

Red bird

Polarization

LHCP

Bandwidth

5.725-5.829 GHz

Average Gain

2dBi

Radiation Efhciency

≥97%

VSWR

≤1.3

Cross-Polar Rejection

-15to-30dB

Connector

RP - SMAx2

Dimension

25*15.5mm

FAQ

A:Is ASCENT VRX compatible with other digital video transmission systems?

B:no This VRX is specifically designed for the Ascent series VTX to ensure optimal          performance and stability.

A:Is Ascent VRX currently available for purchase?

B:Ascent VRX is currently in pre-sale status. The order is expected to be shipped within      approximately one month.

A:Can I use Ascent VRX with my FPV goggles and display screen?

B:Ascent VRX is compatible with FPV glasses, monitors, and displays with HDMI input interfaces. Simply connect via HDMI to plug and play.

A:Can I record flight videos on Ascent VRX?

B:Yes. Ascent VRX has a built-in SD card slot and supports up to 256GB of storage cards, allowing for one click recording without the need for an external DVR.

A:Can I view flight data and OSD information?

B:Yes. Ascent VRX supports Canvas mode and seamlessly integrates with Betaflight OSD to achieve real-time flight data display and parameter adjustment.
