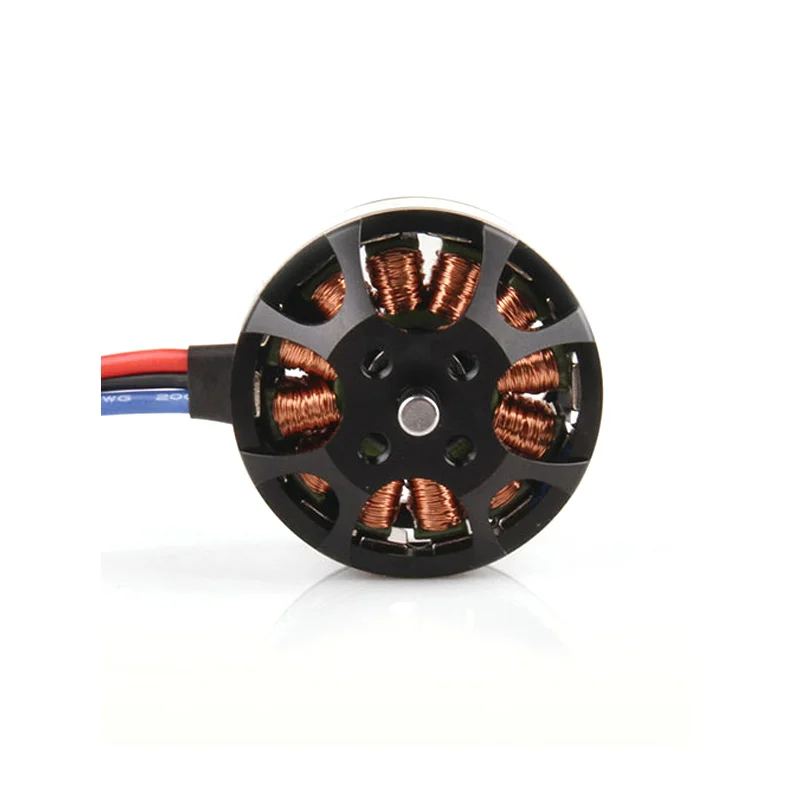

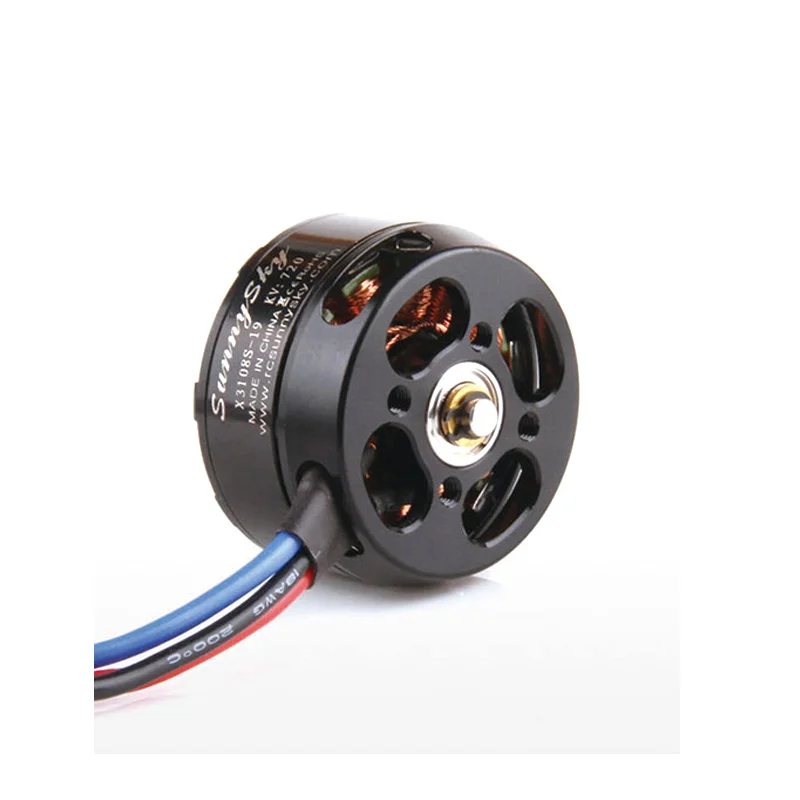

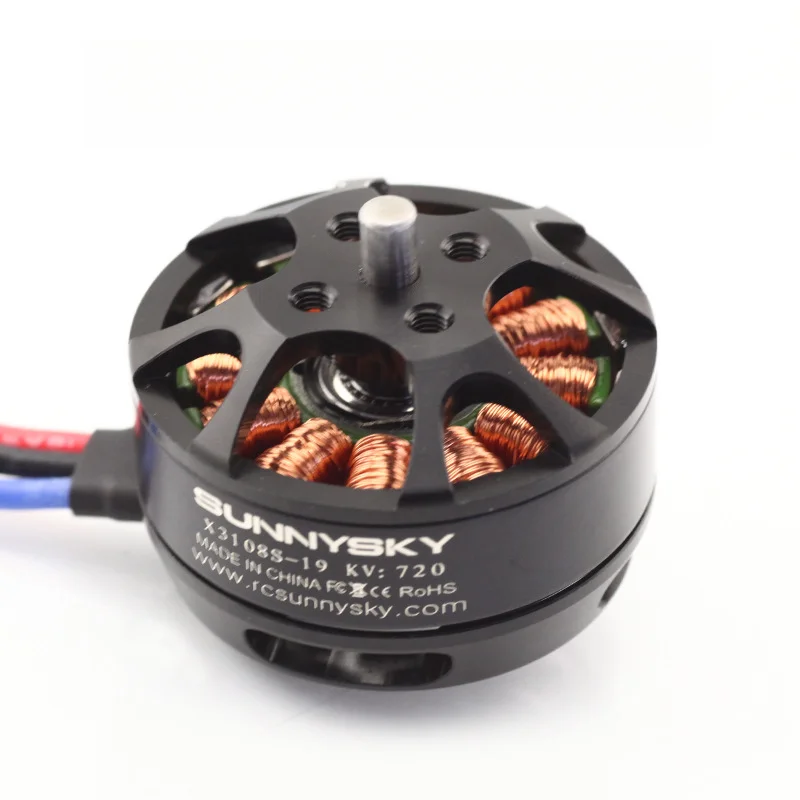

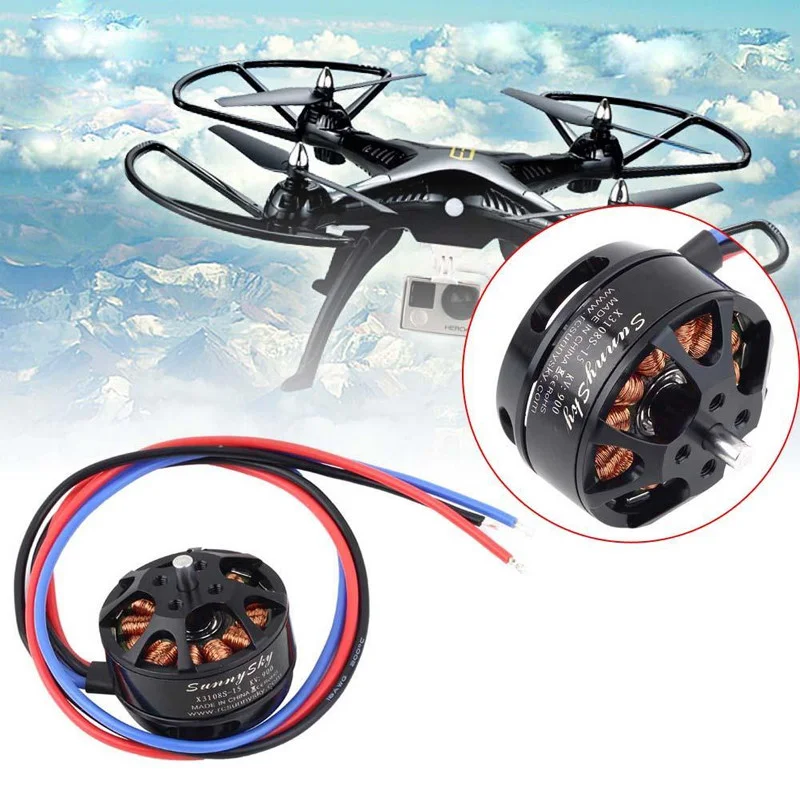

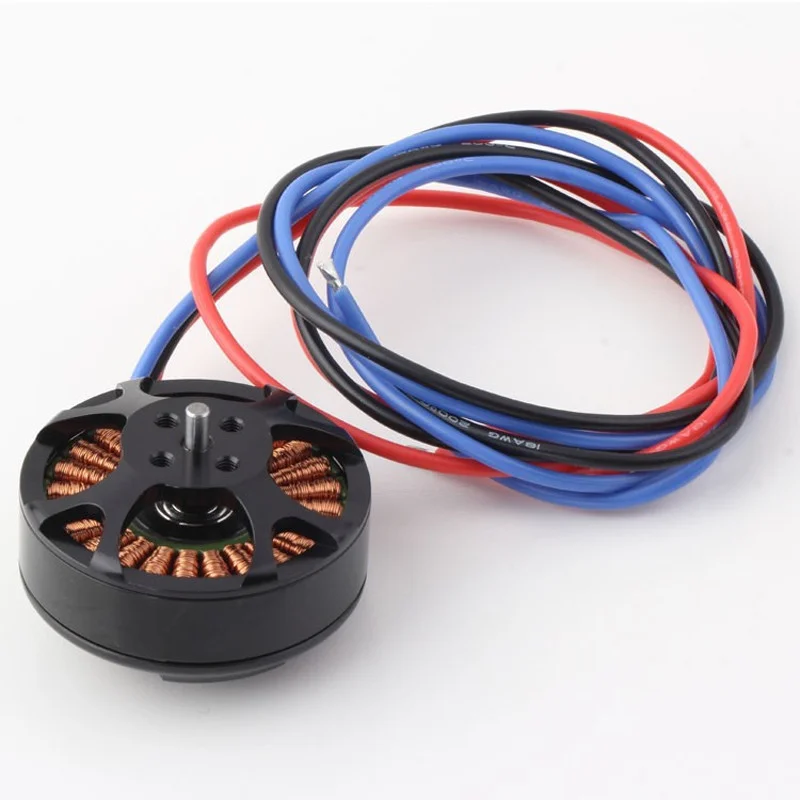

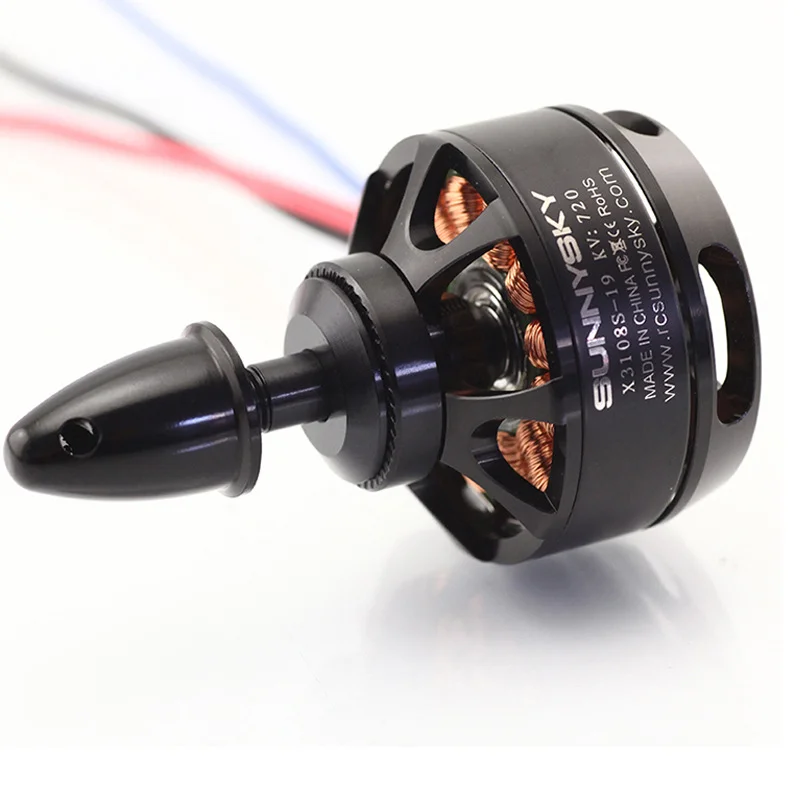

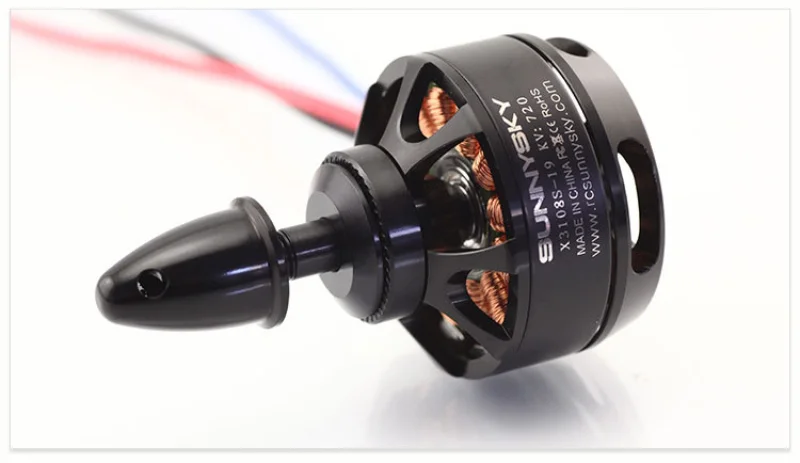

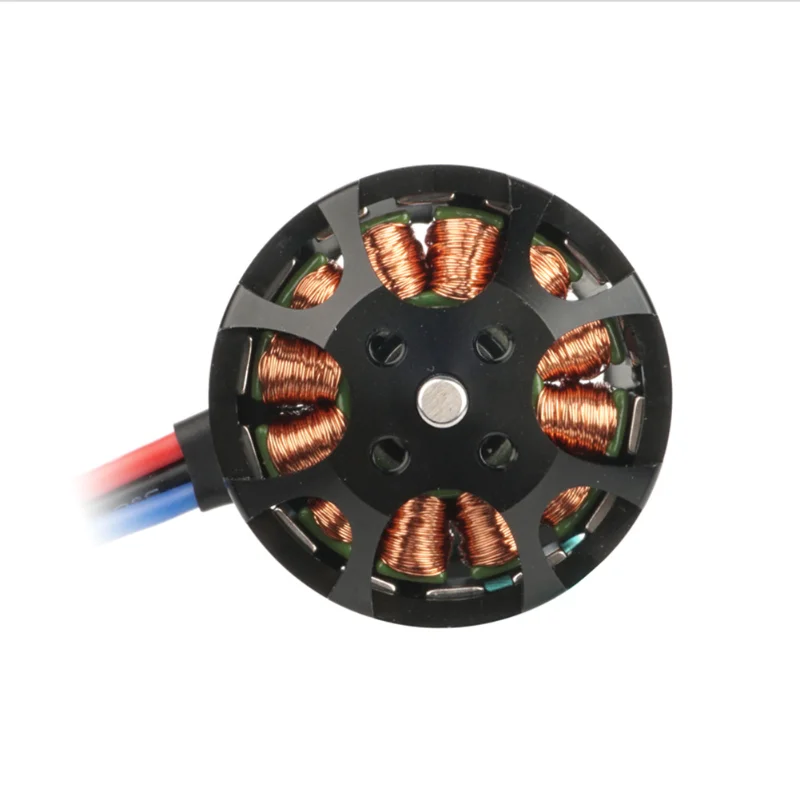

Sunnysky X3108S Disc Type Brushless Motor 720KV 900KV 3-4S LiPo 30A ESC for F450 F550 Tarot 650 RC Multirotor Aerial Drone

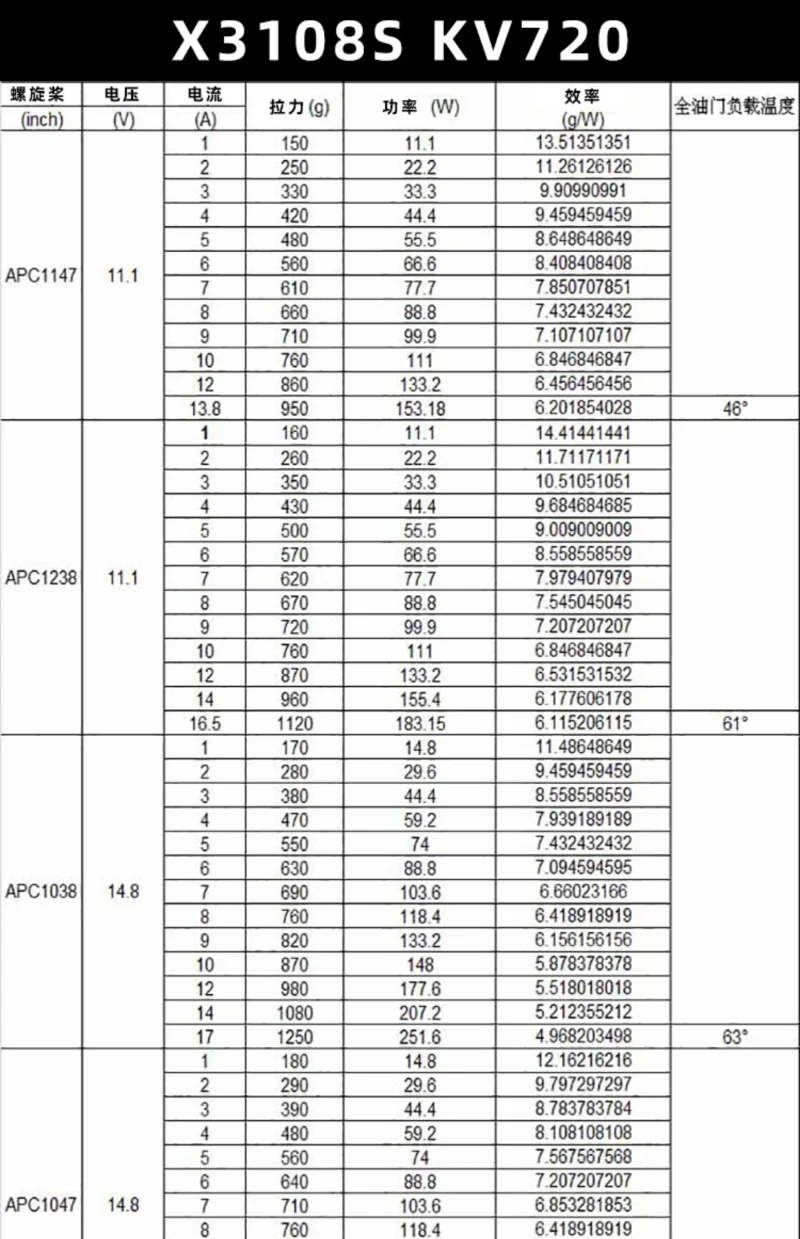

Sunnysky X3108S KV720 Brushless Motor:

KV Value: KV720;

Stator Diameter: 31mm;

Stator Thickness: 8mm;

No. of Stator Arms: 12;

No. of Stator Poles: 14;

No-load Current(A/10V): 0.6A;

Motor Resistance: 132mΩ;

Max Continuous Current: 22A/30S;

Max Continuous Power: 325W;

Weight: 81g;

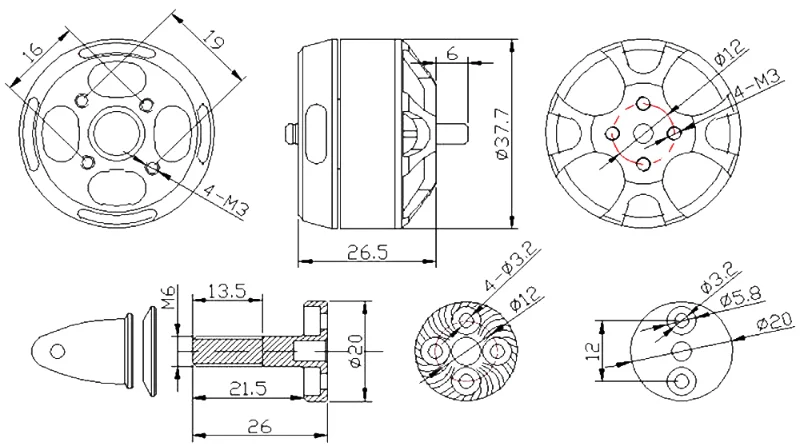

Outside Diameter: 37.8mm;

Shaft Diameter: 4mm;

Overall Shaft Length: 33mm;

Max Lipo Cell: 3-4S;

Recommended Prop(inch): APC10*3.8/APC11*4.7/APC12*3.8;

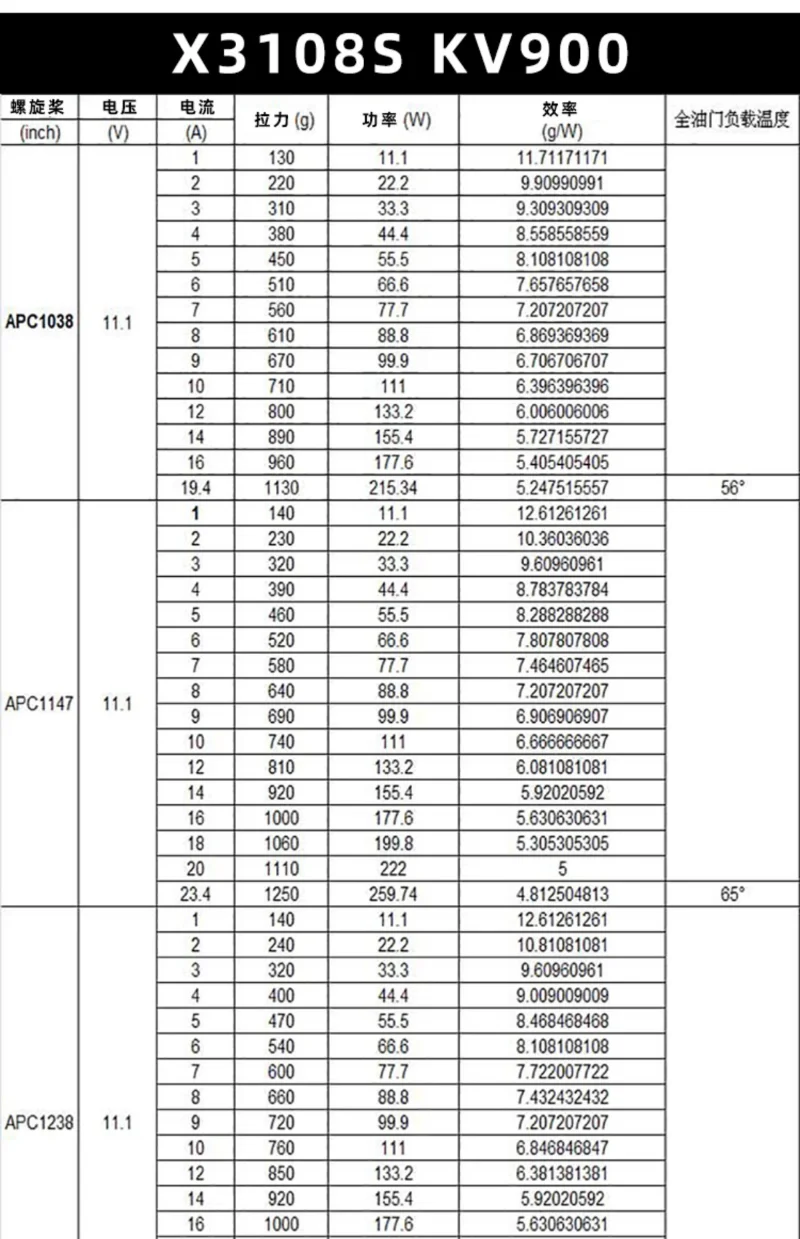

Sunnysky X3108S KV900 Brushless Motor:

KV Value: KV900;

Stator Diameter: 31mm;

Stator Thickness: 8mm;

No. of Stator Arms: 12;

No. of Stator Poles: 14;

No-load Current(A/10V): 0.9A;

Motor Resistance: 86mΩ;

Max Continuous Current: 25A/30S;

Max Continuous Power: 370W;

Weight: 81g;

Outside Diameter: 37.8mm;

Shaft Diameter: 4mm;

Overall Shaft Length: 33mm;

Max Lipo Cell: 3-4S;

Recommended Prop(inch): APC10*3.8/APC12*3.8;

Compatible Products

- ESC

- Hobbywing Skywalker 30A, Hobbywing Platinum 30A, Sunnysky 30A

- Airframes

- Multirotor: F450, F550, Tarot 650 (450–650mm wheelbase)

- Max takeoff weight: ≤1.5kg (aerial/FPV multirotor)

- Battery

- 3S: 11.1V 2200–3300mAh LiPo

- 4S: 14.8V 2200–3000mAh LiPo
