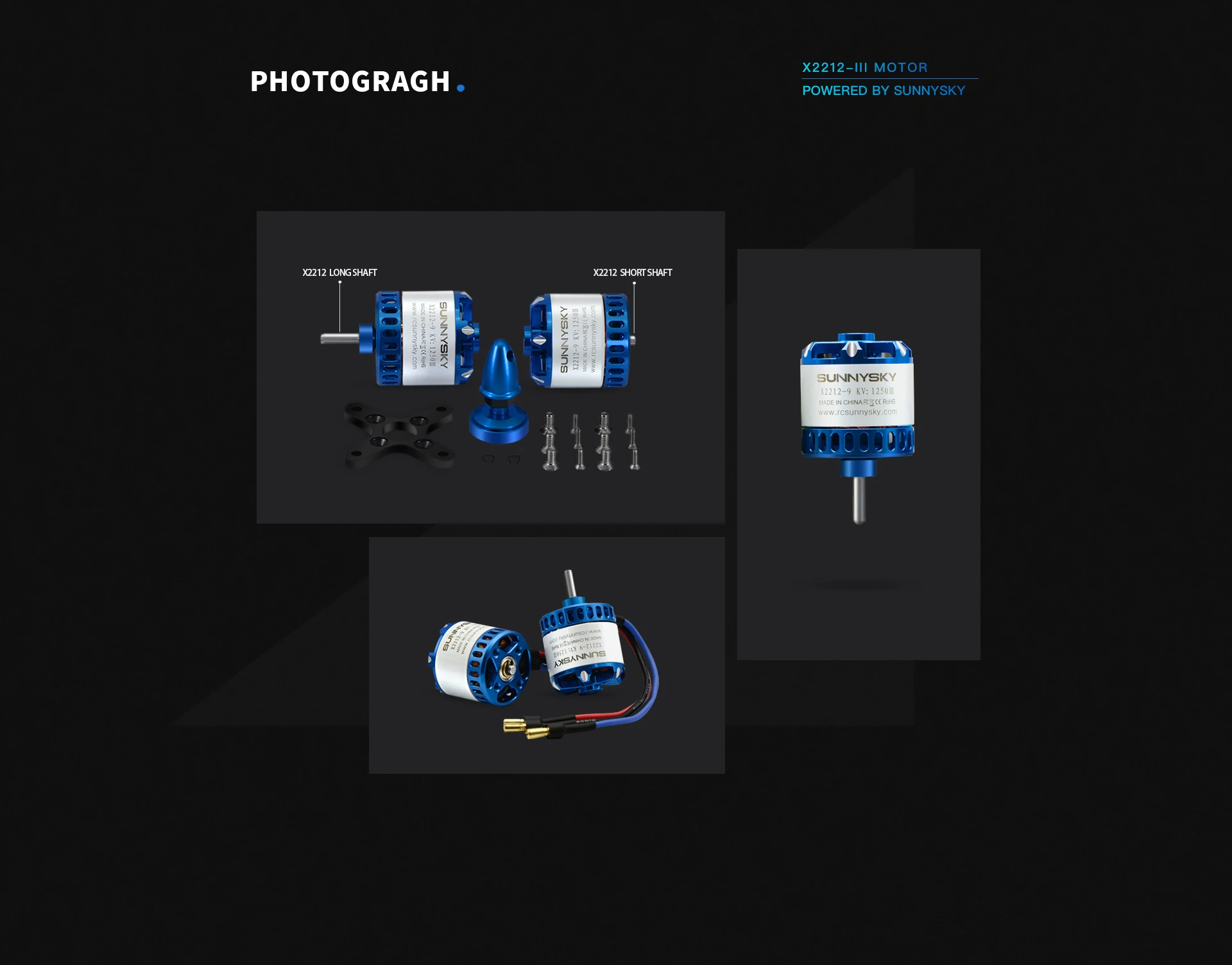

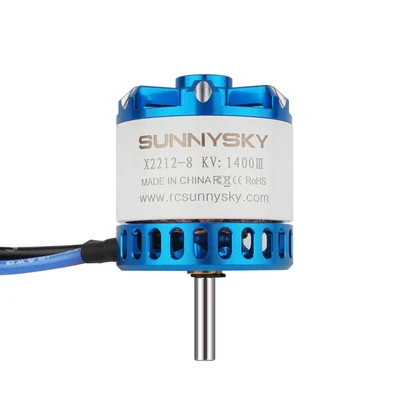

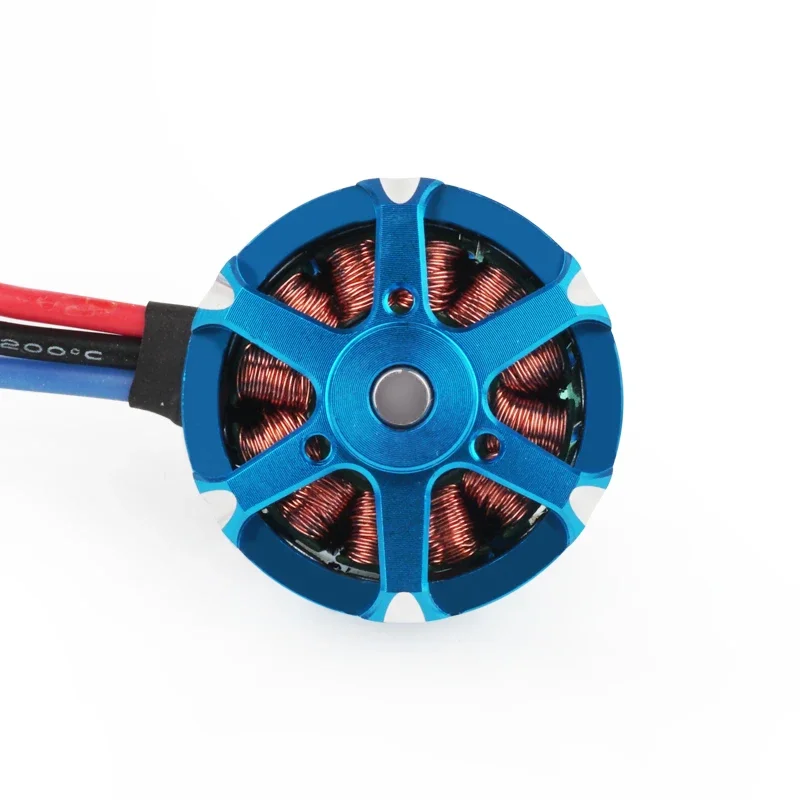

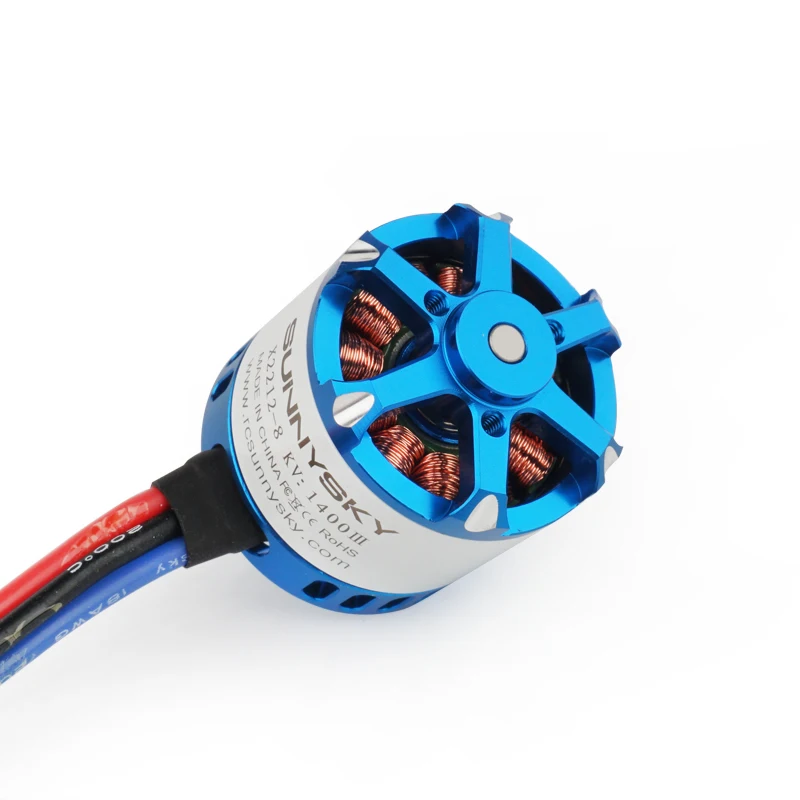

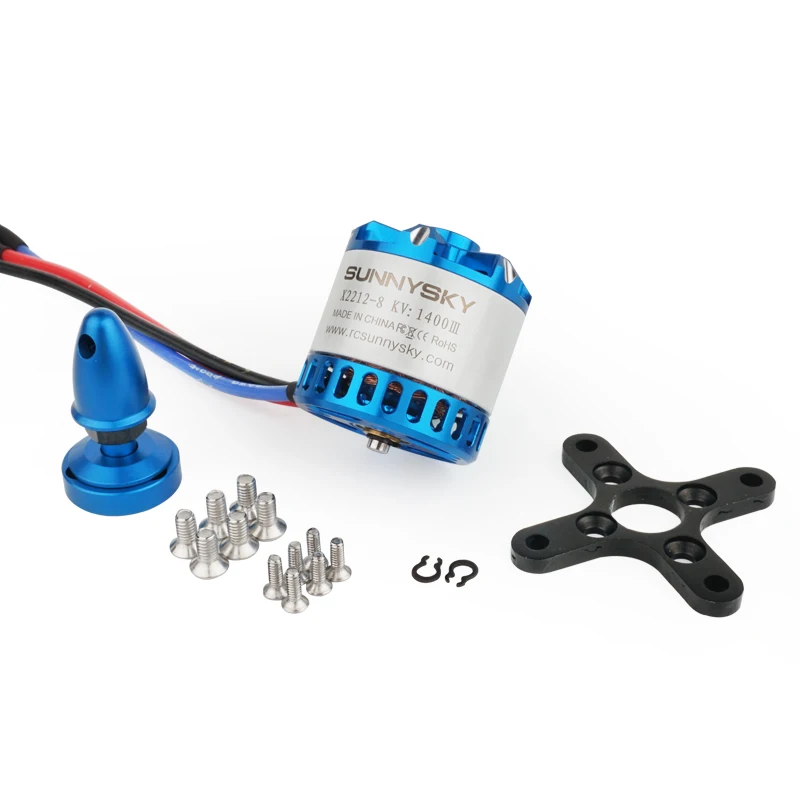

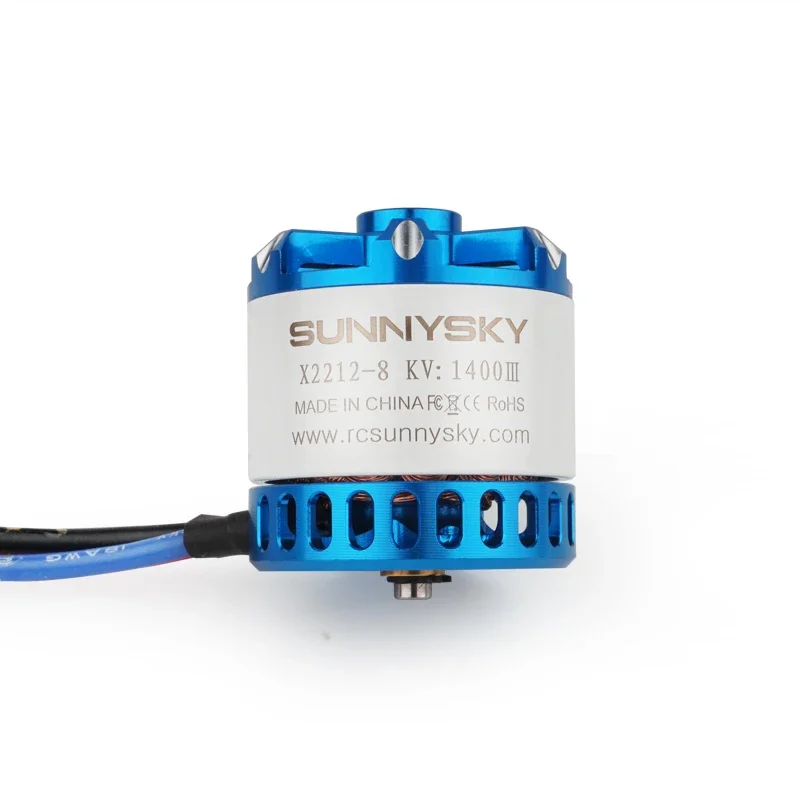

Sunnysky X2212 III V3 Brushless Motor, Short & Long Shaft, KV980/KV1250/KV1400/KV2450, 3-4S LiPo for RC Fixed Wing Airplane
From USD 47.94
Est. USD 47.94 / unit (1-9 pcs)
$44 @ 10+ pcs$41 @ 100+ pcs
Description
Motor Model / KV
X2212-III/ KV980
X2212-III/ KV1250
X2212-III/ KV1400
Stator/Rotor Poles
12N14P
Internal resistance
92mΩ
54mΩ
43mΩ
Motor size
Long-Sleeve:φ27.5*46.0mm
Short-Sleeve:φ27.5*32.5mm
Shaft diameter
3.175mm
AWG
20AWG 100mm
Motor weight(wire included)
57g
59g
Motor weight(wire excluded)
No data
Rated operational voltage
3-4S
No-load current
0.6A/10V
0.8A/10V
1A/10V
Maximum continuous power
385W
518W
560W
Maximum continuous current
26A/30S
35A/30S
37A/30s
ESC recommended use
20-30A
30-40A
Propeller size recommended use
APC9047/9045/8038/1038/1047
APC9047/9060/8060/7060
APC9047/9045/8038/7060/8060
Variant
Selected priceUSD 47.94
Specifications
| Option | Values |
|---|---|
| Battery Cell Count |
|
Product Details
| Motor Model / KV | X2212-III/ KV980 | X2212-III/ KV1250 | X2212-III/ KV1400 |
|---|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P | 12N14P |
| Internal resistance | 92mΩ | 54mΩ | 43mΩ |
| Motor size | Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm |
Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm |
Long-Sleeve:φ27.5*46.0mm Short-Sleeve:φ27.5*32.5mm |
| Shaft diameter | 3.175mm | 3.175mm | 3.175mm |
| AWG | 20AWG 100mm | 20AWG 100mm | 20AWG 100mm |
| Motor weight(wire included) | 57g | 59g | 57g |
| Motor weight(wire excluded) | No data | No data | No data |
| Rated operational voltage | 3-4S | 3-4S | 3-4S |
| No-load current | 0.6A/10V | 0.8A/10V | 1A/10V |
| Maximum continuous power | 385W | 518W | 560W |
| Maximum continuous current | 26A/30S | 35A/30S | 37A/30s |
| ESC recommended use | 20-30A | 30-40A | 30-40A |
| Propeller size recommended use | APC9047/9045/8038/1038/1047 | APC9047/9060/8060/7060 | APC9047/9045/8038/7060/8060 |
