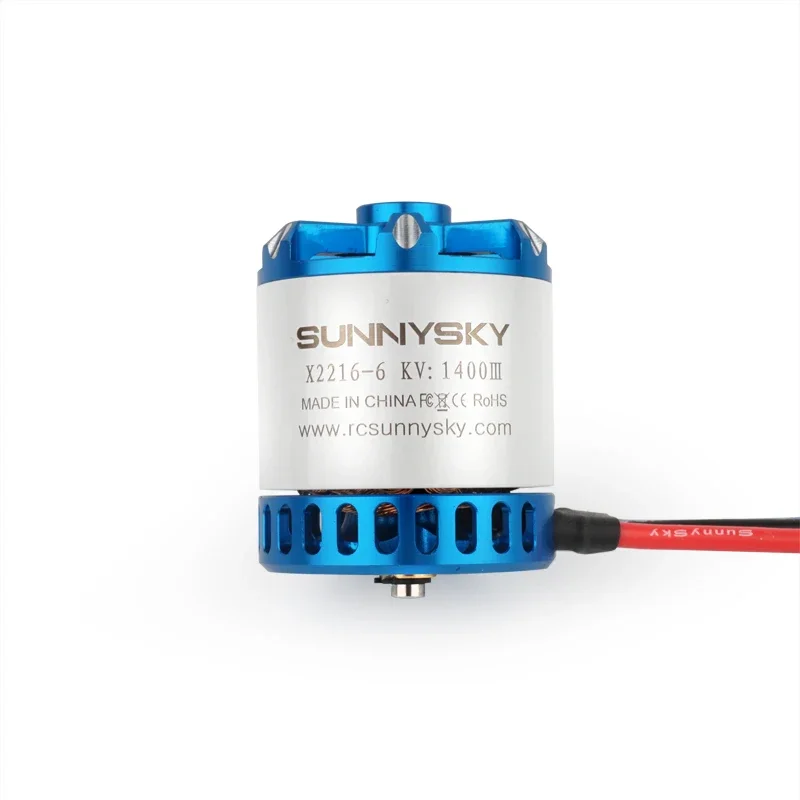

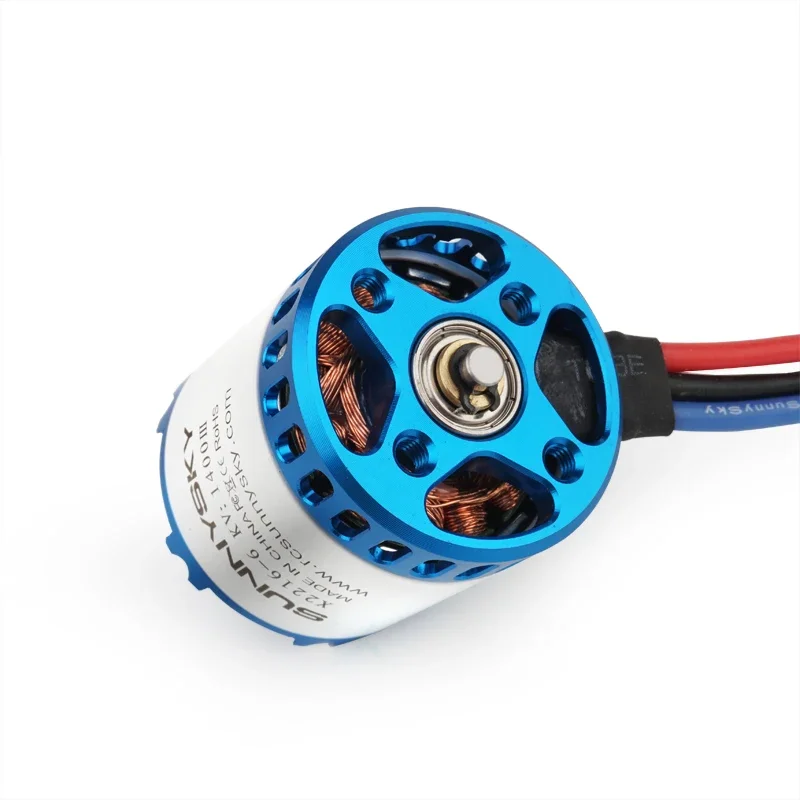

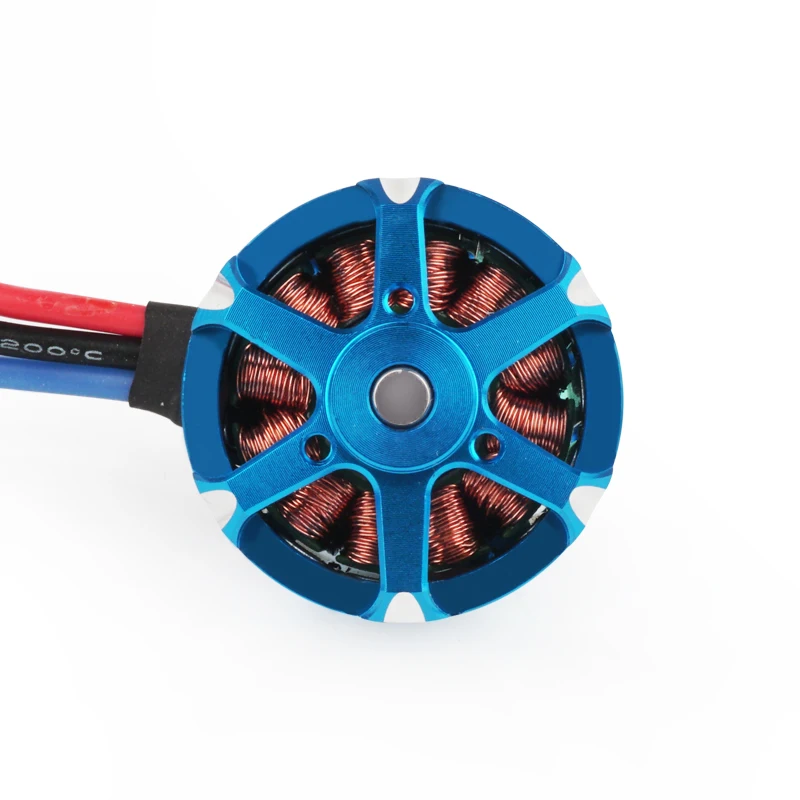

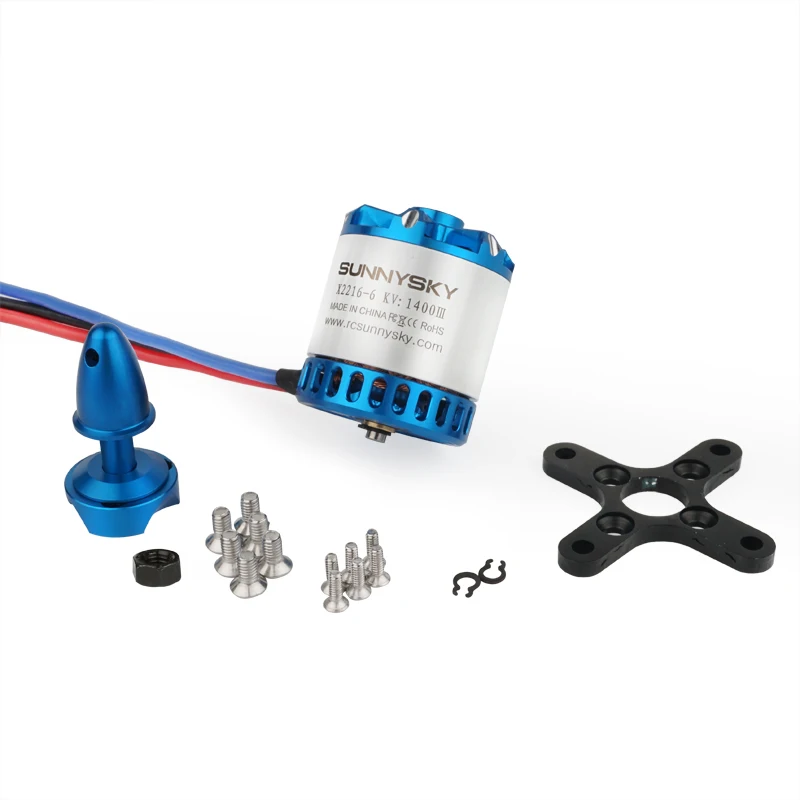

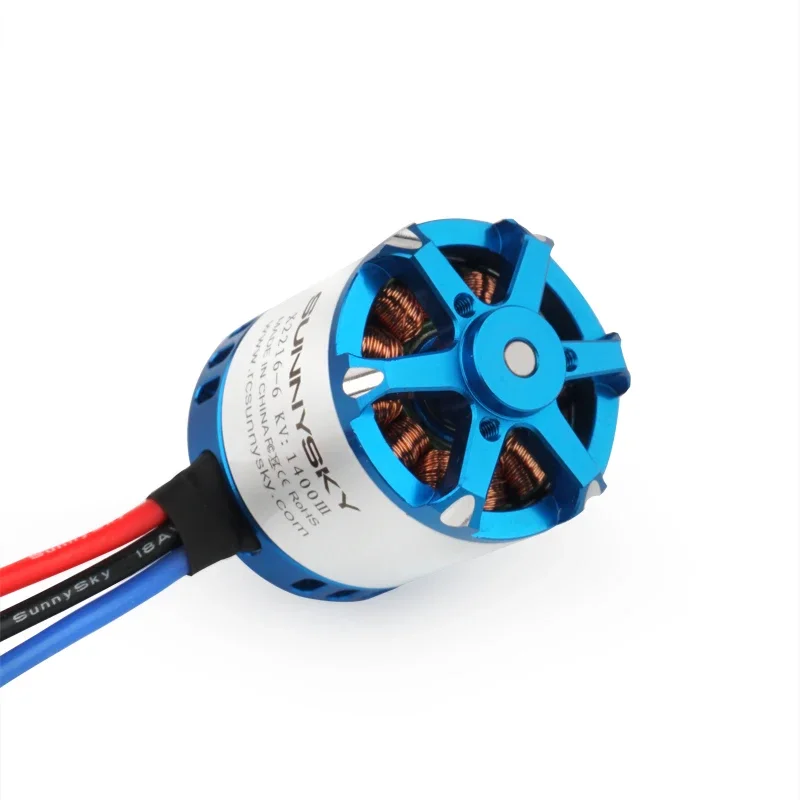

Sunnysky X2216 III V3 RC Brushless Motor, Short/Long Shaft, KV880/950/1100/1250/1400/2600 for Fixed Wing RC Airplane

Motor Model / KV

X2216-III/ KV880

X2216-III/ KV950

X2216-III/ KV1100

X2216-III/ KV1250

X2216-III/ KV1400

Stator/Rotor Poles

12N14P

12N14P

12N14P

12N14P

12N14P

Internal resistance

89mΩ

73.6mΩ

54mΩ

45mΩ

32.2mΩ

Motor size

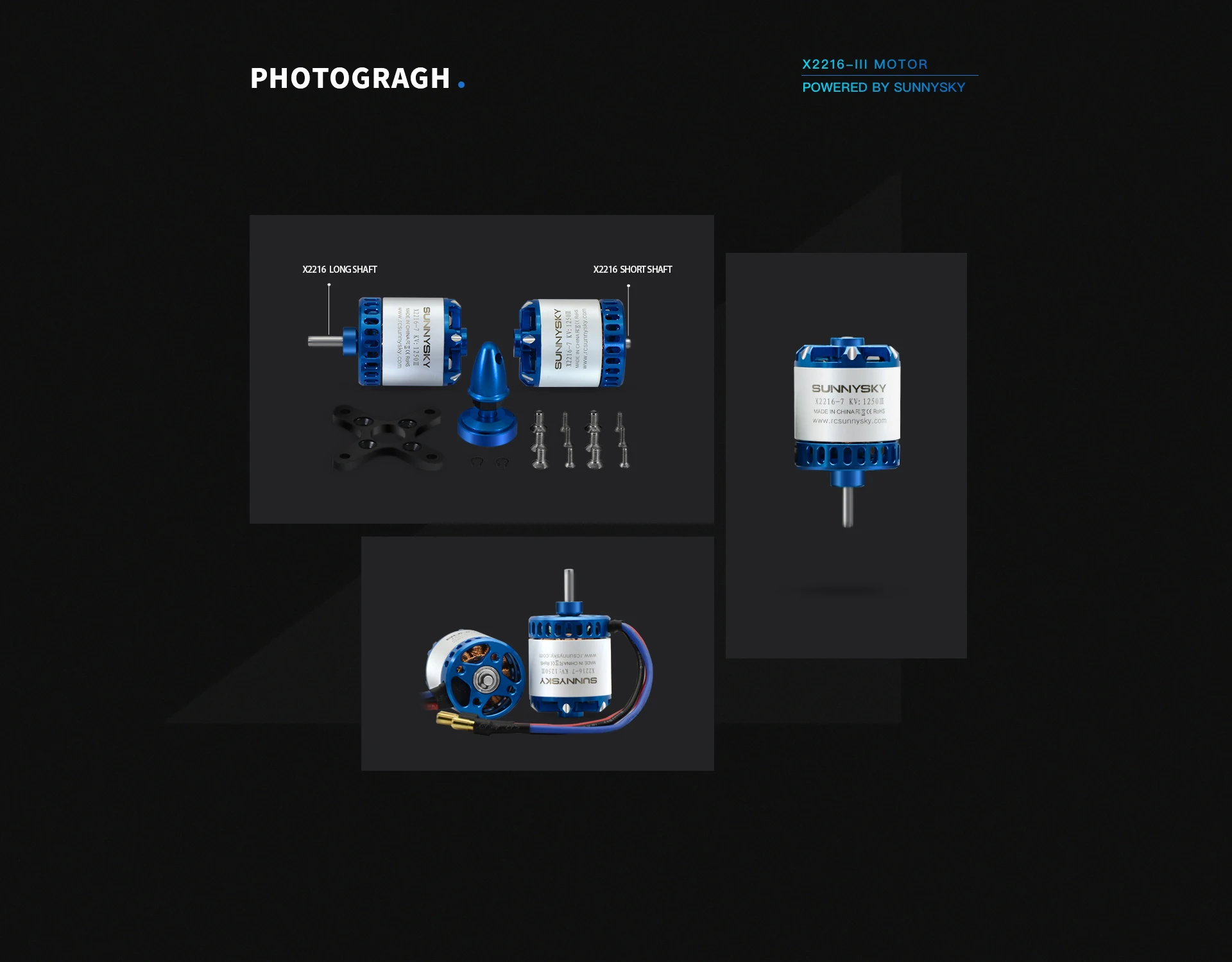

Long-Sleeve:φ27.7*50.0mm
Short-Sleeve:φ27.7*36.5mm

Long-Sleeve:φ27.7*50.0mm
Short-Sleeve:φ27.7*36.5mm

Long-Sleeve:φ27.7*50.0mm
Short-Sleeve:φ27.7*36.5mm

Long-Sleeve:φ27.7*50.0mm
Short-Sleeve:φ27.7*36.5mm

Long-Sleeve:φ27.7*50.0mm
Short-Sleeve:φ27.7*36.5mm

Shaft diameter

3.175mm

3.175mm

3.175mm

3.175mm

3.175mm

AWG

20AWG 100mm

20AWG 100mm

20AWG 100mm

20AWG 100mm

20AWG 100mm

Motor weight(wire included)

67.5g

69g

69g

69g

71g

Motor weight(wire excluded)

No data

No data

No data

No data

No data

Rated operational voltage

3-4S

3-4S

3-4S

3-4S

3-4S

No-load current

0.5A/10V

0.7A/10V

0.8A/10V

1A/10V

1.2A/10V

Maximum continuous power

450W

450W

480W

600W

740W

Maximum continuous current

32A/30S

32A/30S

34A/30S

40A/30s

50A/30s

ESC recommended use

50A

50A

30-40A

40A

40-50A

Propeller size recommended use

APC9047/9045/APC11*4.7/1047

APC 9047/APC 9045/APC11*4.7/APC 1047

APC9047/APC9045/APC8060/APC1047

APC9047/APC9045/APC8060/APC1047

APC9047/APC9045/APC8060
