Holybro Tekko32 F4 45A Single ESC AM32 Dshot1200 PWM 48K on-Board RGB LED Current Sensor 2-6S
263 orders (reference)
Description
Holybro Tekko32 F4 45A Single ESC AM32 Dshot1200 PWM 48K on-Board RGB LED Current Sensor 2-6S High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Bottom Plate Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: As Description
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | As Description |
| Technical parameters | Value 10 |
| Model Number | As Description |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Composite Material |
| Brand Name | JDRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

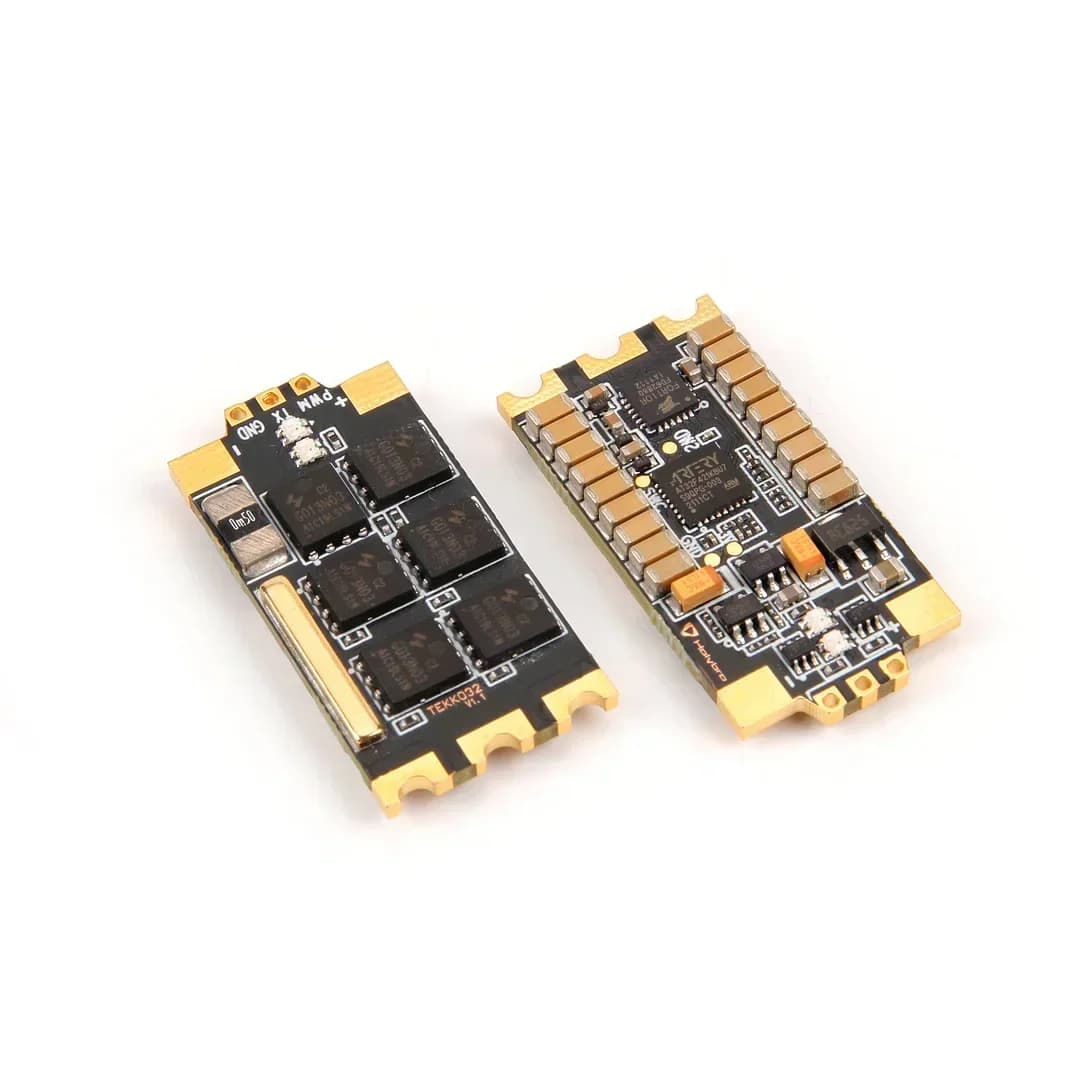

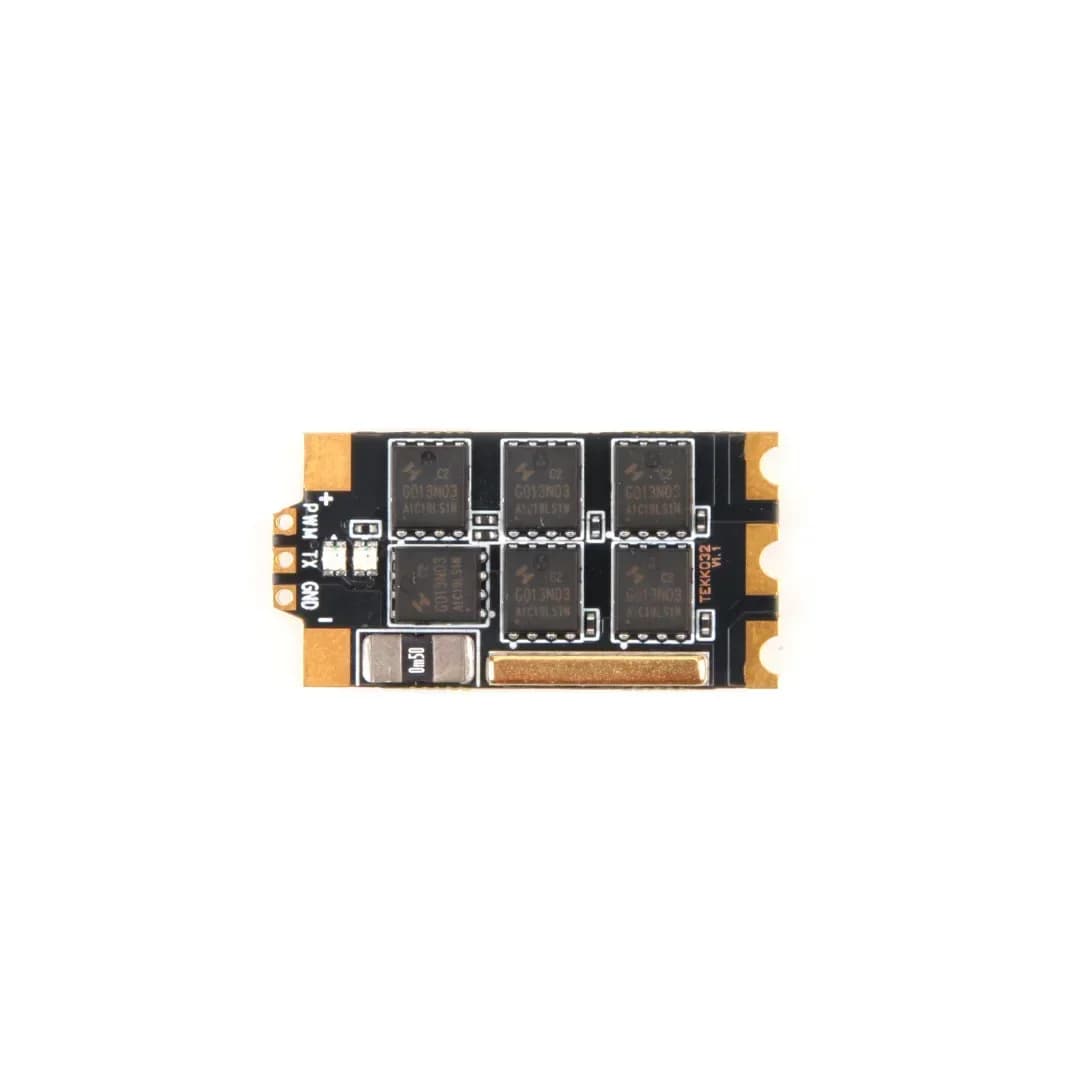

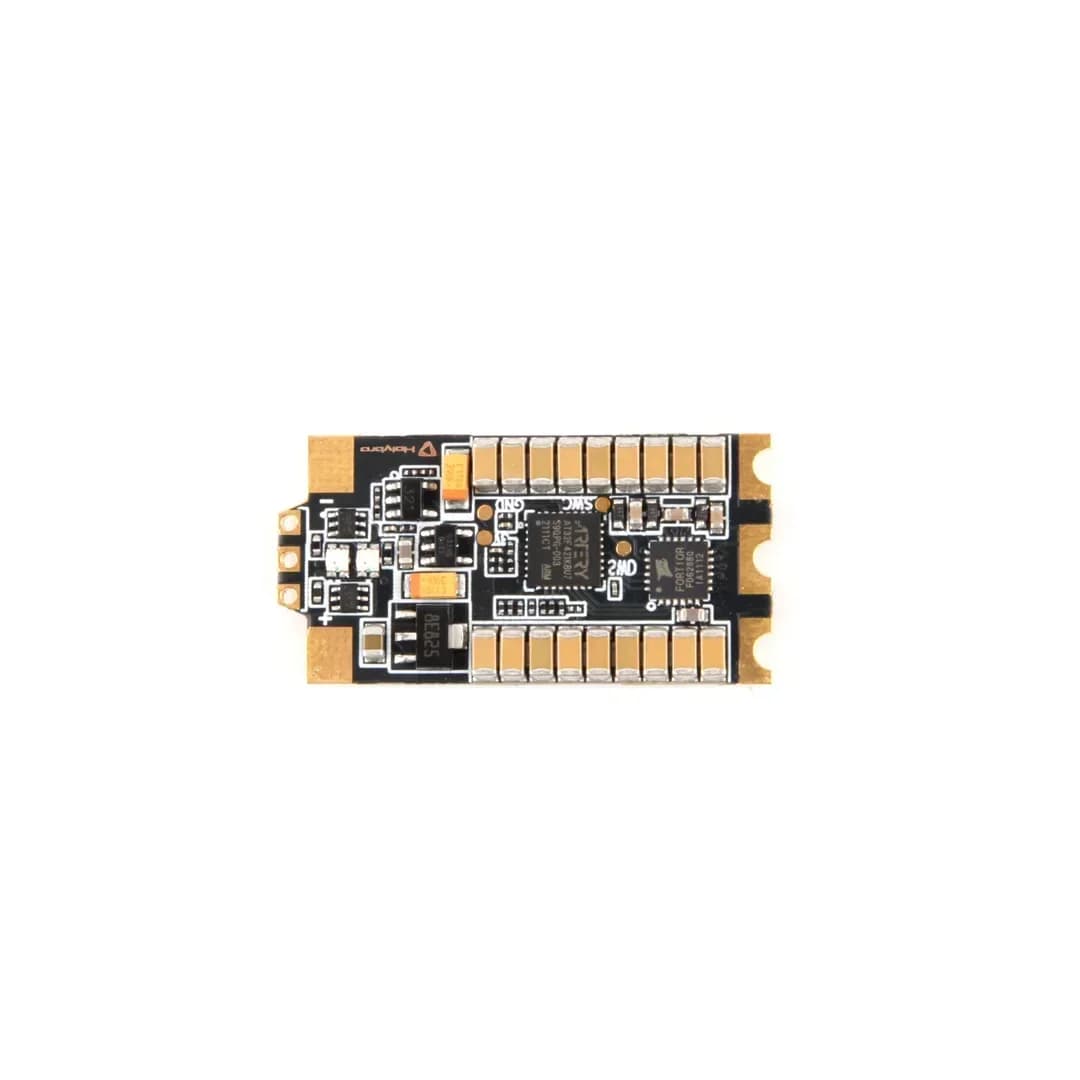

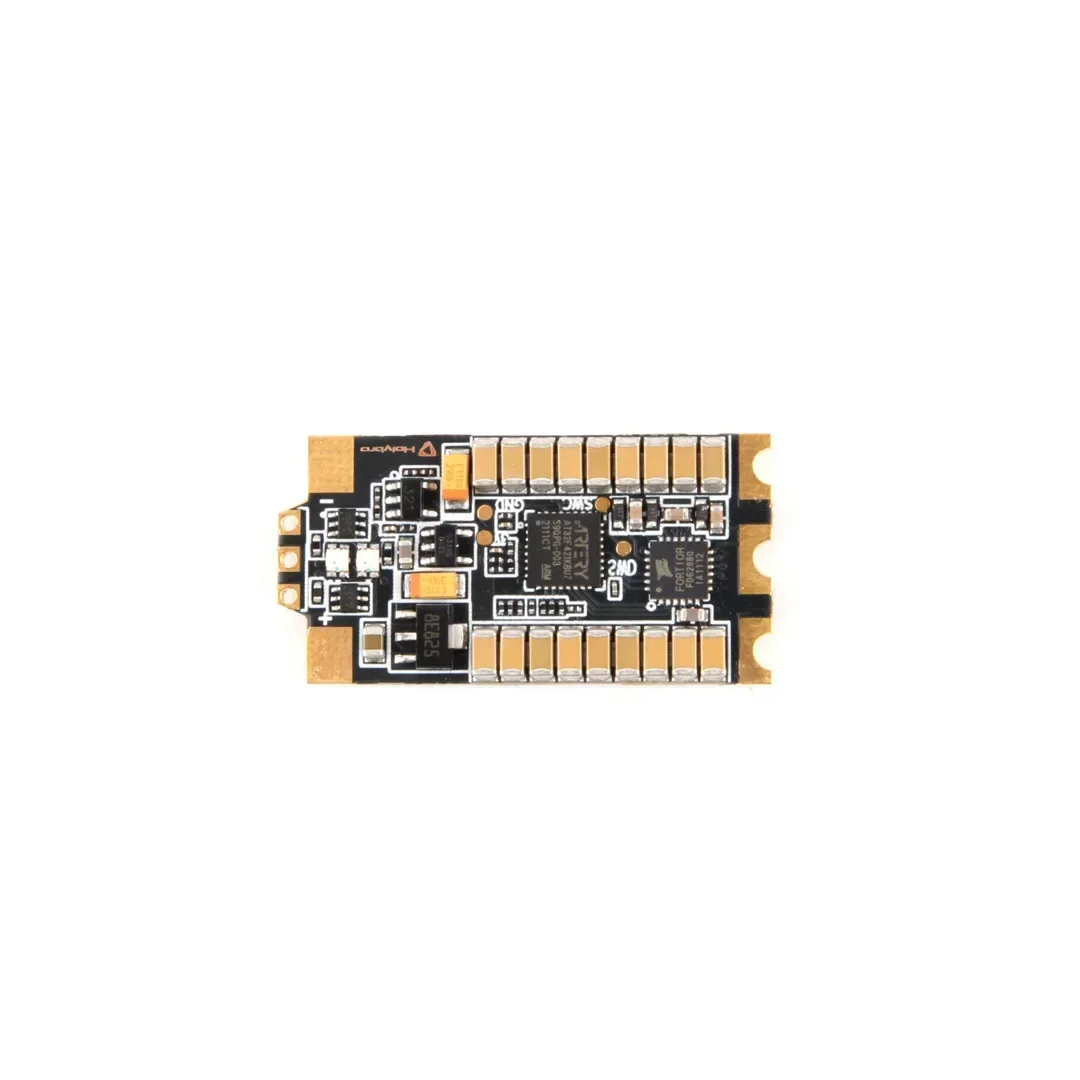

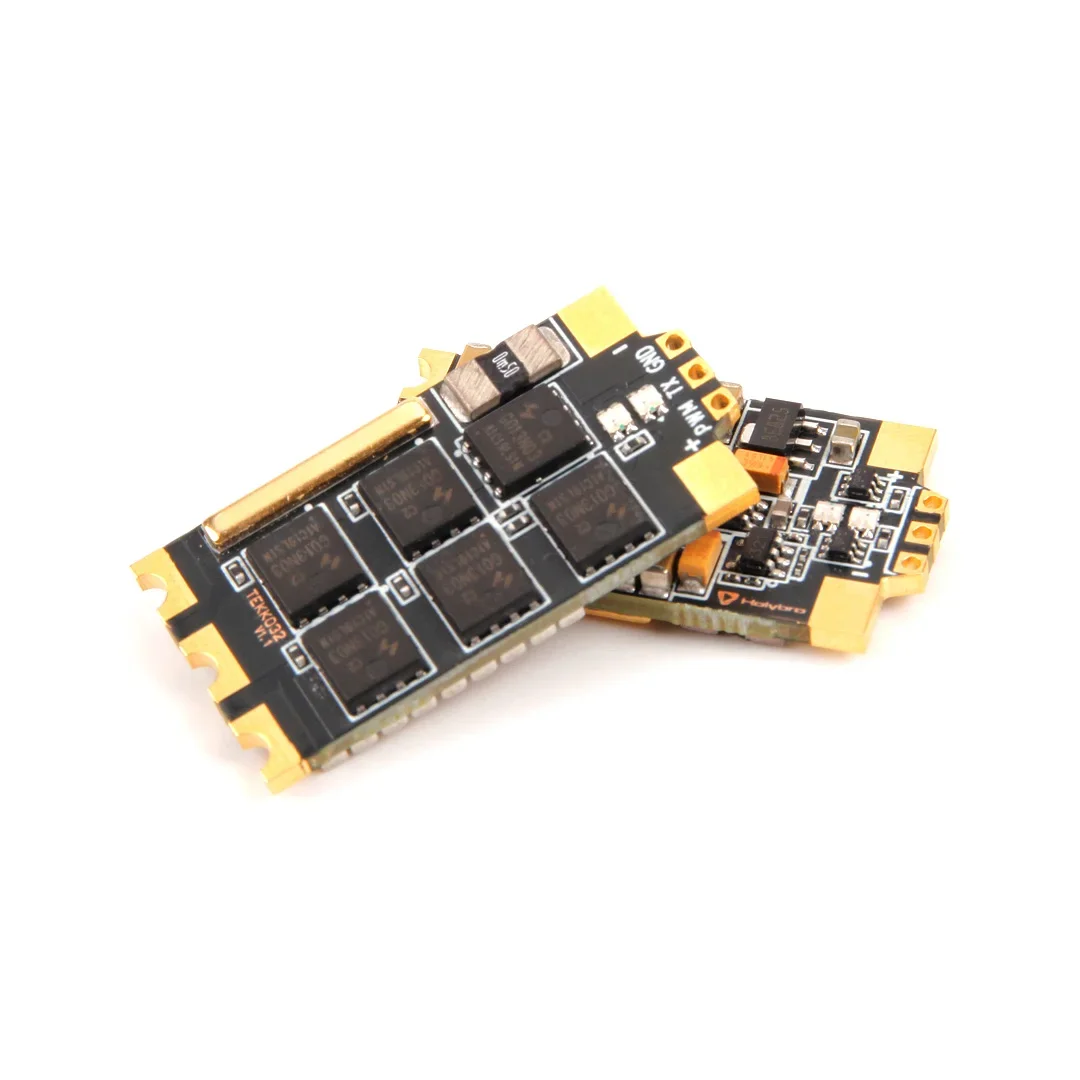

Tekko32 F4 45A ESC is the latest AM32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products.
Features:
F4 MCU with AM32 firmware Dshot1200 up to 32kHz
PWM up to 48k
Small size & low weight
Auto Timing Feature
On-Board RGB LED
Build in Current sensor
Smooth Response
Spec:
2-6s LIPO input
Ext. cap recommended for 6s (330uf 35v for 6s usage.)
45A designed

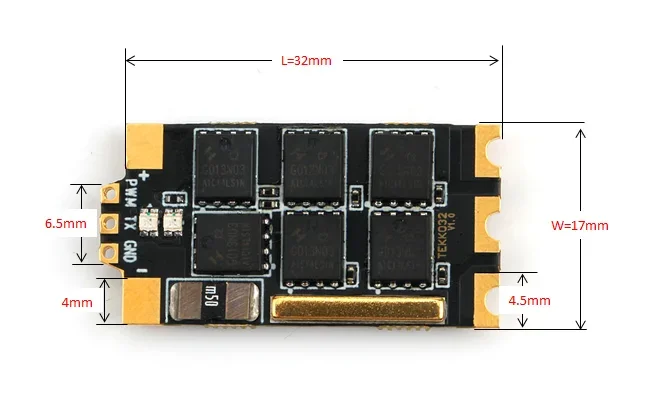

Size: 17.3*34.3*4.5mm

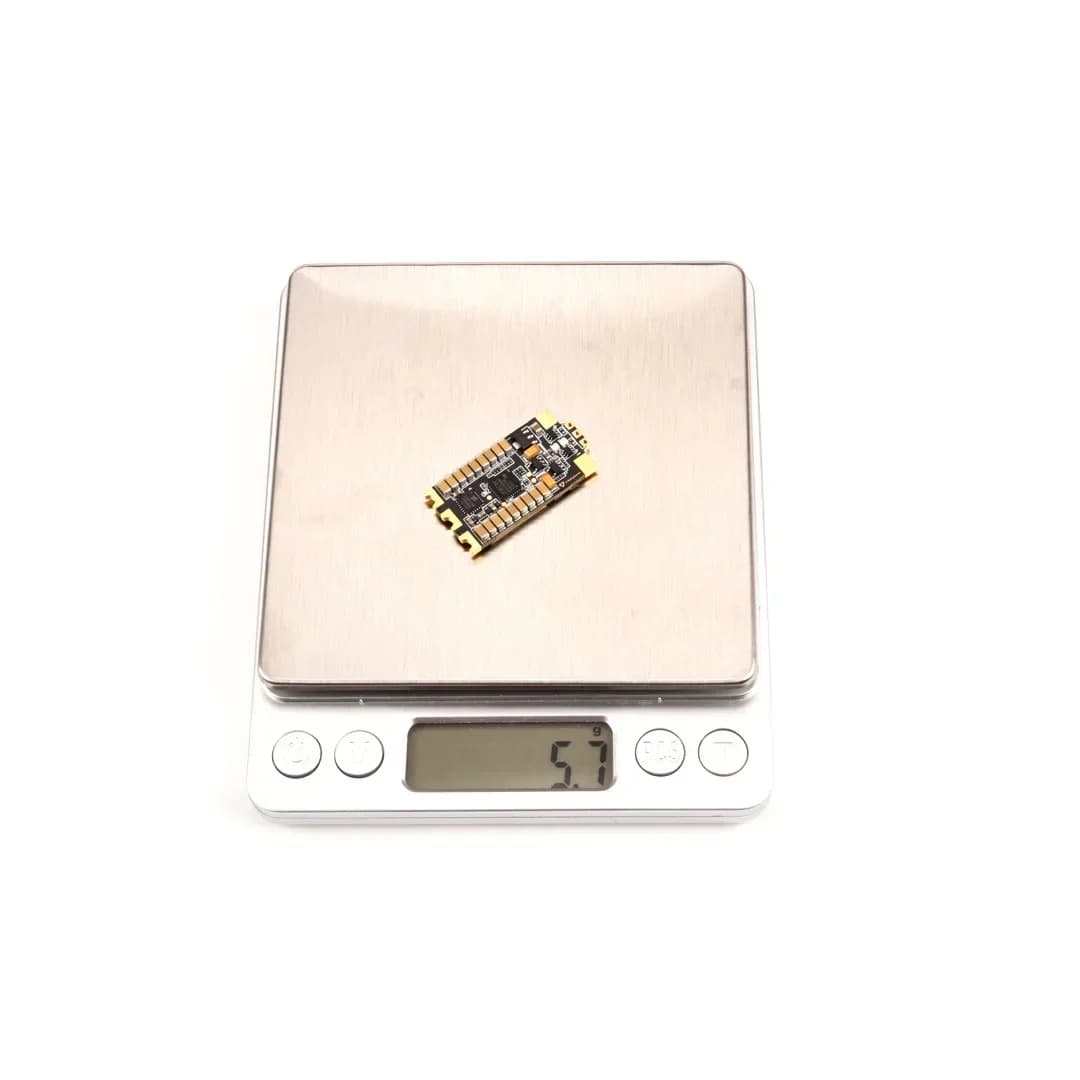

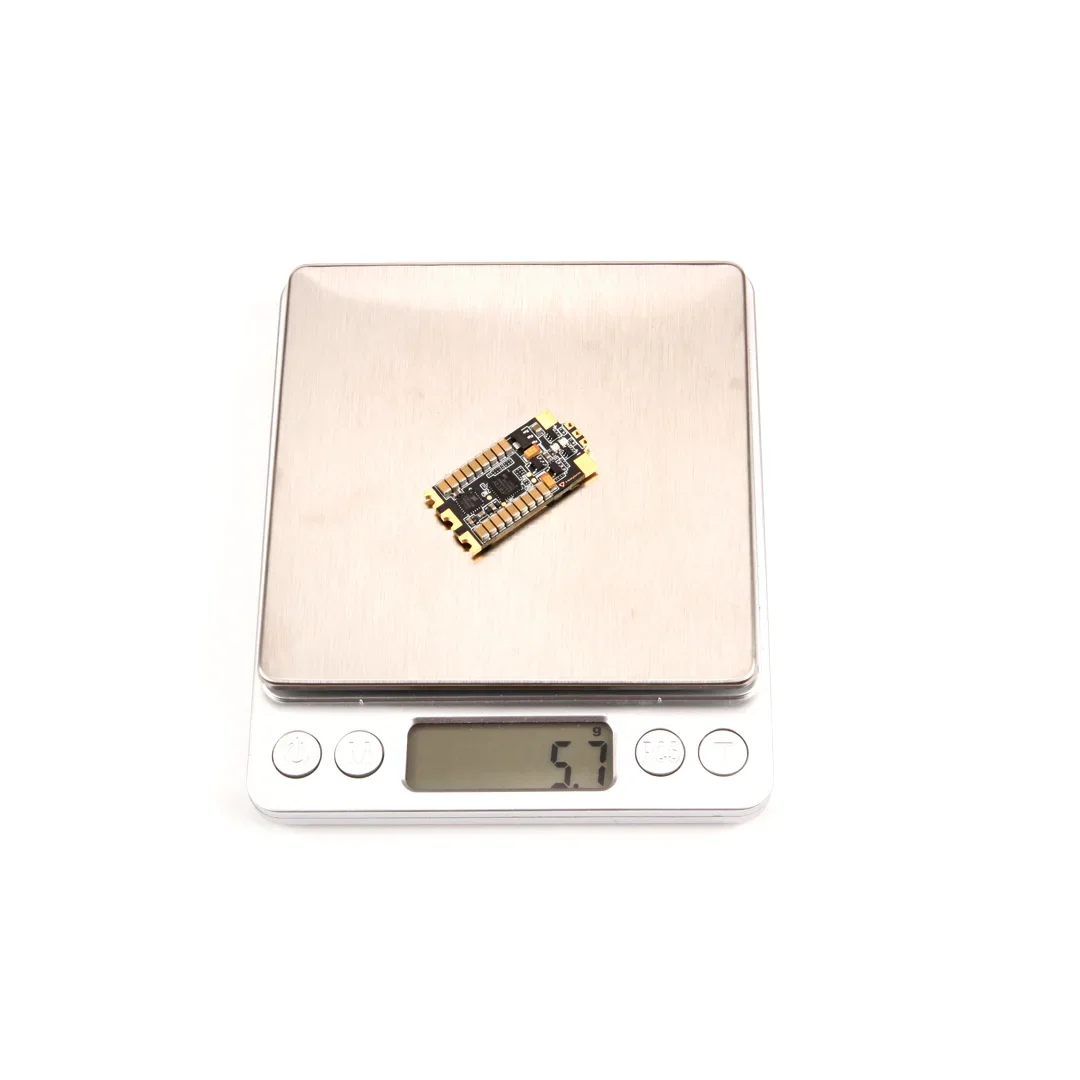

Weight: 5.8g

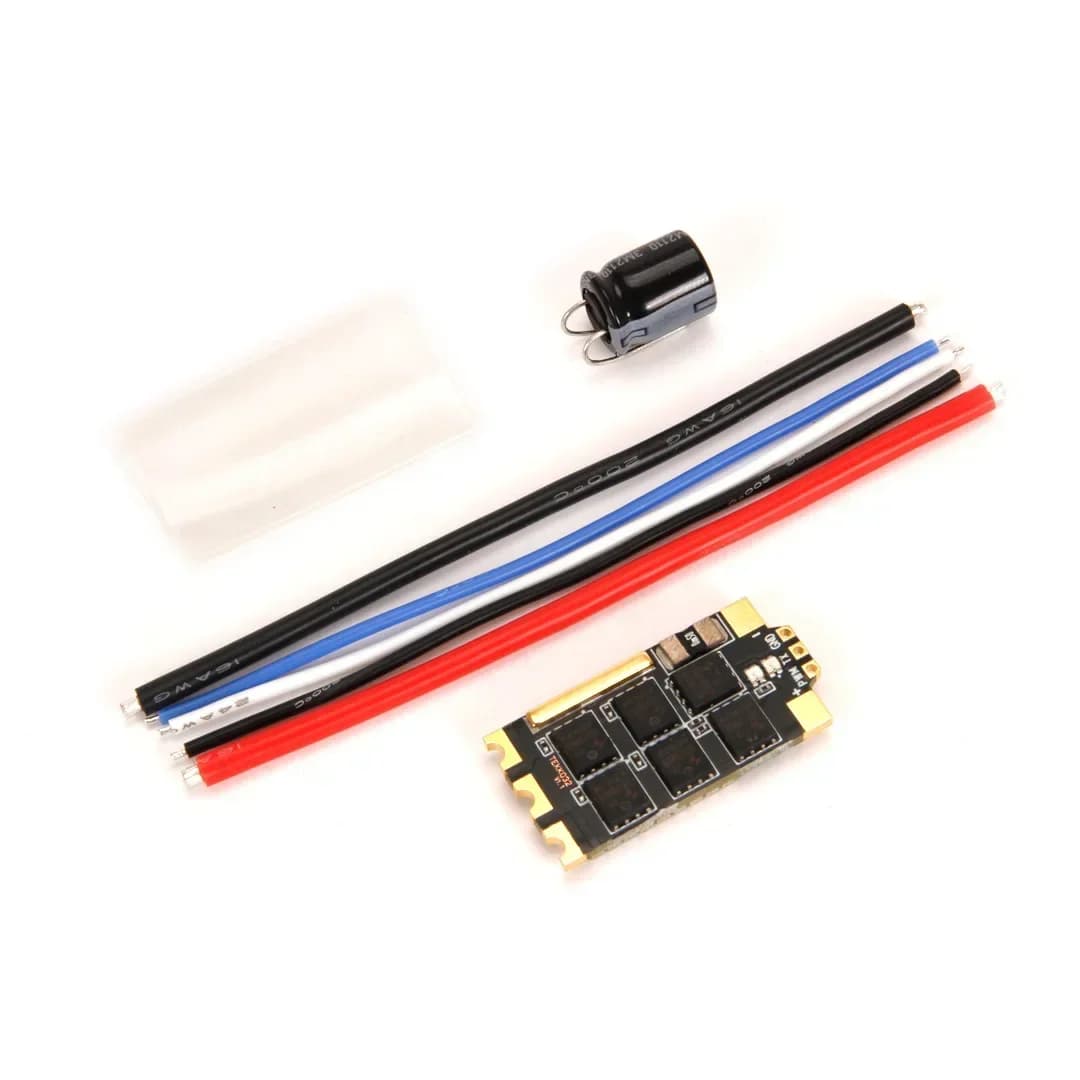

Package:
Tekko32 F4 45A ESC *1
Electrolytic capacito: 330uF 35v *1
24AWG 100mm Black wire *1
24AWG 100mm White wire *1
24AWG 100mm Blue wire *1
16AWG 100mm Red wire *1
16AWG 100mm Black wire *1
