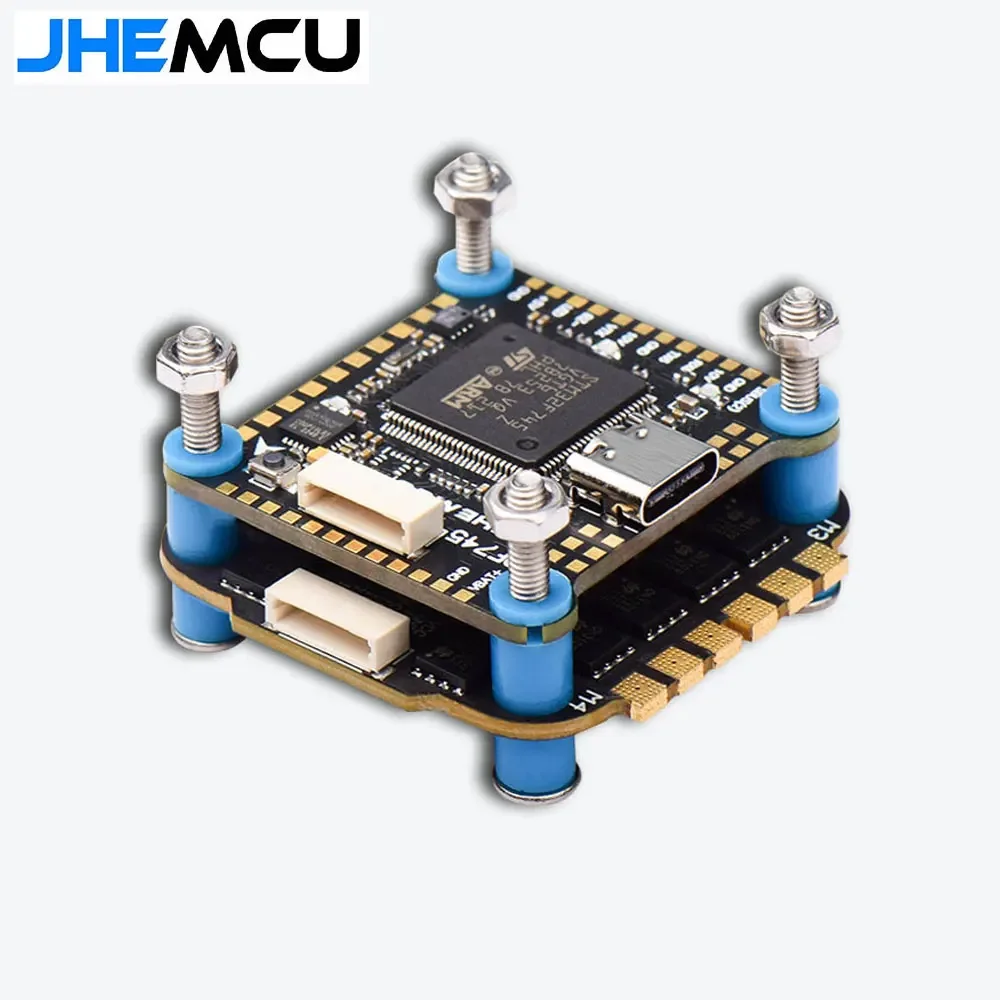

JHEMCU F745 Flight Controller Stack GF30F745-ICM Flight ControllerAM32A60 60A 4in1 ESC 3-6S 30X30mm for RC FPV Drone
From US $57.85 - 93.77
Est. US $57.85 - 93.77 / unit (1-9 pcs)
$53 @ 10+ pcs$50 @ 100+ pcs
Description

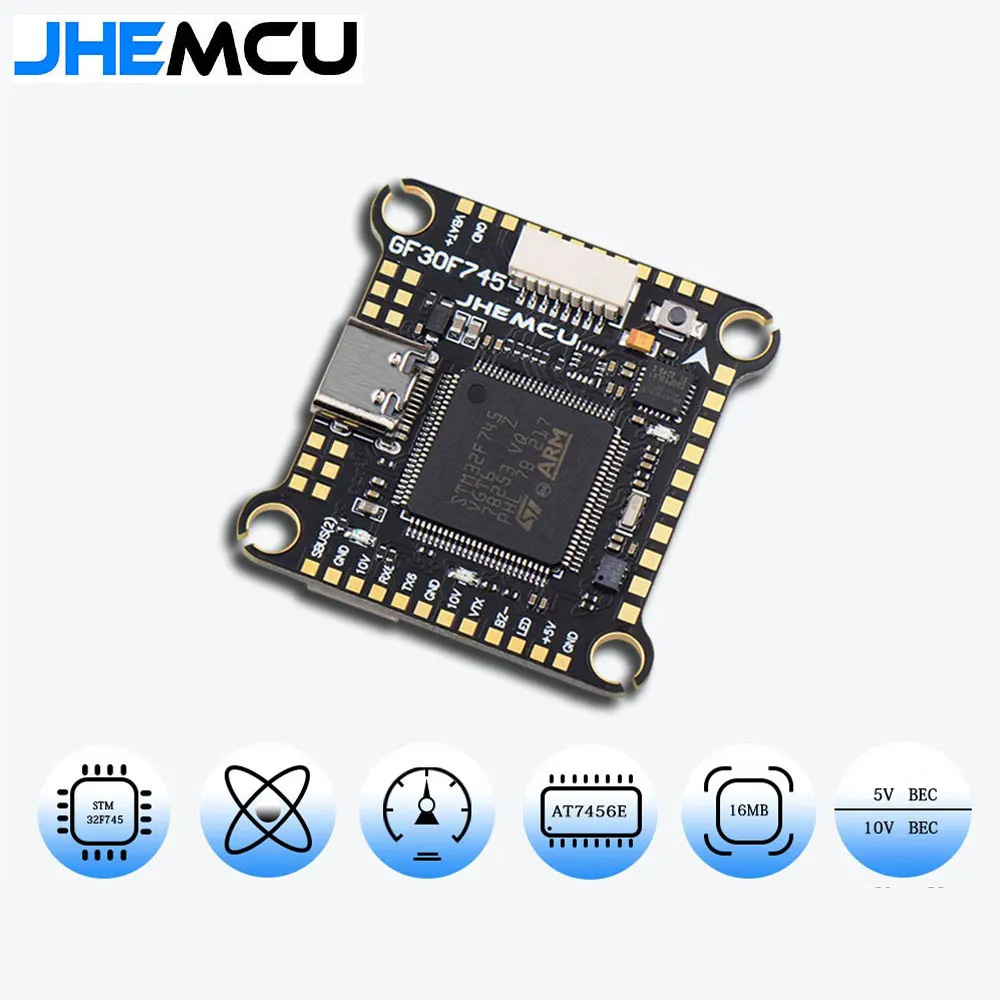

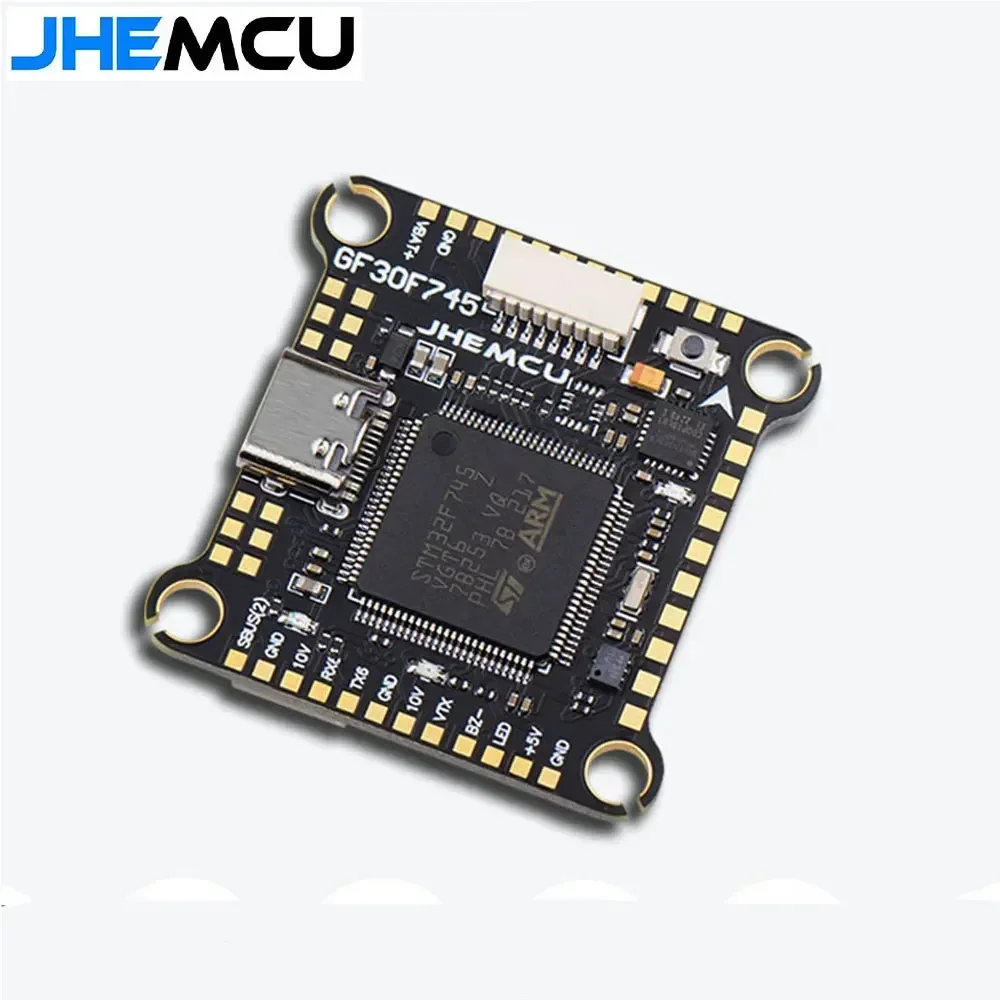

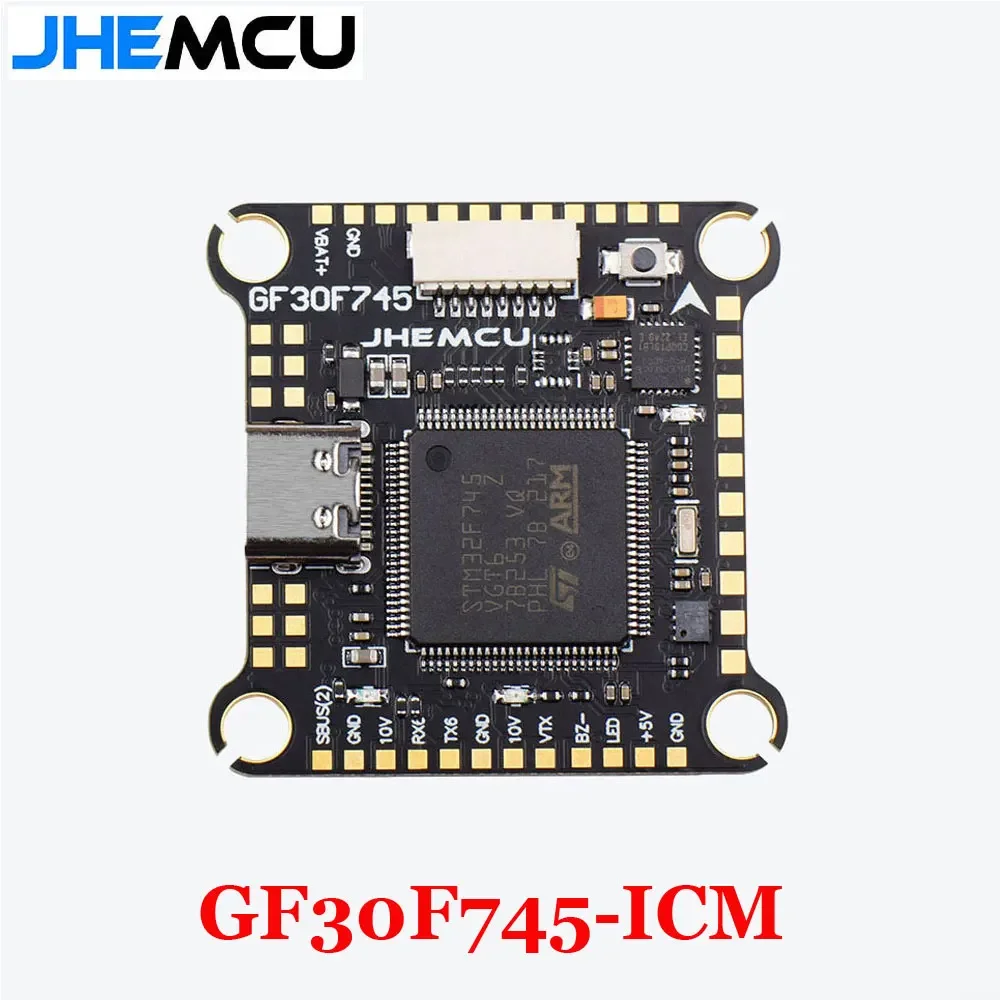

GF30F745-ICM Flight Controller
Master: STM32F745VG(216 MHZ)
Gyroscope: ICM-42688-P
Barometer: SPL06
OSD Chip: AT7456E
Black Box: 16MB
LED Programming: Support
Buzzer: Support
Input Voltage: 3-6S
I2C Interface: Support
BEC: 5V/2.5A / 10V/2.0A
Camera Input: Support
UART: UART1,UART2,UART3,UART4,UART5,UART6,UART7
Receiver: ELRS(CRSF). TBS(CRSF),SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot 150, Dshot 300, Dshot 600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU button: YES
Weight: 7.5g
Firmware: betaflight_4.5.0_JHEF745-ICM.HEX
Mounting hole distance: 30.5MM*30.5MM*4MM
Dimension: 36MM*36MM

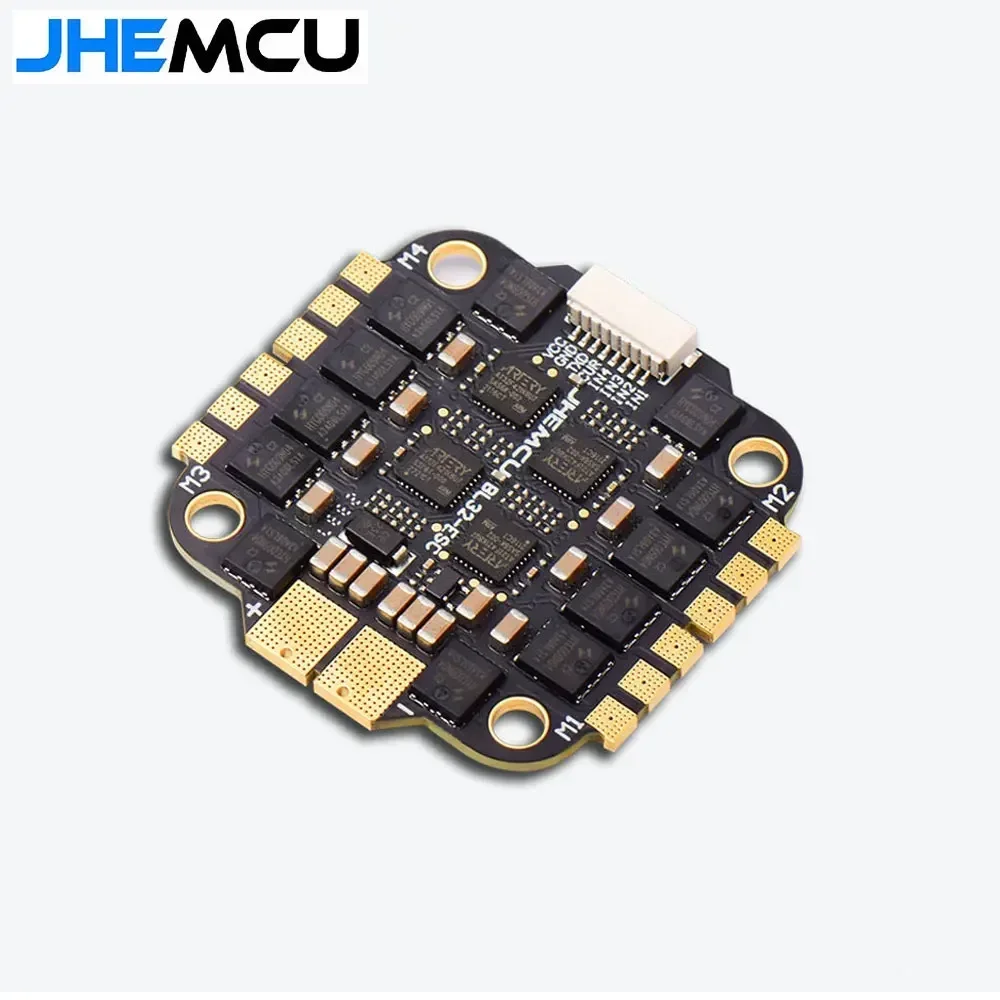

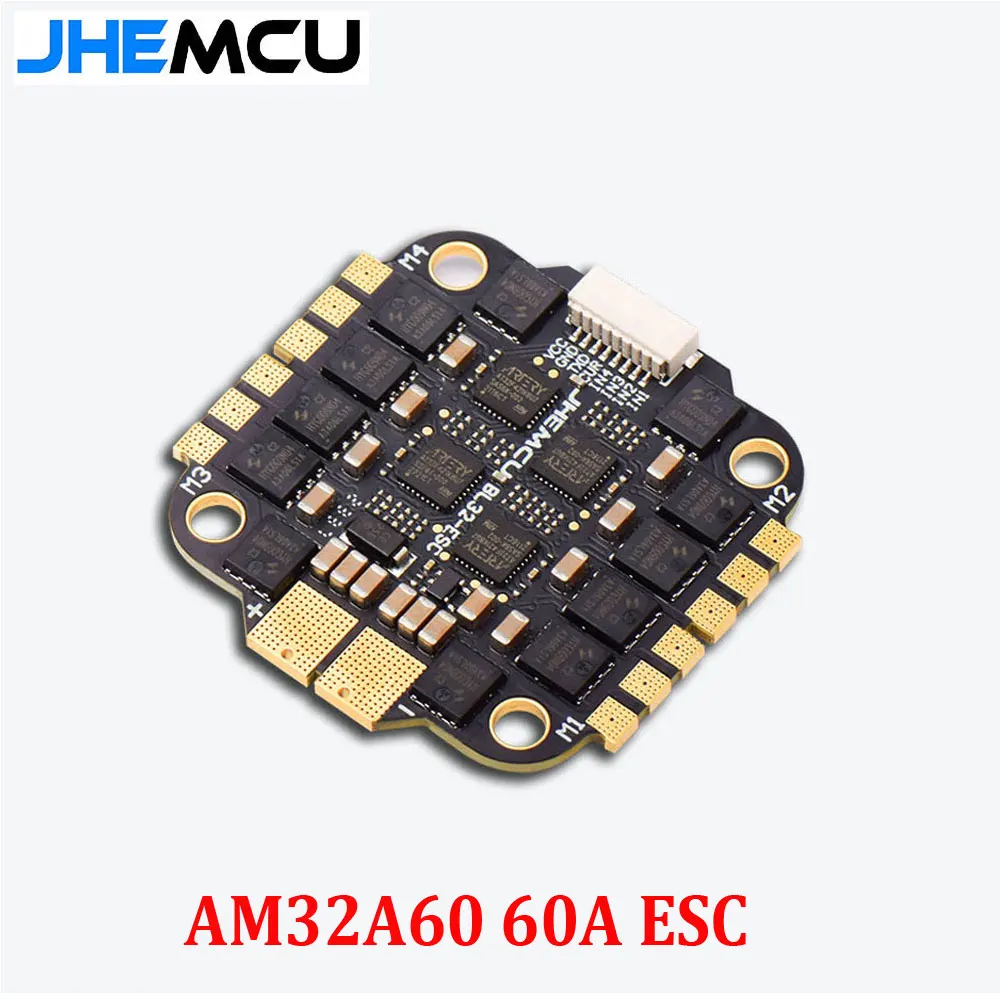

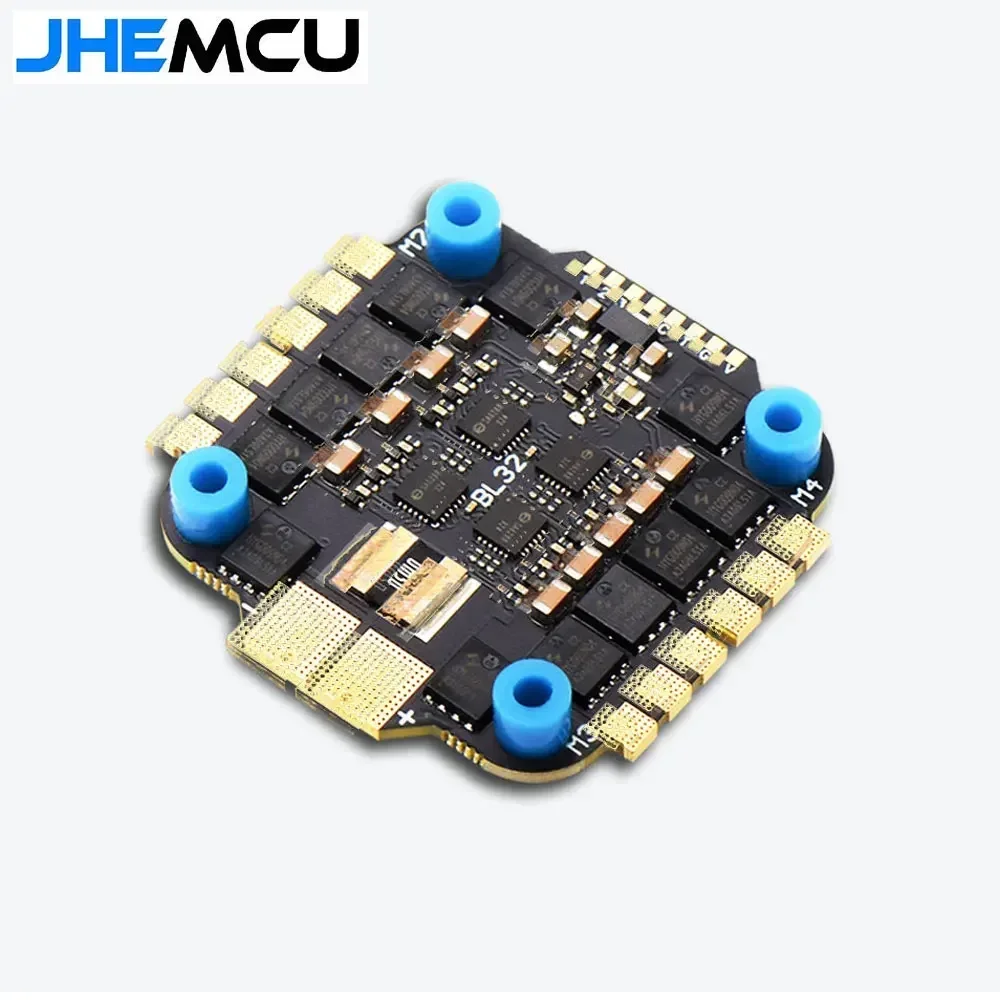

AM32A60 60A 4-in-1 ESC
Input Voltage: 3-6S (11-27V)
Continuous current: 60A*4 ways
BEC: No
Ammeter: Yes
Mounting hole pitch: 30.5MM*M4
Overall Dimension: 44mm*43mm
Firmware: AM32_AT32DEV_F421.HEX
Weight: 15.4 grams
Variant
Selected priceUSD 49.35
Specifications
| Option | Values |
|---|---|
| Barometer |
|
| USB |
|
| Weight |
|
| Dimension |
|
| Firmware |
|
| UART |
|
Product Details
GF30F745-ICM Flight Controller
Master: STM32F745VG(216 MHZ)
Gyroscope: ICM-42688-P
Barometer: SPL06
OSD Chip: AT7456E
Black Box: 16MB
LED Programming: Support
Buzzer: Support
Input Voltage: 3-6S
I2C Interface: Support
BEC: 5V/2.5A / 10V/2.0A
Camera Input: Support
UART: UART1,UART2,UART3,UART4,UART5,UART6,UART7
Receiver: ELRS(CRSF). TBS(CRSF),SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot 150, Dshot 300, Dshot 600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU button: YES
Weight: 7.5g
Firmware: betaflight_4.5.0_JHEF745-ICM.HEX
Mounting hole distance: 30.5MM*30.5MM*4MM
Dimension: 36MM*36MM
AM32A60 60A 4-in-1 ESC
Input Voltage: 3-6S (11-27V)
Continuous current: 60A*4 ways
BEC: No
Ammeter: Yes
Mounting hole pitch: 30.5MM*M4
Overall Dimension: 44mm*43mm
Firmware: AM32_AT32DEV_F421.HEX
Weight: 15.4 grams
