CUAV P8 Radio Telemetry Module Set 900MHz UAV Long Range Data Link for PX4 Pixhawk Flight Controller Ground Station Sky Air Unit
From US $335.46 - 663.33
Est. US $335.46 - 663.33 / unit (1-9 pcs)
$312 @ 10+ pcs$295 @ 100+ pcs
Description
Features
CUAV P8 Radio UAV Telemetry Ultra-Long Data Transmission Ground And Sky Unit Module Set
Product Details
Working frequency: 840-850MHZ
Error Detection: 32 bits of CRC , ARQ
Antenna gain: 3DBi
Operation Temperature: -40°C-85°C
A serial port type: 3.3V CMOS TTL
Airspeed: 345kbps Max
Input voltage: 12V-60V
Input Current: >2.5A
Baud rate: 300bps to 230kbps
Spreading Method:Frequency Hopping /Fixed Frequency, rank
Range
- Limit distance: 60km +
- Reference distance: 25km
Sensitivity
- 109dBM@115.2kdps
- 108dBm@172.8kdps
- 106dBm@230.4kbps
Transit power: 100mw-1000mw(default 1000mw)
Forward Error Correction: Hamming, BCH, Golay,Reed-Solomon, Viterbi
Power consumption
- Sleep: <1mA (Future)
- Idle : 20mA
- Rx: 45mA to 98mA
- Tx Peak: 2A
Interface

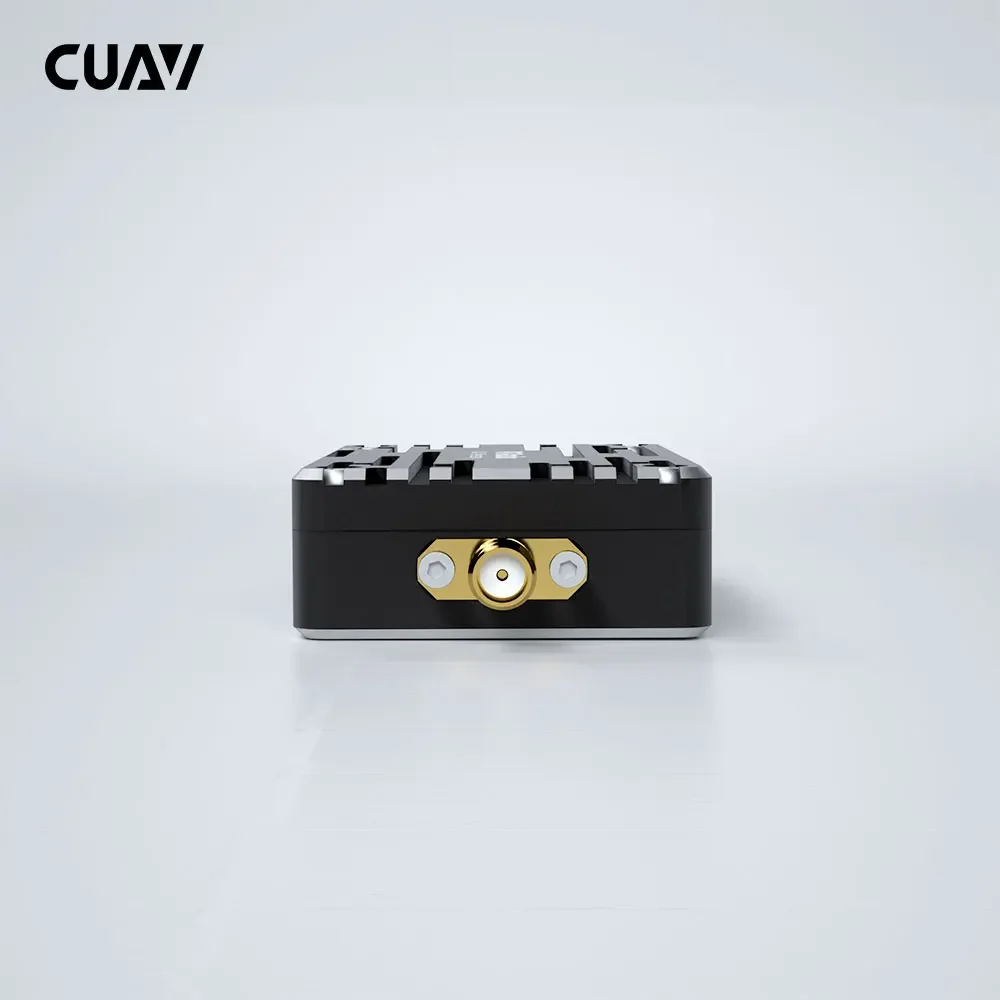

- Antenna: SMA inner needle

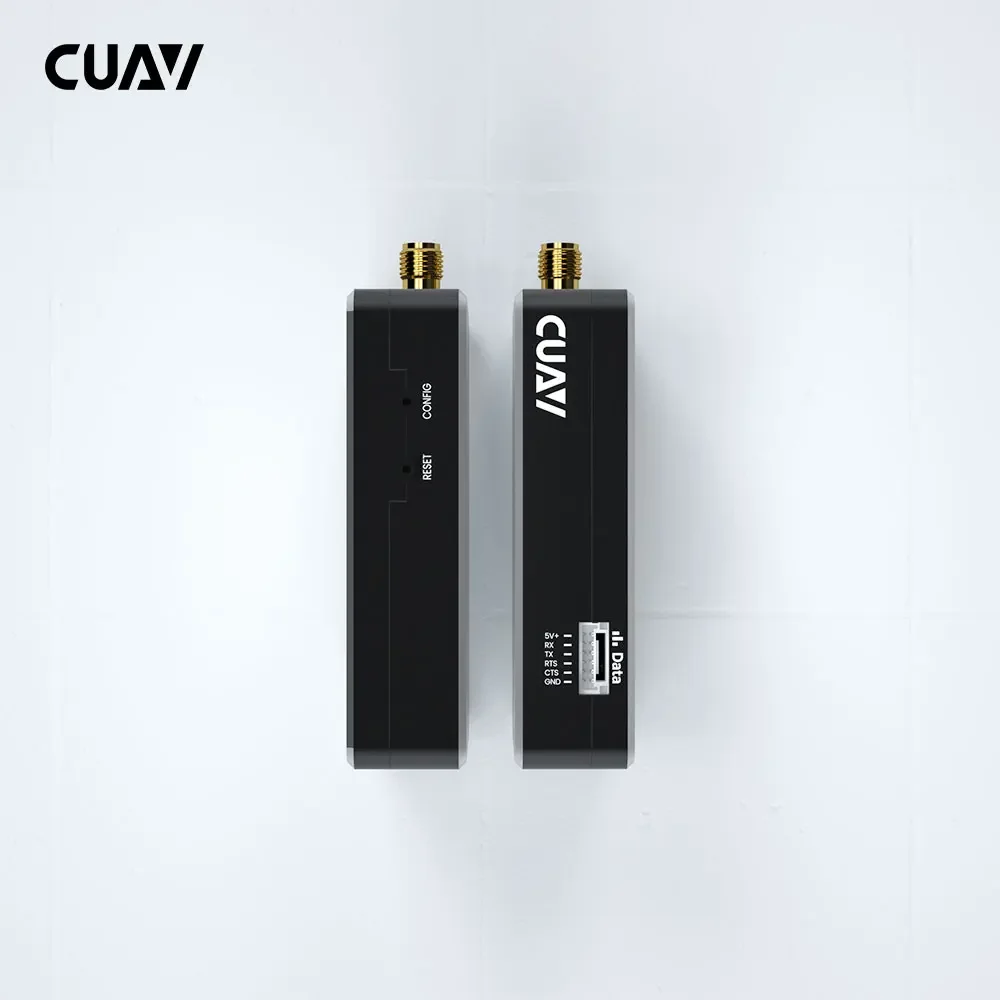

- Serial: GHR-O6V-S

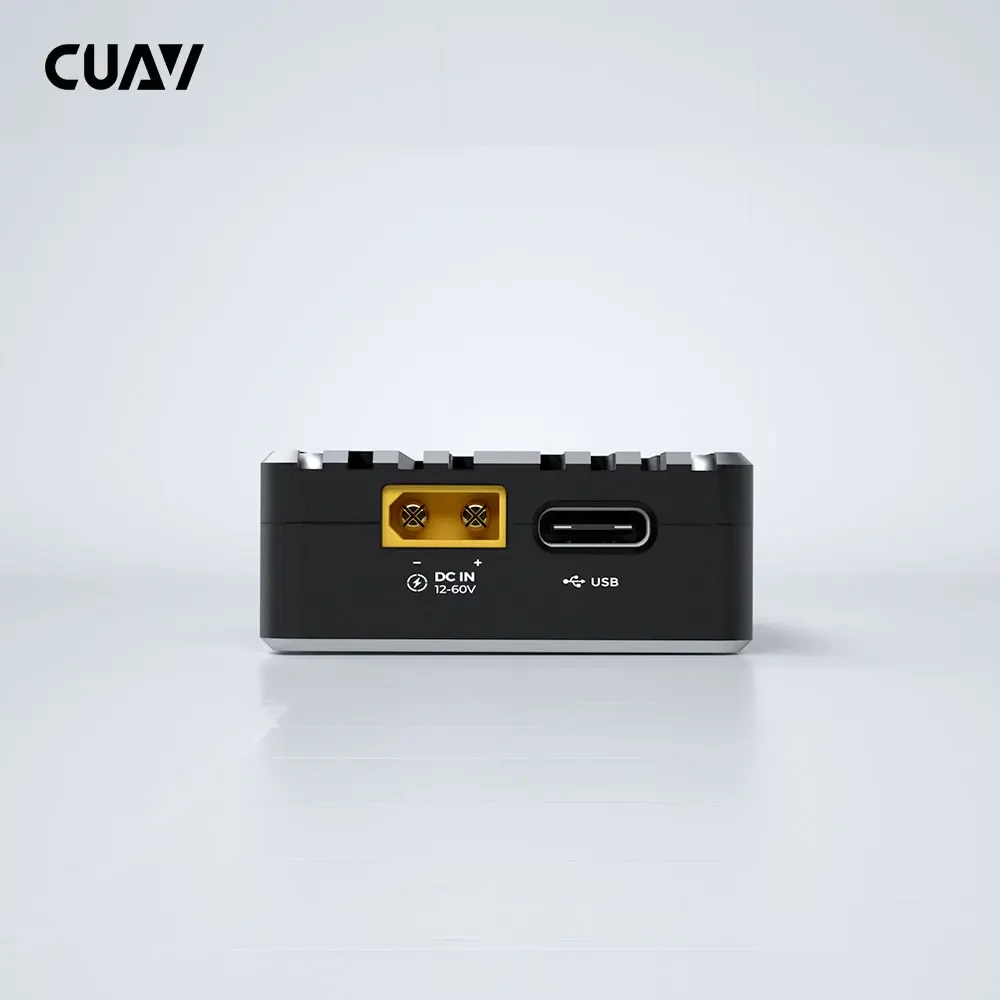

- USB: TYPE-C POWER
Network Topology: Point-to-point,Point -to-Multipoint, Relay Mode
Weight: P8 module 55g, Antenna 31g, Total 86g
Size: 65mmx40mmx16.5mm
Variant
Selected priceUSD 664.69
Specifications
| Option | Values |
|---|---|
| Weight |
|
| Size |
|
Product Details
Features
CUAV P8 Radio UAV Telemetry Ultra-Long Data Transmission Ground And Sky Unit Module Set
Product Details
Working frequency: 840-850MHZ
Error Detection: 32 bits of CRC , ARQ
Antenna gain: 3DBi
Operation Temperature: -40°C-85°C
A serial port type: 3.3V CMOS TTL
Airspeed: 345kbps Max
Input voltage: 12V-60V
Input Current: >2.5A
Baud rate: 300bps to 230kbps
Spreading Method:Frequency Hopping /Fixed Frequency, rank
Range
- Limit distance: 60km +
- Reference distance: 25km
Sensitivity
- 109dBM@115.2kdps
- 108dBm@172.8kdps
- 106dBm@230.4kbps
Transit power: 100mw-1000mw(default 1000mw)
Forward Error Correction: Hamming, BCH, Golay,Reed-Solomon, Viterbi
Power consumption
- Sleep: <1mA (Future)
- Idle : 20mA
- Rx: 45mA to 98mA
- Tx Peak: 2A
Interface
- Antenna: SMA inner needle
- Serial: GHR-O6V-S
- USB: TYPE-C POWER
Network Topology: Point-to-point,Point -to-Multipoint, Relay Mode
Weight: P8 module 55g, Antenna 31g, Total 86g
Size: 65mmx40mmx16.5mm
Error Detection: 32 bits of CRC , ARQ
Antenna gain: 3DBi
Operation Temperature: -40°C-85°C
A serial port type: 3.3V CMOS TTL
Airspeed: 345kbps Max
Input voltage: 12V-60V
Input Current: >2.5A
Baud rate: 300bps to 230kbps
Spreading Method:Frequency Hopping /Fixed Frequency, rank
Range
- Limit distance: 60km +
- Reference distance: 25km
Sensitivity
- 109dBM@115.2kdps
- 108dBm@172.8kdps
- 106dBm@230.4kbps
Transit power: 100mw-1000mw(default 1000mw)
Forward Error Correction: Hamming, BCH, Golay,Reed-Solomon, Viterbi
Power consumption
- Sleep: <1mA (Future)
- Idle : 20mA
- Rx: 45mA to 98mA
- Tx Peak: 2A
Interface
- Antenna: SMA inner needle
- Serial: GHR-O6V-S
- USB: TYPE-C POWER
Network Topology: Point-to-point,Point -to-Multipoint, Relay Mode
Weight: P8 module 55g, Antenna 31g, Total 86g
Size: 65mmx40mmx16.5mm
