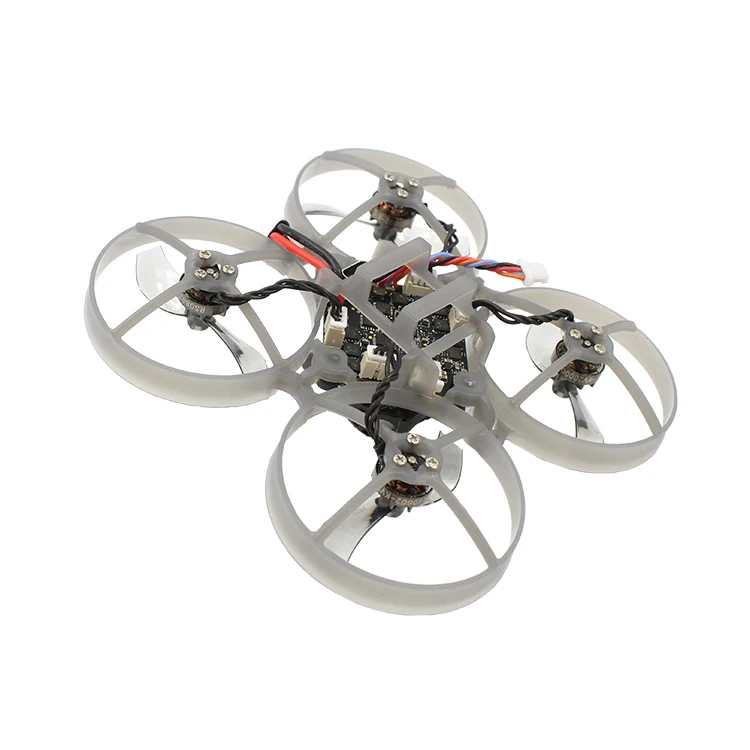

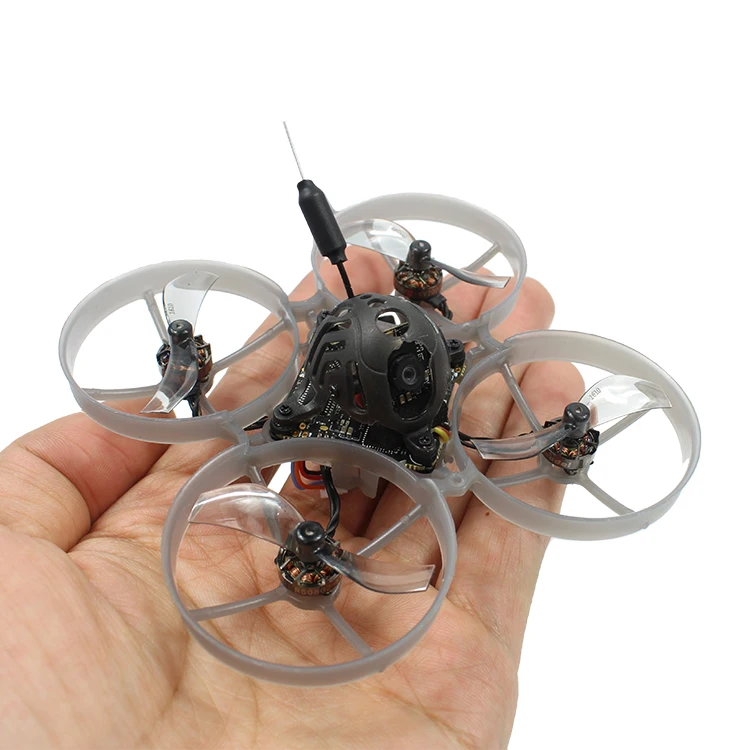

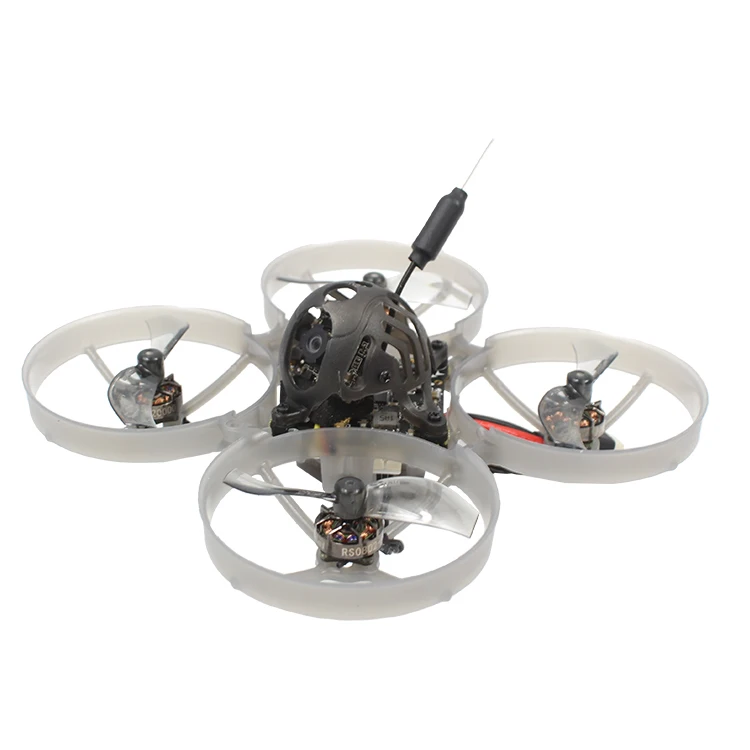

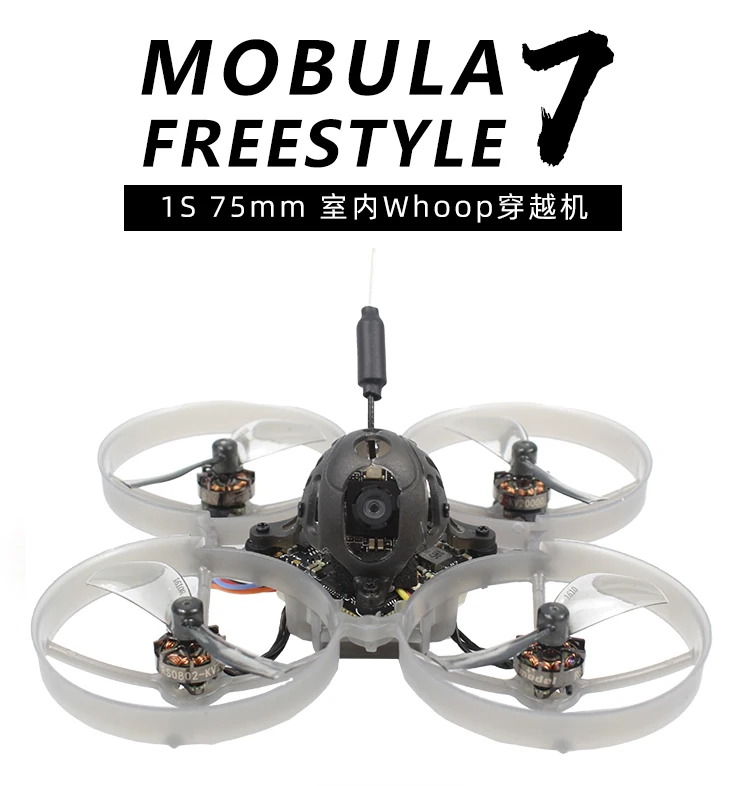

Happymodel Mobula 7 Mobula7 1S/HD 75mm Micro FPV Whoop Quadcopter Drone Open VTX 2.4G ELRS Receiver Runcam Nano3 Brushless Motor
Description
Happymodel Mobula7 Mobula 7 1S Micro FPV BWhoop Drone 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS
Mobula7 1S/ Mobula7 HD Manual：
http://www.happymodel.cn/index.php/2022/05/17/mobula7-1s-and-mobula7-hd-1s-manual-documents/
Remark:The battery is not include in the parcel
We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

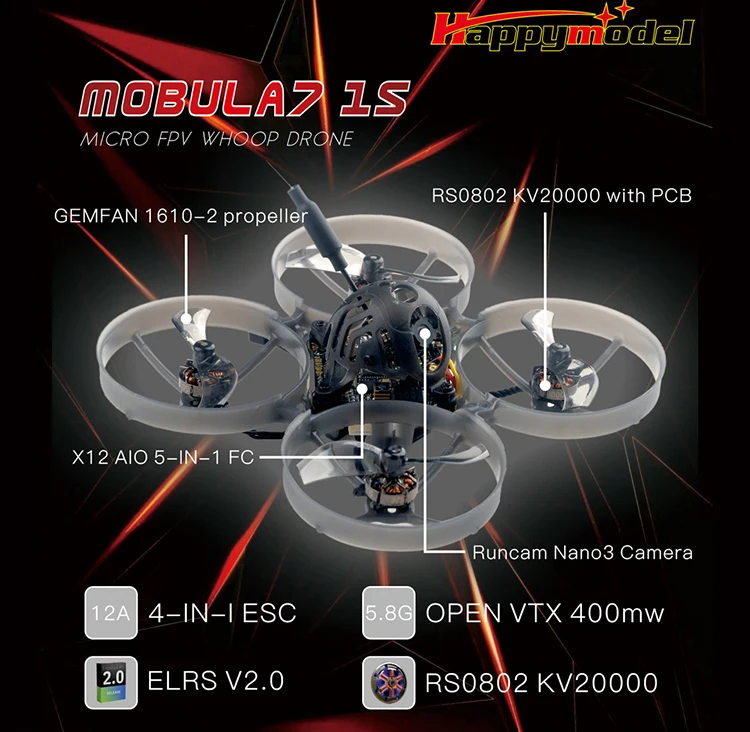

Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)
Receiver option:
2.4G ELRS SPI
SPI Frsky D8/D16
SPI Flysky
PNP (without onboard receiver)
Spare parts specifications:
Motor
Mode:RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
Propellers
Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller
X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiverTarget: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiverTarget: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiverTarget: CRAZYBEEF4FS
X12 PNP V1.0 flight controller without onboard receiverTarget: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply:1S battery input (DC2.9V-4.35V)
Built-in12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor
Onboard 4in1 ESC
Power supply:1S LiPo/LiPo HV
Current:12A continuous peak15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware:Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
OnboardFrskySPI D8/D16 receiver Version
SPI BUS receiverFrsky D8compatible
Compatible Non EU transmitterD8 model
Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground):200meter
Failsafe support
OnboardFlyskySPIreceiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
PNP Version
(without onboard receiver)
Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input
Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power:0/RCE/25mw/100mw/400mw
Power supply: DC5V
Current (5v): <650ma (400mw)
Runcam Nano3
Model:RunCam Nano 3
Image Sensor:1/3" CMOS
Horizontal Resolution:800TVL
Lens:2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio:>50dB
Electronic Shutter Speed:Auto
Auto Gain Control (AGC):Auto
Min. Illumination:0.01Lux@1.2F
D-WDR:Auto
Day/Night:Color
Power:DC 3-5.5V
Current:110mA@5V 120mA@3.3V
Housing Material:ABS
Net Weight:1.2g
Dimensions:L14mm*W14mm*H9mm
Lipo Battery
Capacity:650mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx8mm
Weight:16g
Connector:PH2.0
Specifications
| Option | Values |
|---|---|
| Brand Name |
|
| Item Name |
|
| Wheelbase |
|
| Size |
|
| Weight |
|
Product Details
Happymodel Mobula7 Mobula 7 1S Micro FPV BWhoop Drone 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS
Mobula7 1S/ Mobula7 HD Manual：
http://www.happymodel.cn/index.php/2022/05/17/mobula7-1s-and-mobula7-hd-1s-manual-documents/
Remark:The battery is not include in the parcel
We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.
The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.
The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.
New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.
Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V3.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)
Specifications:
Brand Name:Happymodel
Item Name:Mobula71S75mmMicro FPVwhoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm

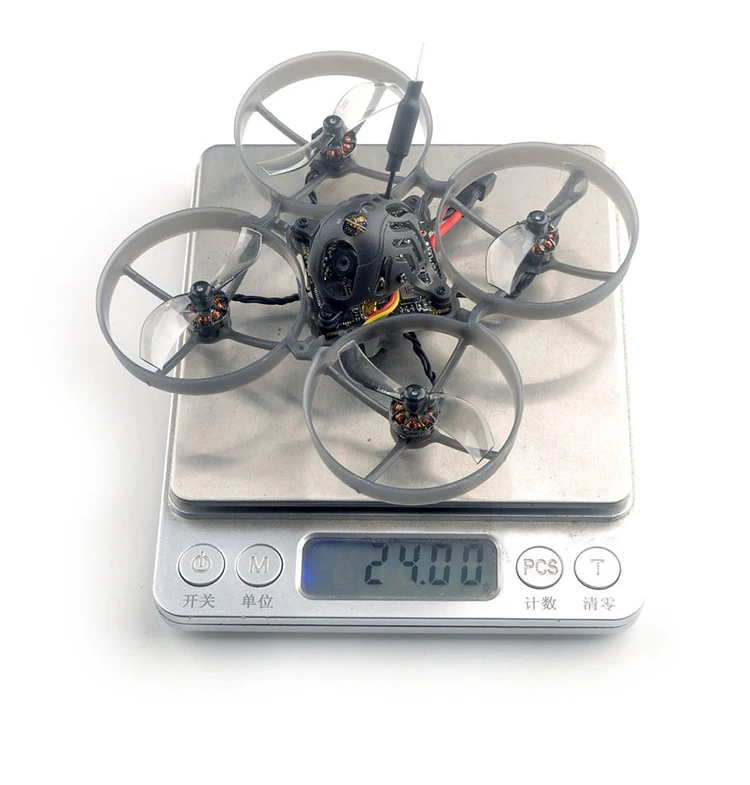

Weight: 24g
Receiver option:
2.4G ELRS SPI
SPI Frsky D8/D16
SPI Flysky
PNP (without onboard receiver)

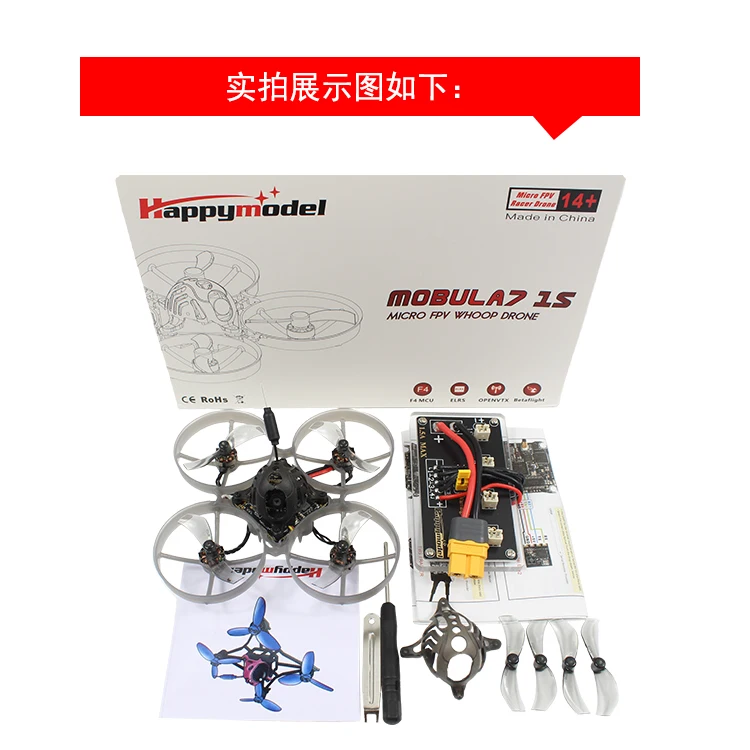

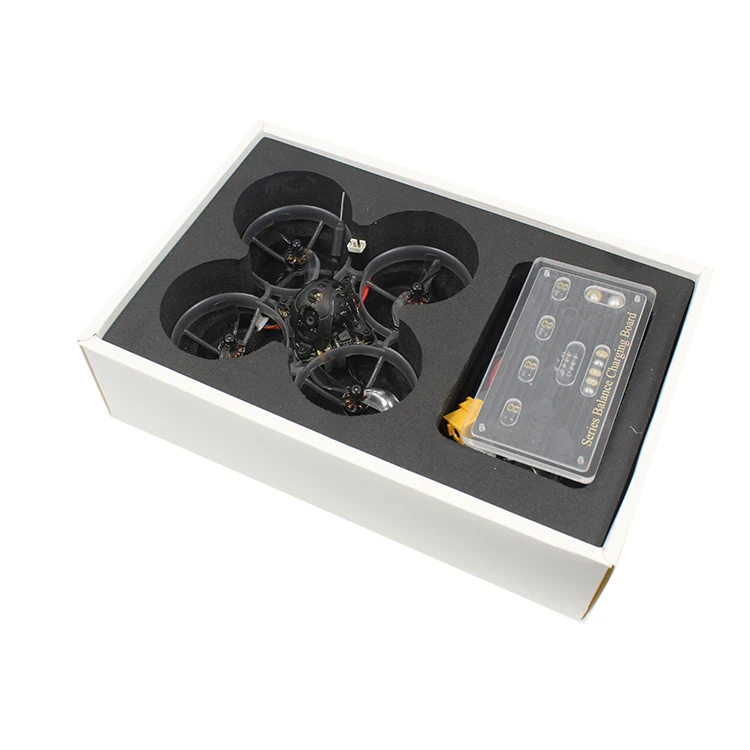

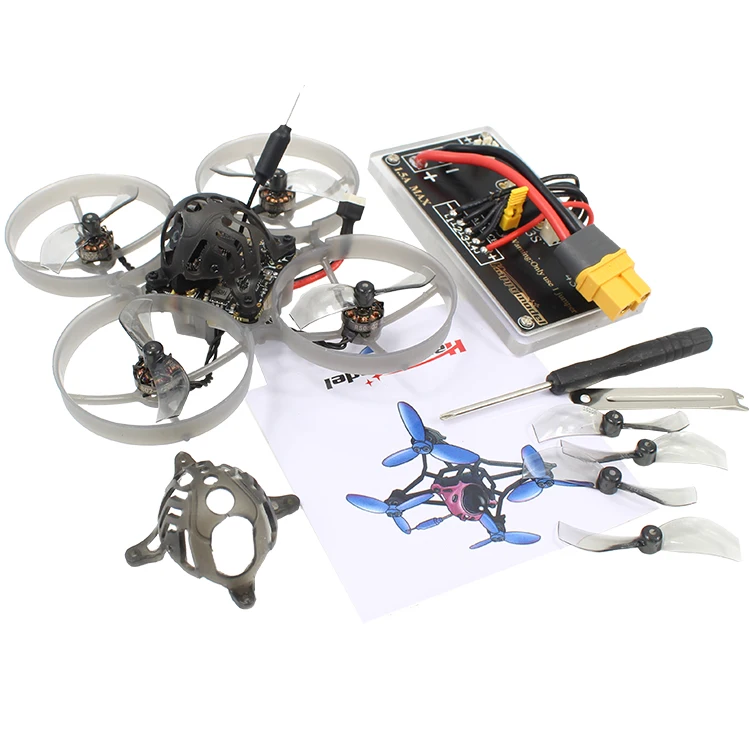

Package includes:
Item Name | Qty |
Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame) | 1 |
Option1: X12 ELRS V3.0 flight controller built-in SPI ELRS 2.4G receiver | 1 |
Option2: X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver | |
Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver | |
Option4: X12 PNP V1.0 flight controller without onboard receiver | |
RS0802 KV20000 brushless motor | 4 |
Gemfan 1610-2 bi-blade propellers(4cw+4ccw) | 1 |
Runcam Nano3 1/3 CMOS 800TVL camera | 1 |
Onboard 5.8G Openvtx 0mw~400mw VTX | 1 |
1S parallel charging board | 1 |
Propeller disassemble tool | 1 |
Extra camera canopy | 1 |
Spare parts specifications:
Motor | Mode:RS0802 KV20000 |
Propellers | Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm |
Flight controller | X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiverTarget: CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiverTarget: CRAZYBEEF4FR X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiverTarget: CRAZYBEEF4FS X12 PNP V1.0 flight controller without onboard receiverTarget: CRAZYBEEF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Built-in Betaflight OSD(SPI Control) Built-in current sensor |
Onboard 4in1 ESC | Power supply:1S LiPo/LiPo HV Current:12A continuous peak15A (3 seconds) Support Bluejay firmware |
Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 Antenna : SMD antenna Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware |
OnboardFrskySPI D8/D16 receiver Version | SPI BUS receiverFrsky D8compatible Channels: 8ch Failsafe support |
OnboardFlyskySPIreceiver Version | SPI BUS receiver |
PNP Version (without onboard receiver) | Full UART1 for external Receiver Support CRSF/GHOST/SBUS/IBUS/DSMX protocol IR1 pad(invert RX1) used for SBUS input |
Onboard 5.8g OPENVTX | Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power:0/RCE/25mw/100mw/400mw Power supply: DC5V Current (5v): <650ma (400mw) |
Runcam Nano3 | Model:RunCam Nano 3 Image Sensor:1/3" CMOS Horizontal Resolution:800TVL Lens:2.1mm(M8) FOV 150° Signal System: NTSC S/N Ratio:>50dB Electronic Shutter Speed:Auto Auto Gain Control (AGC):Auto Min. Illumination:0.01Lux@1.2F D-WDR:Auto Day/Night:Color Power:DC 3-5.5V Current:110mA@5V 120mA@3.3V Housing Material:ABS Net Weight:1.2g Dimensions:L14mm*W14mm*H9mm |
Lipo Battery | Capacity:650mAh Connector:PH2.0 |
