Happymodel EX0802 19000KV/ 25000KV 1-2S Mini Brushless Motor for RC FPV Racing Freestyle Mobula6 HD Tinywhoop - image 1 of 6
1 / 6

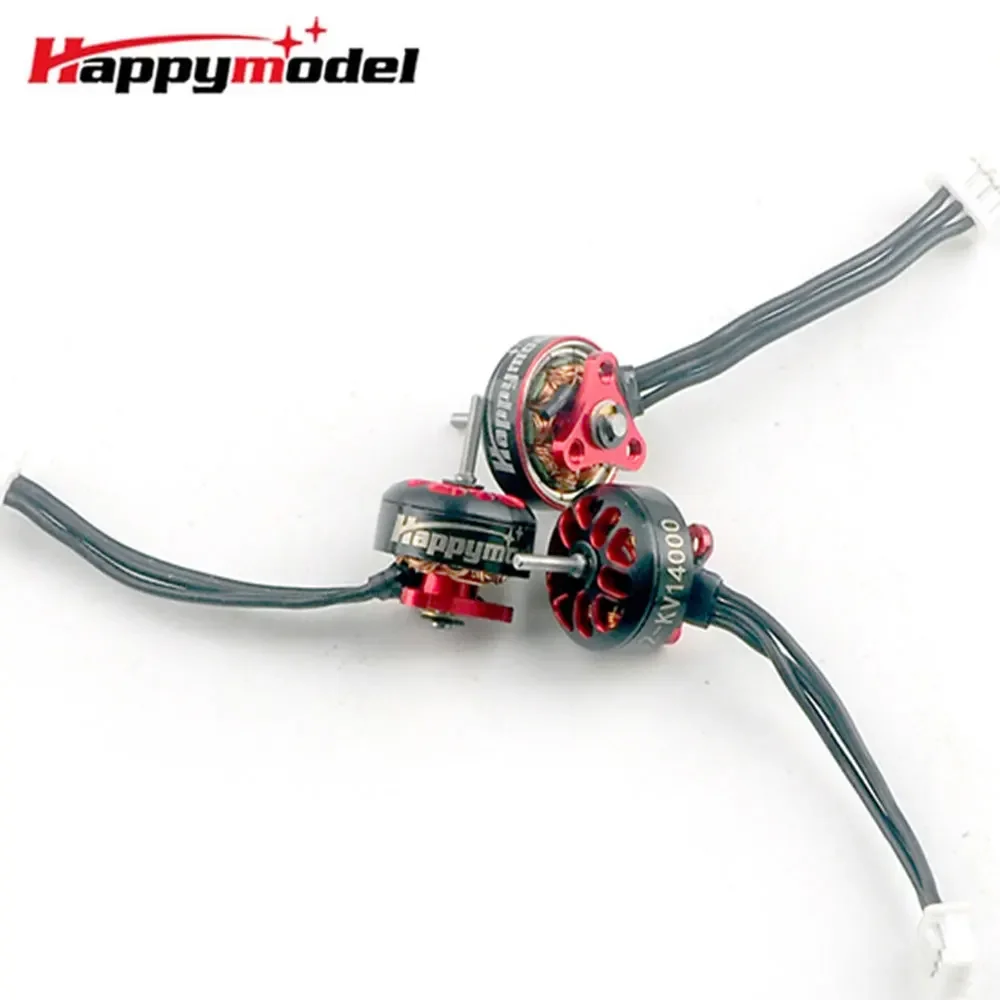

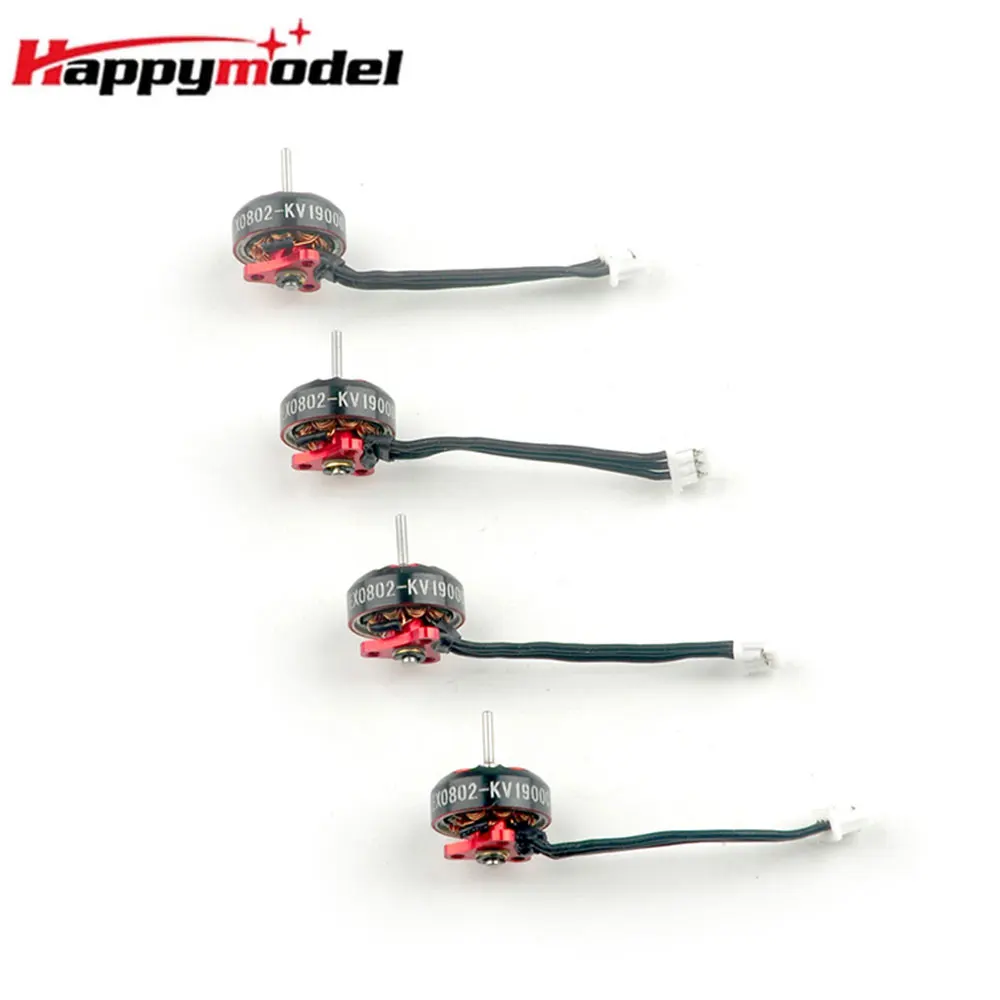

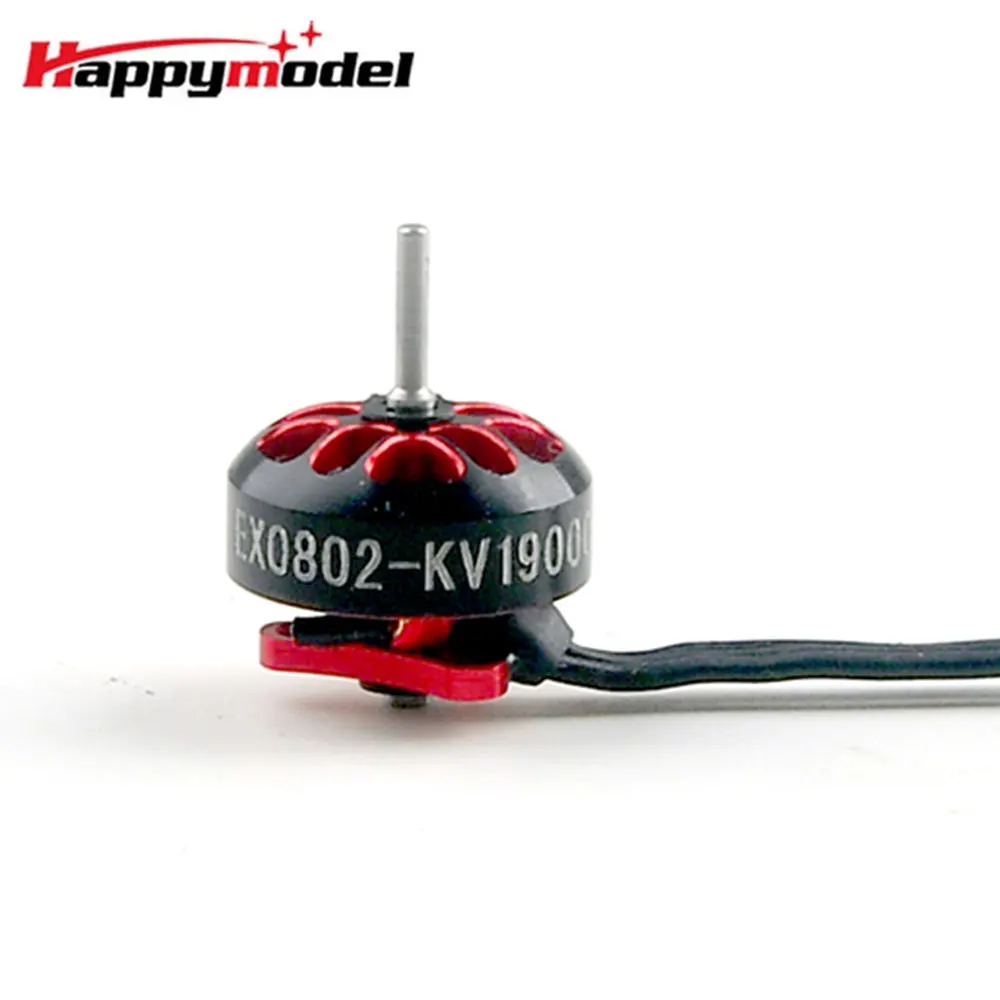

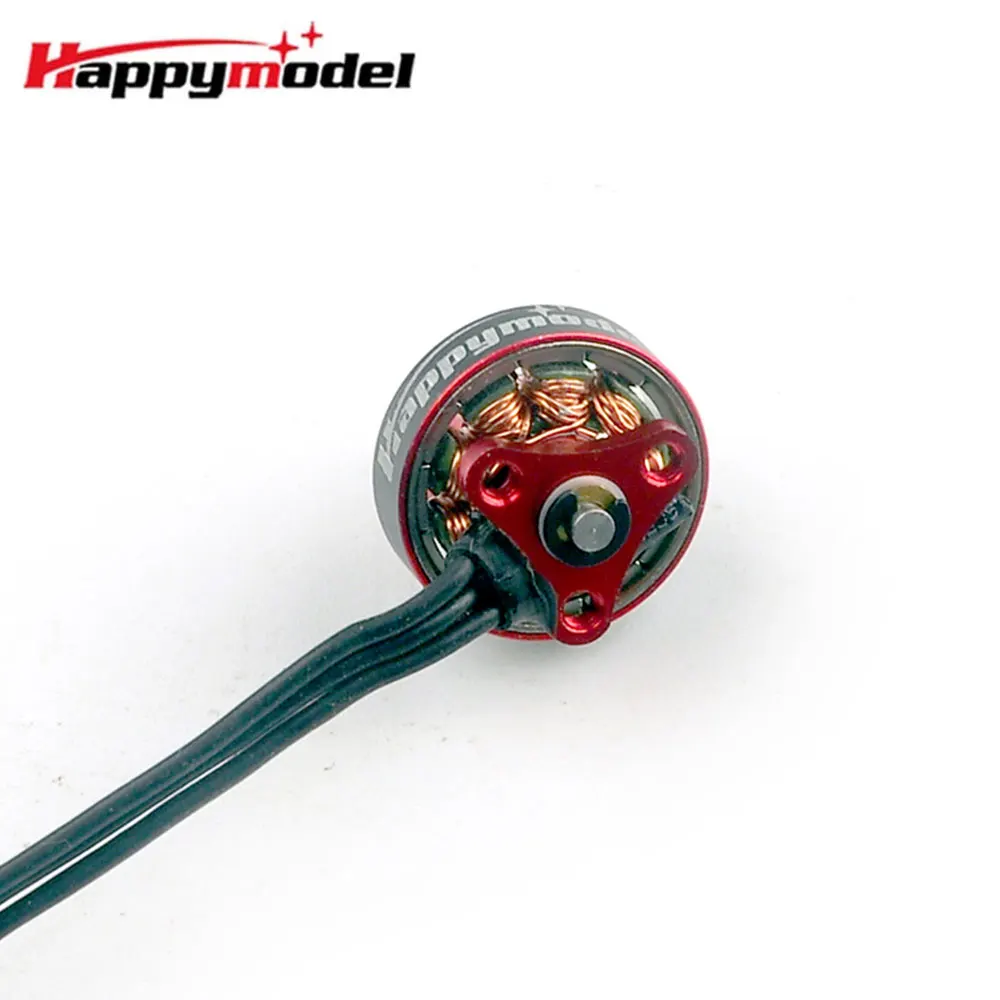

Happymodel EX0802 19000KV/ 25000KV 1-2S Mini Brushless Motor for RC FPV Racing Freestyle Mobula6 HD Tinywhoop

HappyModel

From $70.96
Est. $70.96 / unit (1-9 pcs)
$65 @ 10+ pcs$62 @ 100+ pcs

Description

Specifications: Brand name: Happymodel Item name: EX0802 brushless motor KV: 19000KV 25000KV optional Shaft Diameter: 1.0mm Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm Terminals: JST1.25mm No.of Cells(Lipo):19000KV/25000KV compatible with only 1S lipo;14000KV compatible with 1-2S lipo Wire length(include connector): 27mm Weight: 1.7g Features: The lightest 0802 brushless motors around the world only 1.7g Double E-clip design, prevent Motor bell to flying off Good Dynamic balance Package Included: 1/4 x EX0802 19000KV/25000KV brushless motor

Share this product
Variant
Selected priceUSD 71.02

Specifications

OptionValues
Brand name
  • Happymodel
Item name
  • EX0802 brushless motor
KV
  • 19000KV 25000KV optional
Shaft Diameter
  • 1.0mm
Configuration
  • 9N12P
Stator Diameter
  • 8mm
Stator Length
  • 2mm
Motor Dimension(Dia.*Len)
  • Φ10.5mm*14.9mm
Terminals
  • JST1.25mm
No.of Cells(Lipo)
  • 19000KV/25000KV compatible with only 1S lipo;14000KV compatible with 1-2S lipo
Wire length(include connector)
  • 27mm

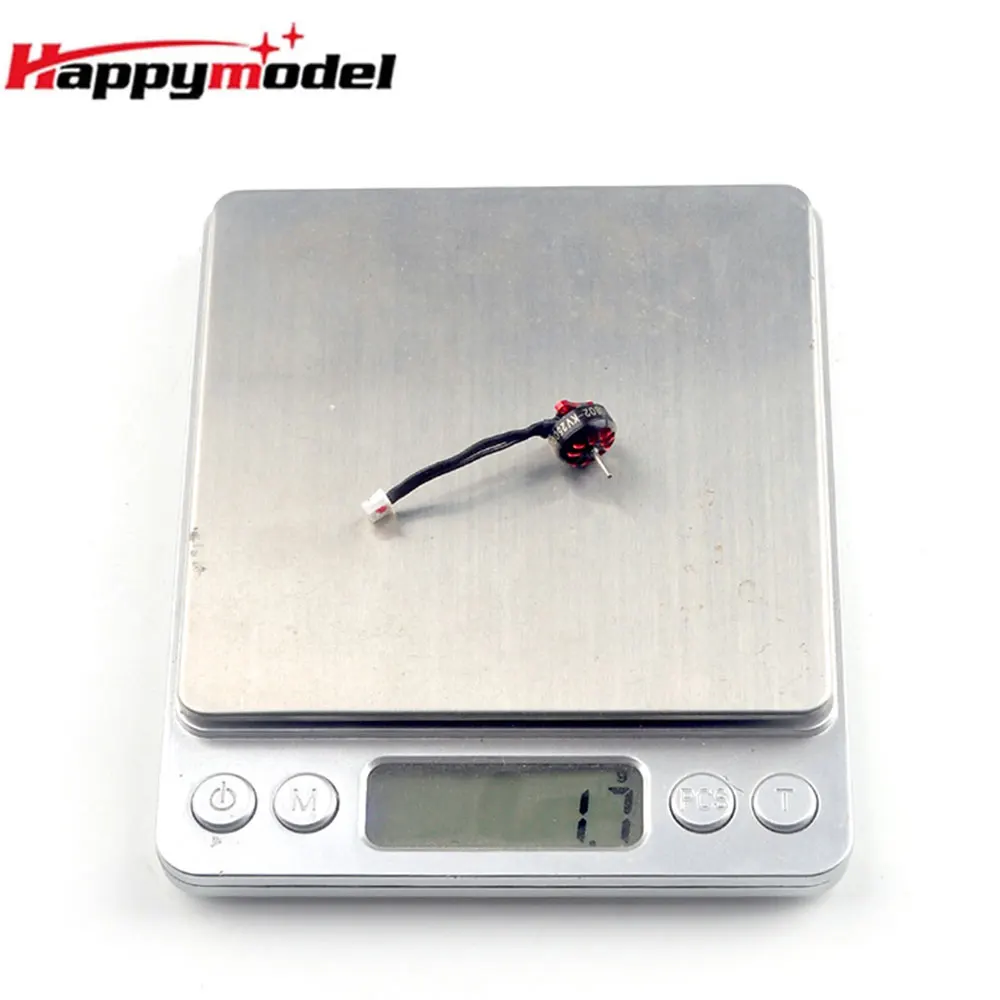

Weight
  • 1.7g

Product Details

Specifications: Brand name: Happymodel Item name: EX0802 brushless motor KV:  19000KV 25000KV optional Shaft Diameter: 1.0mm Configuration: 9N12P Stator Diameter: 8mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm Terminals: JST1.25mm No.of Cells(Lipo):19000KV/25000KV compatible with only 1S lipo;14000KV compatible with 1-2S lipo Wire length(include connector): 27mm Weight: 1.7g Features: The lightest 0802 brushless motors around the world only 1.7g Double E-clip design, prevent Motor bell to flying off Good Dynamic balance Package Included: 1/4 x  EX0802 19000KV/25000KV brushless motor
