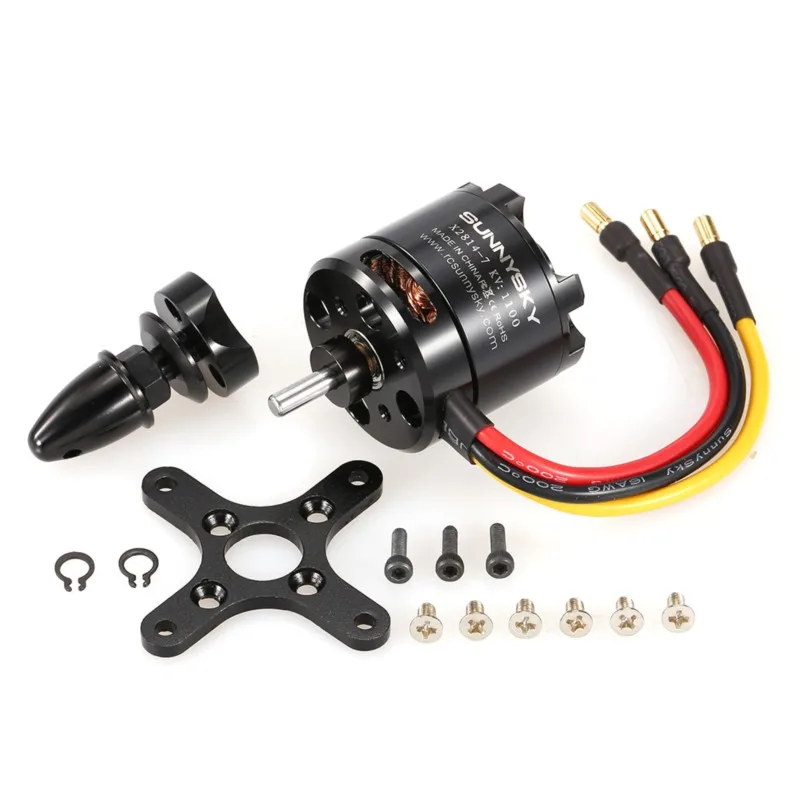

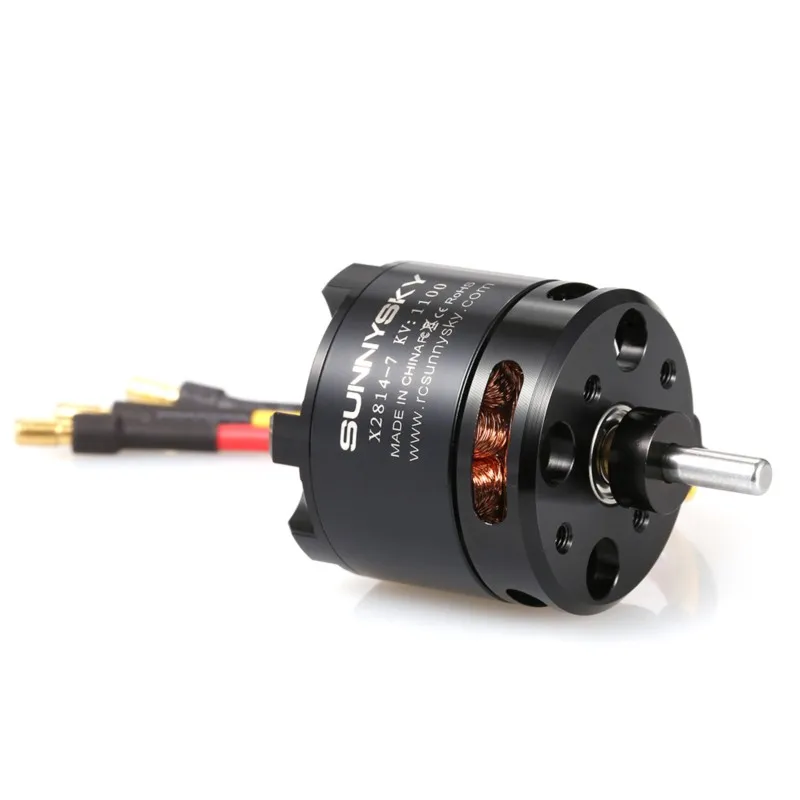

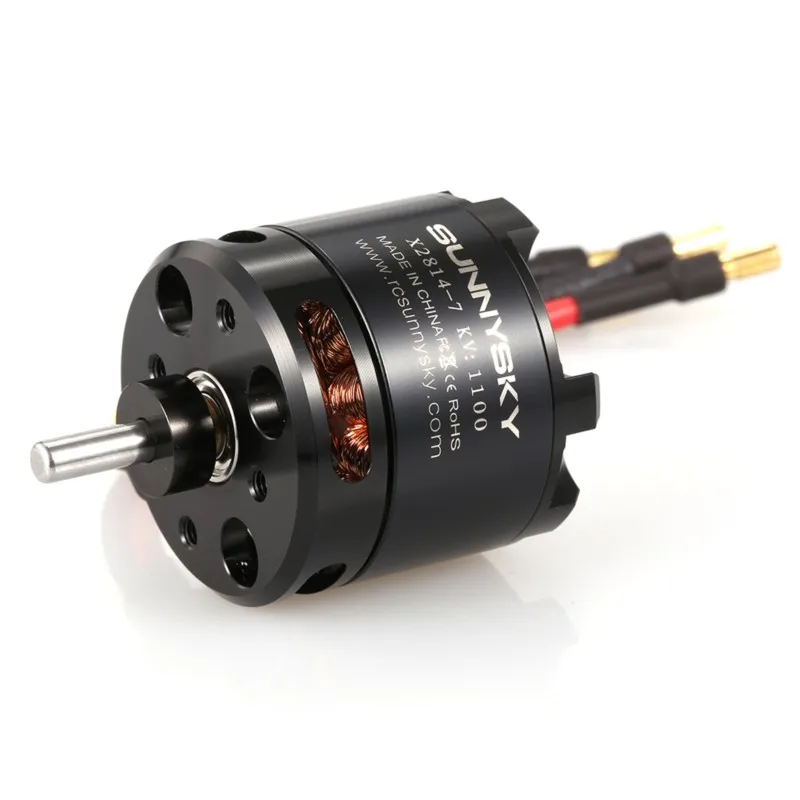

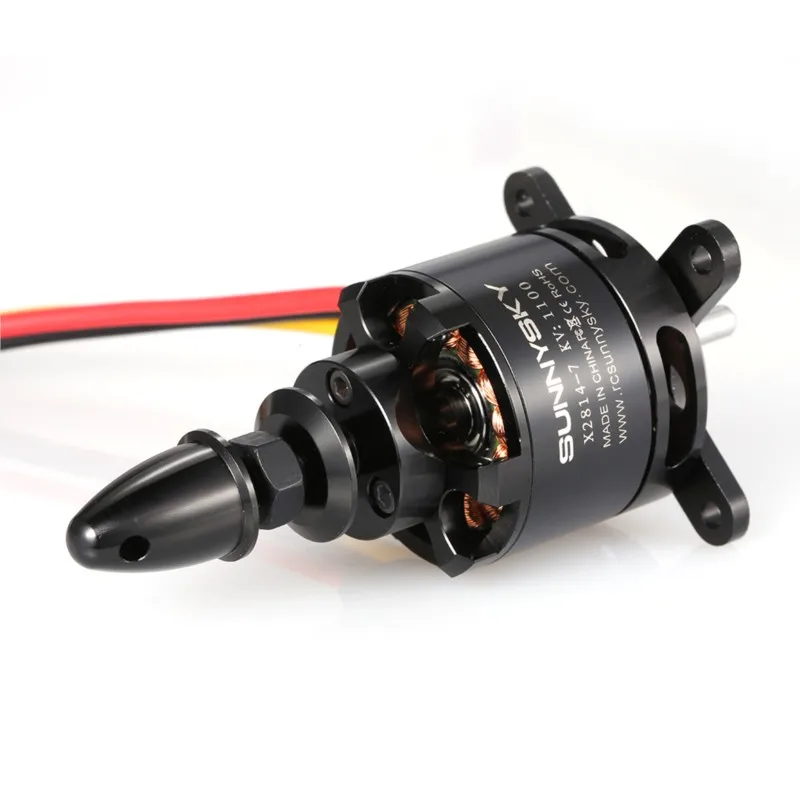

SunnySky 2814 X2814 900KV KV1100 KV1250 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone
From US $70.58
Est. US $70.58 / unit (1-9 pcs)
$65 @ 10+ pcs$62 @ 100+ pcs
Description
X2820 920KV 3-5S Brushless Motor
Variant
Selected priceUSD 70.04
Specifications
| Option | Values |
|---|---|
| Model |
|
| KV (rpm/min) |
|
| Stator diameter |
|
| Stator thickness |
|
| No. of stator arms |
|
| No. of rotor poles |
|
| No-load current |
|
| Motor resistance |
|
| Max continuous current |
|
| Max continuous power |
|
| Rotor diameter |
|
| Shaft diameter |
|
| Body length |
|
| Overall shaft length |
|
| Max Lipo cell |
|
| Recommended ESC |
|
| Recommended propeller |
|
| Motor weight |
|
Product Details
SunnySky 2814 X2814 900KV 3-5S Brushless Motor for Believer UAV 1960mm RC Airplane Helicopter Fixed-wing Drone RC Motor
X2820 920KV 3-5S Brushless Motor
Specifications:
Model: X2820
KV (rpm/min): 920KV
Stator diameter: 28mm
Stator thickness: 20mm
No. of stator arms: 12
No. of rotor poles: 14
No-load current: 1.1A
Motor resistance: 28mΩ
Max continuous current: 52A/30S
Max continuous power: 750W
Rotor diameter: 35mm
Shaft diameter: 5mm
Body length: 42mm
Overall shaft length: 61mm
Max Lipo cell: 3-5S
Recommended ESC: 60A
Recommended propeller: APC13*6.5, APC12*8, APC12*6, APC11*5.5, APC11*8, APC11*7
Motor weight: About 146g/pcs
Package list:
2 * Motor
