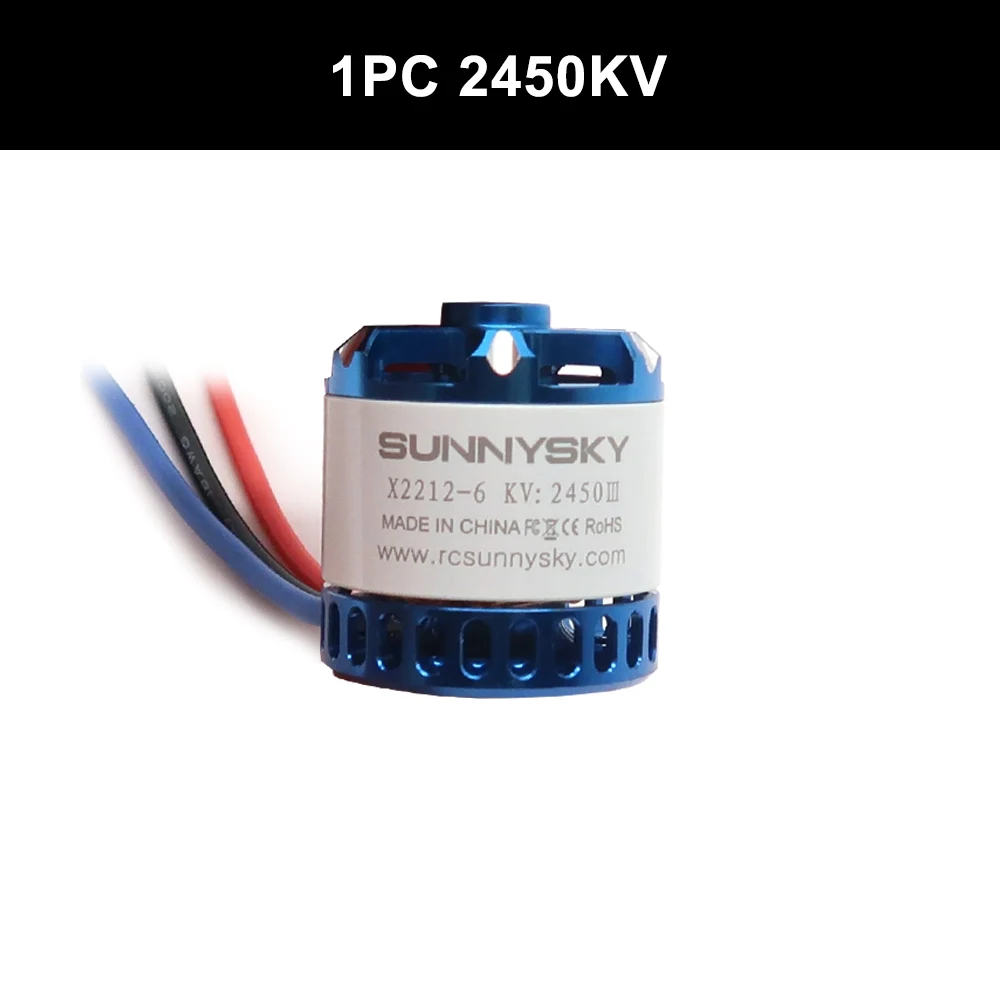

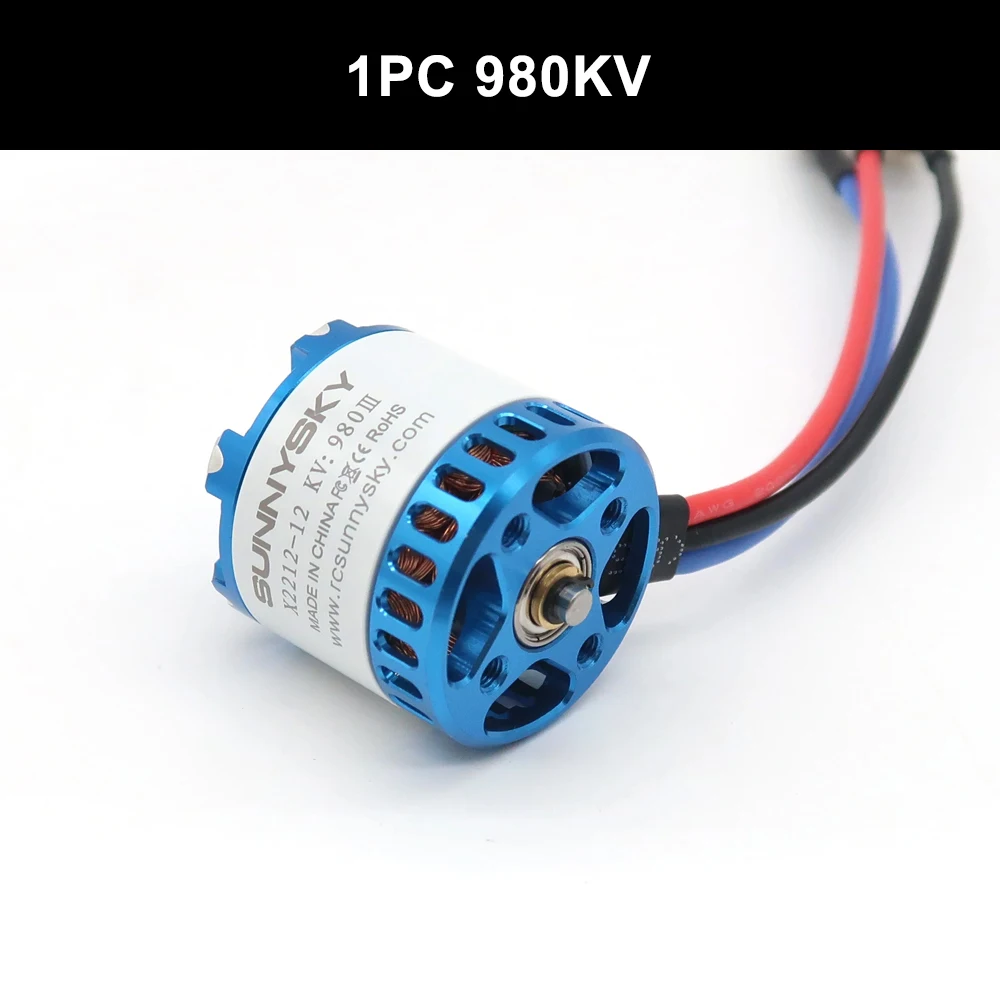

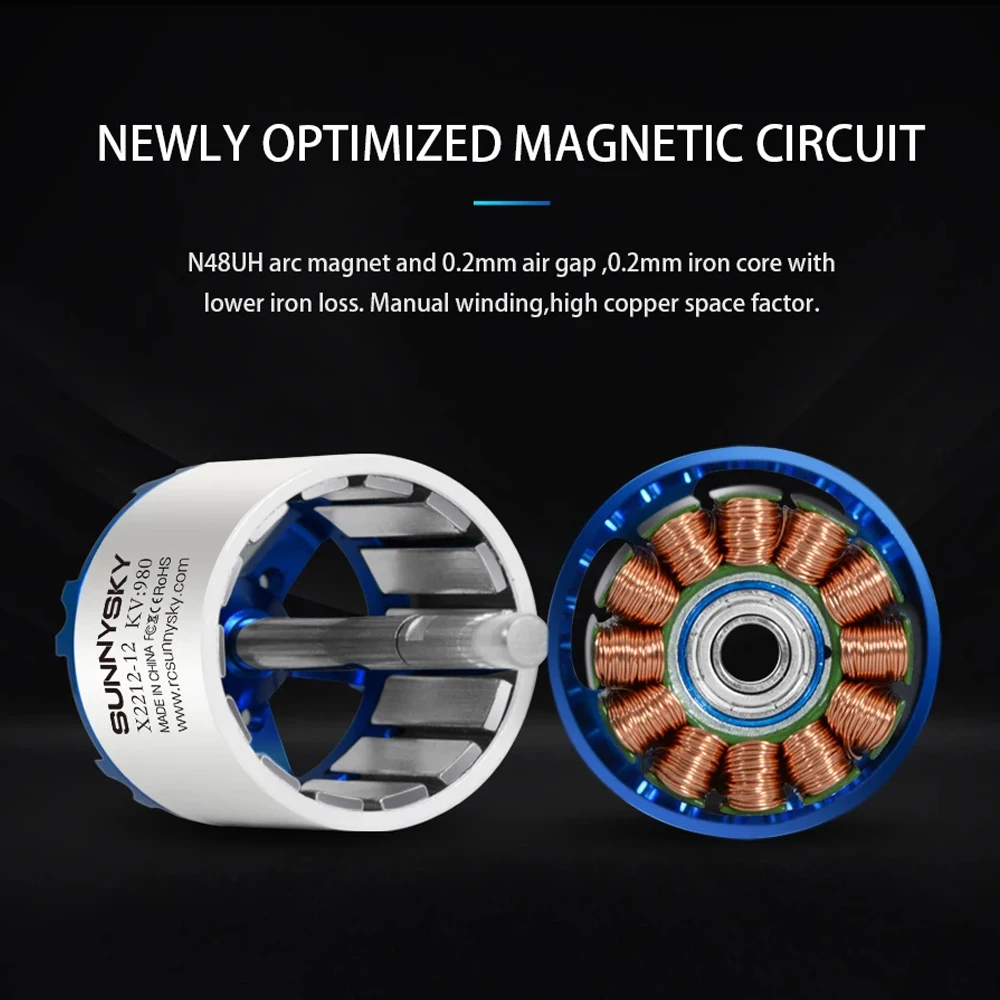

SUNNYSKY X2212-III 880KV 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
Description
SUNNYSKY X2212-III 880KV 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model Motor model/KV value X2212-III/ KV1250 X2212-III/ KV1400 Number of slot poles 12N14P 12N14P Interphase internal resistance 54mΩ 43mΩ Motor size Motor length：30mm Motor length：30mm Shaft diameter 3.175mm 3.175mm Silicone wire specifications 20AWG 100mm 20AWG 100mm Weight (including line) 59g 57g rated voltage（Lipo） 3-4S 3-4S no-load current 0.8A/10V 1A/10V maximum continuous power 518W 560W Maximum continuous current 35A/30S 37A/30s Suggest using electric adjustment 30-40A 30-40A Recommended propellers APC9047 APC9060 APC8060 APC7060 APC9047 APC9045 APC8038 APC7060 APC8060
SUNNYSKY X2212-III 880KV 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
Motor model/KV value

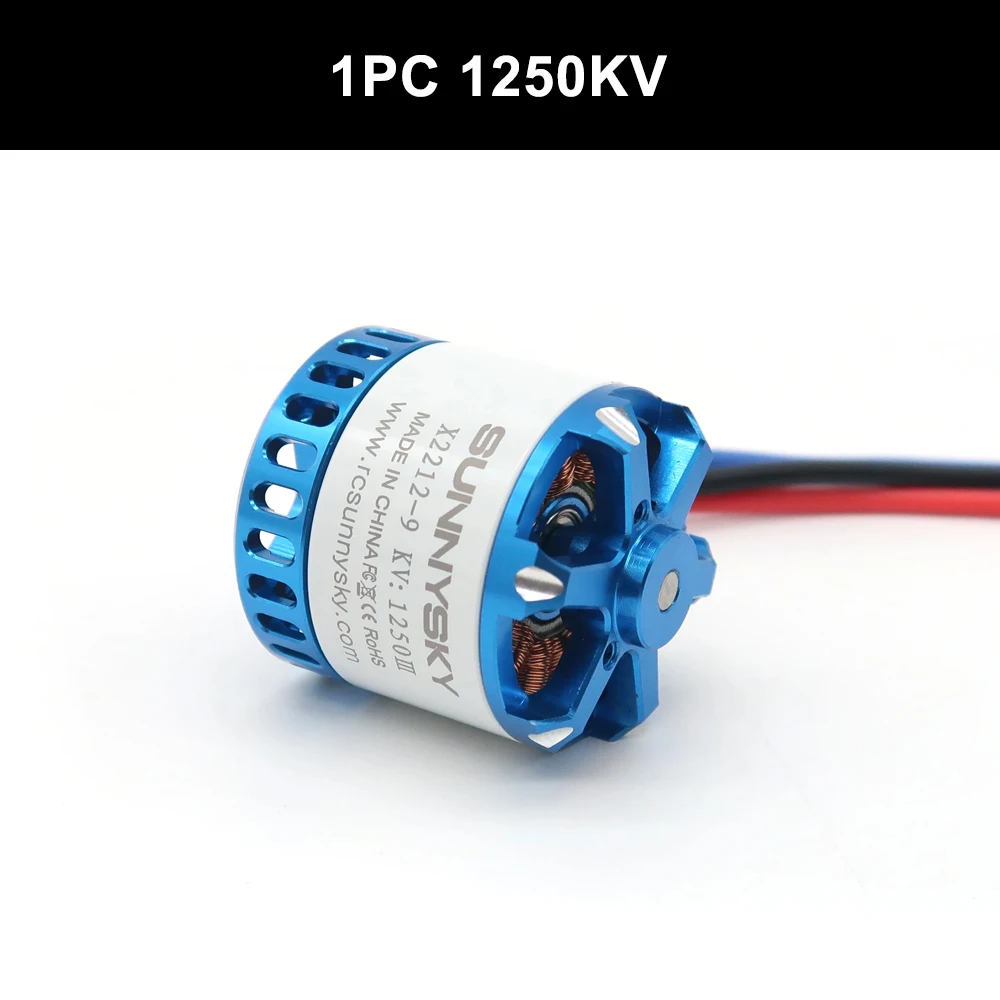

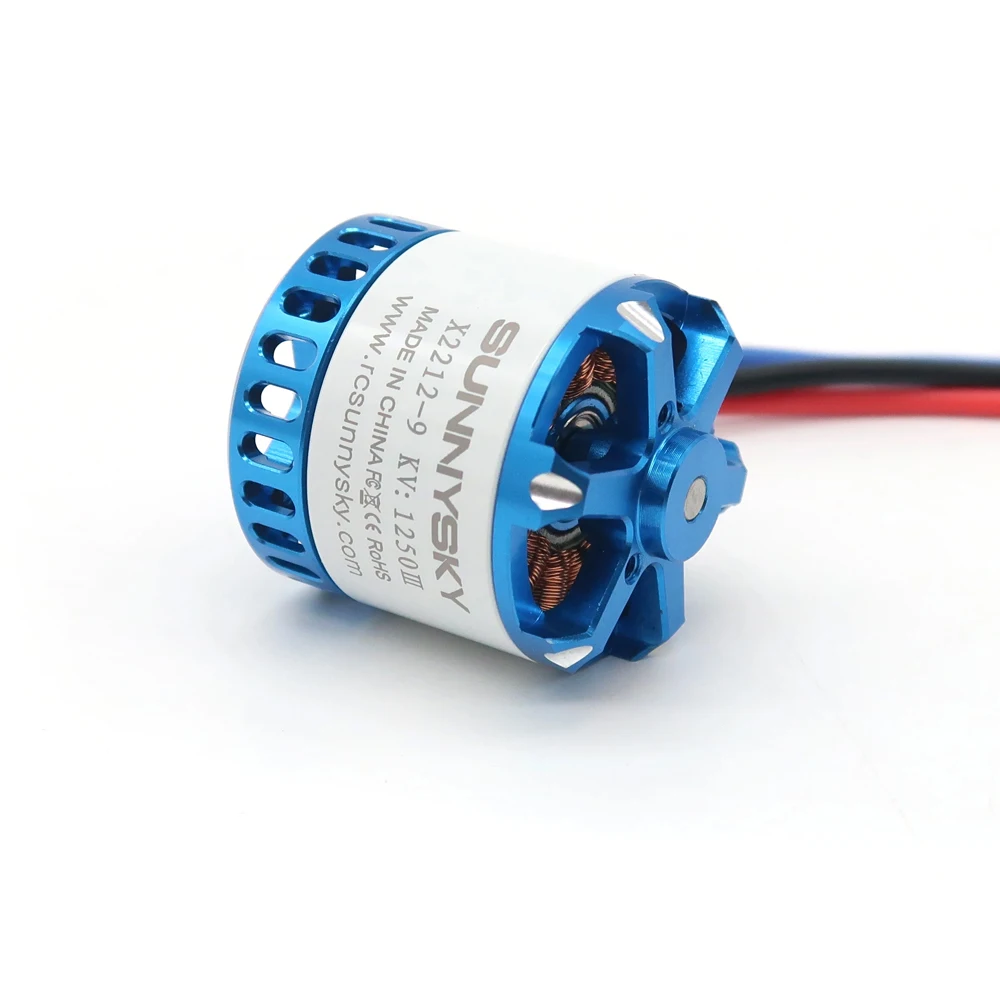

X2212-III/ KV1250

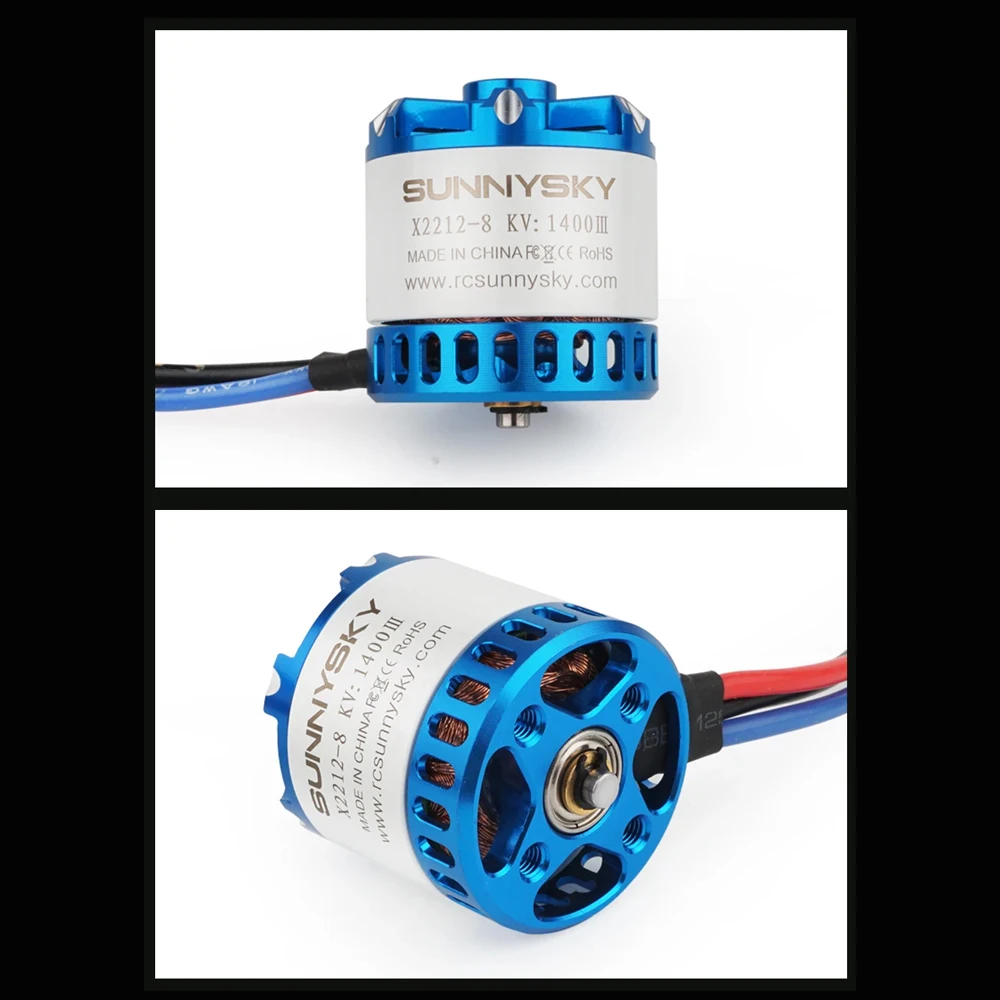

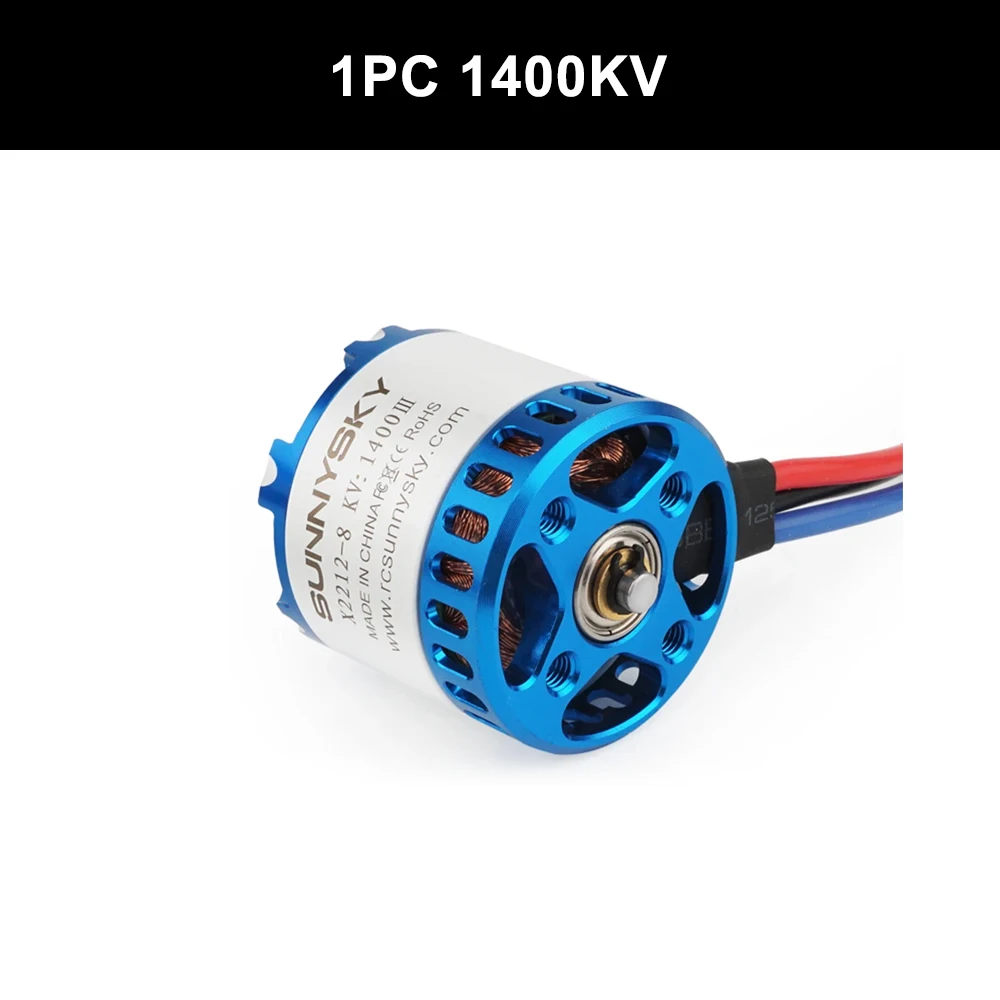

X2212-III/ KV1400
Number of slot poles
12N14P
Interphase internal resistance
54mΩ
43mΩ
Motor size
Motor length：30mm
Shaft diameter
3.175mm
Silicone wire specifications
20AWG 100mm
Weight (including line)
59g
57g
rated voltage（Lipo）
3-4S
no-load current
0.8A/10V
1A/10V
maximum continuous power
518W
560W
Maximum continuous current
35A/30S
37A/30s
Suggest using electric adjustment
30-40A
Recommended propellers
APC9047 APC9060
APC8060 APC7060
APC9047 APC9045 APC8038
APC7060 APC8060
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
SUNNYSKY X2212-III 880KV 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
Motor model/KV value | X2212-III/ KV1250 | X2212-III/ KV1400 |
Number of slot poles | 12N14P | 12N14P |
Interphase internal resistance | 54mΩ | 43mΩ |
Motor size | Motor length：30mm | Motor length：30mm |
Shaft diameter | 3.175mm | 3.175mm |
Silicone wire specifications | 20AWG 100mm | 20AWG 100mm |
Weight (including line) | 59g | 57g |
rated voltage（Lipo） | 3-4S | 3-4S |
no-load current | 0.8A/10V | 1A/10V |
maximum continuous power | 518W | 560W |
Maximum continuous current | 35A/30S | 37A/30s |
Suggest using electric adjustment | 30-40A | 30-40A |
Recommended propellers | APC9047 APC9060 APC8060 APC7060 | APC9047 APC9045 APC8038 APC7060 APC8060 |
