1PC/4PCS FlashHobby Arthur Series 1408 1408 2800KV 3650KV Brushless Mini RC Motor for FPV Racing Multicopter Part
Description

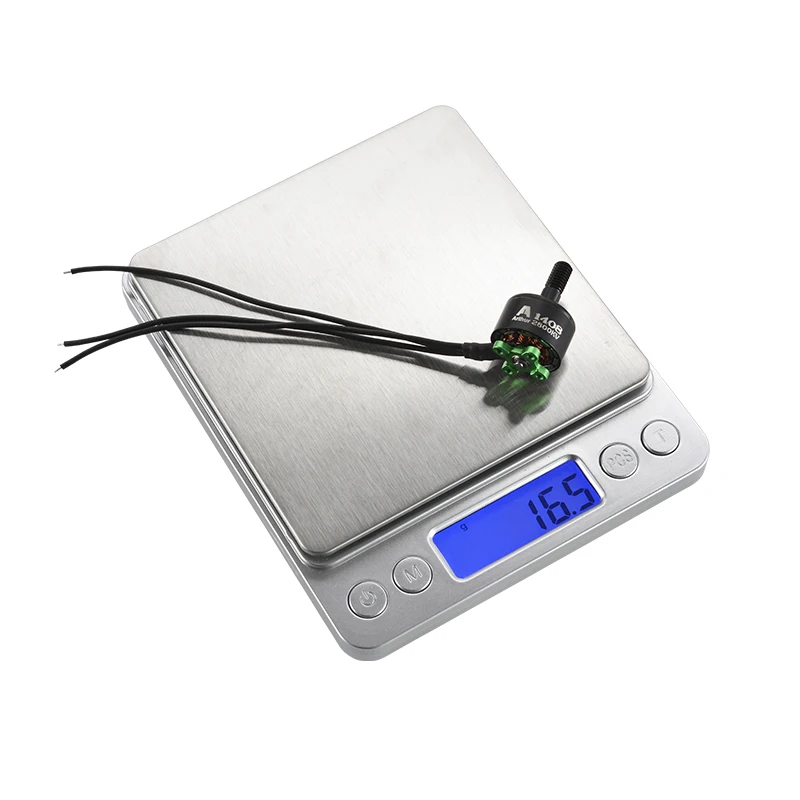

Weight: 15.9g (including the cables)
Motor Size:18.6 x 17.2mm
Shaft Diameter: 1.5mm
Prop Mount Shaft Dia.: M5
Motor Mount: 9*9mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
KV Value: 2800KV, 3650KV
Recommend: 3~4 inch prop application
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
A1408(M5)-2800KV Motor Specification
Max pull:660g
Volts:20V(5S)
Suggested ESC: 10A~20A
Maximum Power:339W
Suggested Prop: 4 inch prop
A1408(M5)-3650KV Motor Specification
Max pull:650g
Volts:16V(4S)
Maximum Power:365W
Feature:
1.NSK Bearing
2.7075-T6 Aluminum bell
3.Multicolor color design
4.0.15mm Silicon steel sheet from Kawasaki, Japan
Specifications
| Option | Values |
|---|---|
| Weight |
|
| Motor Type |
|
Product Details
FlashHobby Arthur series 1408 2800KV 3650KV Brushless Motor Mini RC Motor for FPV Racing RC Multicopter Part
Weight: 15.9g (including the cables)
Motor Size:18.6 x 17.2mm
Shaft Diameter: 1.5mm
Prop Mount Shaft Dia.: M5
Motor Mount: 9*9mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
KV Value: 2800KV, 3650KV
Recommend: 3~4 inch prop application
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
A1408(M5)-2800KV Motor Specification
Max pull:660g
Volts:20V(5S)
Suggested ESC: 10A~20A
Maximum Power:339W
Suggested Prop: 4 inch prop
A1408(M5)-3650KV Motor Specification
Max pull:650g
Volts:16V(4S)
Suggested ESC: 10A~20A
Maximum Power:365W
Suggested Prop: 4 inch prop
Feature:
1.NSK Bearing
2.7075-T6 Aluminum bell
3.Multicolor color design
4.0.15mm Silicon steel sheet from Kawasaki, Japan
