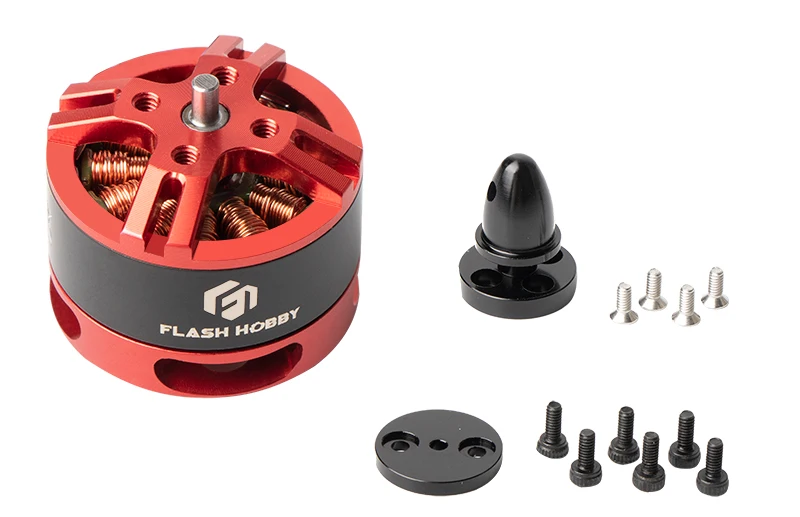

FLASHHOBBY BE1806 1400KV/2300KV/2700KV Brushless Motor - High Thrust Outrunner for RC FPV Drone
From US $17.98
Est. US $17.98 / unit (1-9 pcs)
$16 @ 10+ pcs$15 @ 100+ pcs
Description
BE1806-1400KV Motor Specification
Max pull:440g(4S/GF6020)
Input Voltage:DC7.4-15.0V(2-4S)
Current: 5.4A
Suggested ESC: 10A~20A
Maximum Power:79.9W
Suggested Prop: 4~6 inch prop
BE1806-2300KV Motor Specification
Max pull:521g(4S/GF6020)
Current: 7.6A
Maximum Power:84.4W
BE1806-2700KV Motor Specification
Max pull:690g(4S/GF5045T 3R)
Current: 16.8A
Maximum Power:248.4W
Motor Drawing:
TEST DATAS:
ltem NO.
NO LOAD
ON LOAD
LOAD TYPE
VOLTAGE
CURRENT
SPEED
Pull
Power
EEP
Battery/prop
V
A
rpm
g
W
%
BE1806
1400KV
7.4
0.3
10560
1.8
121
13.3
9.1
LiPoх2/6X2
2.8
188
20.7
LiPoх2/7X2.4
11.1
15850
3.4
250
37.7
6.6
LiPoх3/6X2
5.1
351
56.6
6.2
LiPoх3/7X2.4
14.8
0.4
21130
4.2
335
62.2
5.4
LiPoх4/5X3
440
79.9
5.5
LiPoх4/6X2
2300KV
0.6
17060
6.5
390
48.1
8.1
7.6
521
56.2
9.3
25590
72.2
LiPoх3/5X3
84.4
2700KV
0.7
2
100
22.2
4.5
LiPoх3/3545T
4.7
200
52.2
3.8
260
73.3
3.5
1.9
21.1
LiPoх3/4045T
50.0
4.0
10.9
380
121.0
3.1
31.1
6.4
LiPoх3/5045T
7.3
400
81.0
4.9
16.8
690
186.5
3.7
0.8
1.6
23.7
LiPoх4/3545T
54.8
9.7
430
143.6
3.0
LiPoх4/4045T
9.4
139.1
2.9
15.5
570
229.4
2.5
41.4
4.8
LiPoх4/5045T
108.0
248.6

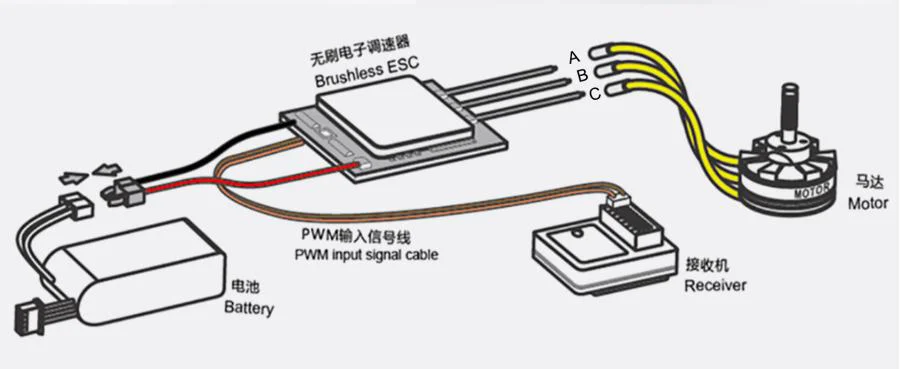

Connected instruction:
Variant
Selected priceUSD 9.35
Specifications
| Option | Values |
|---|---|
| Current |
|
Product Details
BE1806-1400KV Motor Specification
Max pull:440g(4S/GF6020)
Input Voltage:DC7.4-15.0V(2-4S)
Current: 5.4A
Suggested ESC: 10A~20A
Maximum Power:79.9W
Suggested Prop: 4~6 inch prop
BE1806-2300KV Motor Specification
Max pull:521g(4S/GF6020)
Input Voltage:DC7.4-15.0V(2-4S)
Current: 7.6A
Suggested ESC: 10A~20A
Maximum Power:84.4W
Suggested Prop: 4~6 inch prop
BE1806-2700KV Motor Specification
Max pull:690g(4S/GF5045T 3R)
Input Voltage:DC7.4-15.0V(2-4S)
Current: 16.8A
Suggested ESC: 10A~20A
Maximum Power:248.4W
Suggested Prop: 4~6 inch prop
Motor Drawing:
TEST DATAS:
| ltem NO. | NO LOAD | ON LOAD | LOAD TYPE | |||||
| VOLTAGE | CURRENT | SPEED | CURRENT | Pull | Power | EEP | Battery/prop | |
| V | A | rpm | A | g | W | % | ||
|
BE1806
1400KV
|
7.4 | 0.3 | 10560 | 1.8 | 121 | 13.3 | 9.1 | LiPoх2/6X2 |
| 2.8 | 188 | 20.7 | 9.1 | LiPoх2/7X2.4 | ||||
| 11.1 | 0.3 | 15850 | 3.4 | 250 | 37.7 | 6.6 | LiPoх3/6X2 | |
| 5.1 | 351 | 56.6 | 6.2 | LiPoх3/7X2.4 | ||||
| 14.8 | 0.4 | 21130 | 4.2 | 335 | 62.2 | 5.4 | LiPoх4/5X3 | |
| 5.4 | 440 | 79.9 | 5.5 | LiPoх4/6X2 | ||||
|
BE1806
2300KV
|
7.4 | 0.6 | 17060 | 6.5 | 390 | 48.1 | 8.1 | LiPoх2/6X2 |
| 7.6 | 521 | 56.2 | 9.3 | LiPoх2/7X2.4 | ||||
| 11.1 | 0.6 | 25590 | 6.5 | 390 | 72.2 | 5.4 | LiPoх3/5X3 | |
| 7.6 | 521 | 84.4 | 6.2 | LiPoх3/6X2 | ||||
|
BE1806
2700KV
|
11.1 | 0.7 | 11.1 | 2 | 100 | 22.2 | 4.5 | LiPoх3/3545T |
| 4.7 | 200 | 52.2 | 3.8 | |||||
| 6.6 | 260 | 73.3 | 3.5 | |||||
| 1.9 | 100 | 21.1 | 4.7 | LiPoх3/4045T | ||||
| 4.5 | 200 | 50.0 | 4.0 | |||||
| 10.9 | 380 | 121.0 | 3.1 | |||||
| 2.8 | 200 | 31.1 | 6.4 | LiPoх3/5045T | ||||
| 7.3 | 400 | 81.0 | 4.9 | |||||
| 16.8 | 690 | 186.5 | 3.7 | |||||
| 14.8 | 0.8 | 14.8 | 1.6 | 100 | 23.7 | 4.2 | LiPoх4/3545T | |
| 3.7 | 200 | 54.8 | 3.7 | |||||
| 9.7 | 430 | 143.6 | 3.0 | |||||
| 3.7 | 200 | 54.8 | 3.7 | LiPoх4/4045T | ||||
| 9.4 | 400 | 139.1 | 2.9 | |||||
| 15.5 | 570 | 229.4 | 2.5 | |||||
| 2.8 | 200 | 41.4 | 4.8 | LiPoх4/5045T | ||||
| 7.3 | 400 | 108.0 | 3.7 | |||||
| 16.8 | 690 | 248.6 | 2.8 | |||||
Connected instruction:
