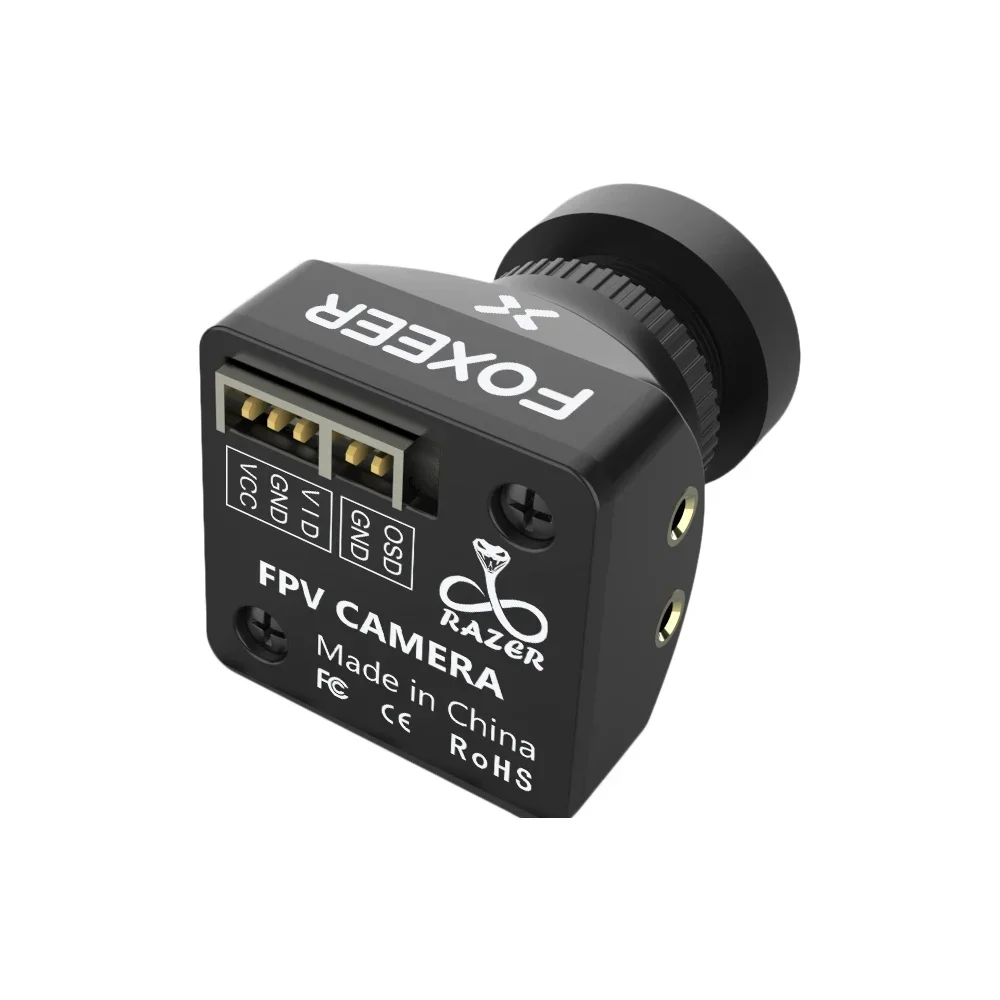

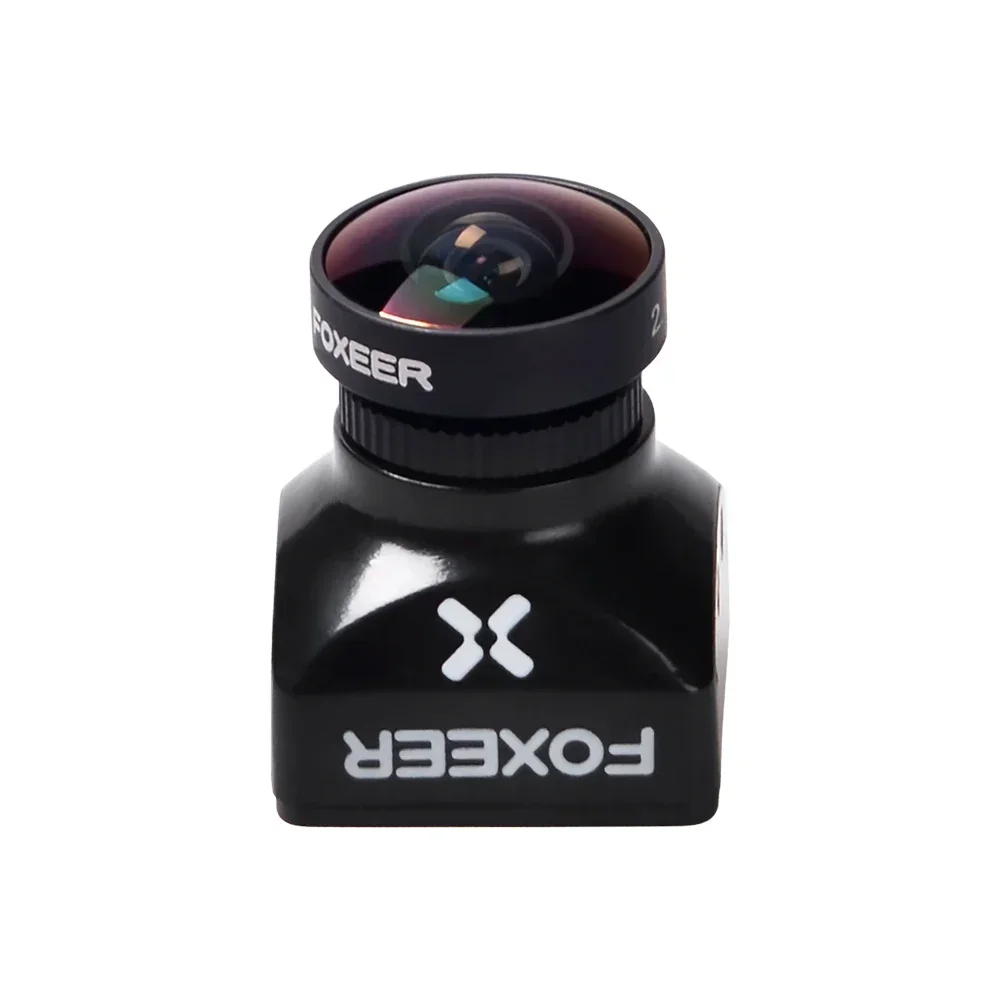

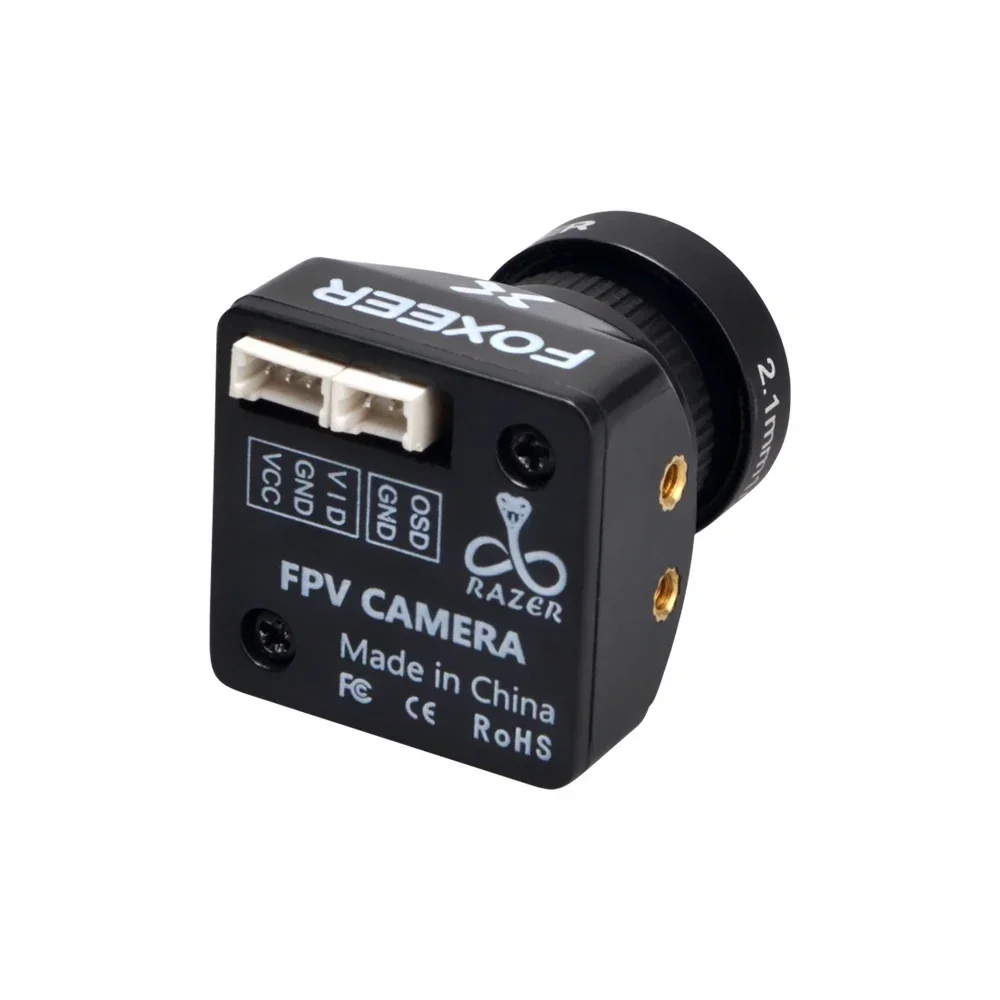

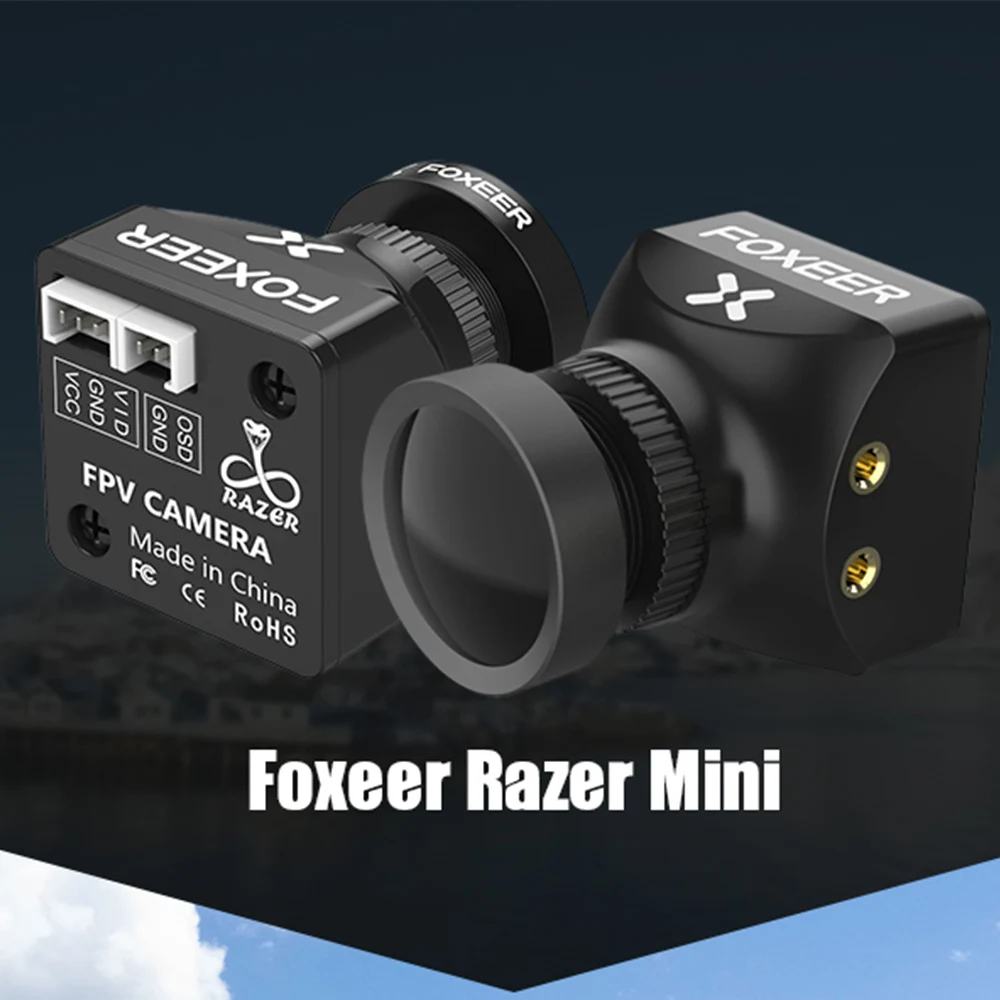

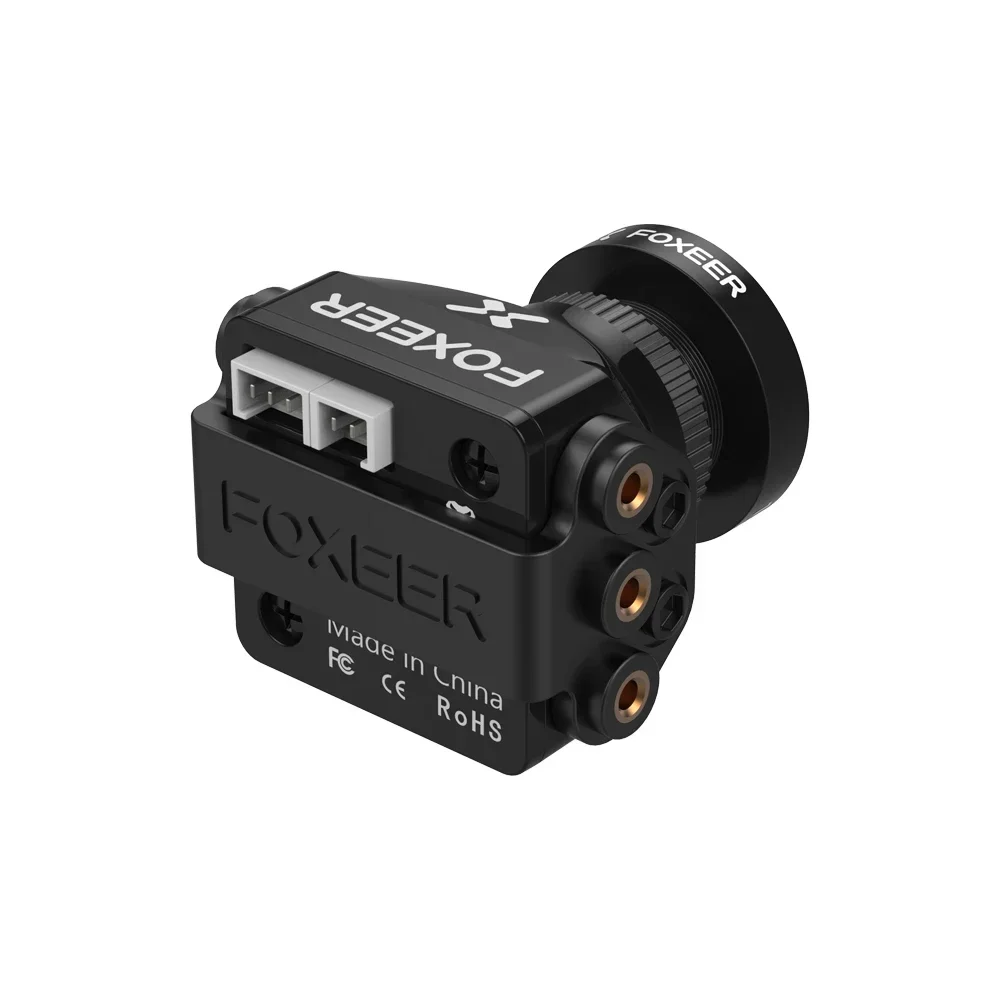

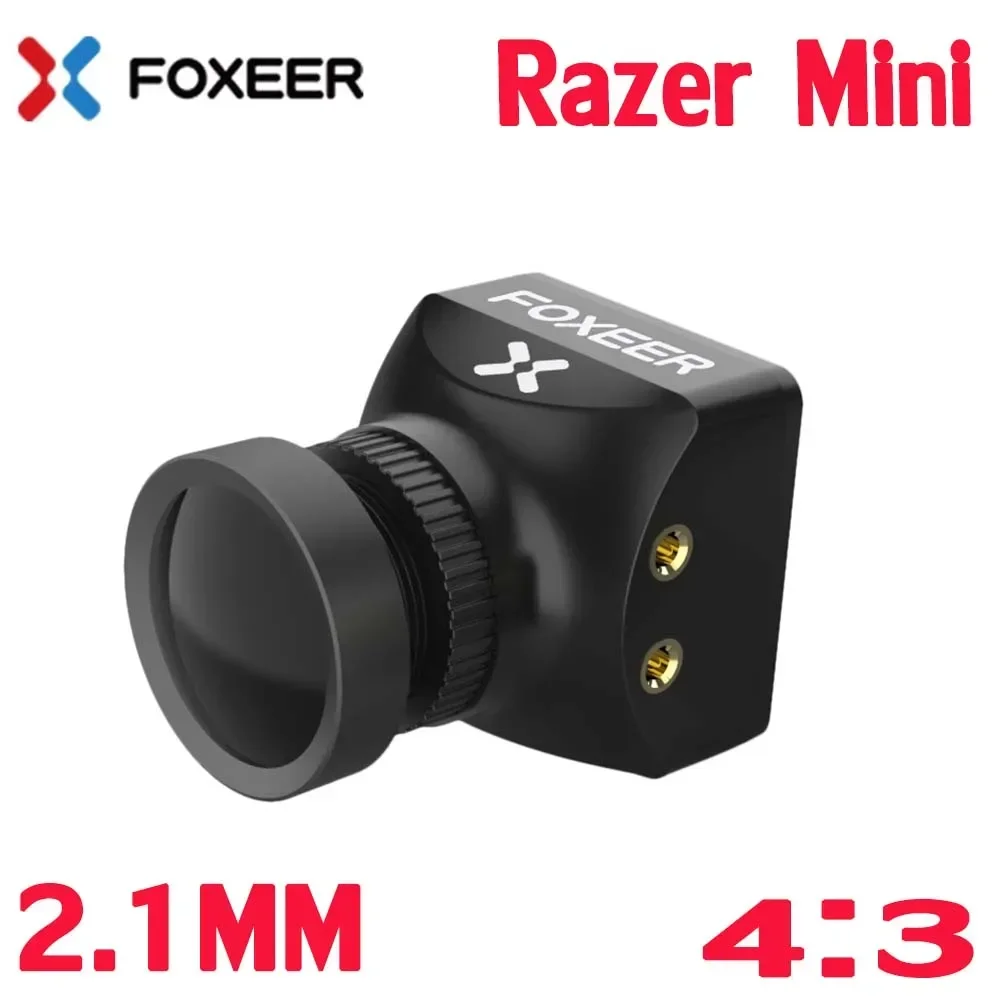

Foxeer Razer Mini V2 HD 5MP 2.1mm M12 Lens 1200TVL Standard FPV Camera NTSC PAL Switchable 4ms Latency 22*22mm for FPV Drone
From US $41.18
Est. US $41.18 / unit (1-9 pcs)
$38 @ 10+ pcs$36 @ 100+ pcs
Description
Razer Mini
Description:
Brand Name: Foxeer
Item Name: Razer Mini
Color: Black, Red (optional)
Scale: 4:3 / 16:9 (optional)
Lens: 1.8mm, 2.1mm (optional)
Sensor Type: 1/3 CMOS
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
FOV: 4:3 FOV-H 125°, FOV-D 155° / 16:9 FOV-H 125°, FOV-D 145°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90db
Day / Night Shift: EXT / Auto / Color / B&W
Power Requirement: DC 4.5V~25V
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 21.8x21.8mm (without bracket)
Weight: 12g
