Foxeer Razer Pico Mini Micro NANO 1200TVL FPV Camera 4:3 16:9 NTSC PAL Switchable for RC Drone, 1.8mm Lens, Low Latency, Lightwe

FOXEER cost-effective FPV camera, 1200 line ultra clear lens.
1200TVL has supernatural image quality and restores FPV flight pictures.
Low latency, high speed, high speed flight without card.
Low illumination, can see the picture in low light conditions.
Wide voltage input, wiring is more convenient.

Features:
- 1200TVL definition with advanced natural image.
- Advanced quality 1.8mm M8 lens.
- 4:3/16:9 optional, PAL/NTSC switchable.
- Supports 4.5~25V input voltage.

The video system can be switched, and the P system/N system can be switched through the menu to show better adaptability.
The difference between the two cameras:
The micro-rare snake installation width is 19mm.
The mini Razer has a mounting width of 22mm or a widened bracket of 28mm.
Other properties are the same except for the installation width.

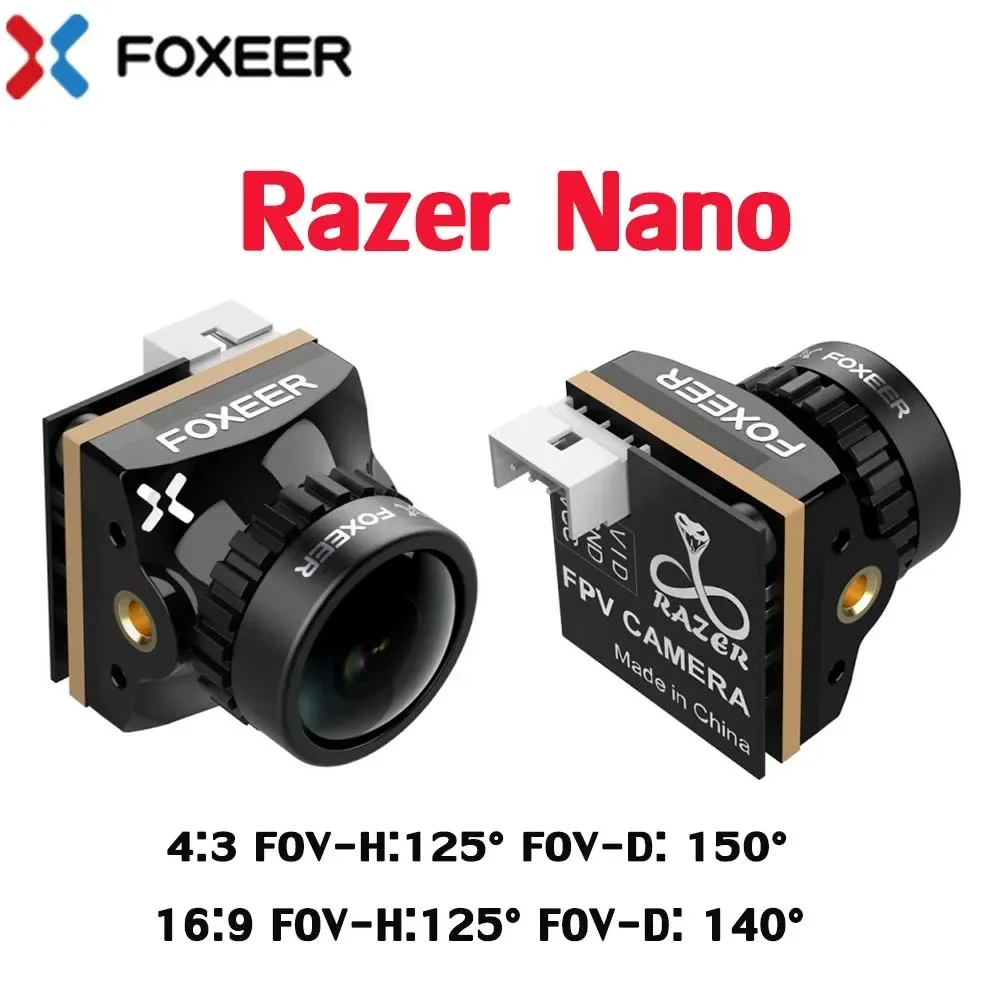

Razer NANO
Description:
Brand Name: Foxeer
Item Name: Razer NANO
Color: Black (optional)
Scale: 4:3 / 16:9 (optional)
Sensor Type: 1/3 CMOS
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
FOV: 4:3 FOV-H 125°, FOV-D 150° / 16:9 FOV-H 125°, FOV-D 140°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90db
Day / Night Shift: EXT / Auto / Color / B&W
Power Requirement: DC 4.5V~25V
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 14x15mm (without bracket)
Weight: 3.9g

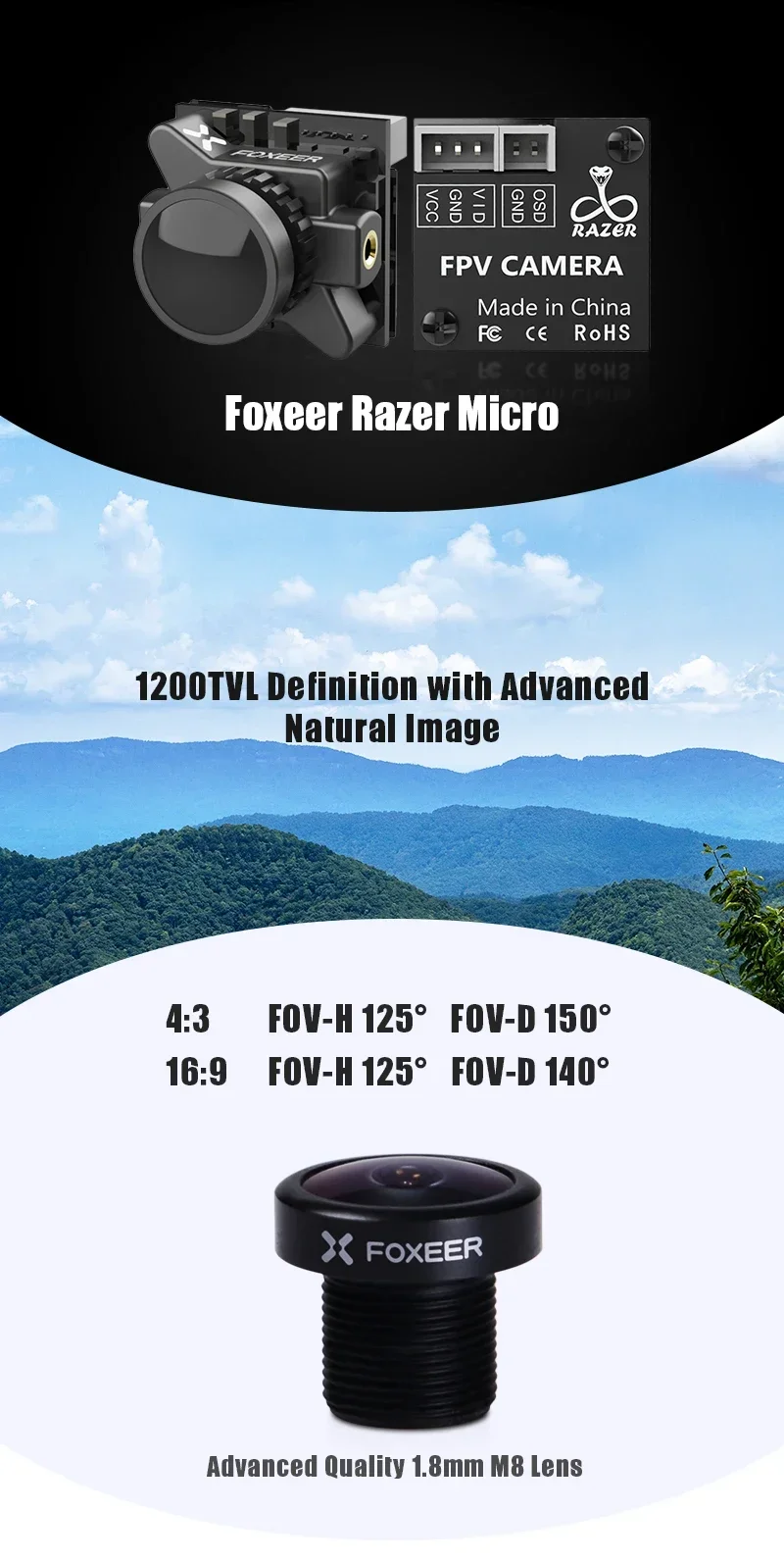

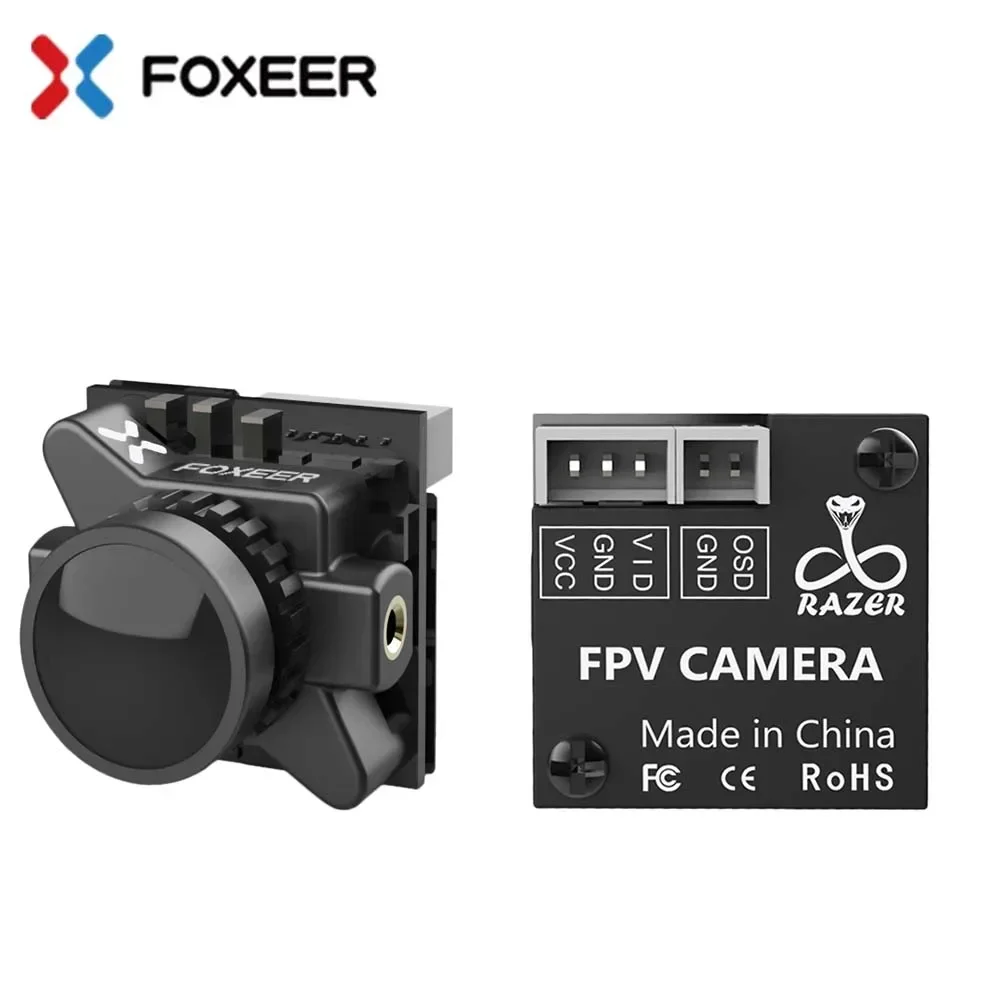

Razer Micro
Description:
Brand Name: Foxeer
Item Name: Razer Micro
Color: Black, Red (optional)
Scale: 4:3 / 16:9 (optional)
Sensor Type: 1/3 CMOS
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
FOV: 4:3 FOV-H 125°, FOV-D 150° / 16:9 FOV-H 125°, FOV-D 140°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90db
Day / Night Shift: EXT / Auto / Color / B&W
Power Requirement: DC 4.5V~25V
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 19x18.7mm (without bracket)
Weight: 4.5g

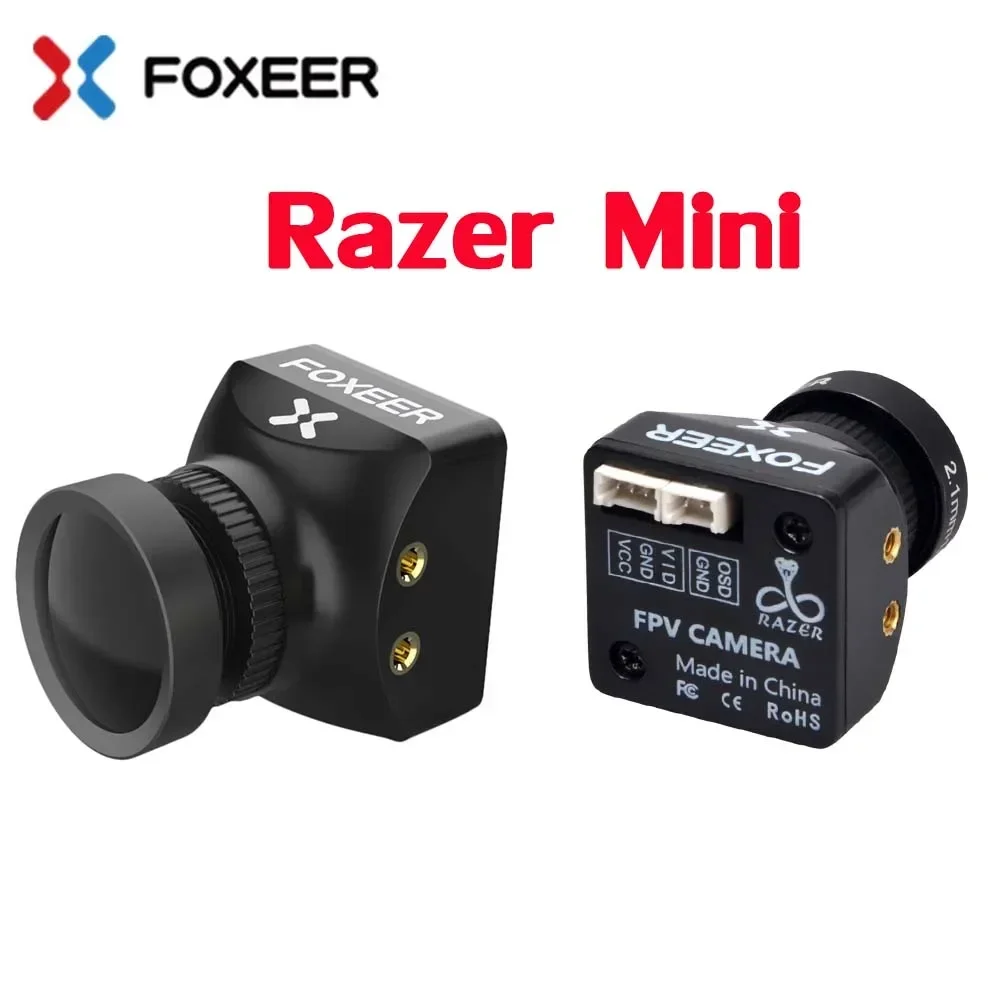

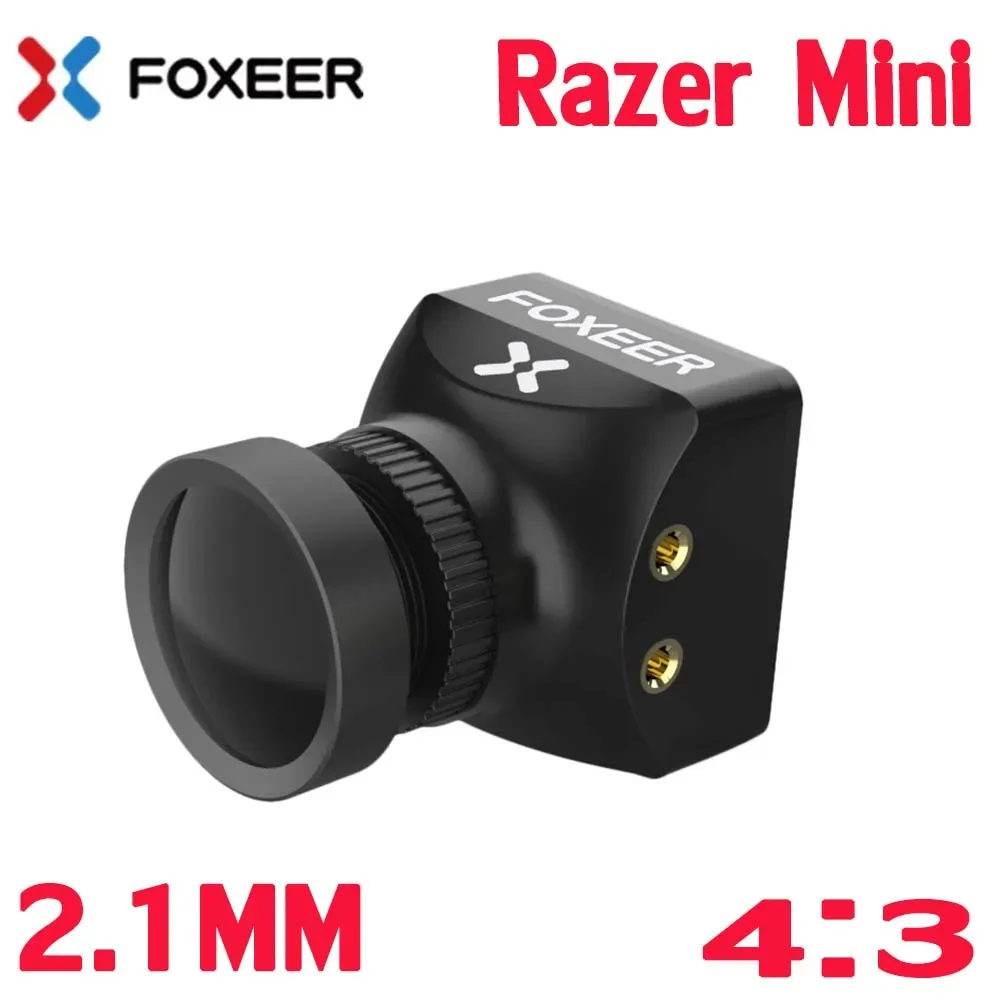

Razer Mini
Description:
Brand Name: Foxeer
Item Name: Razer Mini
Color: Black, Red (optional)
Scale: 4:3 / 16:9 (optional)
Lens: 1.8mm, 2.1mm (optional)
Sensor Type: 1/3 CMOS
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
FOV: 4:3 FOV-H 125°, FOV-D 155° / 16:9 FOV-H 125°, FOV-D 145°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90db
Day / Night Shift: EXT / Auto / Color / B&W
Power Requirement: DC 4.5V~25V
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
Working Temperature: -10℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 21.8x21.8mm (without bracket)
Weight: 12g

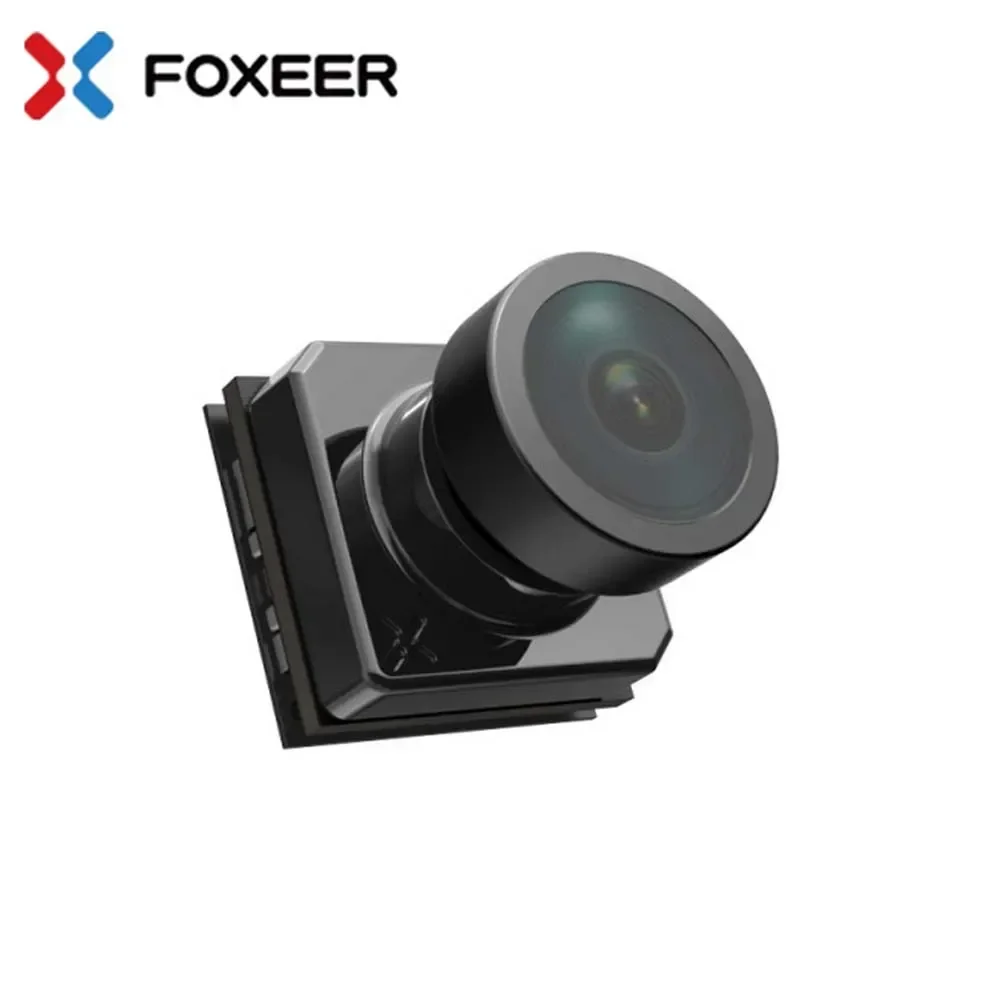

Razer PICO
Description:
Brand Name: Foxeer
Item Name: Razer PICO
Color: Black (optional)
Scale: 4:3 / 16:9 (optional)
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
FOV: 4:3 FOV-H 125°, FOV-D 160° / 16:9 FOV-H 125°, FOV-D 145°
Shutter Speed: PAL: 1/25~1/10000 sec; NTSC: 1/30~1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 90db
Day / Night Shift:  Auto
Power Requirement: DC 4.5V~25V
Language: English / Chinese / Pyccknn / Espanol / Francais / Polski / Italiano / Portugues / Japanese / Korean / Eaahnika
Working Temperature: -20℃ ~ +50℃ RH90% MAX
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 12*12*13(H)mm (without bracket)
Weight:1.6g


We will send according to your choice
