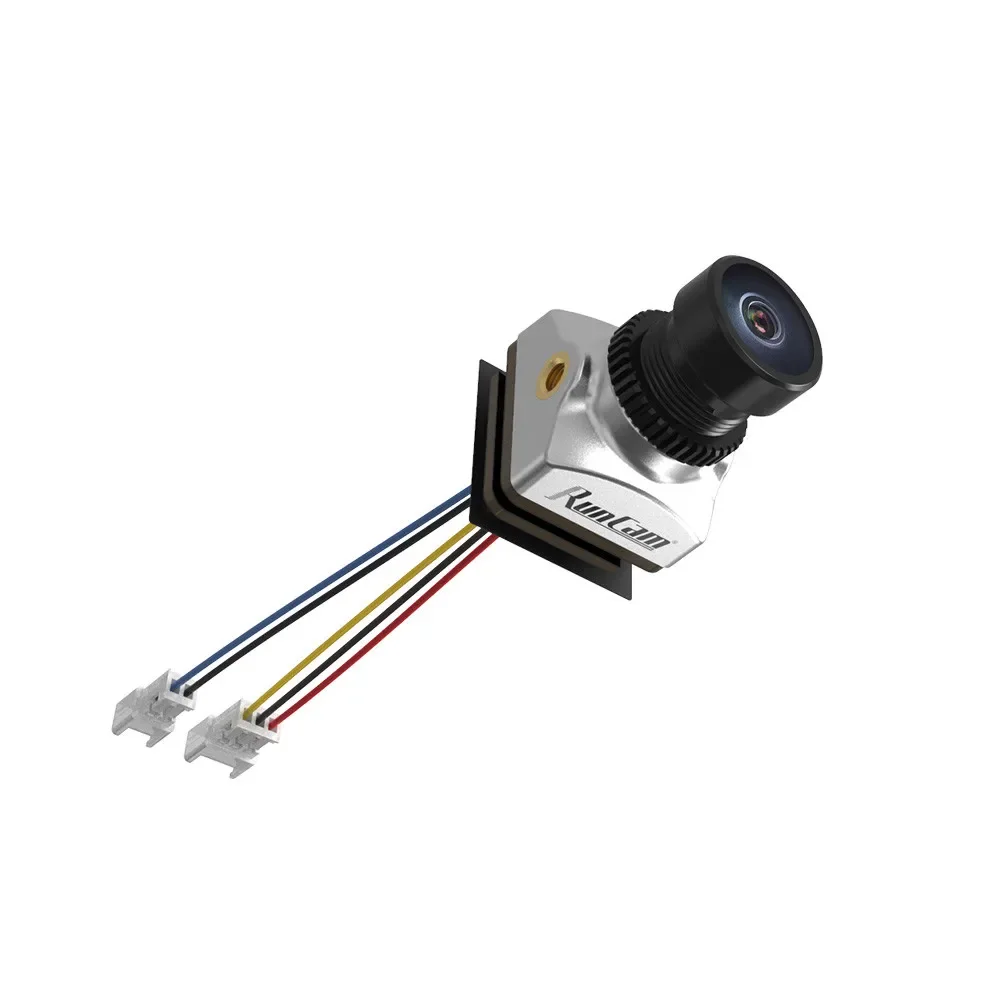

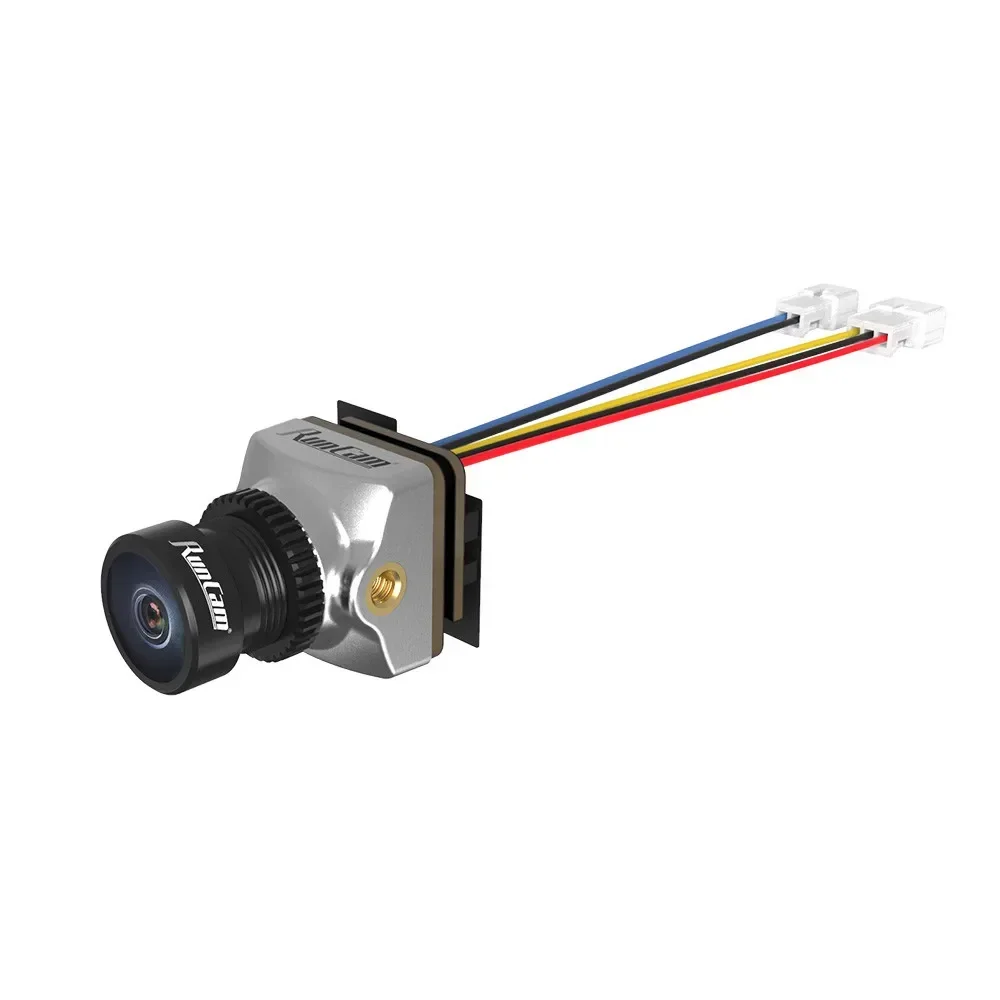

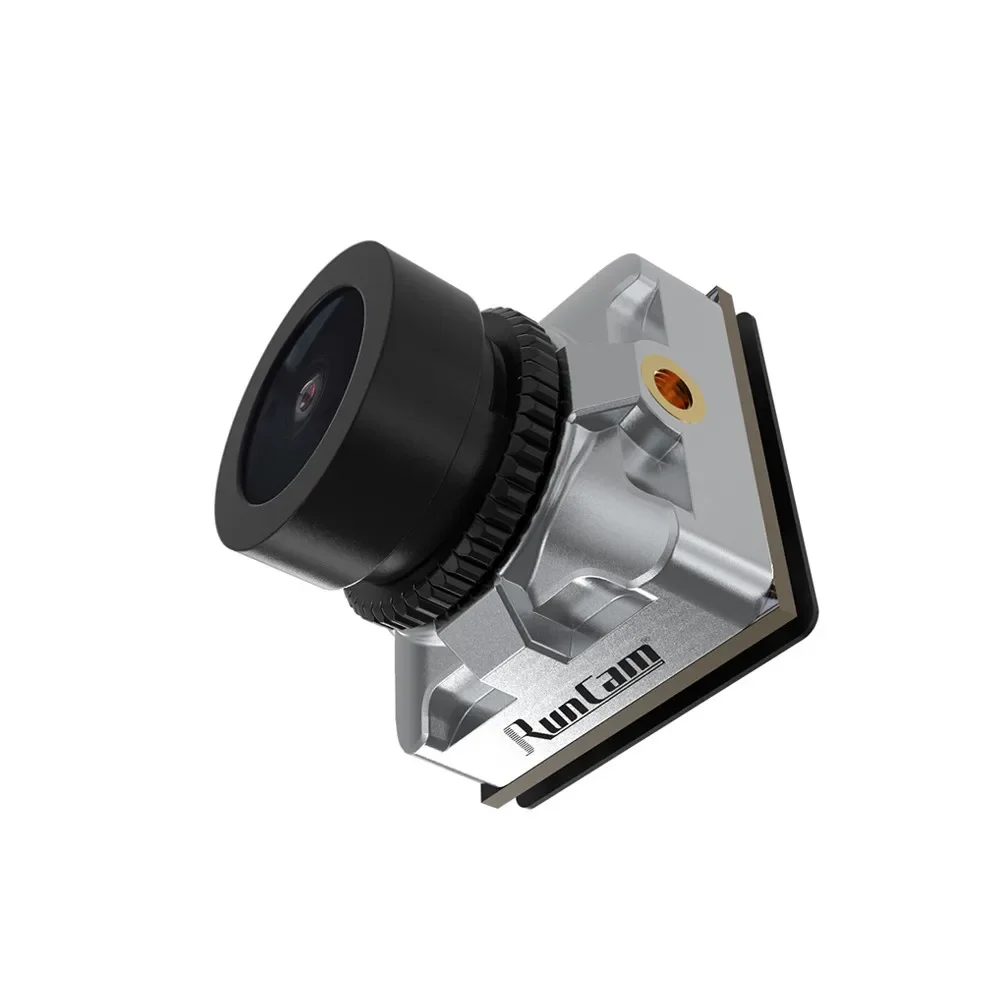

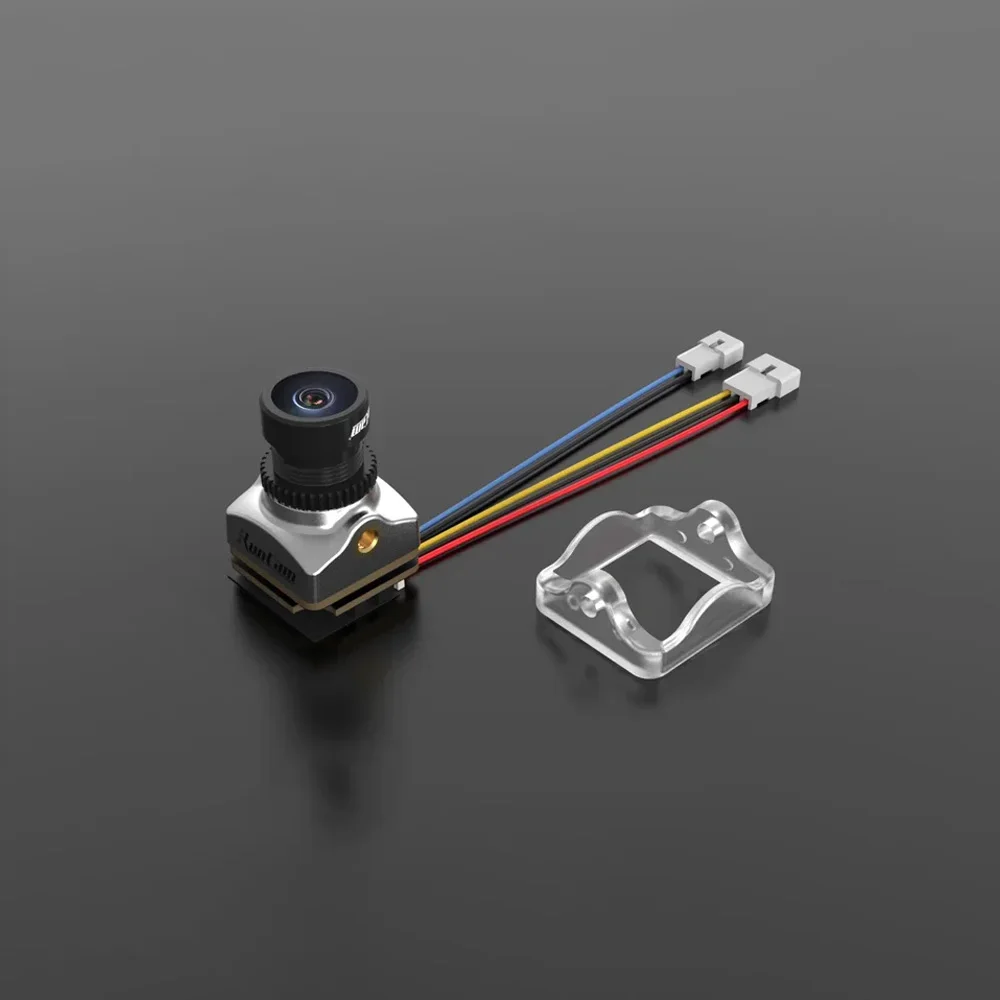

RunCam Phoenix 2 Nano Freestyle FPV Camera 1000TVL CMOS with PAL/NTSC Switchable Video Output for Drone Quadcopter
Description
Package
Rich but natural color.
With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,
the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.
Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor and the ƒ/2.0 big aperture 7G glass lens,
the Phoenix 2 Nano's low light performance is even better than the RunCam Eagle.
7G ƒ/2.0 big aperture glass lens. Less red lens flare.
The customized high-quality 7 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect. These lenses are
also used on the RunCam Split Nano3.

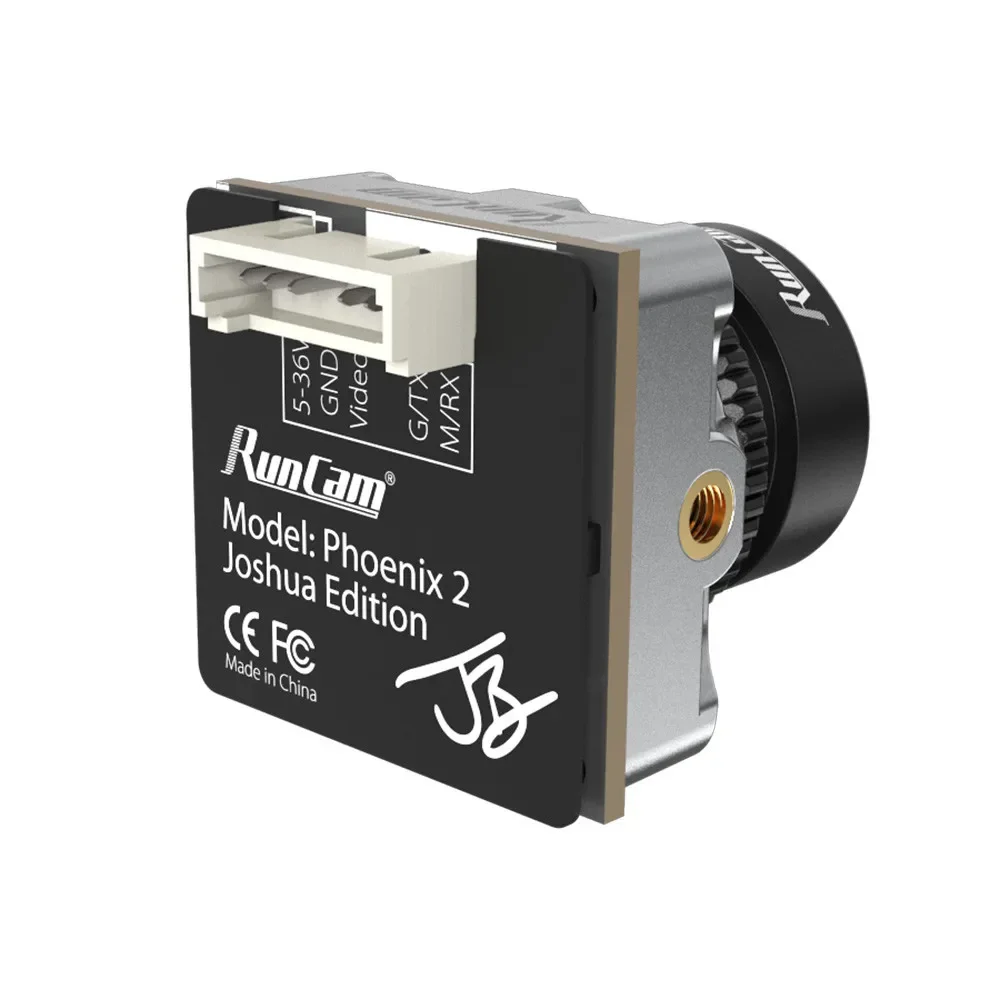

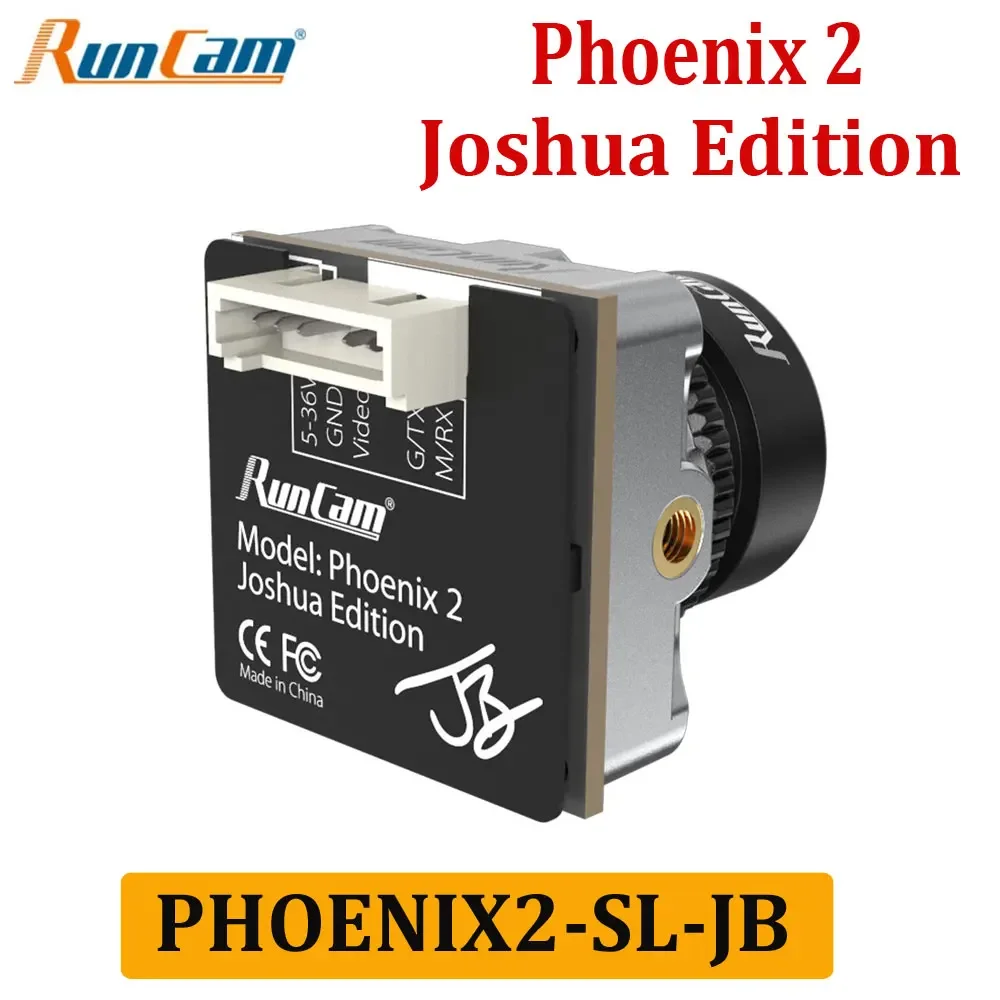

Joshua Edition UART Control Version.
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.

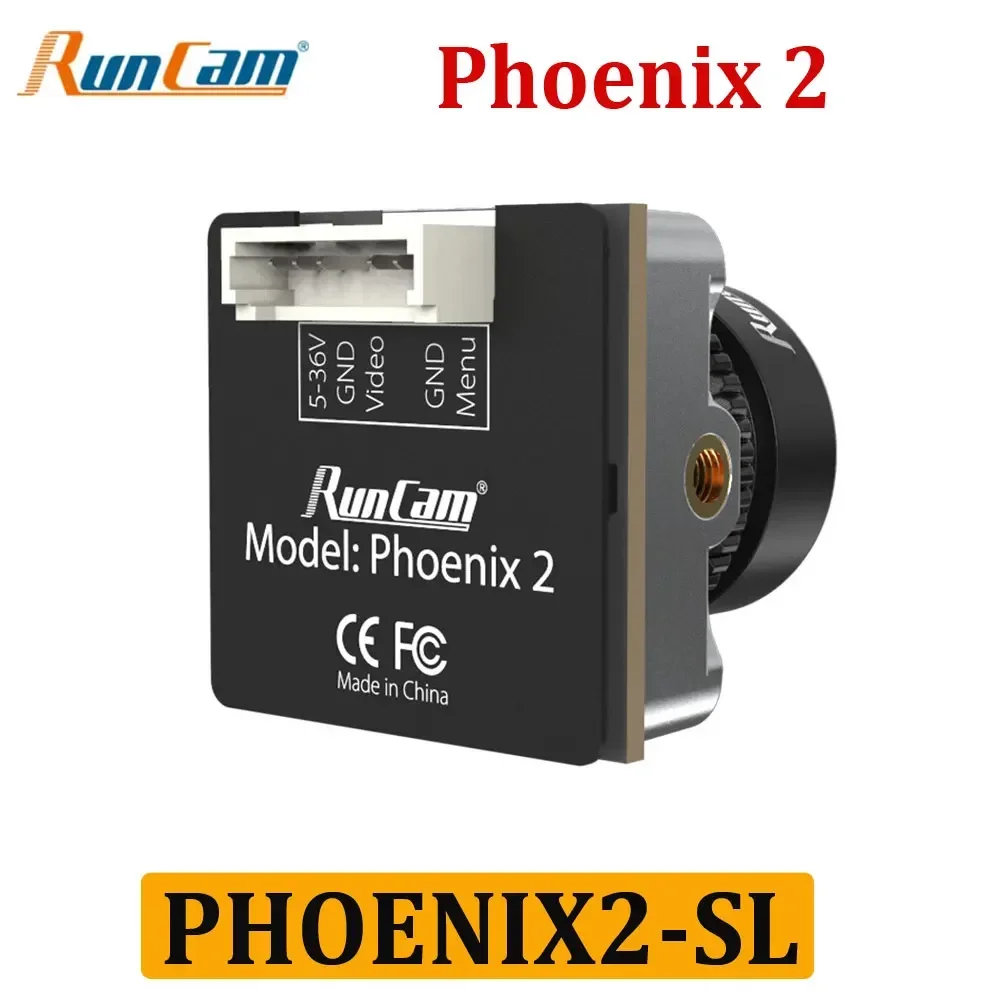

RunCam Phoenix 2
Day&Night ƒ/2.0 big aperture freestyle camera.
- 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer
Rich yet natural color.
With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.
Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light
performance is even better than the RunCam Eagle.
ƒ/2.0 big aperture lens. Less red lens flare.
The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect.
Low latency.
This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!
the RunCam Phoenix 2 Nano produces vivid high-resolution picture
Specifications
| Option | Values |
|---|---|
| 4 |
|
| 2.1mm (M12) FOV155° (4 |
|
Product Details

Specifications
Product Name |
RunCam Phoenix 2 Nano |
Image Sensor |
1/2" CMOS Sensor |
Horizontal Resolution |
1000TVL |
Lens |
2.1mm(M8)FOV155° (4:3) |
Screen Format |
4:3 / 16:9 switchable |
Mirror/Flip |
Available |
Signal System |
PAL / NTSC Switchable |
S/N Ratio |
>50dB (AGC OFF) |
Electronic Shutter Speed |
Auto |
Auto Gain Control (AGC) |
Auto |
Min. Illumination |
0.001Lux@1.2F |
WDR |
Global WDR |
Day/Night |
Color/BW/EXT/Auto |
Menu Control |
Cable Control |
Power |
DC 5-36V |
Current |
190mA@5V/80mA@12V |
Housing Material |
ABS |
Net Weight |
5g |
Dimensions |
14mm*14mm*22mm |

Package

Specifications
Product Name |
RunCam Phoenix 2 |
||
Image Sensor |
1/2" CMOS Sensor |
||
Horizontal Resolution |
1000TVL |
||
Lens |
2.1mm (M12) FOV155° (4:3) |
||
Screen Format |
4:3 / 16:9 switchable |
||
Mirror/Flip |
Available |
||
Signal System |
PAL / NTSC Switchable |
||
S/N Ratio |
>50dB (AGC OFF) |
||
Electronic Shutter Speed |
Auto |
||
Auto Gain Control (AGC) |
Auto |
||
Min. Illumination |
0.001Lux@1.2F |
||
WDR |
Global WDR |
||
Day/Night |
Color/BW/EXT/Auto |
||
Menu Control |
Cable Control |
||
Power |
DC 5-36V |
||
Current |
|
||
Housing Material |
ABS |
||
Net Weight |
9g |
||
Dimensions |
19mm*19mm*19mm |
Dimensions

Package



Rich but natural color.
With the same CPU and 1/2'' high-performance image sensor as the RunCam Phoenix 2,
the RunCam Phoenix 2 Nano produces vivid high-resolution pictures.
Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor and the ƒ/2.0 big aperture 7G glass lens,
the Phoenix 2 Nano's low light performance is even better than the RunCam Eagle.
7G ƒ/2.0 big aperture glass lens. Less red lens flare.
The customized high-quality 7 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect. These lenses are
also used on the RunCam Split Nano3.
Joshua Edition UART Control Version.
The top left corner of the screen will shortly display the current control mode.
The default is Joystick control mode.
RunCam Phoenix 2
Day&Night ƒ/2.0 big aperture freestyle camera.
· 1/2'' big image sensor · ƒ/2.0 big aperture · Excellent low light performance · Less digital image shimmer
Rich yet natural color.
With upgraded CPU and upgraded 1/2'' high-performance image sensor,
the RunCam Phoenix 2 produces vivid high-resolution pictures.
Excellent low light performance.
Thanks to the 1/2'' super global WDR image sensor, Phoenix 2's low light
performance is even better than the RunCam Eagle.
ƒ/2.0 big aperture lens. Less red lens flare.
The high quality 6 layers of glass lens has a ƒ/2.0 aperture which brings
less red lens flare and less purple fringing effect.
Low latency.
This camera is on the same latency level of the RunCam Eagle
and is wonderful for freestyle flying!
the RunCam Phoenix 2 Nano produces vivid high-resolution picture
