1/2/5 Pieces CADDX Ratel Pro 1500TVL 9.5g Super WDR 4.5V-27V NTSC/PAL CMOS FPV Starlight Night Vision Blacklight Camera
From US $50.51
Est. US $50.51 / unit (1-9 pcs)
$47 @ 10+ pcs$44 @ 100+ pcs
Description
Model
Ratel PRO
Image Sensor
1/1.8" Inch sensor
Horizontal Resolution
1500TVL
TV System
NTSC & PAL (changeable)
16:9 & 4:3 (changeable)
WDR
Super WDR （HDR)
Min. Illumination
0.00001 lux
Lens
5Mega
Color
Black
Synchronization
Internal
Electronic Shutter
PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio
>60dB (AGC OFF)
Video Output
CVBS
OSD manual
Support
DNR
3-DNR
FOV
125°
Language
（ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语）
Day/Night
Auto/Color/B&W/EXT
Dimensions
19mm*19mm
Wide Power Input
DC 4.5-27V
Work Temperature
-20℃~+60℃
Work Humidity
20%~80%
Weight
9.5g
Variant
Selected priceUSD 60.01
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
Model | Ratel PRO |
Image Sensor | 1/1.8" Inch sensor |
Horizontal Resolution | 1500TVL |
TV System | NTSC & PAL (changeable) |
IMAGE | 16:9 & 4:3 (changeable) |
WDR | Super WDR （HDR) |
Min. Illumination | 0.00001 lux |
Lens | 5Mega |
Color | Black |
Synchronization | Internal |
Electronic Shutter | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
S/N Ratio | >60dB (AGC OFF) |
Video Output | CVBS |
OSD manual | Support |
DNR | 3-DNR |
FOV | 125° |
Language | （ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语） |
Day/Night | Auto/Color/B&W/EXT |
Dimensions | 19mm*19mm |
Wide Power Input | DC 4.5-27V |
Work Temperature | -20℃~+60℃ |
Work Humidity | 20%~80% |
Weight | 9.5g |

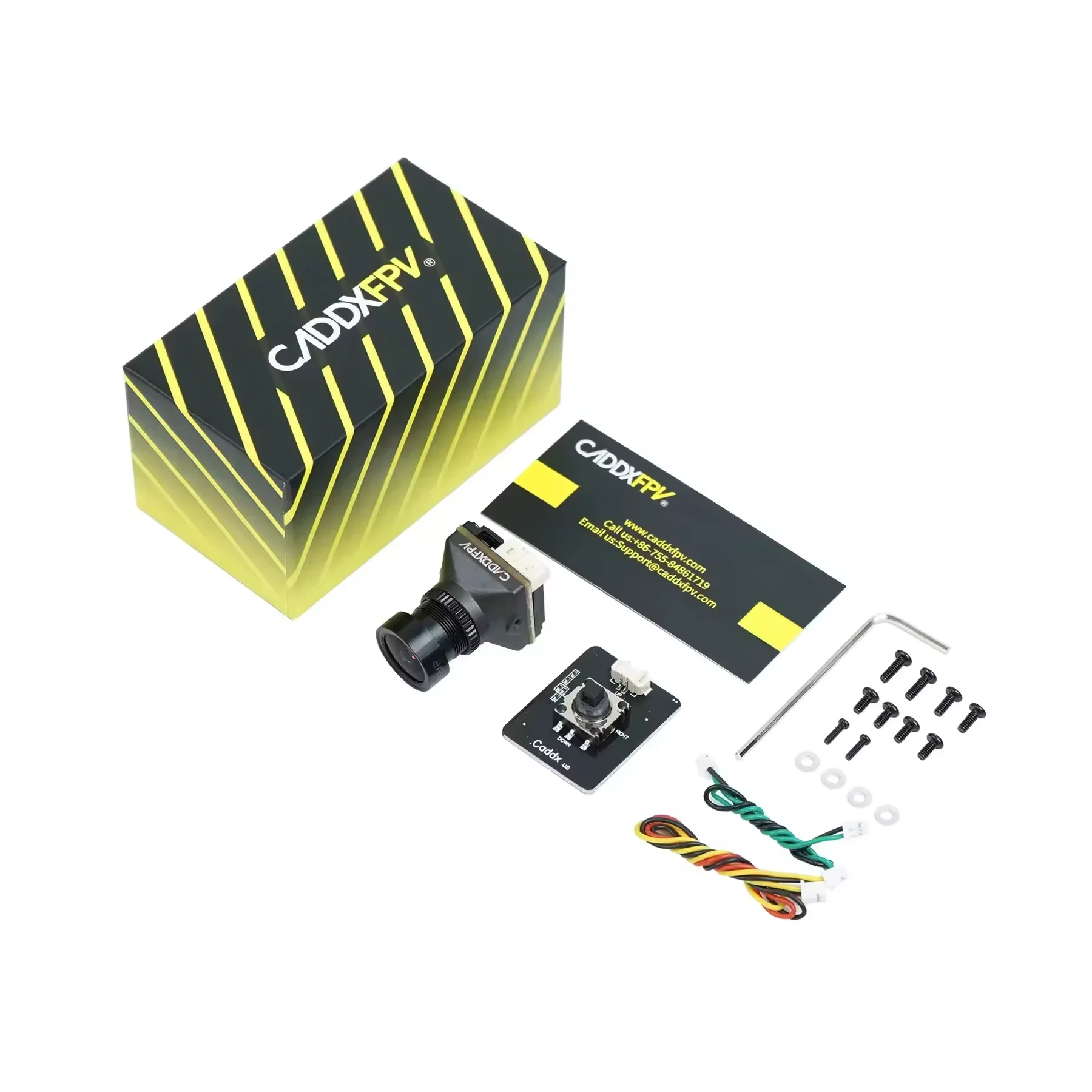

Package Included:
1x Caddx Ratel Pro Camera
1x Menu Board
1x 2Pin Silicon Cable
1x 3Pin Silicon Cable
1x 1.5mm Allen Wrench
1x Warranty Card
