2g CADDX ANT 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 16:9 4:3 for RC FPV Tinywhoop Cinewhoop Toothpick Mobula6
From US $18.97
Est. US $18.97 / unit (1-9 pcs)
$17 @ 10+ pcs$16 @ 100+ pcs
Description
Electronic Shutter: PAL: 1/50 ~ 100,000; NTSC:
1/60 ~ 100,000
S / N ratio:> 52dB (AGC OFF)
Video output: CVBS
Lens: 1.8mm
Min. Lighting: 0.001 Lux @ F 1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR

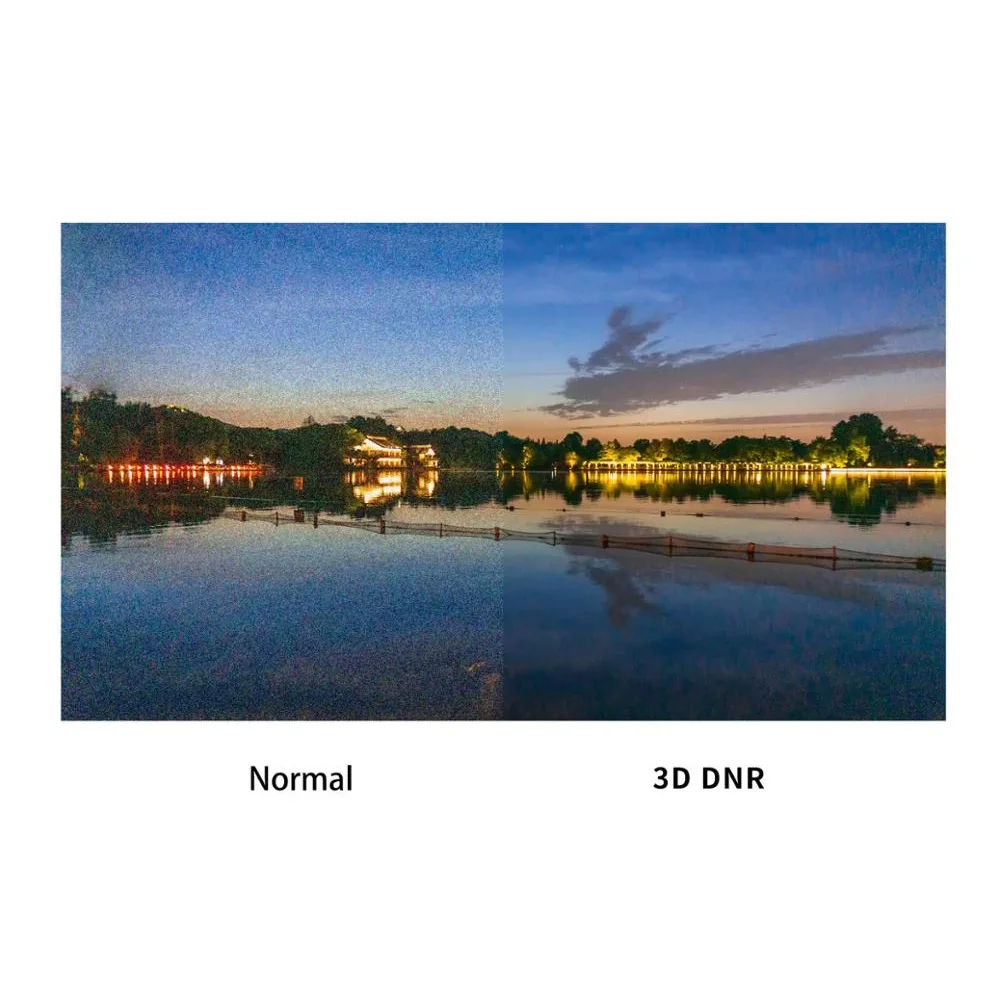

DNR: 3D DNR

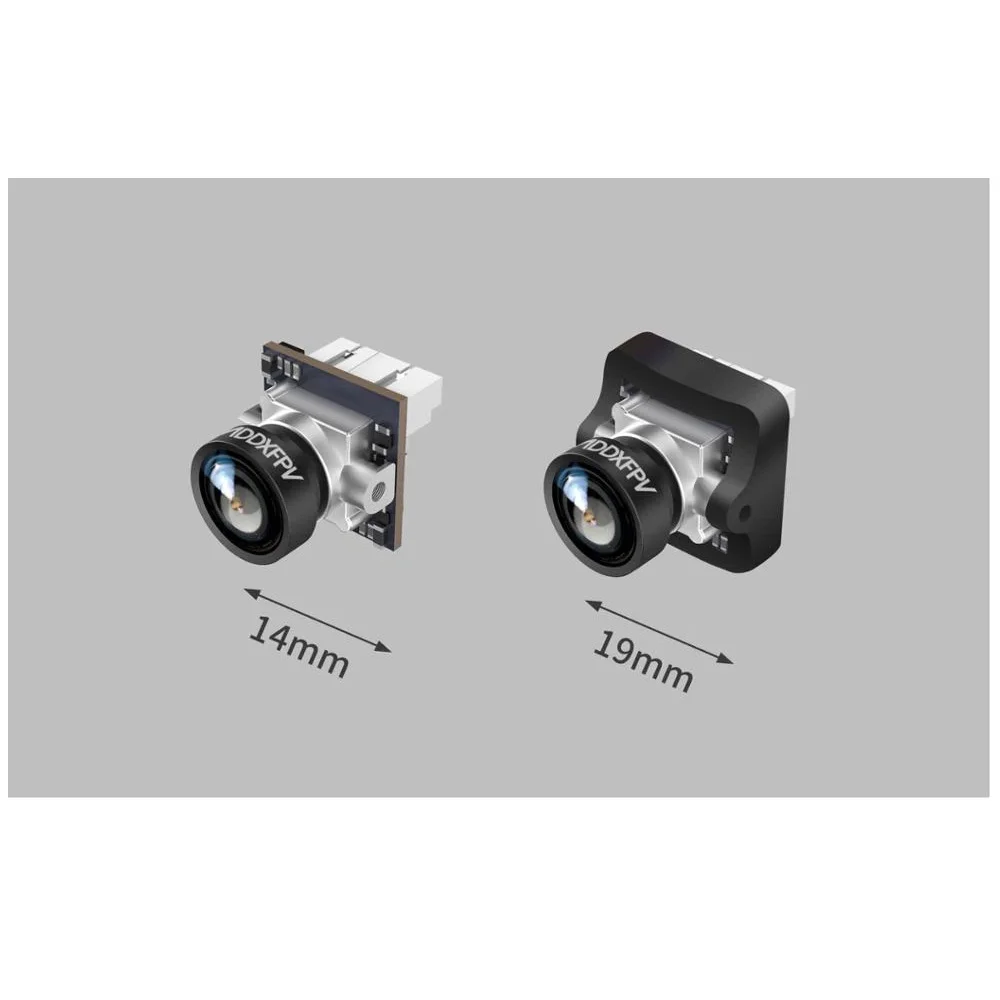

Dimensions: 14 * 14mm (with bracket to 19 * 19mm)
Wide power input: DC 3.7-18V
Work temperature: -20 ℃ ~ + 60 ℃
Working humidity: 20% ~ 80%
Weight: 2g (N.W.)
Variant
Price rangeUS $18.97
Specifications
| Option | Values |
|---|---|
| Model |
|
| Weight |
|
| Lens |
|
Product Details
Specification:
Model: Caddx Ant
Image sensor: 1/3 "CMOS sensor
Horizontal resolution: 1200 TVL
TV system: NTSC or PAL
MENU: support
PICTURE: 16: 9 or 4: 3
Synchronization: internal
Electronic Shutter: PAL: 1/50 ~ 100,000; NTSC:
1/60 ~ 100,000
S / N ratio:> 52dB (AGC OFF)
Video output: CVBS
Lens: 1.8mm
Min. Lighting: 0.001 Lux @ F 1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14 * 14mm (with bracket to 19 * 19mm)
Wide power input: DC 3.7-18V
Work temperature: -20 ℃ ~ + 60 ℃
Working humidity: 20% ~ 80%
Weight: 2g (N.W.)
Package include:
Caddx Ant camera x1
3pin FPV silicone cable x1
Warranty card x1
Consume bracket x1
Screws x 4
