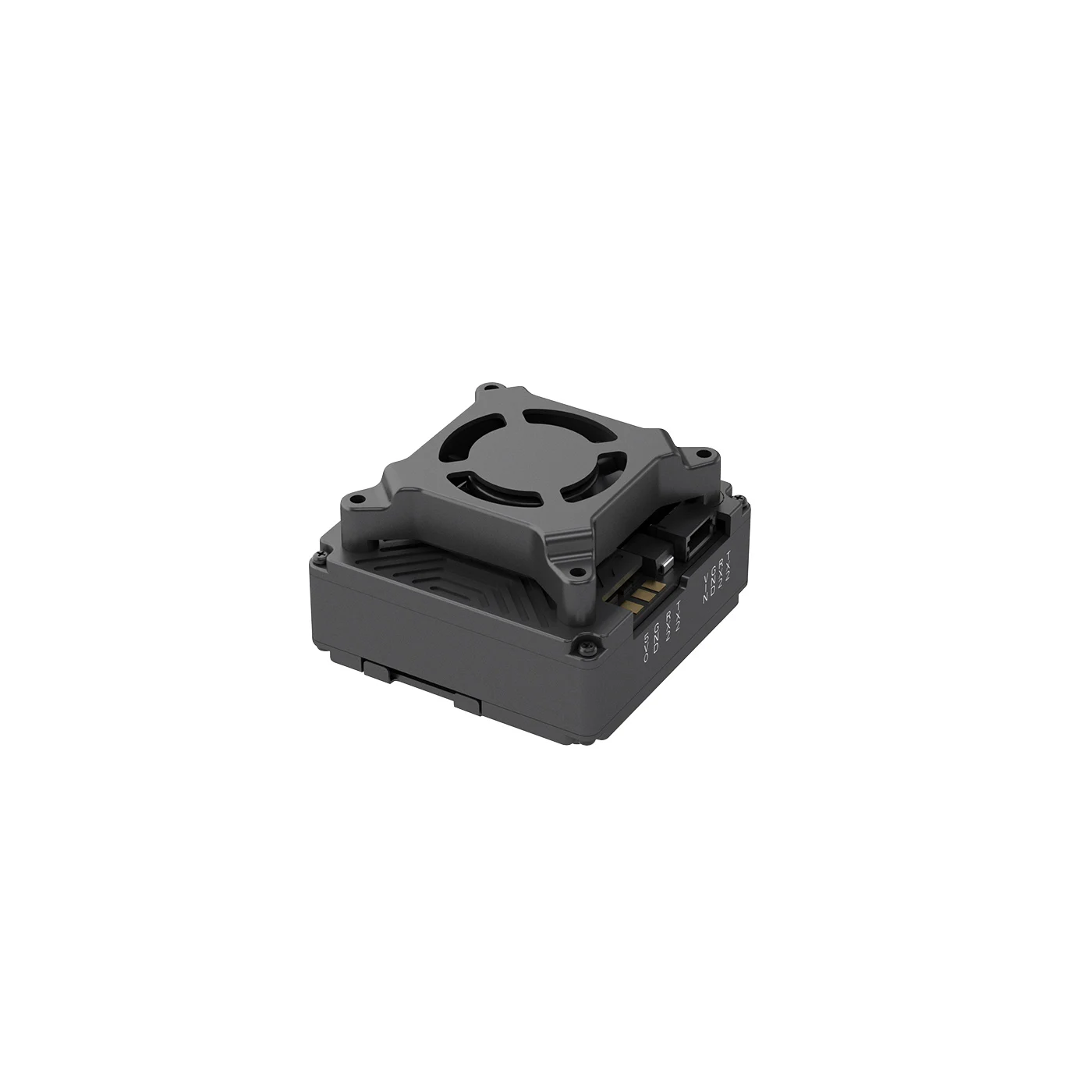

Caddx Walksnail Avatar GT VTX Module 5.8G Max 2W 1080P 100fps，6Km Long Range FPV Transmission With Cooling Fan For FPV Drone

Attention: Purchase notice, GT VTX does not include camera and antenna!

2W (Max)

Long Range

11.1V-25.2V

1080P 100fps

Dual Antennas

Micro SD Card Slot

Bullet Points:

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

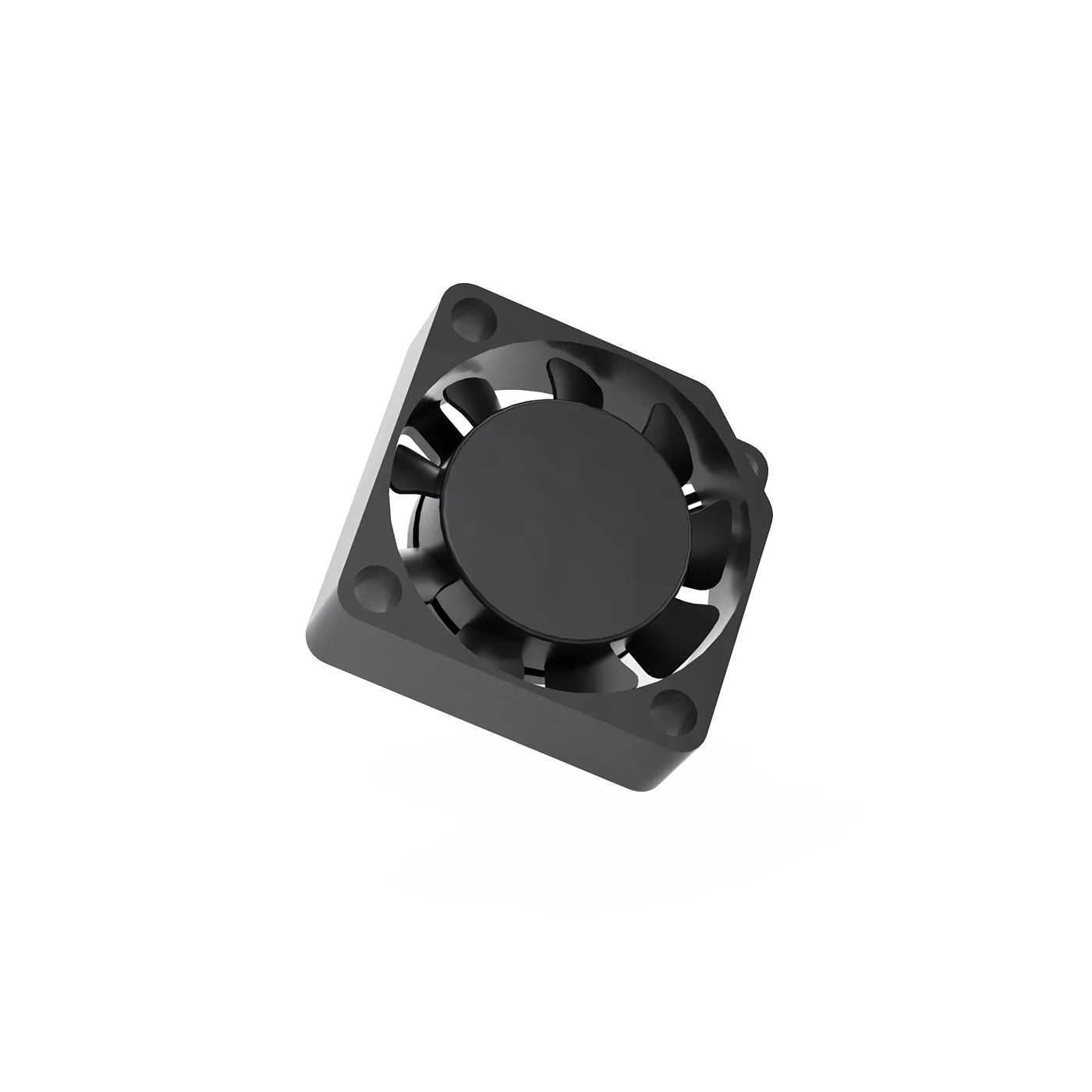

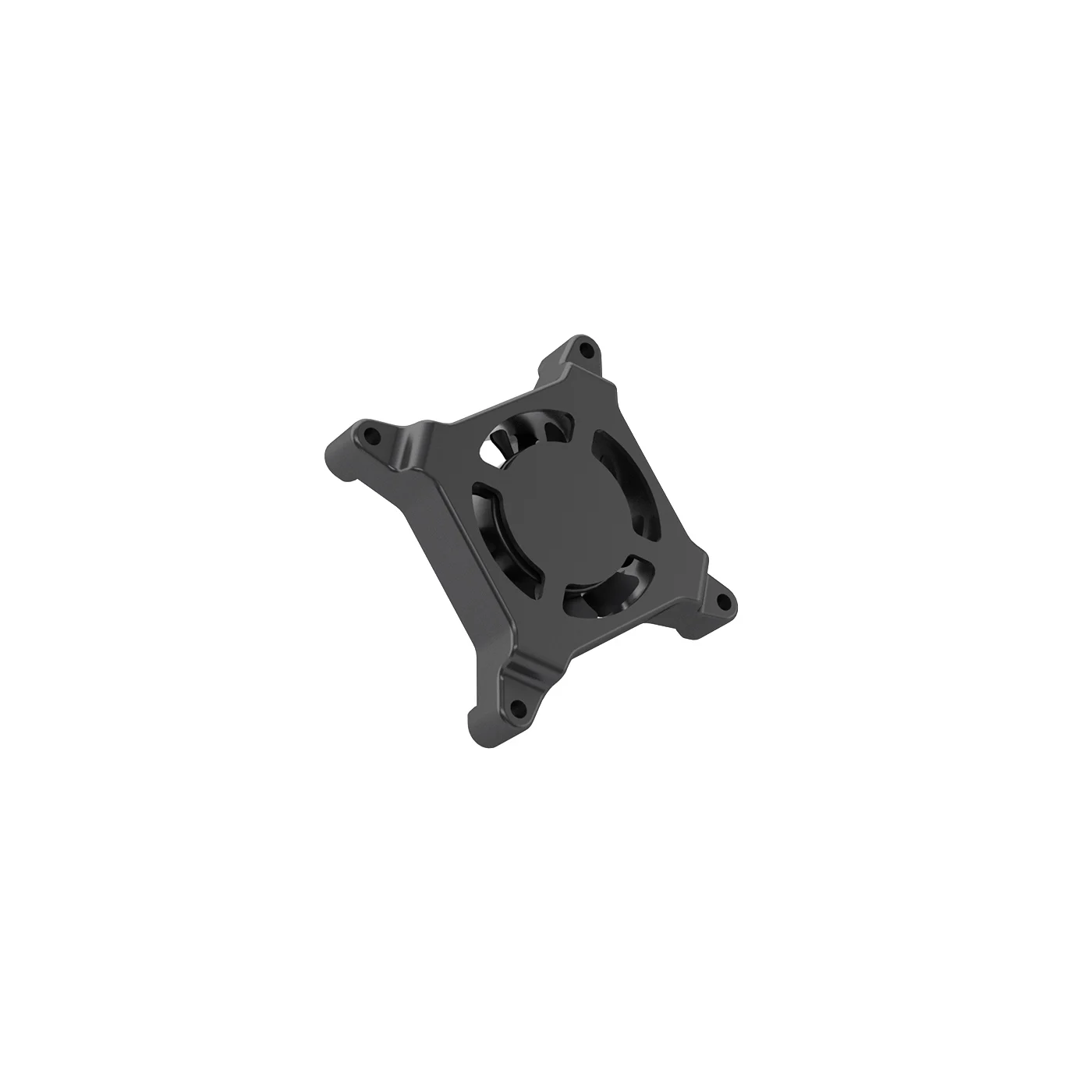

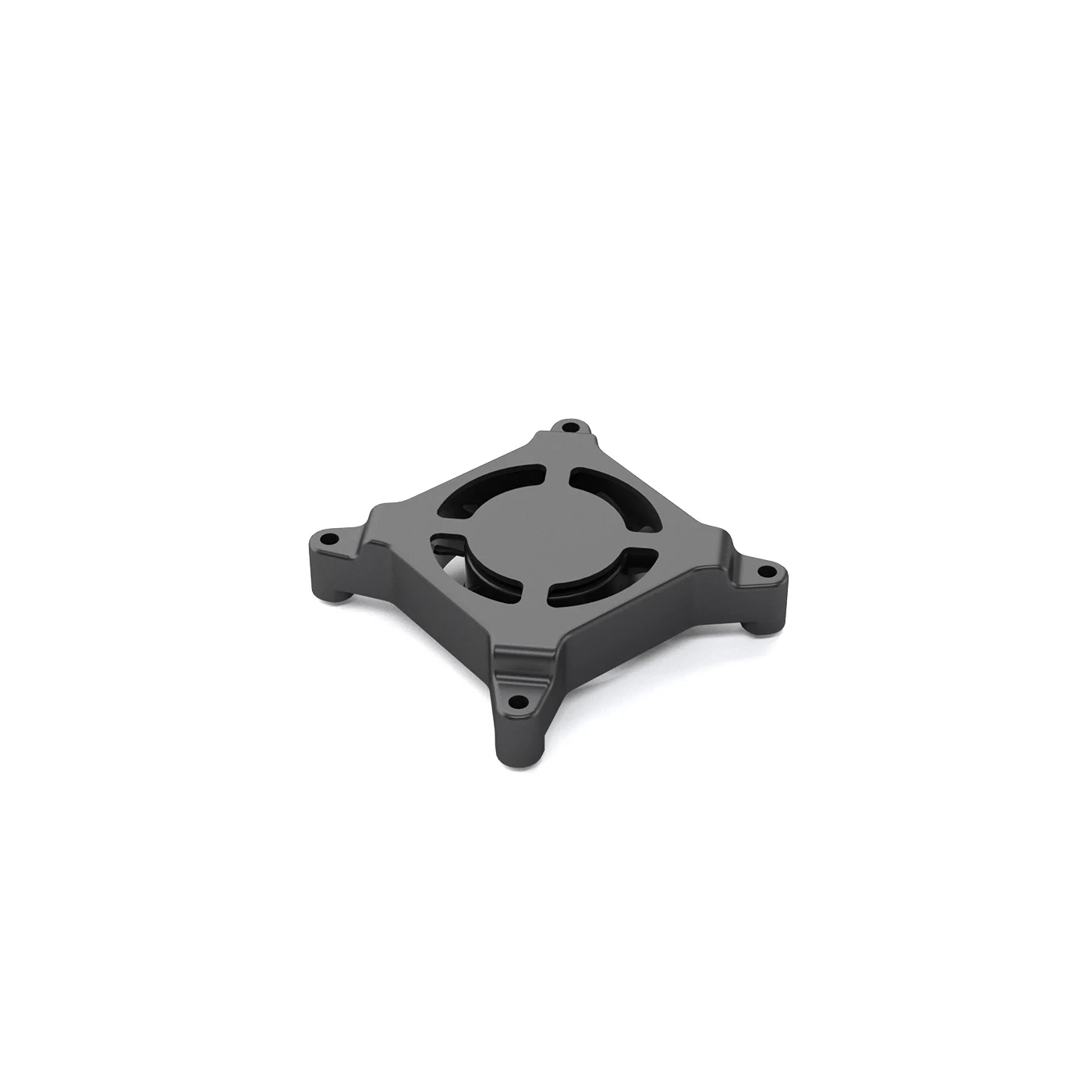

The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.

The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.

The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.

The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.

VTX

Model

Avatar GT

Communication Frequency

5.725-5.850 GHz

Transmitter Power (EIRP)

FCC: <30dBm, MAX:33dBm ; CE: <14dBm;

SRRC: <20dBm; MIC: <25dBm

I/O Interface

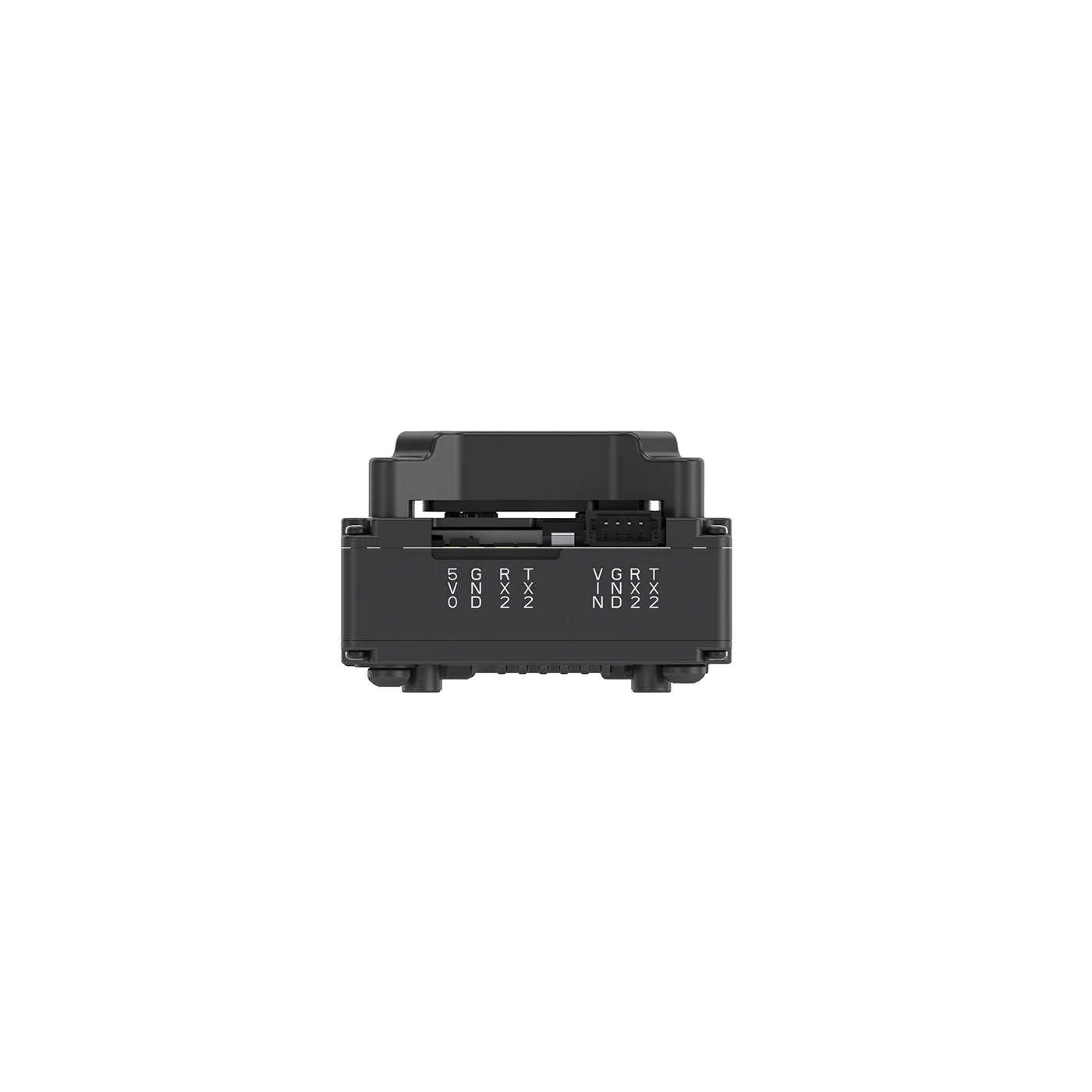

Micro SD card slot; JST1.0*4(power cable)

Supported SD Cards

Micro SD (up to 256 GB)

Mounting Holes

25.5*25.5mm; 20*20mm

Dimensions

34*34*23mm

Recording

1080p/720p

Weight

41.6g (Antenna included)

Operating Temperature

-10-40℃

Channels

8

Wide Power Input

Supported FC System

Betaflight; Inav; Fettec; Kiss; ArduPilot

OSD

Canvas mode

Latency

Average delay 22ms

Antenna

2(IPEX)
