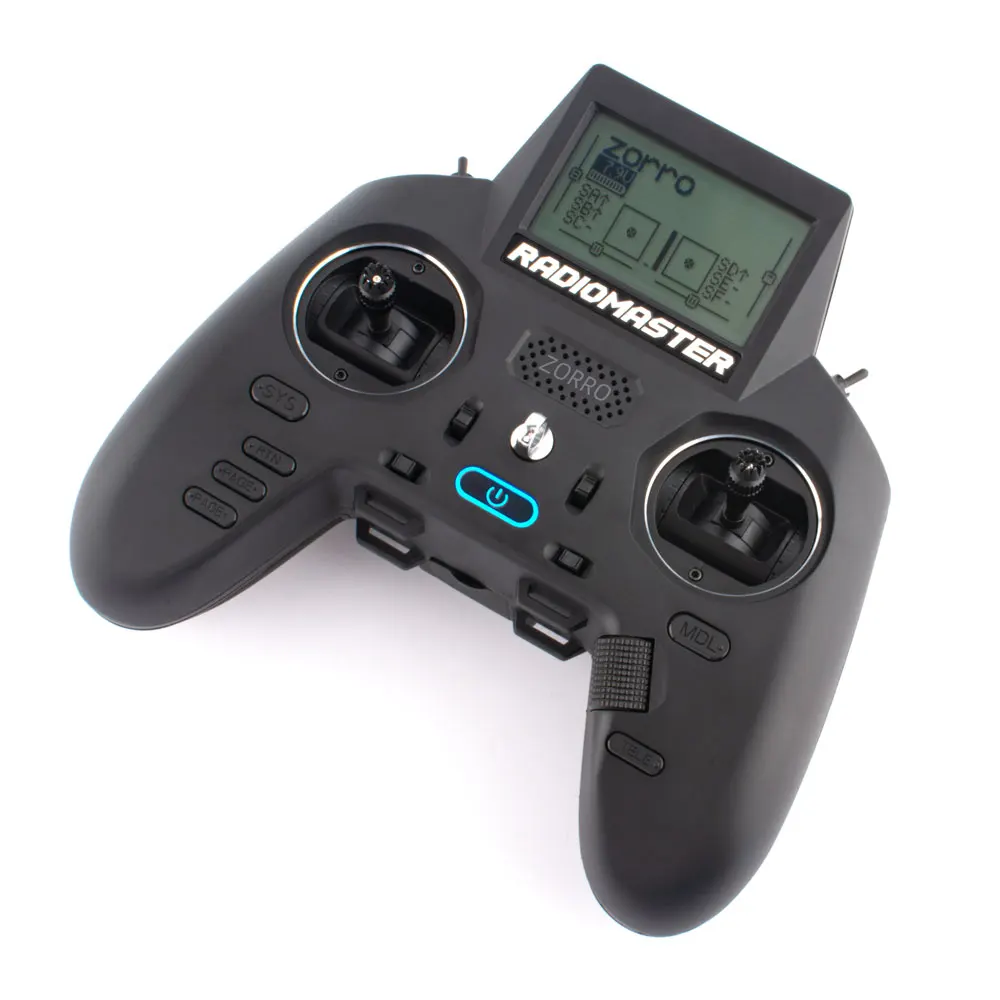

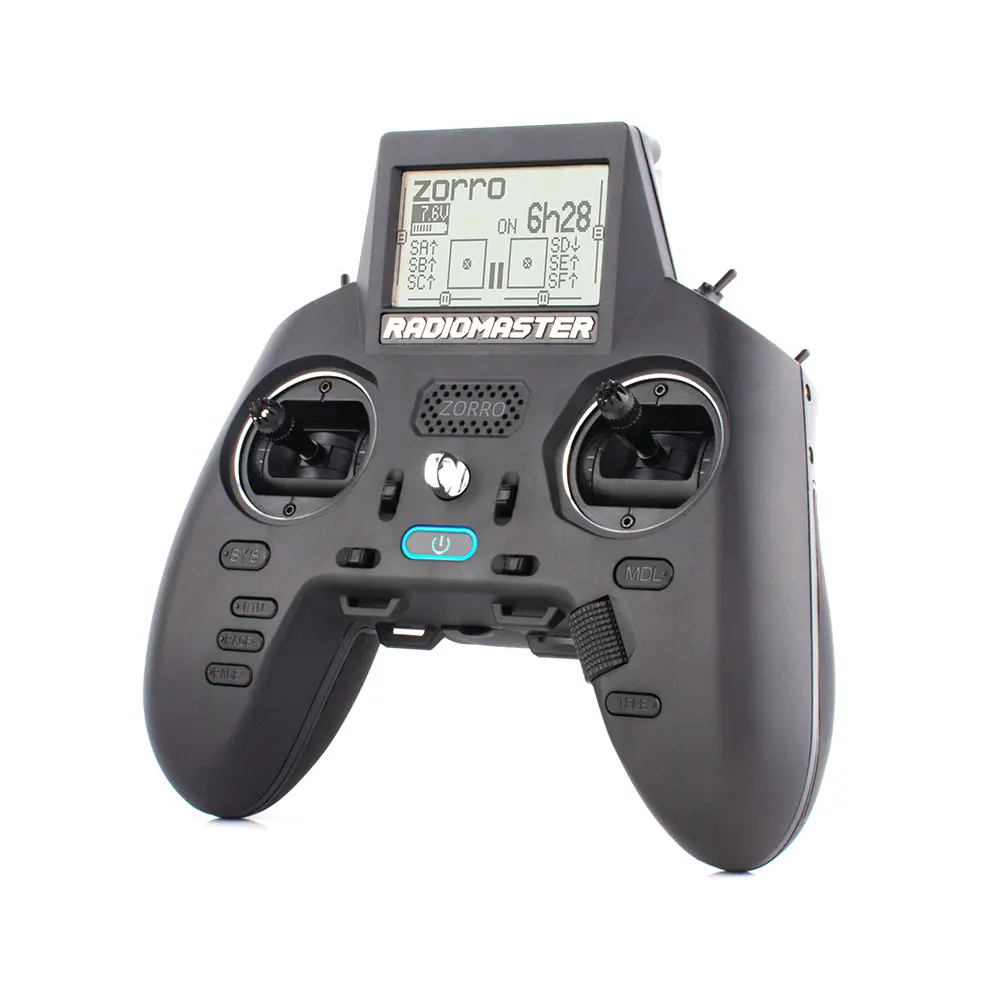

Radiomaster Zorro Radio Controller (M2) CC2500/ 4 in 1/ ELRS 2.4GHz OPENTX & EDGETX Switchable in Mode 1 and Mode 2
Description
RadioMaster Zorro Raio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
RadioMaster Zorro Raio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Specification
Versions |
CC2500 |
4in1 |
ELRS |
|||
Physical Dimensions |
170*159*108mm |
|||||
Weight |
350 grams |
|||||
Operating Frequency |
2.400GHz-2.480GHz |
|||||
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
|||
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
|||
Antenna Gain |
Folding 2db |
|||||
Operational Current |
160mA@8.4V |
|||||
Operational Voltage |
6.6-8.4v DC |
|||||
Control Distance |
> 2km |
> 2km |
Receiver and Power Output dependant |
|||
Operating system |
OpenTX / EdgeTX Compatible |
|||||
Control channels |
Maximum 16 (Rx dependent) |
|||||
Display |
128*64 Monochrome LCD |
|||||
Battery |
2 x 18350 (Not included) |
|||||
Charging |
Built in USB-C Charging |
|||||
Gimbal |
Hall-effect |
|||||
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
Firmware Upgrade Method |
Via USB or SD card |
|||||
Support OPENTX & EDGETX
Support 4 RF Configurations
Switchable in Mode 1 and Mode 2
Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
Adjustable Hall Gimbals
External Module Bay
Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
18350 Battery Compartments
Battery Charging
Supports USB-C Directing Charging
Supports External 2S Battery Power Supply
Oversized LCD & Foldable Antenna
DIY Attachment Points
