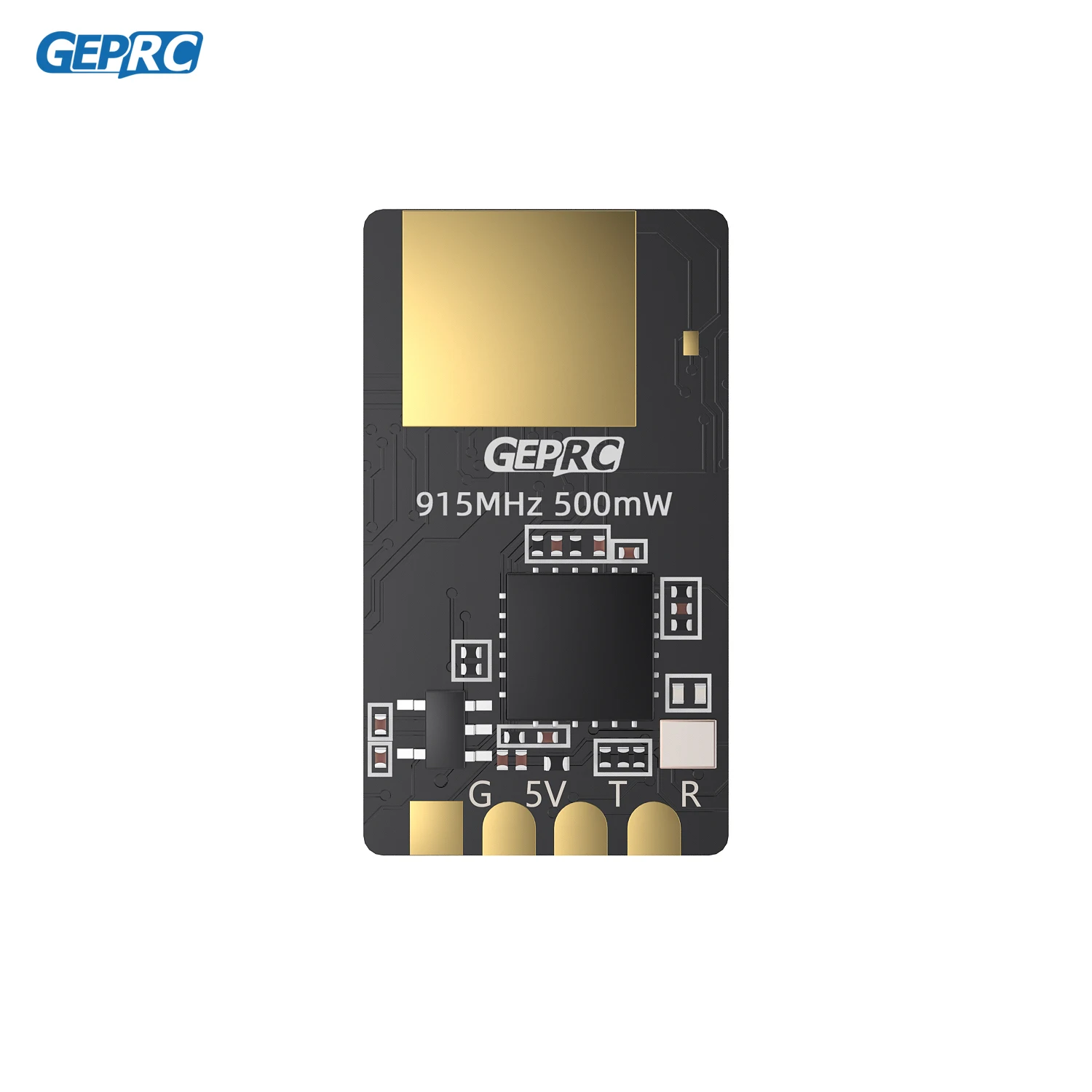

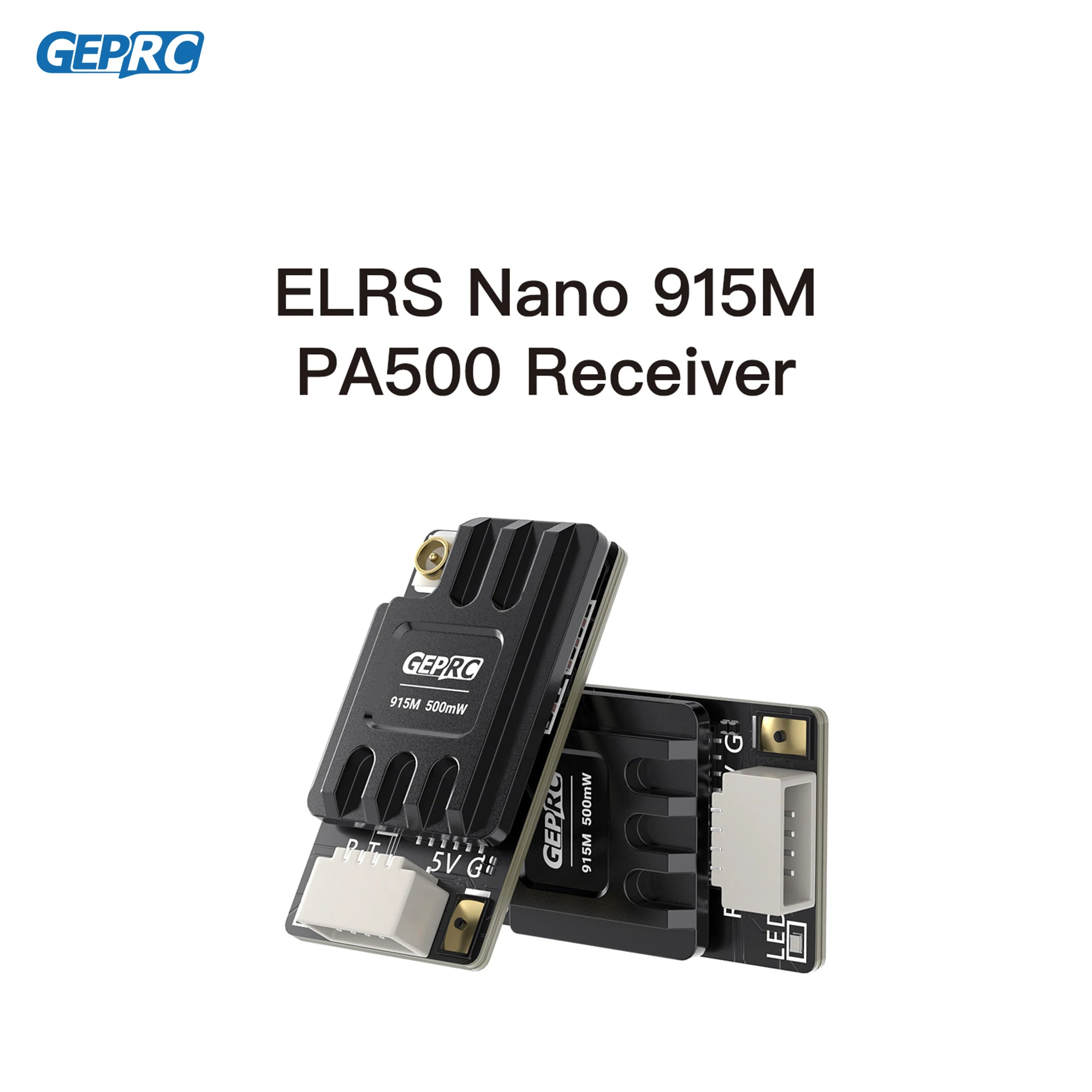

GEPRC ELRS Nano 915M PA500 Receiver Suiable PA Chip 500mW 25Hz 200HzDIY RC FPV Quadcopter Longrange Freestyle Drone Parts

Summary

    The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.
The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shifts caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Feature

1.  Compact size of 13x23x5.5mm

2.  Weighing only 1.9g

3. WIFI firmware upgrade

4.  ELRS open-source project, long-range remote control

5.  Maximum refresh rate of 200Hz

6.  Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations

7.  Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW

8. Equipped with an sh1.0 connector for easy installation

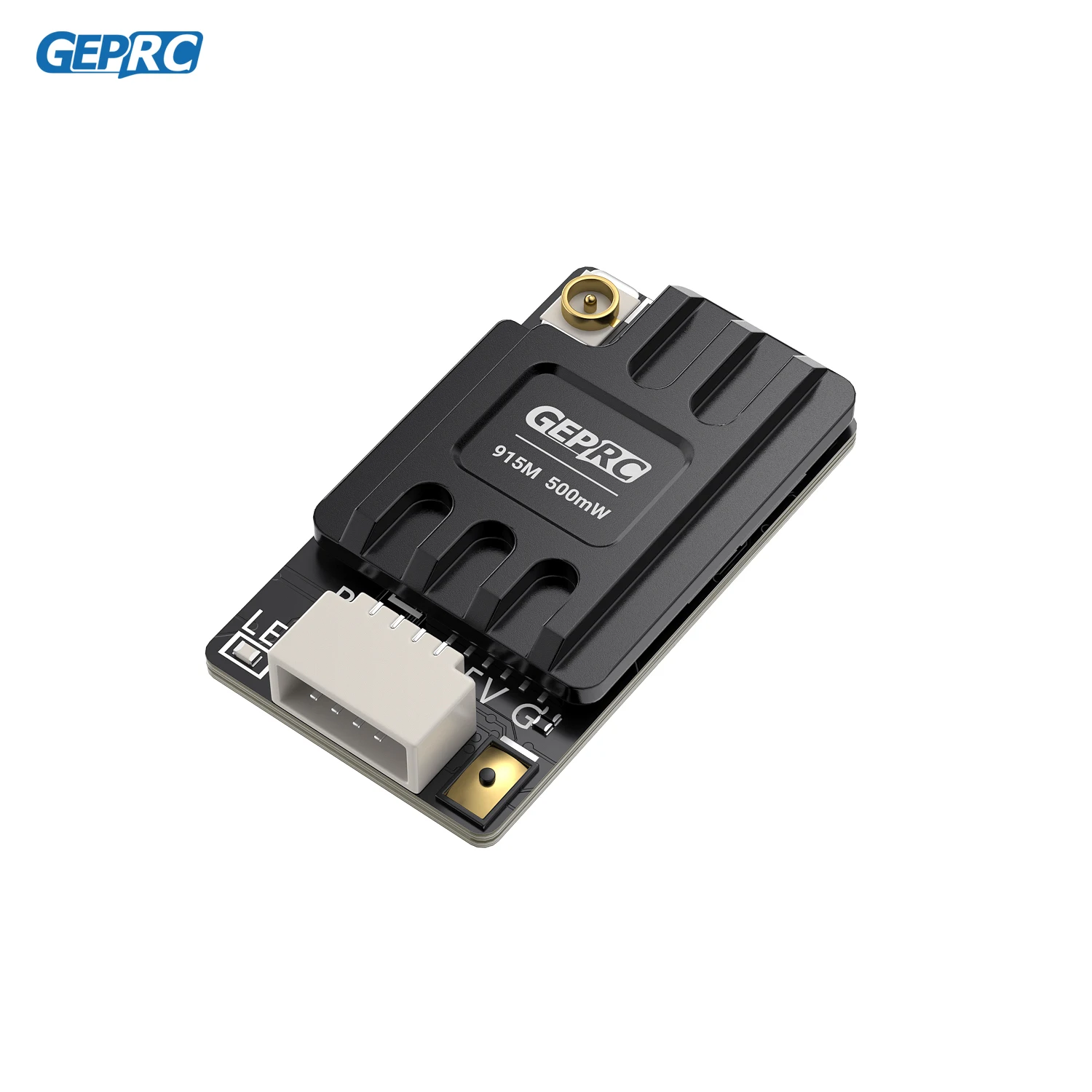

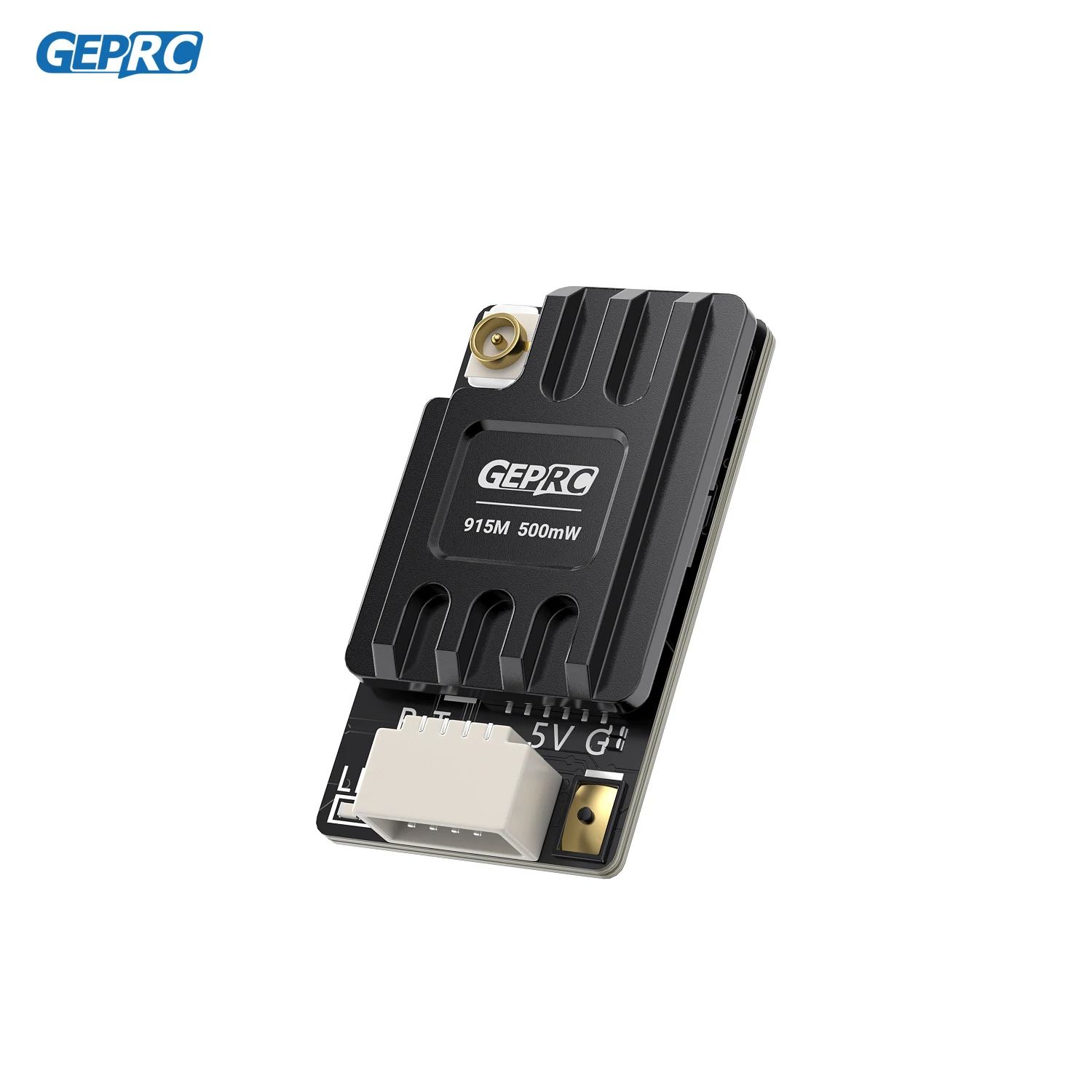

9. Adopts an aluminum alloy CNC shell to optimize heat dissipation

 Includes

1 x ELRS Nano 915M PA500 receiver

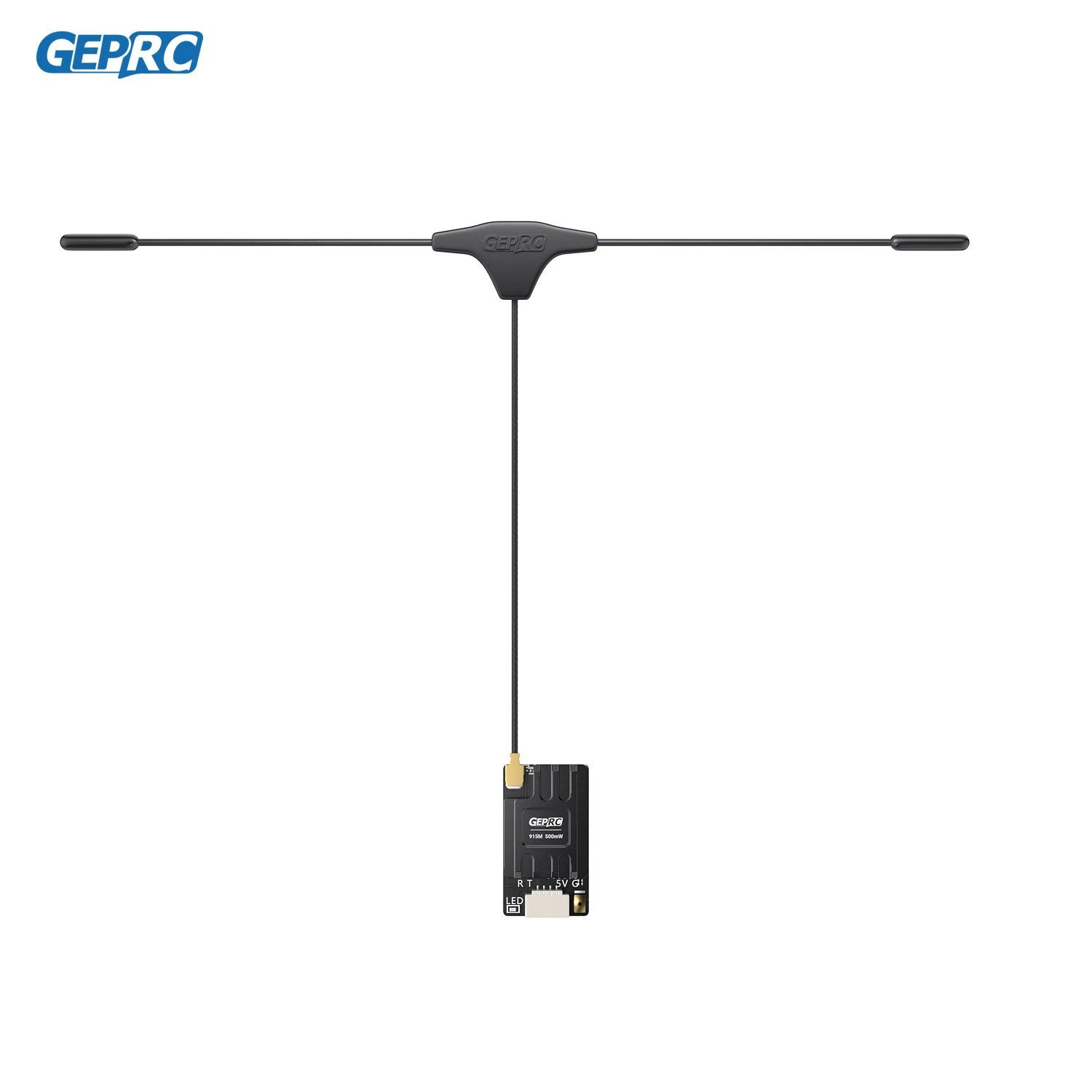

1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
