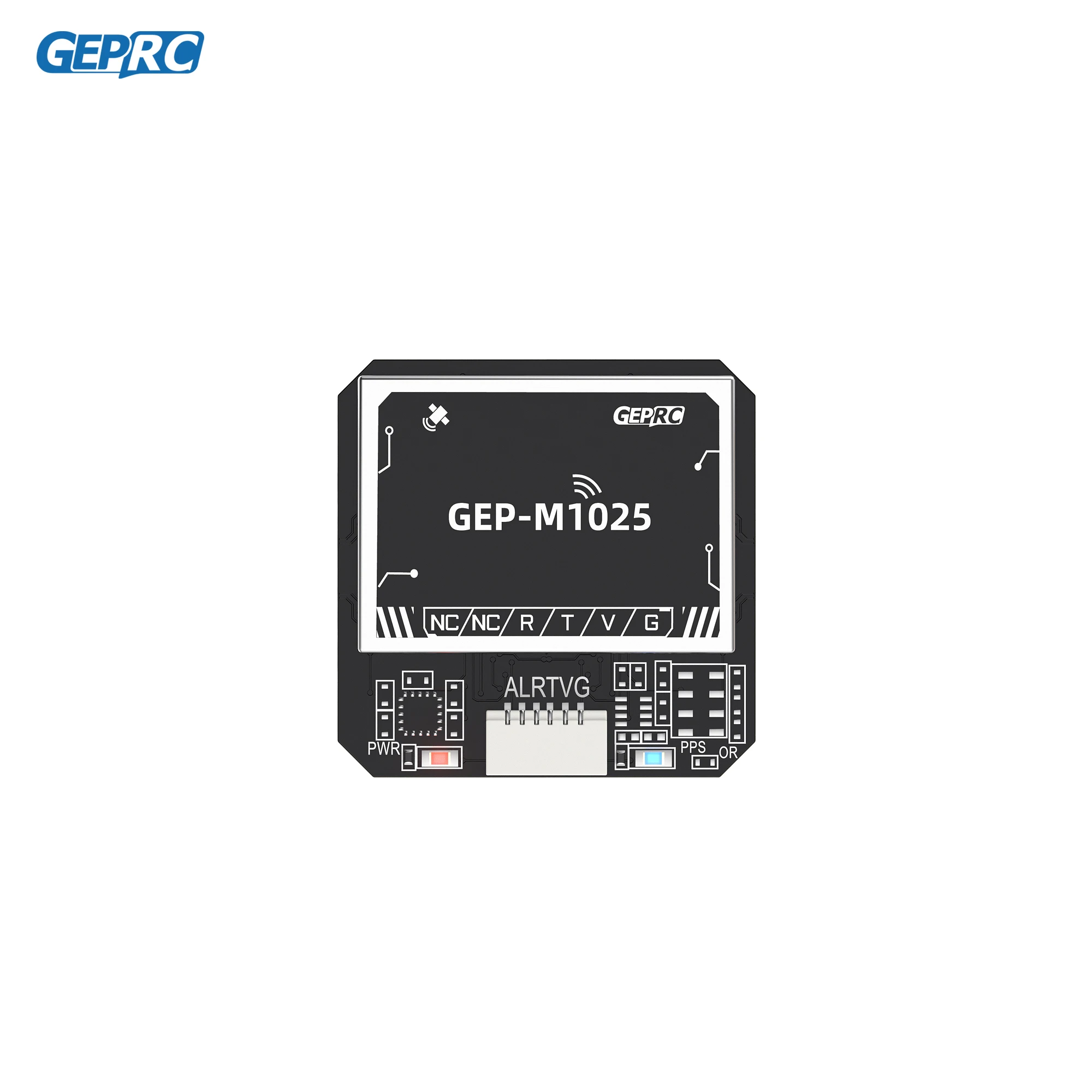

GEPRC GEP-M1025 Series GPS Module M10050 Chip Multi Satellite Magnetometer Barometer Farad Capacitor Accurate for FPV Drone
Description
Summary
The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on M10050 chip and using 25*25mm antenna are now launched.
The GEP-M1025 series GPS positioning module uses M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

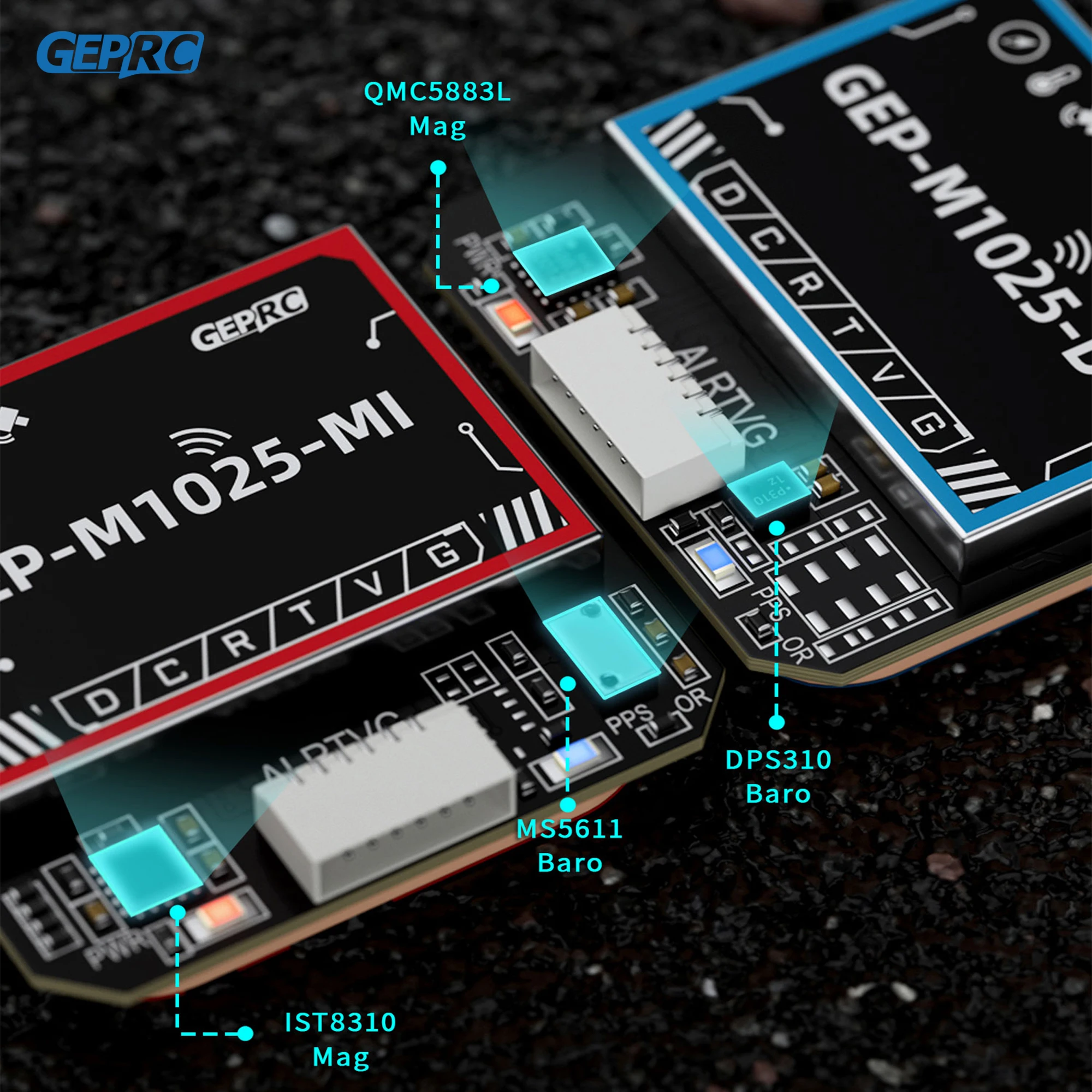

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.
Note：
Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.
Feature
M10 series chip
GPS+BDS+Galileo+QZSS+SBAS joint positioning
Fast positioning speed,Up to 32 satellites
Stable connection quality

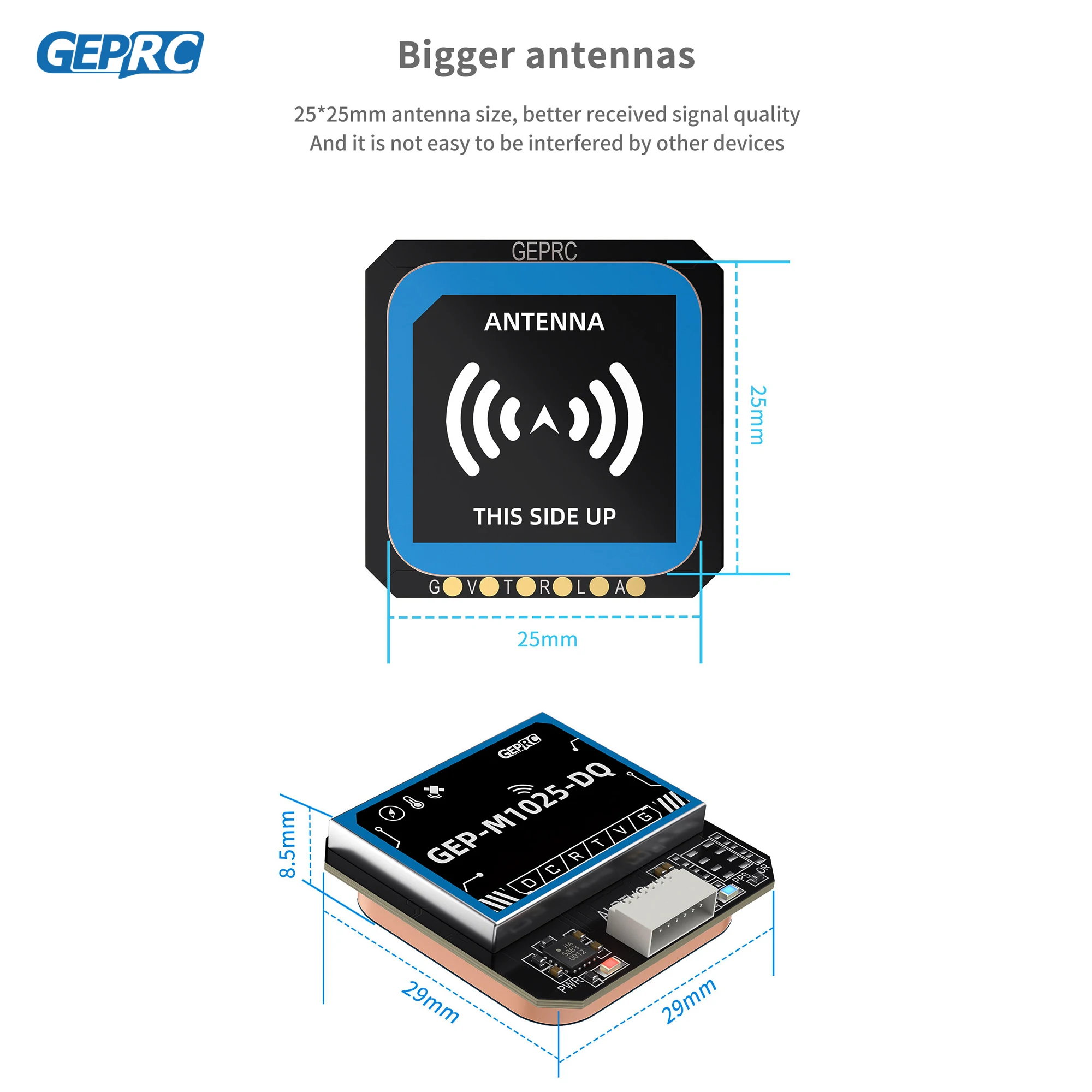

25*25mm antenna size, better signal receiving performance
Built-in Flash chip and Farad capacitor
Onboard indicator light, easy to use

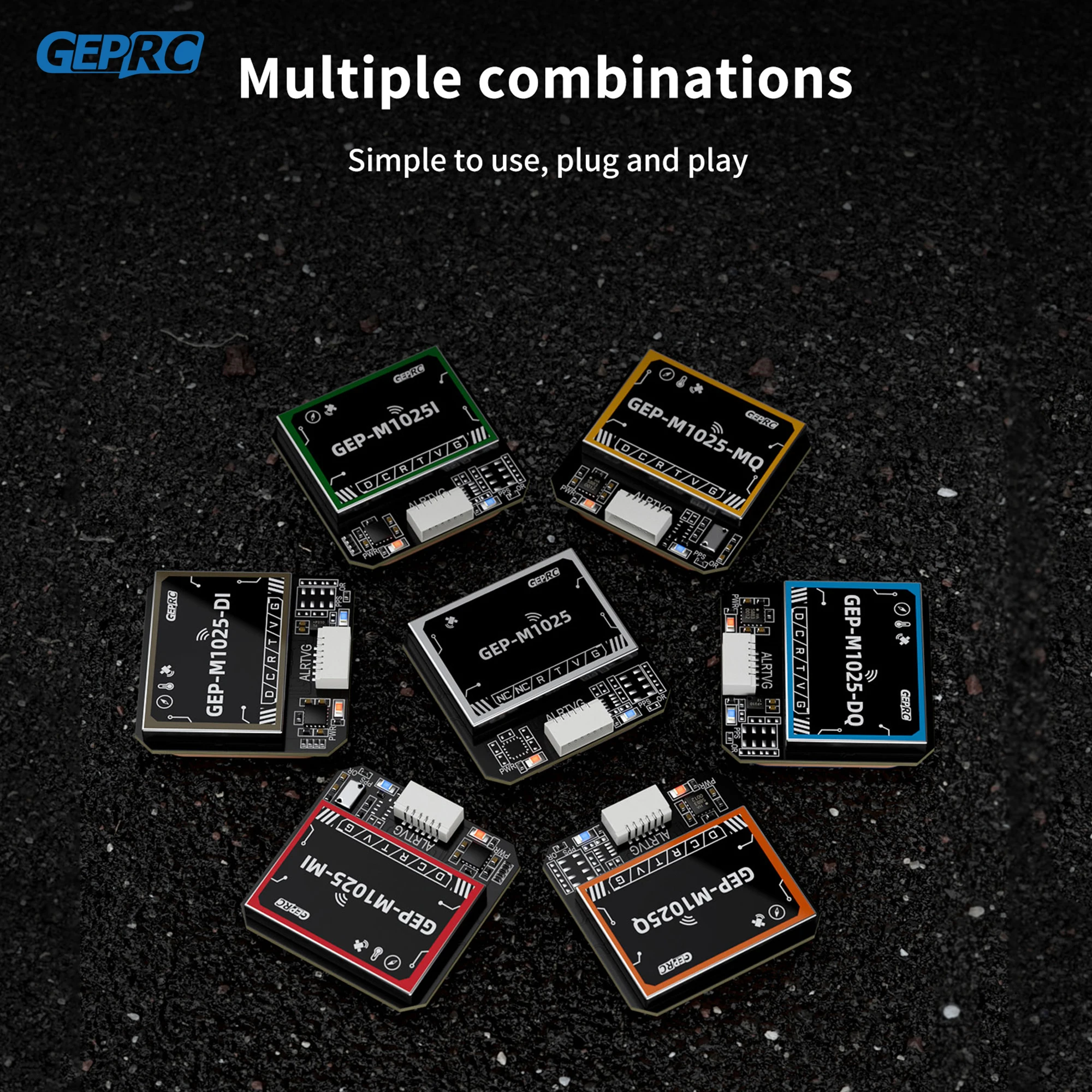

Optional integrated magnetometer+barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
Specifications
| Option | Values |
|---|---|
| Brand |
|
| Category |
|
| Wholesale Price |
|
Product Details
Summary
The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on M10050 chip and using 25*25mm antenna are now launched.
The GEP-M1025 series GPS positioning module uses M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.
Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.
Note：
Feature
M10 series chip
GPS+BDS+Galileo+QZSS+SBAS joint positioning
Fast positioning speed,Up to 32 satellites
Stable connection quality
25*25mm antenna size, better signal receiving performance
Built-in Flash chip and Farad capacitor
Onboard indicator light, easy to use
Optional integrated magnetometer+barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
