Flipsky 75100 Pro V2.0 with Aluminum PCB Based on VESC - image 1 of 6
1 / 6

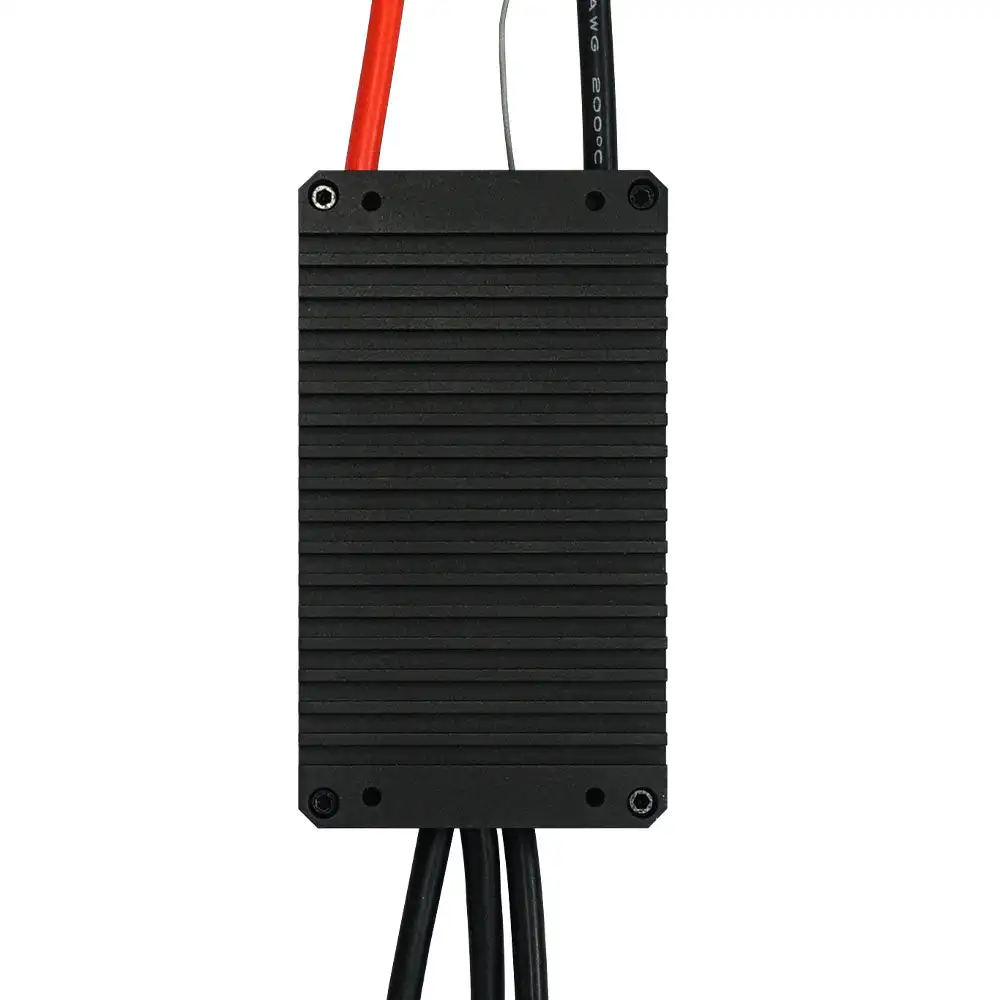

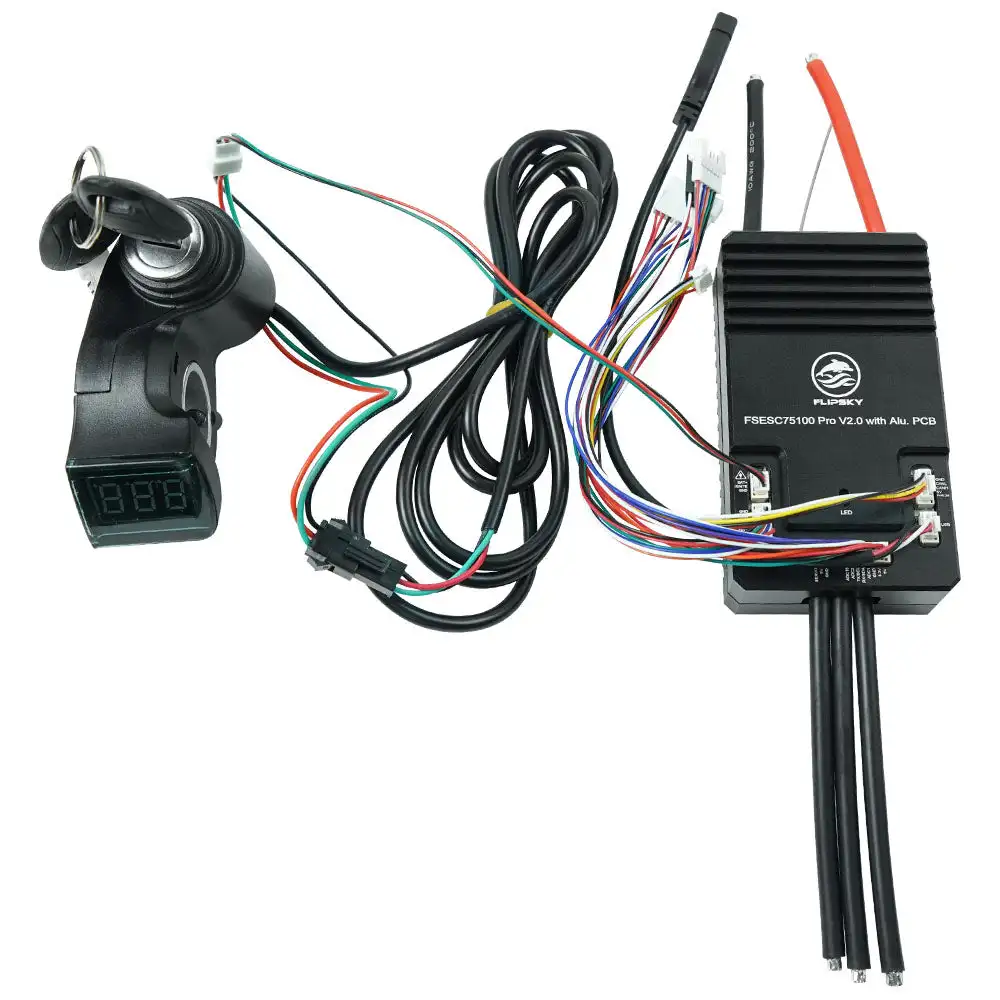

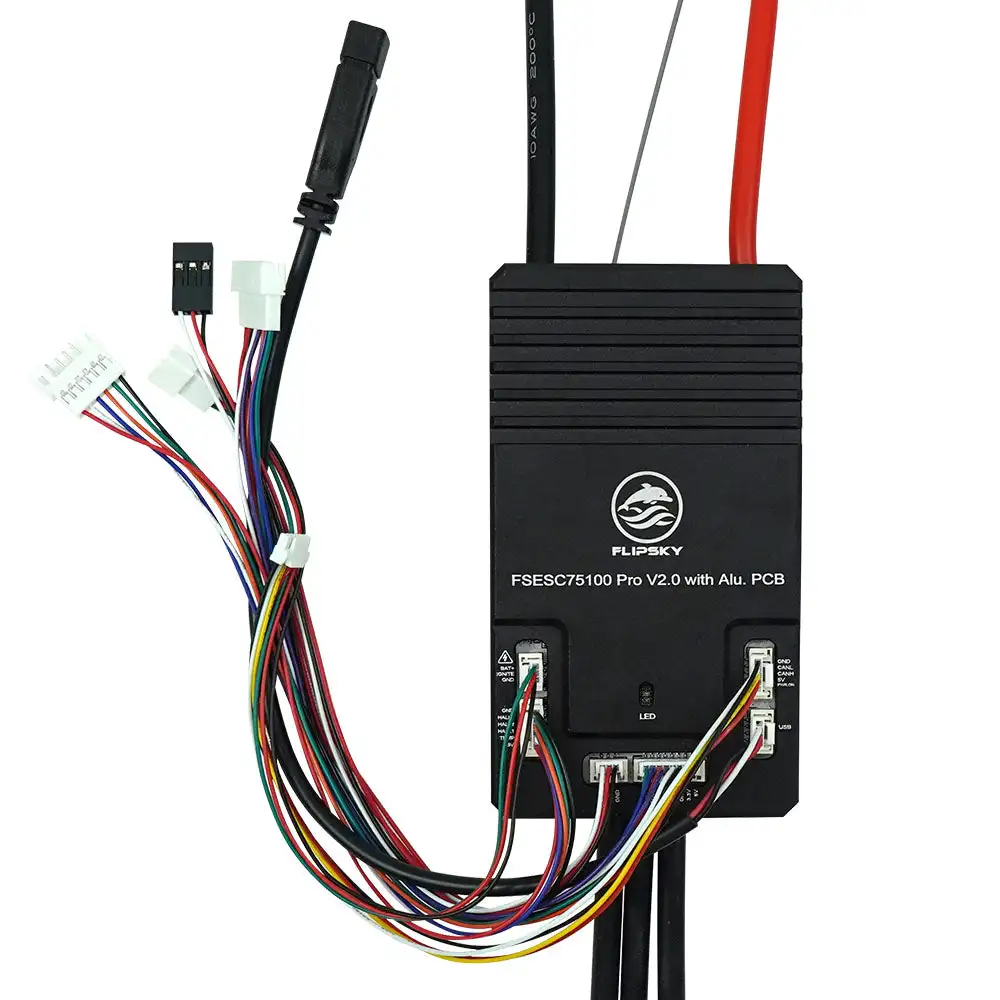

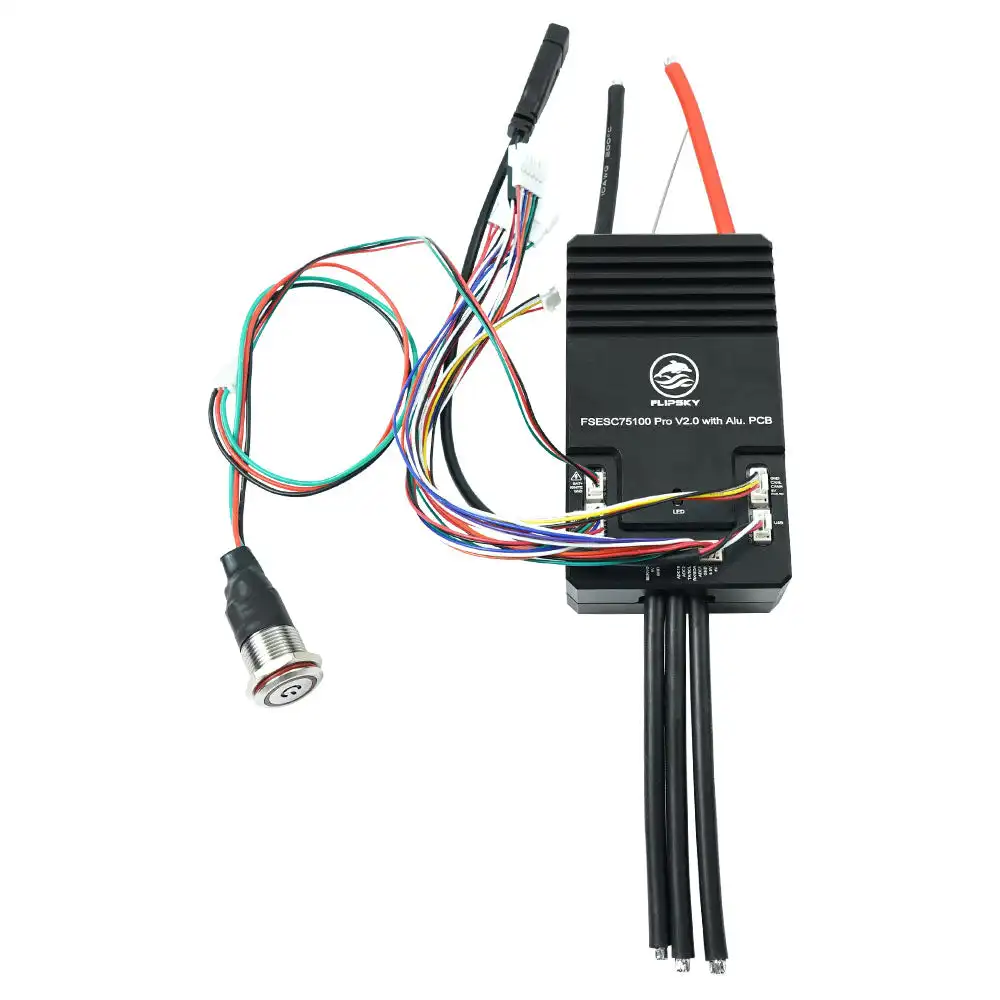

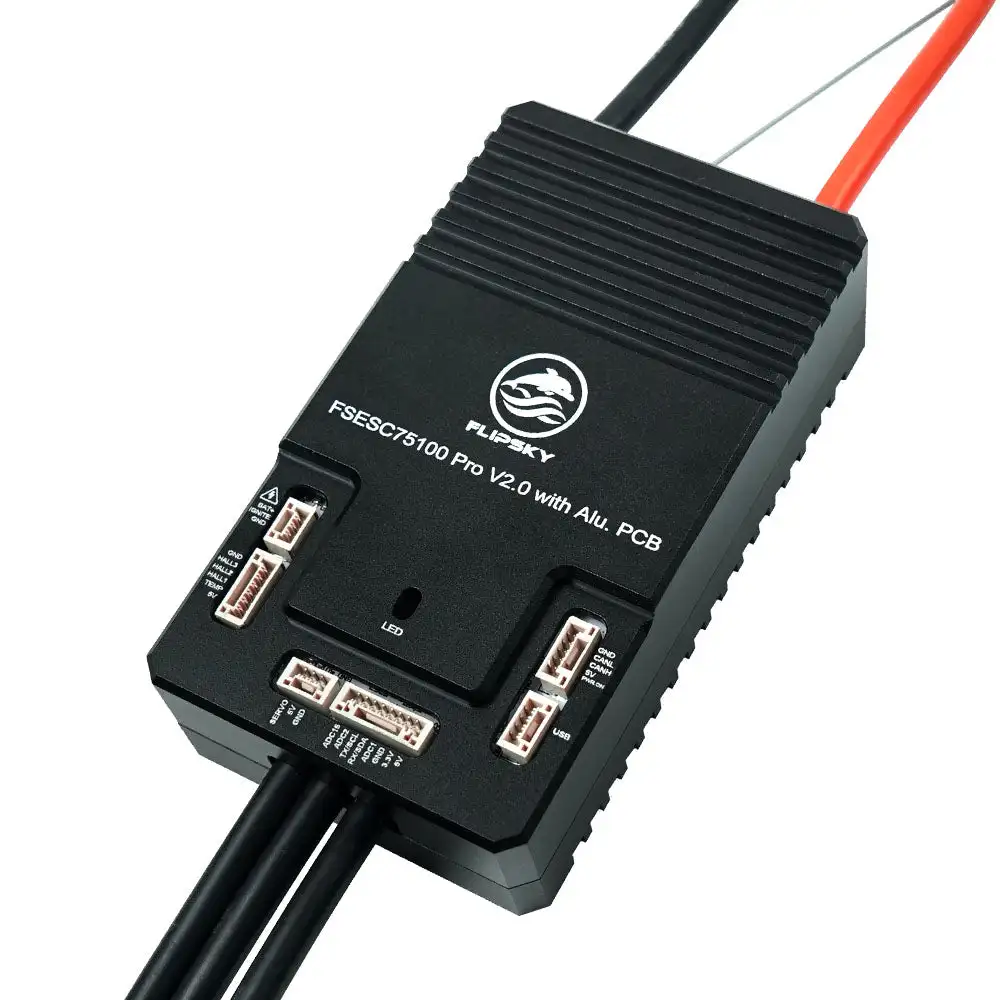

Flipsky 75100 Pro V2.0 with Aluminum PCB Based on VESC

HGLRC

From US $199.98 - 205.98
Est. US $199.98 - 205.98 / unit (1-9 pcs)
$185 @ 10+ pcs$175 @ 100+ pcs

Description

Spec:

Firmware: 6.02 (firmware update supported)

Size: L103mm*W58mm*H27.7mm

Voltage:14-84V (4-20S)

Current:100A Continuous

BEC:5V@1.5A

Support BLDC square wave mode control and FOC sine wave mode

ERPM:150000

Control Interface Ports:USB,CAN,UART

Supported Sensors:ABI，HALL，AS5047，AS5048A

Input Set Support:PPM，ADC，NRF,UART

Wire Size: 10AWG(75100 Pro)

Programmable: Yes

Regenerative Capacity: Yes

Phase Filter: Yes

Power Switch Button: Red

integrates Bluetooth module function

The maximum peak current is 150A

the absolute maximum current is recommended to be set to 200A

Wiring diagram:

Share this product
Variant
Selected priceUSD 199.98

Specifications

OptionValues
Size
  • L103mm*W58mm*H27.7mm
Voltage
  • 14-84V (4-20S)
Current
  • 100A Continuous
Firmware
  • 6.02 (firmware update supported)

Product Details

Spec:

  • Firmware: 6.02 (firmware update supported)
  • Size: L103mm*W58mm*H27.7mm
  • Voltage:14-84V (4-20S)
  • Current:100A Continuous
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI，HALL，AS5047，AS5048A
  • Input Set Support:PPM，ADC，NRF,UART
  • Wire Size: 10AWG(75100 Pro)
  • Programmable: Yes
  • Regenerative Capacity: Yes
  • Phase Filter: Yes
  • Power Switch Button: Red
  • integrates Bluetooth module function
  • The maximum peak current is 150A
  • the absolute maximum current is recommended to be set to 200A

Wiring diagram:

Flipsky 75100 Pro V2.0 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller
